H:3000~5500mm 43.5W-100W
LED GARDEN LIGHTING

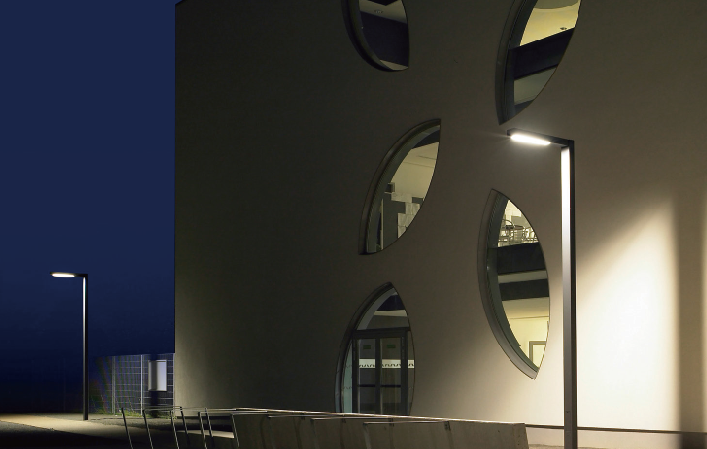

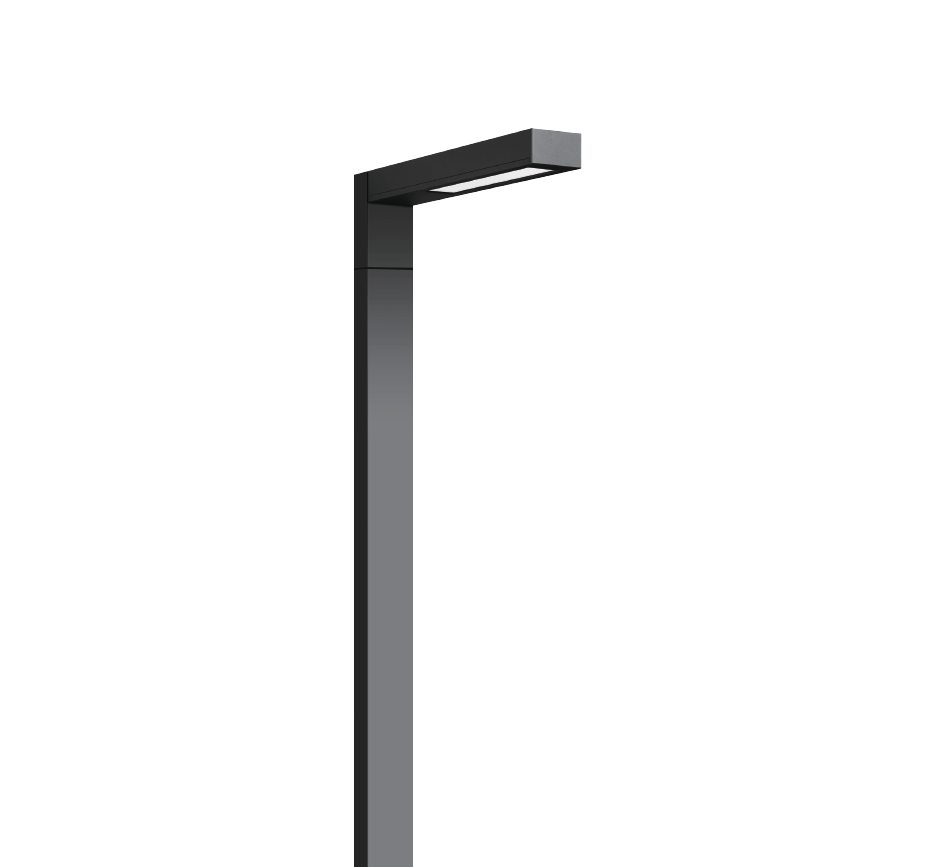

LED GARDEN LIGHTING. Aluminium profiles, aluminium alloy with Silicone gasket stainless steel screws and Polycarbonate Asymmetric Optical (Anti-UV) Lens. mounting base made of hot-dip galvanised steel according to EN ISO 1461, With inserted door made of die cast aluminium Door latch. Double layers of UV-resistant polyester and anti corrosion powder coating. IP68 LED Light Engine and Connector is used

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Anchor Bolt Mounted

    螺栓安裝

    Perno de anclaje montado

  • Dimension-尺寸-Dimensión

    • Refer to Technical Drawing
    • H: 3000mm     H: 3500mm    H: 4000mm    H: 4600mm    H: 5000mm    H: 5500mm
  • Input Voltage-輸入電壓-Voltaje de entrada

    AC100-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 43.5 W Single Lantern單燈頭Sola linterna
    • 70 W Single Lantern單燈頭Sola linterna
    • 87W Twin Lantern 雙燈頭 Linterna gemela
    • 100 W Twin  Lantern雙燈頭Linterna gemela
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. Zigbee Driver AC100-240V 50/60HZ

  • Power Factor / 功率因數/Factor de potencia

    •  PF > 0.95 @ 230VAC
  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<20%

  • Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

    • 2kV line-line
    • 4kV line-earth
  • Light Source Brand-光源品牌-Fuente de luz de marca

    • LUMILEDS LUXEON TX - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
    • IP68 LED Light Engines;
  • "Lumen Maintenance LM-80 Reported by TM-21" ta = 40 °C

    1. L90(10k)B10 = 50,700 hrs

    2. L80(10k) B10 > 63,500 hrs

    3. L70(10k) B30 > 250,500 hrs

  • Color Temperature -色溫

    Temperatura del color

    3000K / 4000K / 5000K / 5700K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Beam Angle

    光束角

    ángulo de haz



     Asymmetric

    • 1502 I Short
    • 1810 I Short
    • 1811 I Short
  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    • 100 Lm/w(3000K),
    • 110 Lm/w(4000K),
    • 120 Lm/w(5000K),
    • 120 Lm/w(5700K),

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    • 129 Lm/w(3000K),
    • 137 Lm/w(4000K),
    • 143 Lm/w(5000K),
    • 159 Lm/w(5700K),

  • Housing materials-外殼材料

    Materiales de la carcasa

    Aluminium alloy, Silicone gasket and stainless steel Screws

    鋁合金,矽膠墊圈和不銹鋼螺絲

    Aleación de aluminio, junta de silicona y tornillos de acero inoxidable.

  • Housing Color

    外殼顏色

    color de la carcasa



    Polyester powders Coating 聚酯粉末塗料Recubrimiento de poliéster en polvo

    • Black @ RAL 9005
    • Dark Gray @ RAL 7037
    • Aluminium Silver @ RAL 9006
    • Graphite @ RAL 7016
  • Ingress Protection-防護等級

    Protección de ingreso

    IP66

  • Mech impact protection
    機械衝擊保護
    Protección contra impactos mecánicos

    IK08

  • MTBF 平均故障間隔 MTBF

    336.5K hrs

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Country of Design 設計國家

    United Kingdom 英國

  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaries: LVD:  EN60598-1;IEC 60598-2-3;  EMC : EN55015; EN 61547; EN 61000-3-2 ;EN 61000-3-3

    LED Driver:          IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 61000-3-2;

                               IEC/EN 61000-3-3;IEC/EN61574;EN 55015H

    Hot-dip galvanised steel according to EN ISO 1461

  • Certification-認證-Certificación

Specification Code

Example Product Code:
GABEE-70W-SW-40
GABEE
-
Power Consumption
-
LED Driver Type
-
Color Temperature

Power Consumption

  • 43.5W
    43.5 W Single Lantern單燈頭Sola linterna
  • 70W
    70 W Single Lantern單燈頭Sola linterna
  • 87W
    87W Twin Lantern 雙燈頭 Linterna gemela
  • 100W
    100 W Twin Lantern雙燈頭Linterna gemela

LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    Analog 0 -10V Dimming
  • DA
    DALI Dimming
  • ZI
    ZIGBEE Wireless Control

Color Temperature

  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 57
    5700K
