PEBBLE

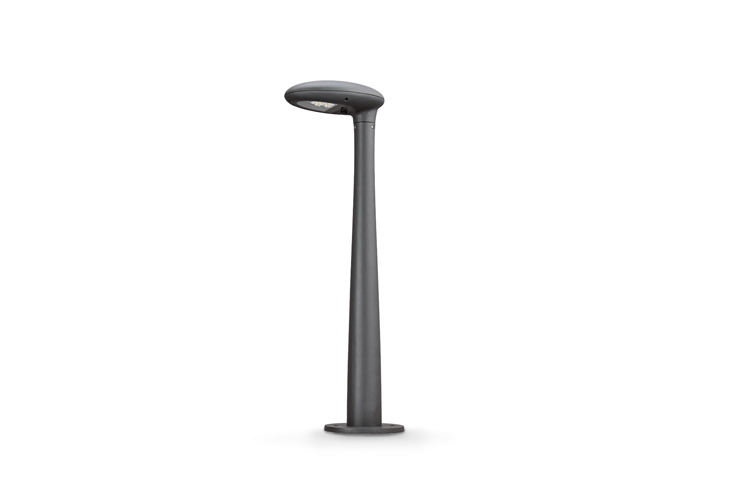

PEBBLE

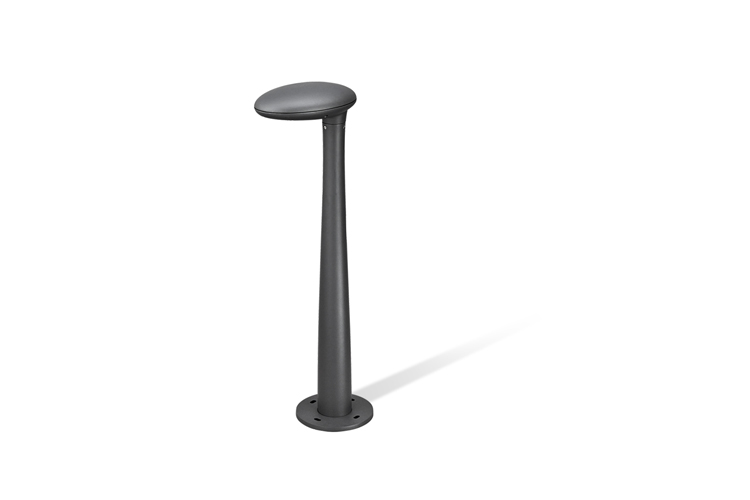

PEBBLE-1

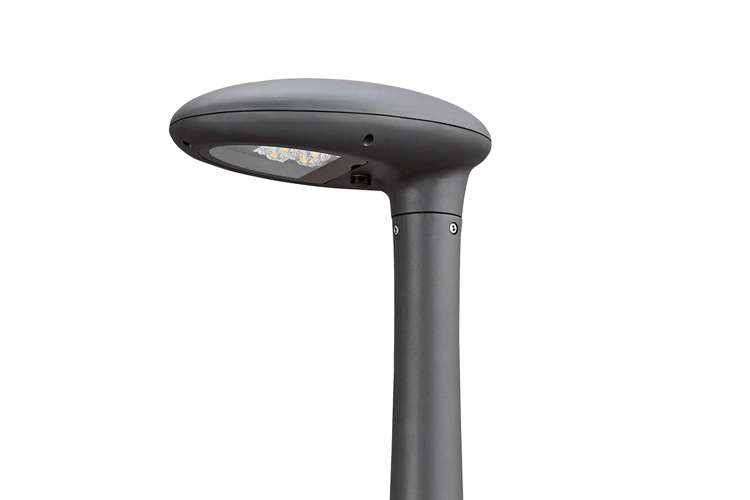

PEBBLE-2
H:876mm 10W MAX IP65
LED BOLLARDS LIGHT

Pebble is a landscape bollard luminaire developed to illuminate the wide range of ground using the high performance of the LED light source. The outdoor lighting fixture is designed with a simple curved “pebble” shaped head and sleek body to complete the modern look. The cut-off type of luminaire provides gentle soft light and visual comfort without any glare. With the wide light distribution, the spacing between bollards can be dramatically increased compared to normal bollard luminaires.

Technical Data

  • Luminaire Type-安裝方式-Tipo de luminaria

    Cast in Bolt Mounted 螺栓安裝 Fundido en montaje con perno

  • Dimension-尺寸-Dimensión

    • L: 263 x W: 176 x H: 876 mm
    • For more details, refer to technical drawing.
  • Power Consumption Max-燈具功率

    Consumo de energía Max

    10W

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC 220-240V 50/60Hz

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. 0-10V Dimming Driver  AC100-240V 50/60HZ

    3. Dali Dimming Driver AC100-240V 50/60HZ

  • LED Driver Features驅動特性

    Funciones del controlador de LED

    POWER FACTOR : PF≧0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

  • Control Protocol-控制協議 Protocolo de Control

    0-10V / Dali

  • Beam Angle 光束角 ángulo de haz

    Asymmetric

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - (Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk))

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >80



  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria

    • 65 Lm/w(2700K),      70 Lm/w(3000K),     70 Lm/w(4000K),
    • 75 Lm/w(5000K),      75 Lm/w(6500K),
  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    • 110 Lm/w(2700K),     120 Lm/w(3000K),     120 Lm/w(4000K),
    • 130 Lm/w(5000K),     130 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Cast aluminum , Clear tempered glass diffuser , Stainless steel screws, Silicon seal gaskets

    壓鑄鋁,透明鋼化玻璃擴散器,不銹鋼螺釘,硅密封墊圈

    Aluminio fundido, difusor de vidrio templado transparente, tornillos de acero inoxidable, juntas de sello de silici

  • Housing Color外殼顏色color de la carcasa

    Powder Coated in Dark gray- UV Resistant powder coating for Anti-corrosion Protection

    深灰色粉末塗料-防紫外線粉末塗料,防腐蝕

    Recubrimiento en polvo en gris oscuro - Recubrimiento en polvo resistente a los rayos UV para protección anticorrosión

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Country of Origin 產地País de origen

    Korea 韓國Corea

  • Comply Testing Standard符合測試標準

    Cumplir el estándar de prueba

    EN/ IEC  60598-1;EN/IEC 60598-2-1;EN/IEC 62471 (RG1) ;EN/IEC 62493;EN/IEC 62031;IEC TR 62778; IEC62262;

    IEC62722-1; IEC 62722-2-1  RoHS  CIBSE TM5 or IES  TM21-L70

    EN 55015; EN/IEC 61547 ;EN/IEC 61000-3-2; EN/IEC 61347-1;EN/IEC 61347-2-13;EN/ IEC 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
PEBBLE-10W
PEBBLE
-
10W

POWER CONSUMPTION

  • 10W
    10W
