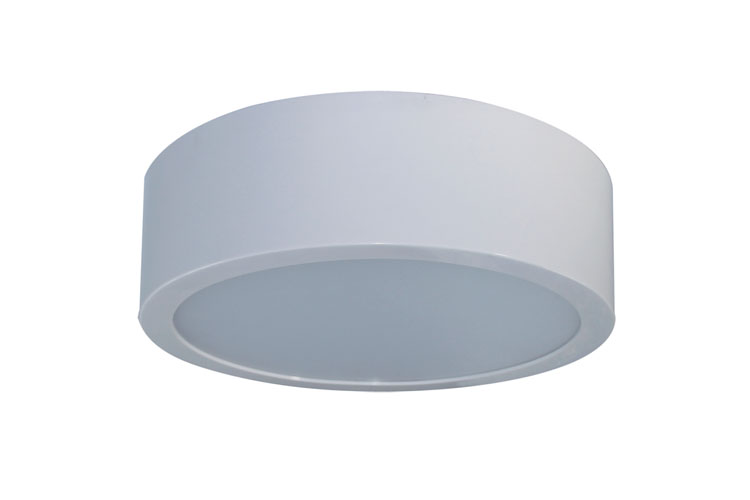

LED CEILING LIGH. Housing made of pre-painted, roll-formed sheet steel, white, with injection-moulded diffuser made of opal Polycarbonate. LED module: LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear.Applications: carpark, hotels, restaurants, schools, dormitory, supermarkets, shopping malls, commercial buildings.
Luminaire Type-
安裝方式
Tipo de luminaria
Ceiling Mount Type
吸頂安裝
Tipo mount en el techo

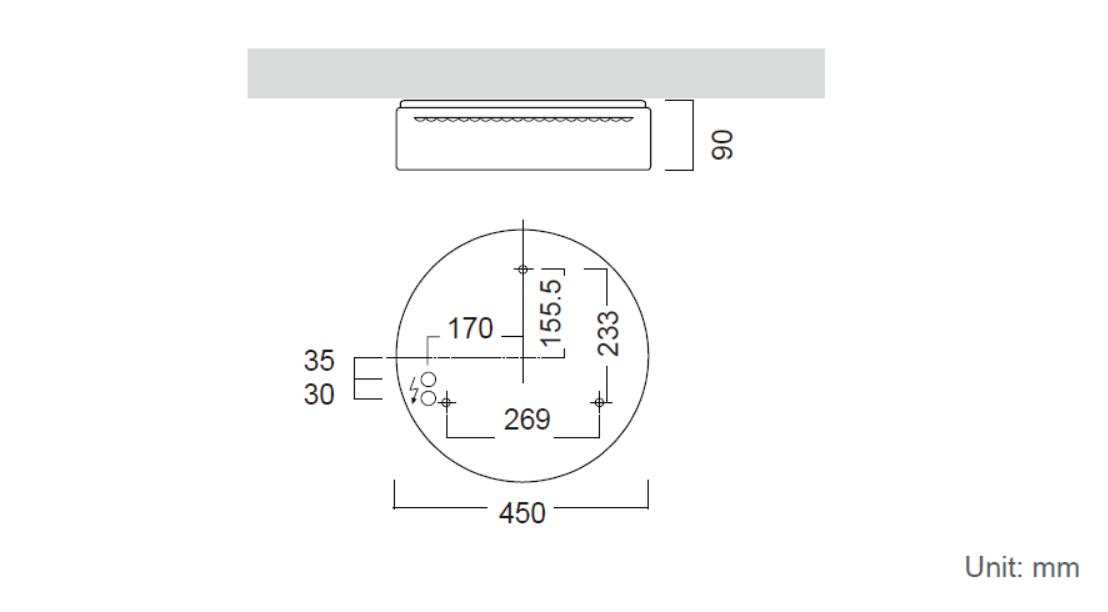

Dimension-尺寸-Dimensión
DIA: 450 x H: 90 mm
QTY of LEDs-燈珠數量-CANT de LEDs
SMD LEDs
Input Voltage-輸入電壓-Voltaje de entrada
AC220-240V 50/60Hz
Power Consumption Max-燈具功率
Consumo de energía Max
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated-type LED Driver --Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ
3. 0 -10V Dimming Driver AC100-240V 50/60HZ
4. Dali Dimming Driver AC100-240V 50/60HZ
5. DMX Driver AC100-240V 50/60HZ
6. RDM Driver AC100-240V 50/60HZ
7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features
驅動特性
Funciones del controlador de LED
POWER FACTOR : PF>0.90 @ Full Load
TOTAL HARMONIC DISTORTION: THD< 20%
EFFICIENCY (Typ.): >85%
Control Protocol-控制協議
Protocolo de Control
0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

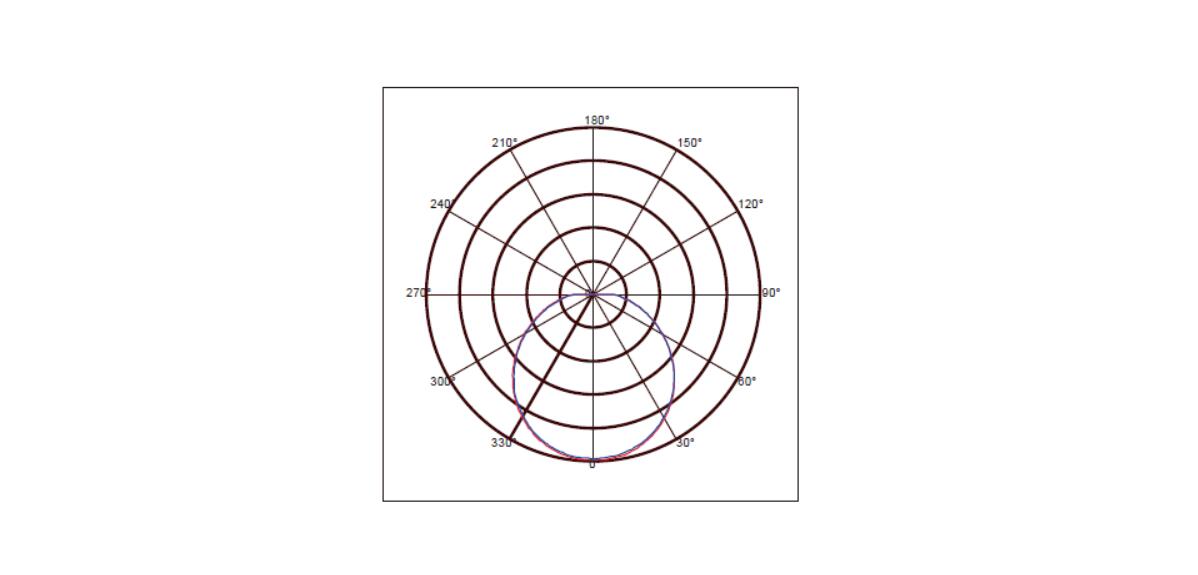

Beam Angle
光束角
ángulo de haz
120°
Light Source Brand-光源品牌-Fuente de luz de marca
SAMSUNG - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"
1. L90(10k) = 50,700 hrs
2. L80(10k) > 63,500 hrs
3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
> 80
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy
燈具效率
La eficacia de la luminaria
LED Source Luminous Efficacy
LED光源光效
Fuente luminosa LED Eficacia
Housing materials-外殼材料
Materiales de la carcasa
Steel and Polycarbonate
鋼鐵和聚碳酸酯
Acero y policarbonato
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Ingress Protection-防護等級
Protección de ingreso
IP50 - (IEC 60529)
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: IEC 60598-1 / IEC 60598-2-1/ Photometric data-IES format
LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
