GRELOFERY

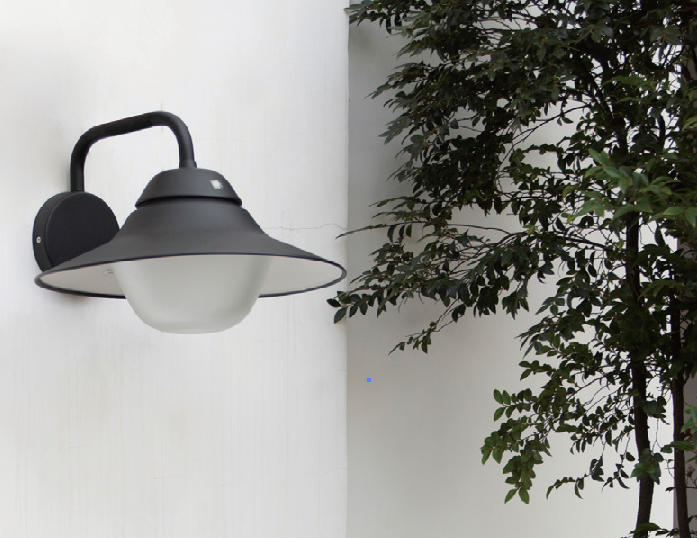

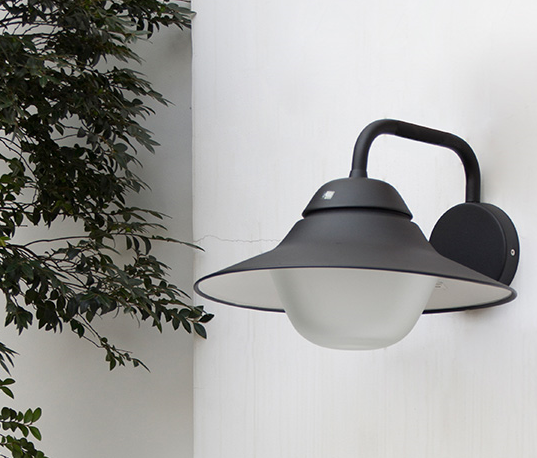

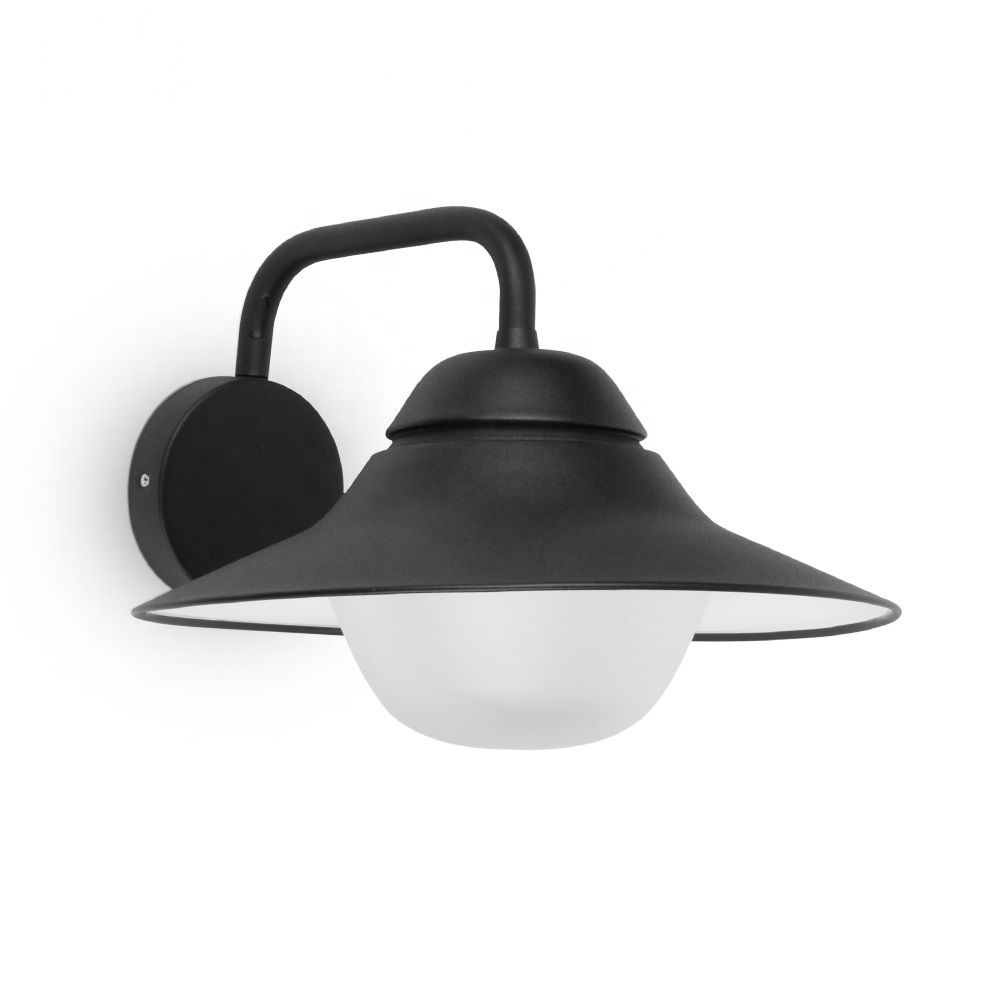

Wall Light IP55
Wall Light IP55
  • Body: Die Cast Aluminium Housing with high corrosion resistance paint coasting
  • Color : Black
  • Opal Glass Diffuser
  • Durable silicone Rubber Gasket and Stainless Steel Screws

Technical Data

  • Luminaire Type

    Wall  Mounting

  • Dimension

    Dia : 375m x H: 253mm

  • Input Voltage

    AC 220-240V 50/60Hz 1 Phase

  • Lamp Sources (E27)

    • 13W  Compact fluorescent lamps  3000K or 4000K Ra >80 and Life time >10000

    • 26W  Compact fluorescent lamps  3000K or 4000K Ra >80 and Life time >10000

    • 32W  Compact fluorescent lamps  3000K or 4000K Ra >80 and Life time >10000

  • Material / Finish

    Body and Trim :Polycarbonte

    Trim Color : White

    Reflector: Aluminum

    Diffuser: Clear Glass or Frost Glass

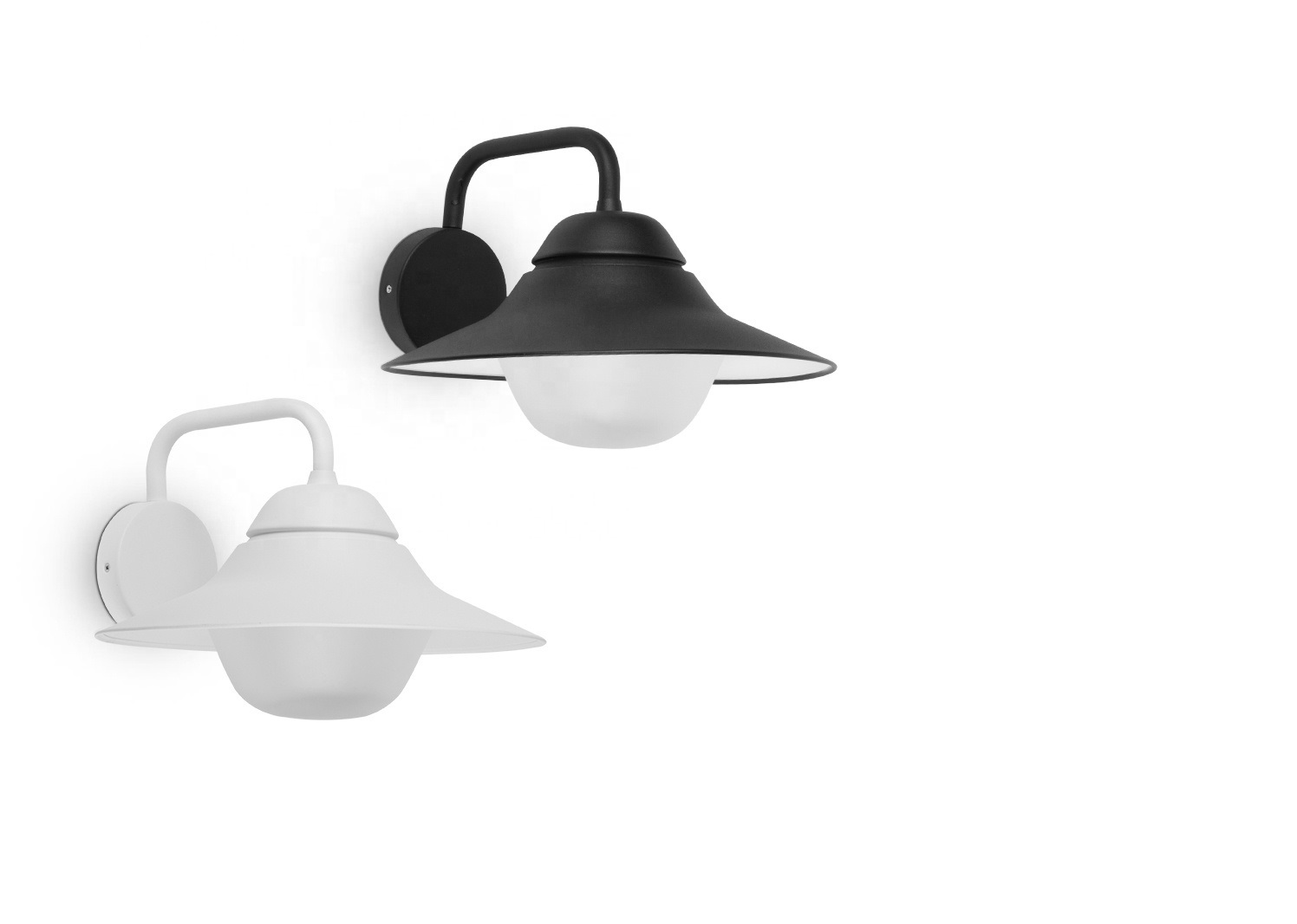

  • Housing Color and Trim

    White RAL9003

    Black  RAL9005



  • Operating Temperature Range

    -30 °C / +50 °C

  • Operating Humidity

    0~90%, non-condensing

  • Ingress Protection

    IP55 (Anti-fog Protection )

  • Mech impact protection



    IK07

  • Comply Testing Standard

    Luminaires: IEC 60598-1 / IEC 60598-2-1

  • Certification

Specification Code

Example Product Code:
GRELOFERY-26W
GRELOFERY
-
Lamp Sources

Lamp Sources

  • 13W
    13W  Compact fluorescent lamps
  • 26W
    26W  Compact fluorescent lamps
  • 32W
    32W Compact fluorescent lamps
