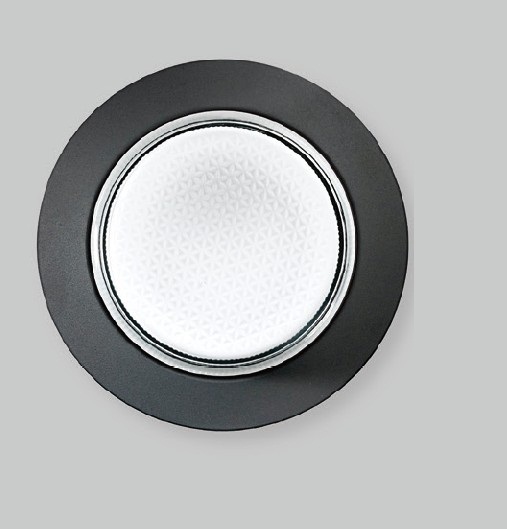

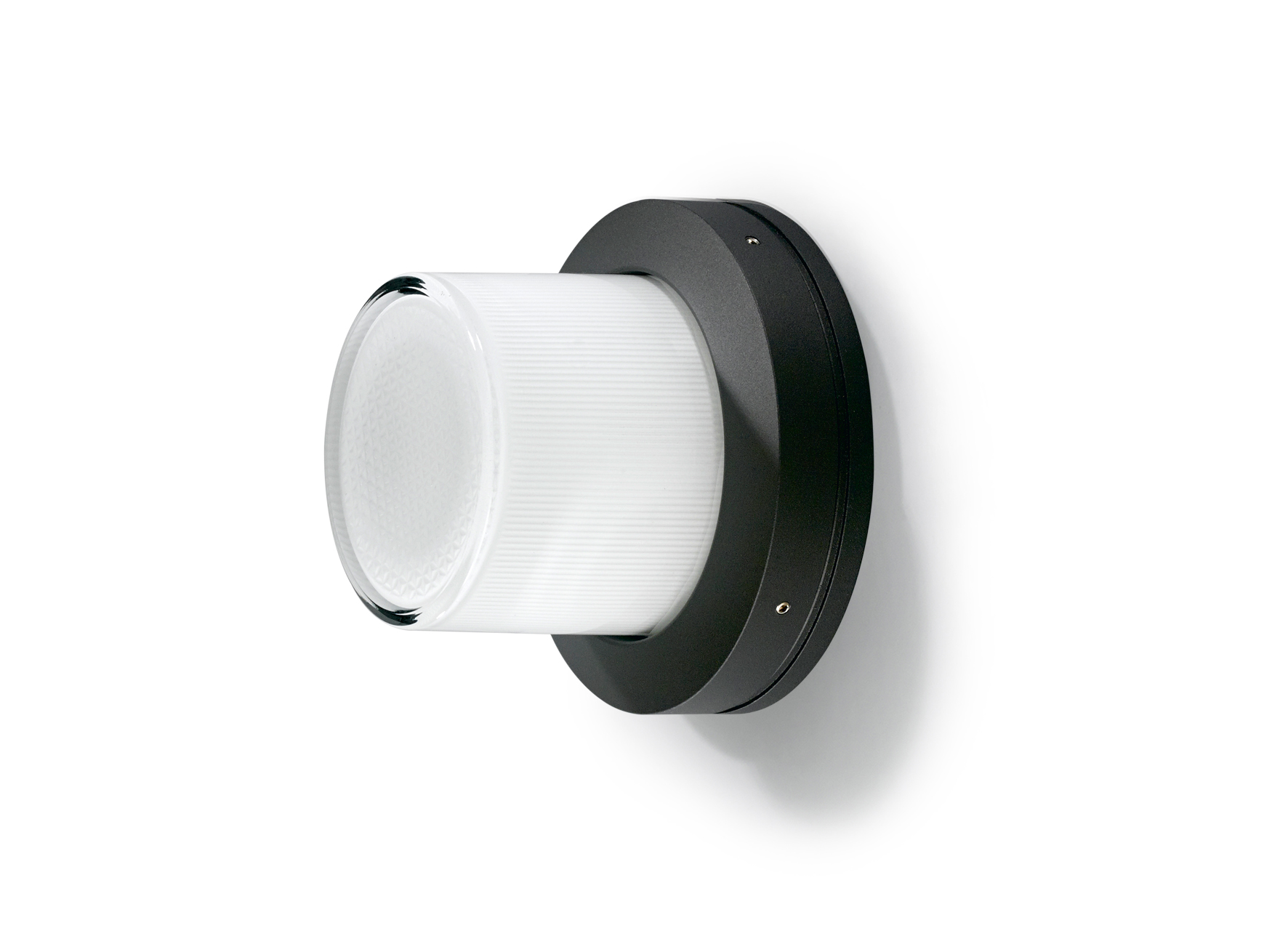

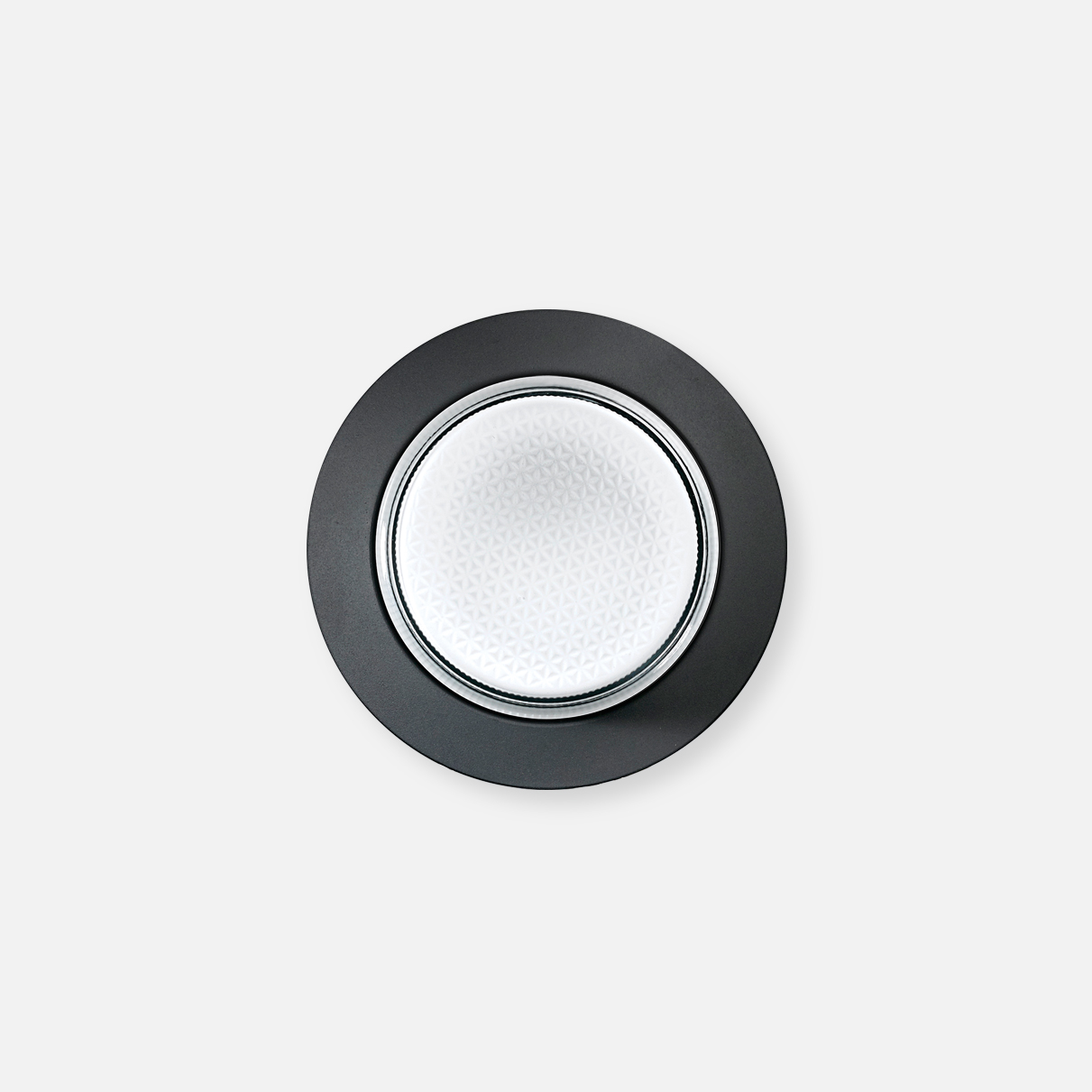

WENCE-LED WALL LIGHT
WENCE-LED WALL LIGHT
WENCE-LED WALL LIGHT

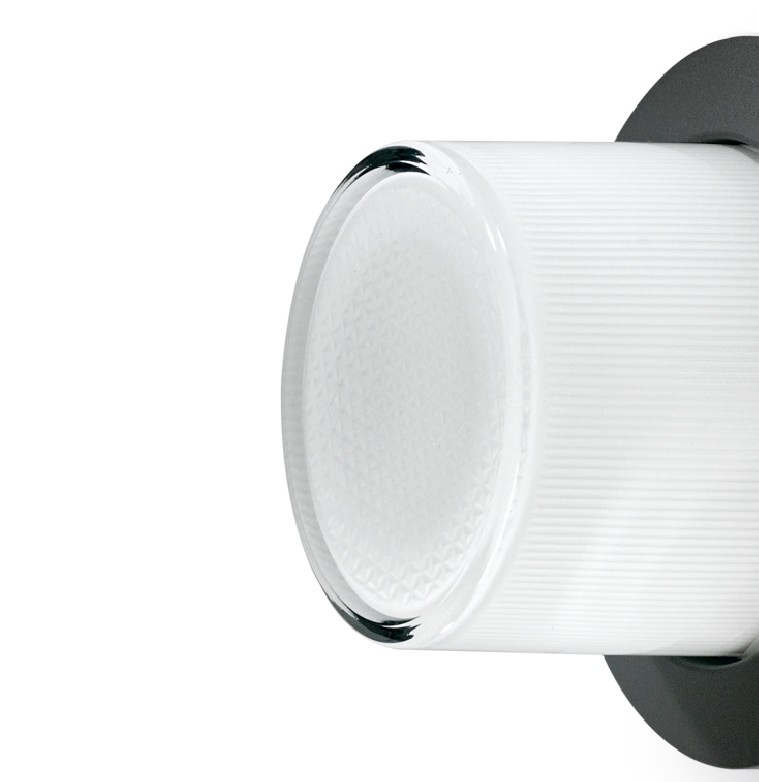

White crystal glass with pattern
D160XH120mm Max8W
ARCHITECTURAL WALL LIGHT

HOUSING: Cast aluminum, Stainless steel screws, Silicon seal gaskets, and White crystal glass diffuser with pattern

FINISH: Texture dark gray, and silver powder coating finish

LED MODULE: SMD LED CRI>80 LM-80 performance approval >50,000 hours

Super performance in light distribution and optimum lighting quality

APPLICATIONS: schools, public buildings etc.

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Surface Mounted Type明裝式燈具Superficie Tipo Montado

  • Dimension-尺寸-Dimensión

    D160XH120 mm

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 4W
    • 8W
  • Input Voltage-輸入電壓-Voltaje de entrada

    AC100-240V 50/60HZ

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver  AC100-240V 50/60HZ

    7. Remoted Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features驅動特性

    Funciones del controlador de LED

    • POWER FACTOR : PF≧0.90 @ Full Load
    • TOTAL HARMONIC DISTORTION: THD< 20%
  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512  / RDM / ZIGBEE Wireless Control

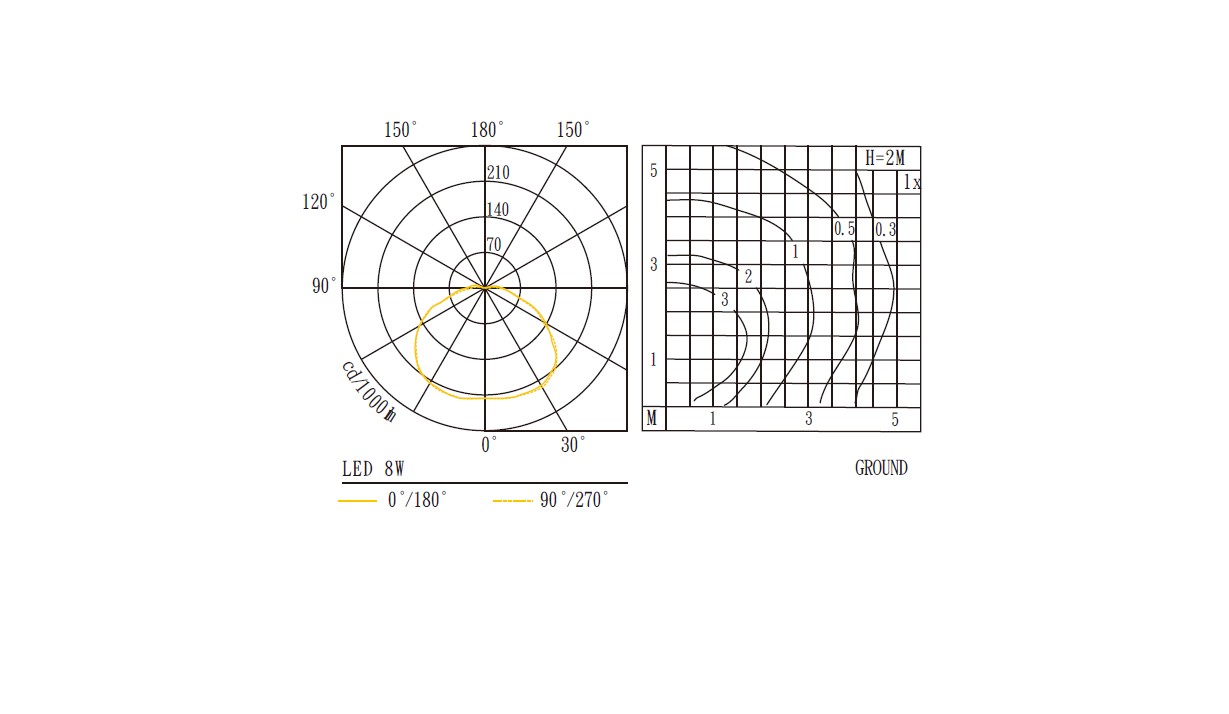

  • Beam Angle

    光束角

    ángulo de haz

    180°



  • Light Source Brand-光源品牌-Fuente de luz de marca

    SMD LED- (Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk))

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

     3000K / 4000K / 5700K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SCDM

    標準偏差配色< 3 SCDM

    Coincidencia de color estándar Desviación

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria

    50 Lm/w(3000K), 60 Lm/w(4000K),  70 Lm/w(5700K),

  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    100 Lm/w(3000K),105 Lm/w(4000K), 120 Lm/w(5700K),

  • Housing materials-外殼材料

    Materiales de la carcasa

    Cast aluminum , White crystal glass diffuser with pattern  Stainless steel screws, Silicon seal gaskets

    壓鑄鋁,白色水晶玻璃帶圖案擴散器,不銹鋼螺釘,硅膠密封墊圈

    Aluminio fundido, difusor de cristal blanco con patrón Tornillos de acero inoxidable, juntas de silicona

  • Housing Color外殼顏色color de la carcasa

    Powder Coating :Texture dark gray and silver 砂深灰色和砂銀色Textura gris oscuro y plata

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65

  • Environment-使用環境-medio ambiente

    Outdoor

  • Net Weight /Gross Weight淨重/毛重Peso Neto / Peso bruto

    1.5 KG

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-1/ Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
WENCE-8W
WENCE
-
Power Consumption

Power Consumption

  • 4W
    4W
  • 8W
    8W

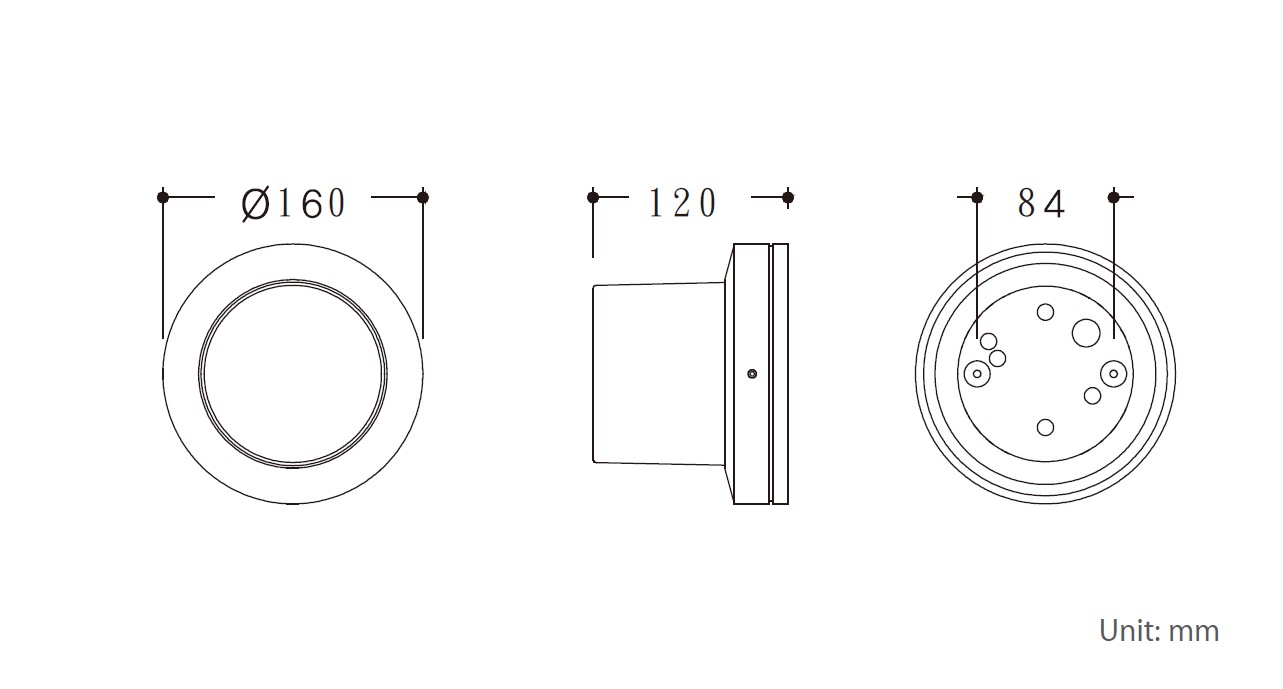

Technical Drawing

Product Download Tab

DATA SHEET

DIMENSION DRAWING

PHOTOMETRIC DATA
