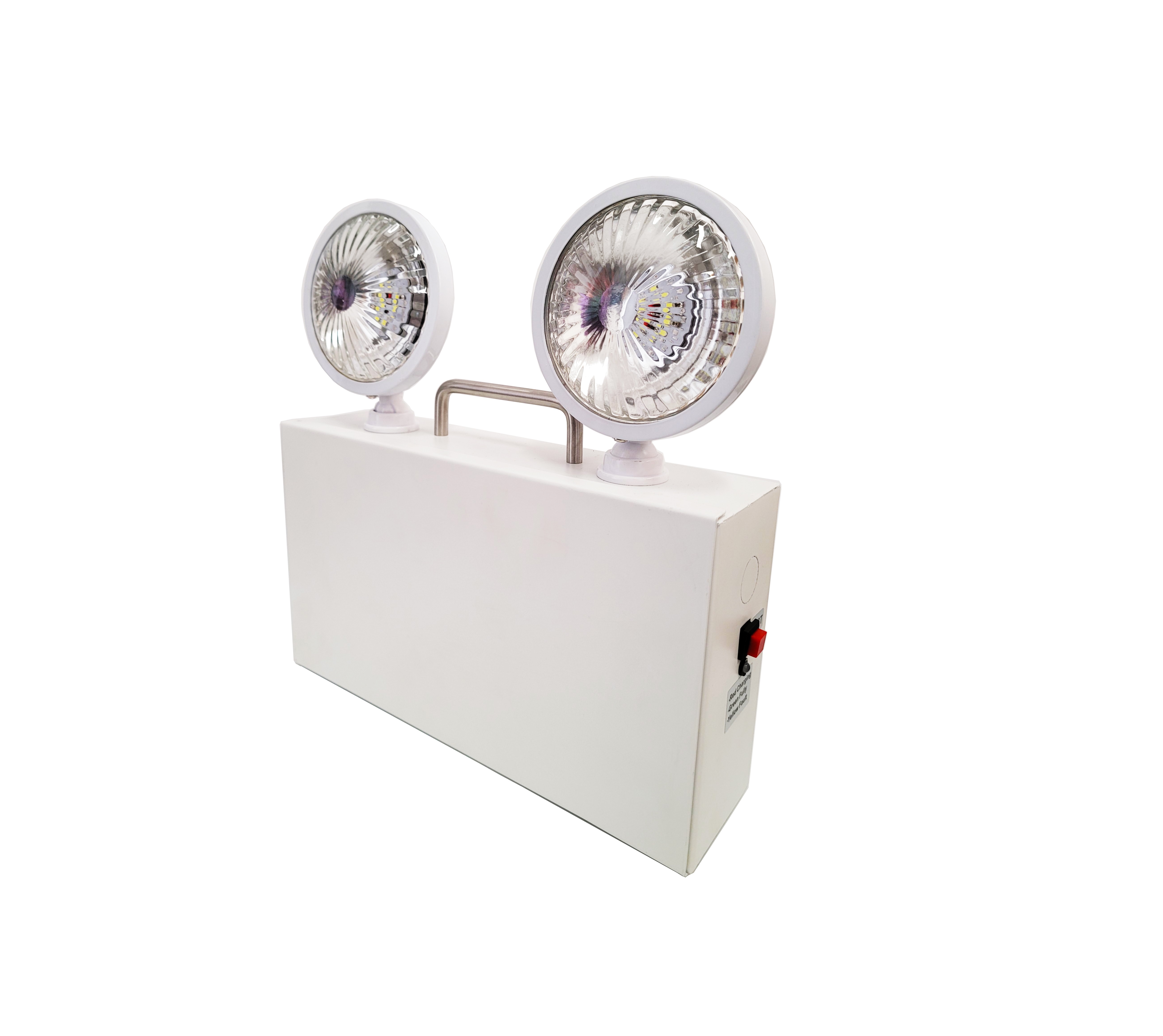

• 2 x 3W LED twin spot luminaires
• Non-Maintained type
• Fault indication
• Change over complete in less than 1 second
• Ni-Cd or Ni-MH rechargeable battery for emergency backup purpose
• 2 or 3 Hours battery backup
• Provided with “TEST” button for regular maintenance check
• Adjustable lamp head
• IP20 protection
Installation method / 安裝方式 / Metodo de instalacion
Wall Mounted / 墻裝 / Montado en la pared
Dimension / 尺寸 / Dimensión
W:270 x H :275 x D:70 mm
Input Voltage / 輸入電壓 / Voltaje de entrada
AC220-240V 50/60Hz
Converter Model / 轉換器型號
Modelo de convertidor
MOLA-6-3
System Mode / 系統模式
Modo de sistema
Non-Maintained Type / 後備 / Tipo no mantenido
Emergency Output / 緊急輸出
Salida de emergencia
6W (2x3W)
Charge Time / 充電時間 / Tiempo de carga
12 hours
Discharge Duration / 放電時間 / Duración de la descarga
>3 Hours
LED Life / LED壽命 / La vida del LED
> 100,000 hrs
Color Temperature / 色溫
Temperatura del color
3000K / 4000K / 6500K
Color Rendering Index / 顯色指數 /
Índice de reproducción cromáca
>80
Battery Type / 電池類型
Tipo de batería
Ni-MH for Standard (ASD request)
Ni-CD Available Upon Request
Battery Capacity / 電池容量 / Capacidad de la batería
9.6V 2.2AH
LED indicator Function / LED指示燈功能
Indicador LED de función
Charging: RED LED Light up 充電：紅色 LED 亮起 LED ROJO Iluminado
Full : GREE LED Light up 綠色 LED 亮起 LED VERDE Iluminado
Fail : YELLOW LED Light Up 黃色 LED 亮起 luz LED AMARILLA
Housing materials / 外殼材料
Materiales de la carcasa
Steel with white powder coating 鋼材加白色粉末塗層
Acero con revestimiento de polvo blanco
Housing Color外殼顏色
color de la carcasa
Matte white / 啞光白色 / Blanco mate
Ingress Protection-防護等級
Protección de ingreso
IP20
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +40 °C
Comply Testing Standard符合測試標準
Cumplir el estándar de prueba
IEC 60598-1:2020 & BSEN 60598-2-22:2014+A1:2020 at temperature of 850°C and IEC 60695-2-10:2013
BS EN 50200: 2015 (PH60) and Annex E of BS EN 50200: 2015 (a duration ofsurvival time of 30 minutes) and one of the following standards:
(i) BS EN 60702-1: 2002 +Al: 2015 & BS EN 60702-2: 2002 +Al: 2015
(ii) BS 7629-1: 2015 (Cat. Standard 60)
(iii) BS 7846: 2015 (Cat. F2 for cables of overall diameter not exceeding20mm)
(b) BS 6387: 2013 Cat. CWZ.
The test results from our measurement complied with the relevant sections of BS 5266-1:2016,
BS EN 1838:2013 and relevant parts of BS EN 60598-2-22:2014+A1:2020 and regulation
PPA / 104 (A) (5th Revision) of Fire Services Department specifications.
