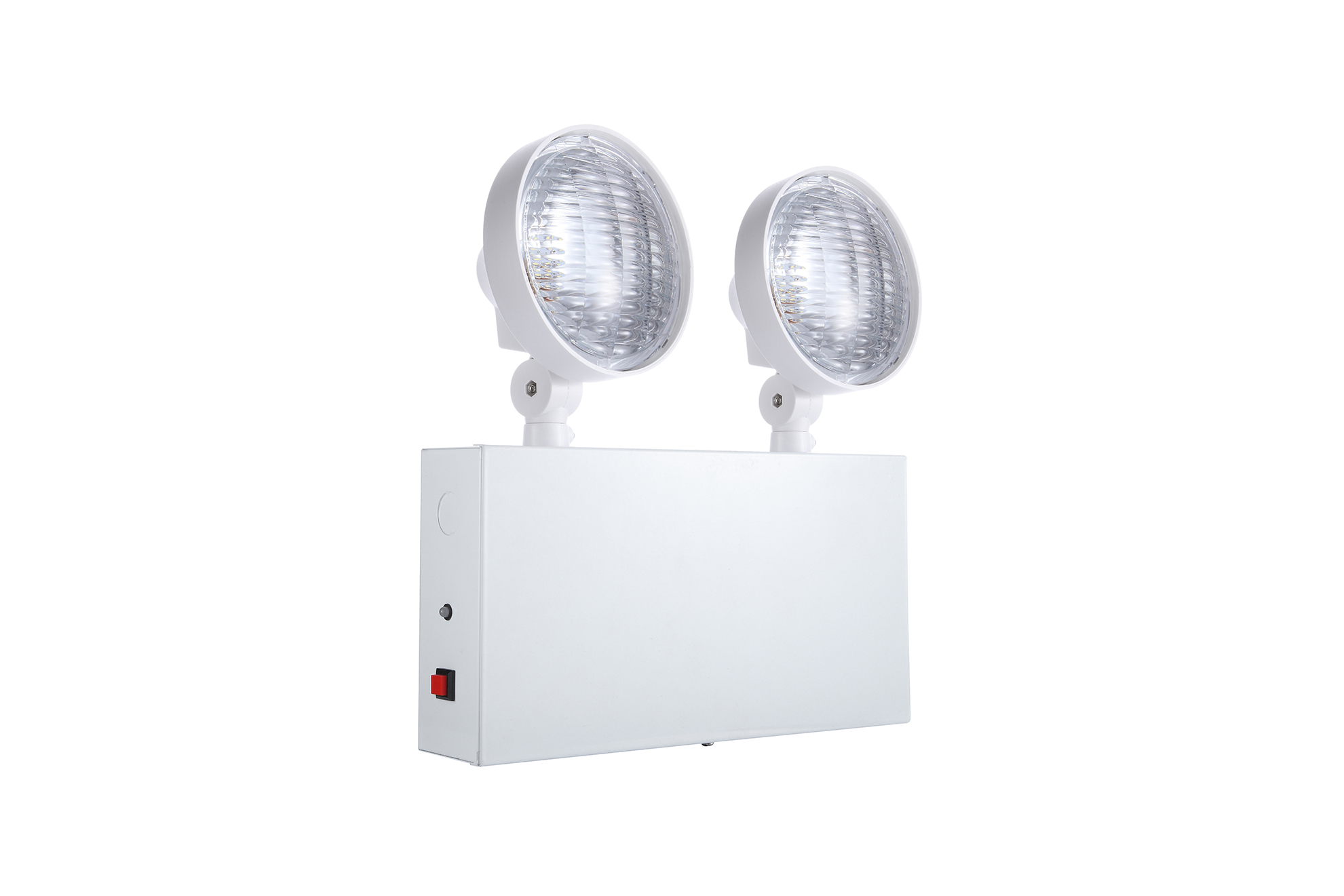

CALON

LED Twin Spot Emergency Luminaires
2 x 2.5W Non- Maintenance Emergency Type
  • Power LED Lamps with 50,000 working hours
  • High efficiency LED
  • Testing Button for regular maintenance checking
  • Adjutable lamp head
  • Wall-mount / Ceiling-mount
  • GMS box with white powder coating
  • Non- Maintenance Type

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria



    Surface Mounted  or wall Type明裝式或墻裝Montaje en superficie o tipo de pared

  • Dimension-尺寸-Dimensión

    W:270 x H :288 x D:58 mm

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60Hz

  • Emergency Output緊急輸出

    Salida de emergencia

    • 1W (2x0.5W) LED
    • 2W  (2x1W) LED
    • 3W  (2x1.5W) LED
    • 4W  (2x2W) LED
    • 5W (2x2.5W) LED
  • Charge Time充電時間Tiempo de carga



    • 12 hours
  • Discharge Duration放電時間Duración de la descarga

    • >3 Hours @ Max 5W
  • System Mode系統模式

    Modo de sistema

    Non-Maintained Type 後備 Tipo no mantenido

  • LED Life-LED壽命-La vida del LED

     > 50,000 hrs

  • Color Temperature -色溫

    Temperatura del color

    6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromáca

    >80

  • Beam Angle/光束角/ángulo de haz

    90°

  • Battery Type電池類型

    Tipo de batería

    3.2V 6000mAh LiFePO4 磷酸鐵鋰電池

  • Housing materials-外殼材料

    Materiales de la carcasa

    GMS box with white powder coating 鋼材加白色粉末塗層

    Caja GMS con recubrimiento de polvo blanco

  • Housing Color外殼顏色

    color de la carcasa

    Matte white啞光白色Blanco mate

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +40 °C

  • Comply Testing Standard符合測試標準

    Cumplir el estándar de prueba

    • IEC 60598-1:2020 & BSEN 60598-2-22:2014+A1:2020 at temperature of 850°C and IEC 60695-2-10:2013
    • BS EN 50200: 2015 (PH60) and Annex E of BS EN 50200: 2015 (a duration ofsurvival time of 30 minutes) and one of the following standards:
      (i) BS EN 60702-1: 2002 +Al: 2015 & BS EN 60702-2: 2002 +Al: 2015
      (ii) BS 7629-1: 2015 (Cat. Standard 60)
      (iii) BS 7846: 2015 (Cat. F2 for cables of overall diameter not exceeding20mm)
      (b) BS 6387: 2013 Cat. CWZ.
    • The test results from our measurement complied with the relevant sections of BS 5266-1:2016,
    • BS EN 1838:2013 and relevant parts of BS EN 60598-2-22:2014+A1:2020 and regulation
    • PPA / 104 (A) (5th Revision) of Fire Services Department specifications.
  • Certification-認證-Certificación

Specification Code

Example Product Code:
CALON
CALON
-
Emergency Mode POWER CONSUMPTION

Emergency Mode POWER CONSUMPTION

  • 1W
    1W (2x0.5W) LED
  • 2W
    2W (2x1W) LED
  • 3W
    3W (2x1.5W) LED
  • 4W
    4W (2x2W) LED
  • 5W
    5W (2x2.5W) LED

Technical Drawing

Product Download Tab

DATA SHEET

TECHNICAL DRAWING

HONG KONG FSD PPA / 104 (A)
