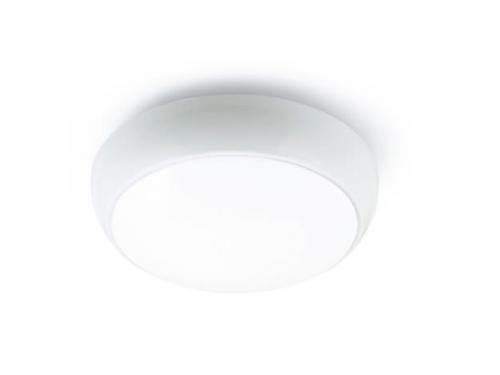

CHELA-EM

D350 x H100mm 30W Max IP54

LED CEILING LIGHT

LED CEILING LIGHT. Lighting Body made of Polycarbonate with Anti UV and fire resistance Polycarbonate (PC) diffusor. LED module: CREE LEDs, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear. Complied with relevant parts of BS EN 1838 :1999 and BS EN 1838:2013 and relevant parts of BS EN 60598-2-22:1999 and BS EN 60598-2-22:2014, Regulation PPA/104(A)(4th Revision) of Fire Services Department specifications as well as clause B11.1.3 of ASD General Specification 2012..

Technical Data

Luminaire Type-安裝方式-Tipo de luminaria

Ceiling Mount Type-吸頂安裝-Tipo mount en el techo
Dimension-尺寸-Dimensión

Dia: 325 x H: 110 mm
Input Voltage-輸入電壓-Voltaje de entrada

AC100-240V 50/60Hz
Power Consumption Max-燈具功率

Consumo de energía Max

15W 18W 20W 26W 28W 30W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle光束角ángulo de haz

120°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 82
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率

La eficacia de la luminaria

100Lm/w(2700K), 110 Lm/w(3000K), 120 Lm/w(4000K),

120Lm/w(5000K), 120 Lm/w(6500K),
LED Source Luminous EfficacyLED光源光效

Fuente luminosa LED Eficacia

130Lm/w(2700K), 140 Lm/w(3000K), 150 Lm/w(4000K),

150Lm/w(5000K), 150 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Anti UV Polycarbonate Opal diffuser抗紫外线PC 擴散罩

Difusor Opal de policarbonato anti U
Housing Color外殼顏色color de la carcasa

Milky white乳白色Blanco lechoso
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK08
Ingress Protection-防護等級

Protección de ingreso

IP54
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: EN 60598-1 / IEC 60598-2-1 IEC TR62778 IEC62471 ; IEC 62031; EN62493 RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2 IEC/EN 61000-3-3;IEC/EN61574;EN 55015

Complied with relevant parts of BS EN 1838 :1999 and BS EN 1838:2013 and relevant parts of BS EN 60598-2-22:1999 and BS EN 60598-2-22:2014, Regulation PPA/104(A)(4th Revision) of Fire Services Department specifications as well as clause B11.1.3 of ASD General Specification 2012..
