DRINO-EM

Emergency Light Max 35W IP54

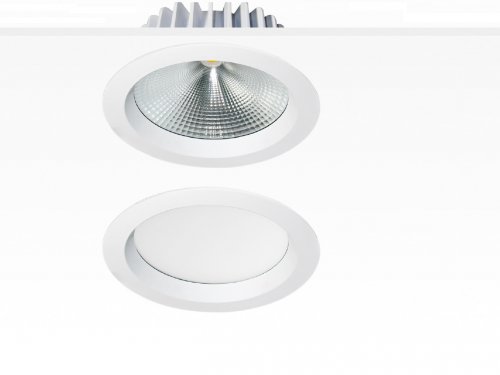

LED RECESSED LOW GLARE DOWN LIGHT UGR< 19
  • LED RECESSED LOW GLARE DOWN LIGHT. Housing: die-cast aluminium with powder-coated, Anti UV and fire resistance Polycarbonate (PC) diffusor and anti-glare reflector to achieve UGR< 19.
  • Suitable for Maintained or Non-maintained luminaires.
  • Electronic charge system. Deep discharge protection.
  • Short-circuit proof battery connection.
  • Automatic shutdown protection if the LED load is out of range.
  • 2 hours or 3hours emergency backup with either Ni-MH battery or Ni-Cd battery
  • Provided with a LED for indication when battery charge is in process.
  • Tested in accordance with latest local requirement PPA/104(A) (4th Revision).

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Recessed Mount Type嵌入式筒燈Empotrada Tipo Mount

  • Dimension-尺寸-Dimensión

    Cut off Dimension-開孔尺寸-Cortar Dimensión

    Dia: 78 x H: 51  and Cut off  Dia 65 mm           Dia: 85 x H: 35  and Cut off  Dia 70 mm

    Dia: 92 x H: 35  and Cut off  Dia 80 mm           Dia: 110 x H: 28  and Cut off  Dia 90 mm

    Dia: 110 x H: 37  and Cut off  Dia 95mm          Dia: 103 x H: 68  and Cut off  Dia 90 mm

    Dia: 110 x H: 43  and Cut off  Dia 90 mm         Dia: 140 x H: 54  and Cut off  Dia 125  mm

    Dia: 162 x H: 64  and Cut off  Dia 145 mm       Dia: 193 x H: 76  and Cut off  Dia 165mm

    Dia: 230 x H: 88  and Cut off   Dia 200 mm      Dia: 282 x H: 76  and Cut off  Dia 260mm

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC100-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

     3W SMD LED @Dia: 78 x H: 51 mm

     5W SMD LED @Dia: 78 x H: 51 mm

     8W SMD LED @Dia: 78 x H: 51 mm

     7W  SMD LED @Dia: 78 x H: 51 mm  @ Dia: 85 x H: 35 mm

     9W  SMD LED @Dia: 78 x H: 51 mm   @ Dia: 85 x H: 35 mm

     8W  SMD LED @Dia: 92 x H: 35  mm

     11W SMD LED @Dia: 92 x H: 35 mm

     9W  SMD LED @Dia: 110 x H: 28 mm @Dia: 110 x H: 37mm  @Dia: 110 x H: 43 mm

    12W SMD LED @Dia: 110 x H: 28 mm @Dia: 110 x H: 37mm  @Dia: 110 x H: 43 mm @ Dia: 140 x H: 54mm

    15W SMD LED @Dia: 140 x H: 54mm @ Dia: 162 x H: 64mm @Dia:193 x H: 76mm

    18W SMD LED @ Dia: 162 x H: 64mm @Dia:193 x H: 76mm @ Dia: 230 x H: 88mm

    23W SMD LED @Dia:193 x H: 76mm @ Dia: 230 x H: 88mm

    29W SMD LED @ Dia: 230 x H: 88mm  @ Dia: 282 x H: 76mm

    35W SMD LED @ Dia: 282 x H: 76mm

    9W  COB LED @Dia: 103 x H: 68mm @Dia: 110 x H: 43 mm

    12W COB LED @Dia: 103 x H: 68mm @Dia: 110 x H: 43 mm@ Dia: 140 x H: 54mm

    15W COB LED @ Dia: 140 x H: 54mm  @Dia:193 x H: 76mm

    23W COB LED @ Dia: 162 x H: 64mm @Dia:193 x H: 76mm

    29W COB LED @ Dia: 162 x H: 64mm @Dia:193 x H: 76mm

    33W COB LED @Dia:193 x H: 76mm @Dia: 282 x H: 76mm

    35W  COB LED @Dia: 282 x H: 76mm

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Remote-type LED Driver--Constant Current LED Driver:

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC 220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ  or Tunable White controlled by DALI Dimming Only

    5. Zigbee Wireless Control Driver  AC100-270V 50/60HZ

    6. DMX Driver AC100-240V 50/60HZ

    7. RDM Driver  AC100-240V 50/60HZ

    8. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Type LED驅動款式 Tipo de controlador LED Driver

    POWER FACTOR : PF>0.9 @ Full Load                   TOTAL HARMONIC DISTORTION: THD< 20%

  • Beam Angle 光束角 /ángulo de haz

     40°                 60°                  90°

    90°  Tunable White  LED Down Light

  • Light Source Brand-光源品牌-Fuente de luz de marca

    TAIWAN Everlight SMD LED             or               CREE COB LED

    TAIWAN Everlight SMD LED for Tunable White  LED Down Light

  • "Lumen Maintenance LM-80 Reported by TM-21"@ 25°C

    L90(10k) = 50,700 hrs         L80(10k) > 63,500 hrs         L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫 Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6000K/ 6500K

    TW: Tunable White (2700K-6500K)

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >80

    >90

  • Chromaticity Tolerance (initial Macadam)

    色度容差（初始Macadam）

    Tolerancia de cromaticidad (Macadam inicial)

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    SMD LED + Milky Polycarbonate Diffuser

    100 Lm/w(2700K),   100 Lm/w(3000K),  120 Lm/w(4000K),   120Lm/w(5000K),   120 Lm/w(6000K), 120Lm/w(6500K)  110Lm/w(TW)

    COB LED + Clear Polycarbonate Diffuser

    120 Lm/w(2700K),    120 Lm/w(3000K),   140 Lm/w(4000K),  140Lm/w(5000K),   140 Lm/w(6000K),   140Lm/w(6500K)

  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    140 Lm/w(2700K),    140 Lm/w(3000K),   160 Lm/w(4000K),   160Lm/w(5000K),  160 Lm/w(6000K),   160Lm/w(6500K) , 150Lm/w(TW)

  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and Clear or Milky Polycarbonateuser

    壓鑄鋁和透明或乳白色PC

    Aluminio fundido a presión y difusor de vidrio de seguridad transparente o lechoso de policarbonato

  • Trim Color-框邊顏色-Estilo Color

    Matte white / Matte black   啞光白色 / 啞光黑色  Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP54

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Comply Testing Standard

    符合測試標準 Cumplir el estándar de prueba

    LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-2 ;  IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 ;ROHS

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

    Tested in accordance with latest local requirement PPA/104(A) (4th Revision).

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DRINO-15W
DRINO-EM
-
Power Consumption

Power Consumption

  • 3W
    3W SMD LED @Dia: 78 x H: 51 mm
  • 5W
    5W SMD LED @Dia: 78 x H: 51 mm
  • 8W
    8W SMD LED @Dia: 78 x H: 51 mm
  • 7W
    7W SMD LED @Dia: 78 x H: 51 mm @ Dia: 85 x H: 35 mm
  • 9W
    9W SMD LED @Dia: 78 x H: 51 mm @ Dia: 85 x H: 35 mm
  • 8W
    8W SMD LED @Dia: 92 x H: 35 mm
  • 11W
    11W SMD LED @Dia: 92 x H: 35 mm
  • 9W
    9W SMD LED @Dia: 110 x H: 28 mm @Dia: 110 x H: 37mm @Dia: 110 x H: 43 mm
  • 12W
    12W SMD LED @Dia: 110 x H: 28 mm @Dia: 110 x H: 37mm @Dia: 110 x H: 43 mm @ Dia: 140 x H: 54mm
  • 15W
    15W SMD LED @Dia: 140 x H: 54mm @ Dia: 162 x H: 64mm @Dia:193 x H: 76mm
  • 18W
    18W SMD LED @ Dia: 162 x H: 64mm @Dia:193 x H: 76mm @ Dia: 230 x H: 88mm
  • 23W
    23W SMD LED @Dia:193 x H: 76mm @ Dia: 230 x H: 88mm
  • 29W
    29W SMD LED @ Dia: 230 x H: 88mm @ Dia: 282 x H: 76mm
  • 35W
    35W SMD LED @ Dia: 282 x H: 76m
  • 9W
    9W COB LED @Dia: 103 x H: 68mm @Dia: 110 x H: 43 mm
  • 12W
    12W COB LED @Dia: 103 x H: 68mm @Dia: 110 x H: 43 mm@ Dia: 140 x H: 54mm
  • 15W
    15W COB @ Dia: 140 x H: 54mm @Dia:193 x H: 76mm
  • 23W
    23W COB LED @ Dia: 162 x H: 64mm @Dia:193 x H: 76mm
  • 29W
    29W COB LED @ Dia: 162 x H: 64mm @Dia:193 x H: 76mm
  • 33W
    33W COB LED @Dia:193 x H: 76mm @Dia: 282 x H: 76mm
  • 35W
    35W COB LED @Dia: 282 x H: 76mm
