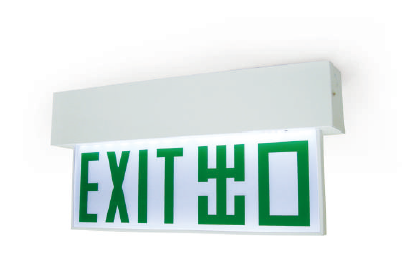

LED Light Sources for Long Life Application
Wall-mounted & Ceiling-mounted & Pendant mounted
Both single side and double side application
Steel with White powder coating or Stainless Steel
Uniform illumination with diffuser
3 hours battery backup for emergency operation.
Battery full recharge in 12 hours.
Provided with a "Test" button for regular maintenance check
Installation method / 安裝方式
Metodo de instalacion
Wall Mounted or Surface Mounted or Pendant Mounted
壁掛式或表面安裝式或吊裝式
Montado en la pared o en la superficie o montado en el colgante
Side Selection / 膠片選擇
Selección lateral
Single Sided or Double Sided / 單面或雙面
Una cara o dos caras
Dimension-尺寸-Dimensión
Casing:
L: 550mm x W: 55mm x H: 75mm L: 750mm x W: 55mm x H: 75mm
Plate:
L: 400mm x H: 175mm x D: 10mm L: 600mm x H: 175mm x D: 10mm
Input Voltage-輸入電壓-Voltaje de entrada
AC220-240V 50/60Hz
Converter Model 轉換器型號
Modelo de convertidor
MOLA-3-3 for 3W
MOLA-3-5 for 5W
System Mode
應急系統模式
Modo de sistema
Maintained Type 長明式 Tipo mantenido
Non-Maintained Type式 非長明式Tipo no mantenido
CBS Suppory Only 中央電池應急 Emergencia de batería central
Power Consumption Max-燈具功率
Consumo de energía Max
3W
5W
Charge Time充電時間 Tiempo de carga
12 Hours
Discharge Duration放電時間
Duración de la descarga
>3 Hours
LED Life-LED壽命-La vida del LED
> 100,000 hours
Color Temperature -色溫
Temperatura del color
3000K 4000K 6500K
Battery Type 電池類型
Tipo de batería
Ni-MH for Standard (ASD request)
Ni-CD Available Upon Request
Battery Capacity / 電池容量
Capacidad de la batería
4.8V 1.6 AH
9.6V 1.2AH
LED indicator Function
LED指示燈功能
Indicador LED de función
Charging: RED LED Light up 充電：紅色 LED 亮起 LED ROJO Iluminado
Full : GREE LED Light up 綠色 LED 亮起 LED VERDE Iluminado
Fail : YELLOW LED Light Up 黃色 LED 亮起 luz LED AMARILLA
Casing materials-外殼材料
Materiales de la carcasa
0.8mm Steel with White powder coating
1mm 316 Hairline Stainless Steel
LEGEND 指示牌圖例LEYENDA
Refer to Drawing 參考圖紙Consulte el dibujo
Operating Temperature
工作溫度Temperatura de funcionamiento
20°C - 50°C
Ingress Protection-防護等級
Protección de ingreso
IP20
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
IEC 60598-1:2020 & BSEN 60598-2-22:2014+A1:2020 at temperature of 850°C and IEC 60695-2-10:2013
BS EN 50200: 2015 (PH60) and Annex E of BS EN 50200: 2015 (a duration ofsurvival time of 30 minutes) and one of the following standards:
(i) BS EN 60702-1: 2002 +Al: 2015 & BS EN 60702-2: 2002 +Al: 2015
(ii) BS 7629-1: 2015 (Cat. Standard 60)
(iii) BS 7846: 2015 (Cat. F2 for cables of overall diameter not exceeding20mm)
(b) BS 6387: 2013 Cat. CWZ. The test results from our measurement complied with the relevant sections of BS 5266-1:2016, BS EN 1838:2013 and relevant parts of BS EN 60598-2-22:2014+A1:2020 and regulation PPA / 104 (A) (5th Revision) of Fire Services Department specifications.
