FAB-L

320W~480W

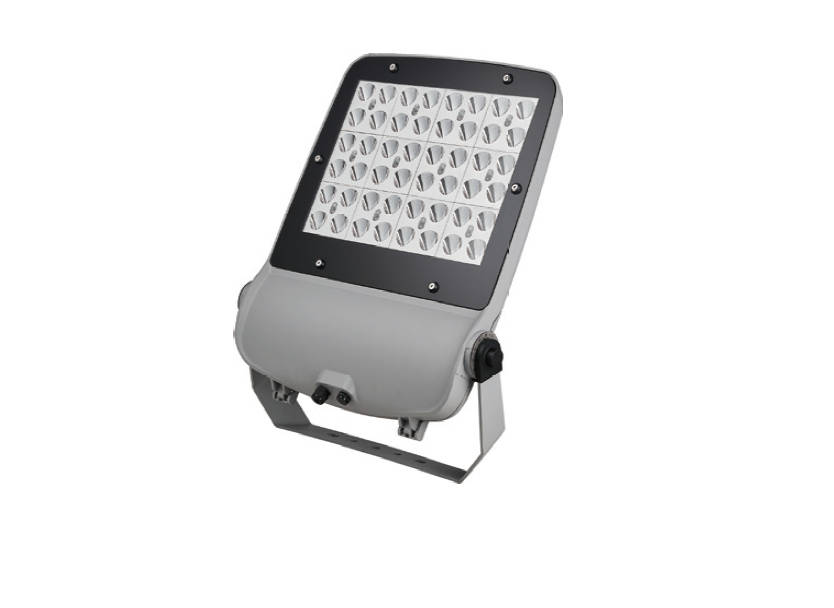

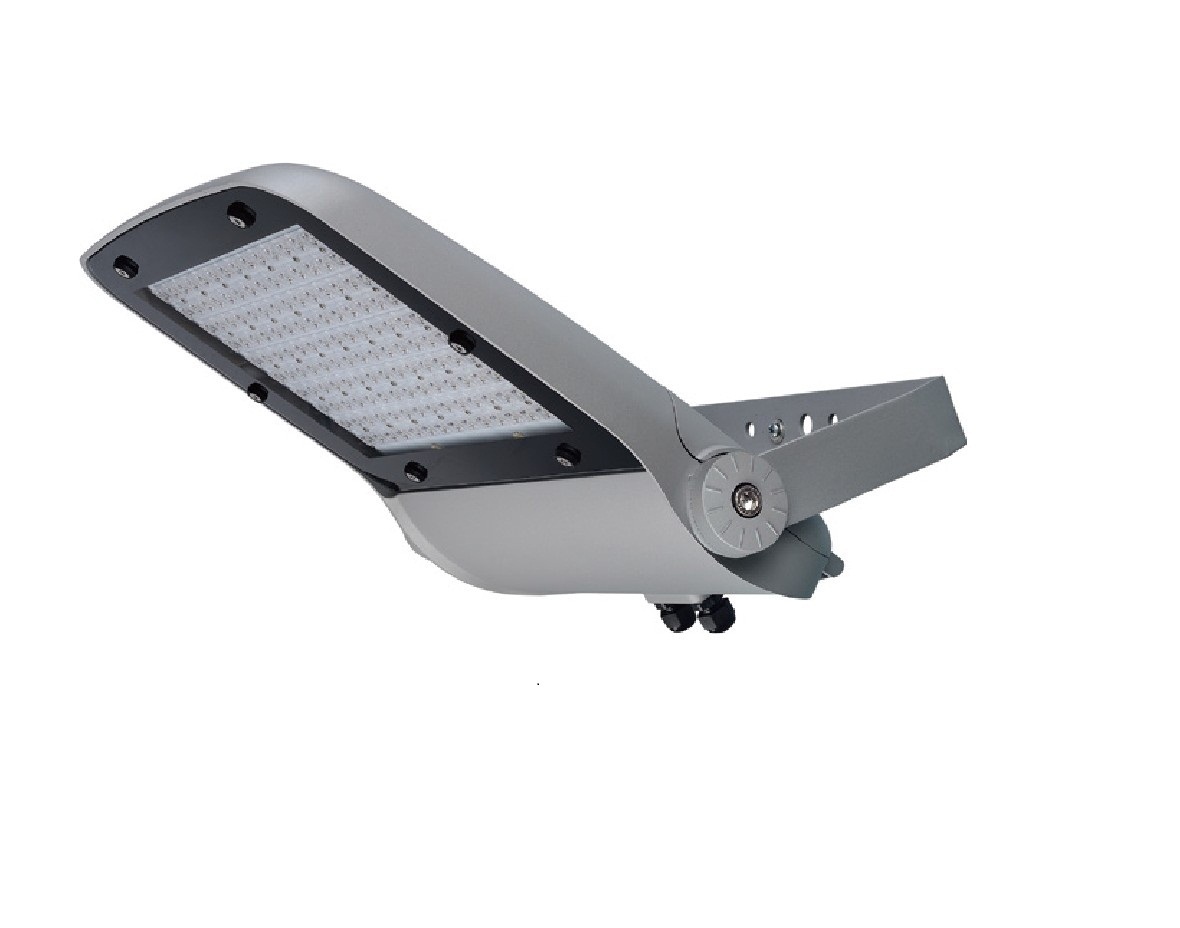

LED Flood Light IP66

LED Flood Light IP66. The fixture coated with electrophoresis and powder for excellent anti-corrosion performance. And the bracket surface adopts HDG (hot-dip galvanizing) technology which provide strong corrosion. It is durable with great performance. With SPD protection, it also goes through rigorous test which reaches excellent IP66 and IK09 rating.

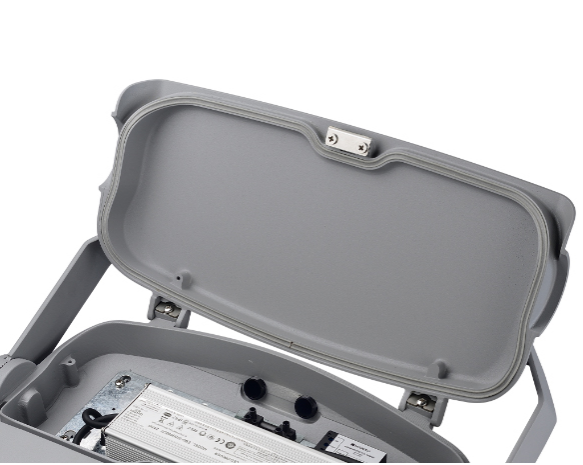

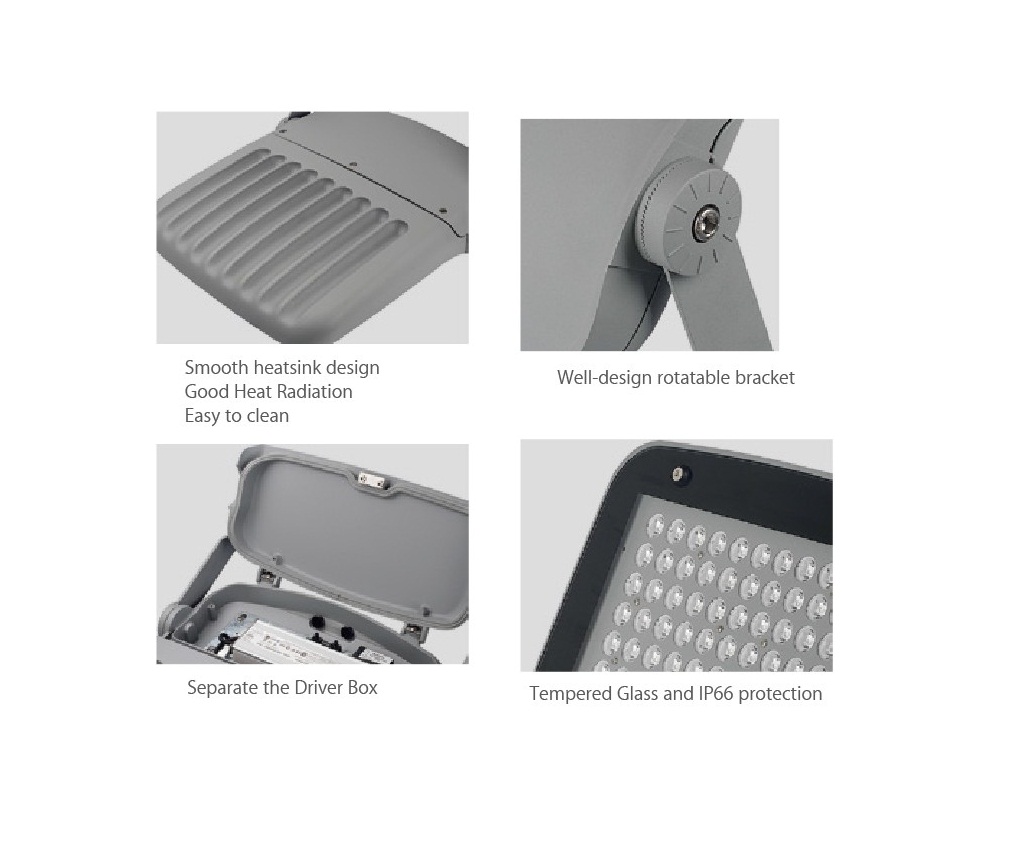

Die-cast aluminium. separate electric housing with super white tempered glass.
Galvanized steel plate.Surface anti-ageing electrostatic spray processing,super resistance to corrosion.
Many different optical lens and reflector to distribute Asymmetric & symmetric beam anlge.

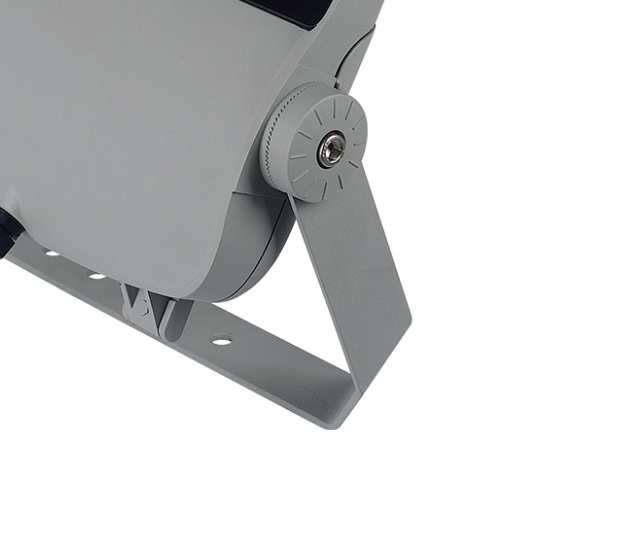

Lye fitting joint design to adjustable installation angle

Technical Data

Luminaire Type-安裝方式-Tipo de luminaria

Surface Mounted and Adjustable Type-明裝可調安裝腳-Tipo montado en superficie y ajustable
Power Consumption Max LED燈具最大功率

LED Consumo de energía Max
- 320W 400W 480W
Input Voltage / 輸入電壓

Voltaje de entrada

100-240VAC/50-60HZ
Integrated-type LED Driver

內置LED驅動

Controlador de LED de tipo integrado

Two separated LED Drivers for driving two independent LED circuits PCB
Control Protocol/控制協議

Protocolo de Control
- ON/OFF Dali Control 0-10V Control
- DMX Zigbee Wireless Control
Power Factor / 功率因數/Factor de potencia

>0.9
Total Harmonic Distortion/總諧波失/Distorsión armónica total

<20%
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:
- 6kV line-line 12kV line-earth
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L70> 60,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature色溫 Temperatura y color

2700K / 3000K / 4000K/ 5000K/ RGBW (4000K) (DMX512 Control)
Color Rendering Index-顯色指數

Índice de reproducción cromática
- >70
- >80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SCDM

標準偏差配色< 3 SCDM

Coincidencia de color estándar Desviación
Beam Angle

光束角

ángulo de haz

• A1 & A2 & A3 & R1 & R2 & R3 & R4 & R5 & R6 @ Reflector
• T2A & T3A & T4A & T3 & T4 & T25 & T60 & T90 @ Lens
Luminaire Efficacy

燈具效率

La eficacia de la luminaria
- 120 lm/w(3000K) @ Lens ; 100m/w(3000K) @ Reflector
- 130 lm/w(4000K) @ Lens ; 110m/w(4000K) @ Reflector
- 135 lm/w(5000K) @ Lens ; 115m/w(5000K) @ Reflector
- 65l/w RGBW @ Lens
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 134m/w(2700K) 134m/w(3000K) 143m/w(4000K)
- 153m/w(5000K) 100l/w RGBW
Housing materials

外殼材料

Materiales de la carcasa

Die-cast aluminium and 5mm Tempered glass and Hot deep galvanized steel fixing bracket.

壓鑄鋁和5mm鋼化玻璃和熱鍍鋅鋼固定支架

Aluminio fundido a presión y 5 mm de vidrio templado y Soporte de fijación de acero galvanizado profundo.
Housing Color

外殼顏色

color de la carcasa

Polyester powders Coating (RAL 9006 Silver).

聚酯粉末塗料(RAL 9006 銀灰色)

Polvos de poliéster Revestimiento (RAL 9006 Plata).
Ingress Protection-防護等級

Protección de ingreso

IP66
Mech impact protection

機械衝擊保護

Protección contra impactos mecánicos

IK09
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +60 °C / -4 °F / +124 °F
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Dimension尺寸Dimensión

L: 519x H:588 (681 with Bracket) x H:108mm
Net Weight /Gross Weight淨重/毛重Peso Neto / Peso bruto

19.4kg / 21.2kg
Packing box size包裝箱尺寸Tamaño de la caja de embalaje

785×610×165mm
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC / EN 60598-1;IEC/EN 60598-2-5; IEC TR62778 IEC62471 (RG1); IEC 62031; EN62493 RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015
