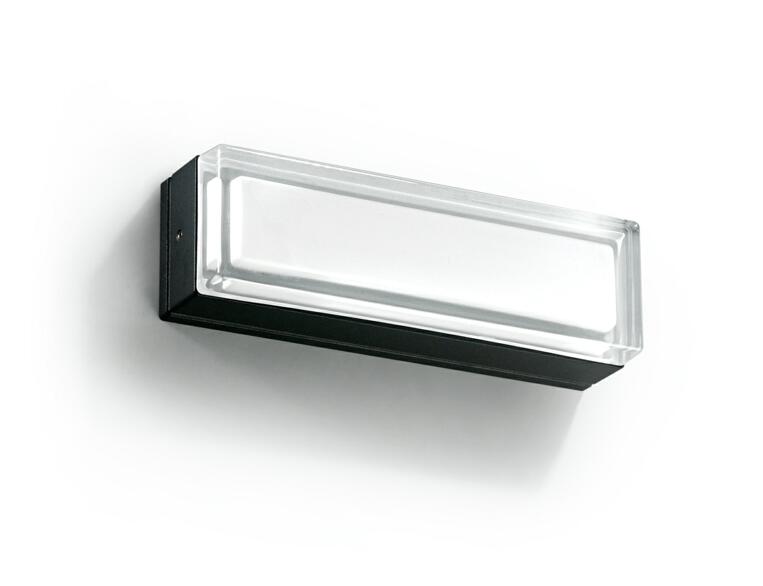

WEC

L225 x H:60 x W:70mm
Surface Mounted Wall Light Type

Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of white crystal glass. LED module: SMD LEDS  CRI>80 LM-80 performance approve >50,000 hours.Well balance light distribution and optimum lighting quality. Applications:schools,public buildings ,etc.It’s as well a great alternative to urban furniture due to its IP65 protection rating.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Surface Mounted Type

    明裝式燈具

    Superficie Tipo Montado

  • Dimension-尺寸-Dimensión

    L225 x H:60 x W:70mm

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    7W

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60Hz

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver--Refer to LED driver specification

    請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch   AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 220-240V 50/60HZ

    3. 1-10V Dimming Driver  AC220-240V 50/60HZ

    4. Dali Dimming Driver AC220-240V 50/60HZ

  • Light Source Brand-光源品牌-Fuente de luz de marca

    DIMON SMD

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >50,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K/ 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SCDM

    標準偏差配色< 3 SCDM

    Coincidencia de color estándar Desviación

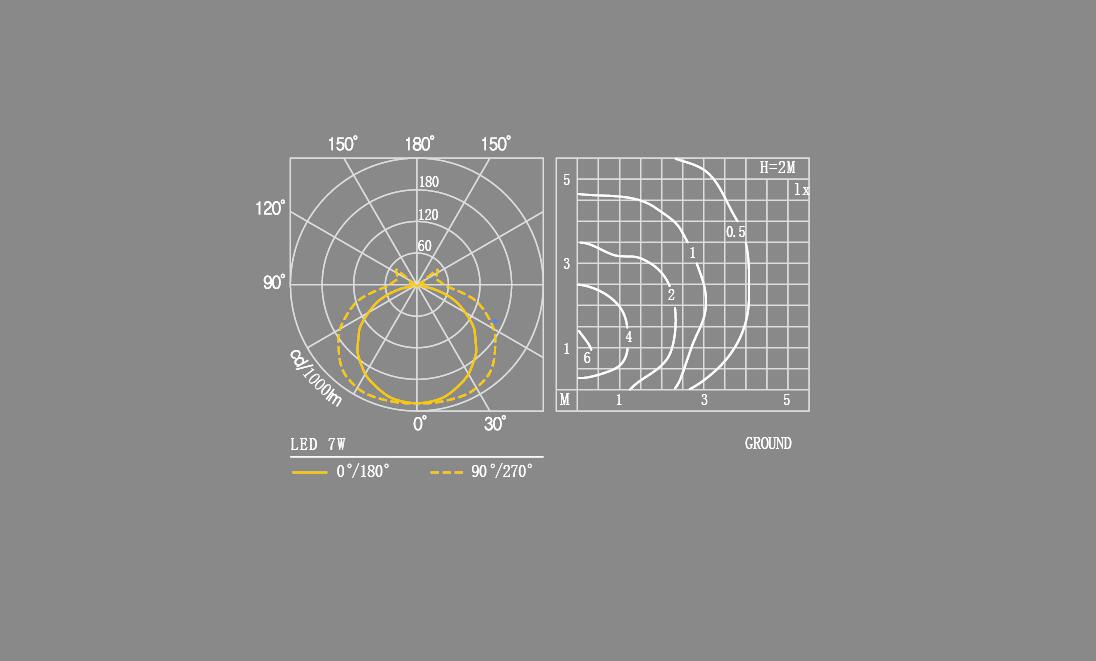

  • Beam Angle

    光束角

    ángulo de haz

    120°*150°

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    45lm/w(2700K),

    45lm/w(3000K),

    50lm/w(4000K),

    50lm/w(5000K),

    55lm/w(6500K)

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    100lm/w(2700K),

    100lm/w(3000K),

    105m/w(4000K),

    120lm/w(5000K),

    120lm/w(6500K)

  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and White crystal glass

    壓鑄鋁和白色水晶玻璃

    Aluminio fundido a presión y Cristal blanco

  • Housing Color

    外殼顏色

    color de la carcasa

    Powder Coating :Dark Gray --粉末塗料:深灰-- La capa del polvo:  gris oscuro

    Powder Coating :Sliver Gray --粉末塗料:銀灰--La capa del polvo: astilla gris

    Powder Coating :Matte White --粉末塗料:哑光白色--La capa del polvo: blanco mate

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65

  • Net Weight

    淨重

    Peso Neto

    1.3kg

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +60 °C /  -4 °F / +124 °F

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Environment-使用環境-medio ambiente

    Outdoor

  • Certification-認證-Certificación

Specification Code

Example Product Code:
WEC-7W-SW-30-DG
WEC
-
7W
-
LED Driver Type
-
Color Temperature
-
Cover Housing Color

Power Consumption

  • 7W
    7W

LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Ledge Control
  • AN
    Analog 1-10V dimming
  • DA
    DALI diming

Color Temperature

  • 27
    2700k
  • 30
    3000k
  • 40
    4000K
  • 50
    5000k
  • 65
    6500k

Cover Housing Color

  • DG
    Dark Gray
  • SG
    Sliver Gray
  • MW
    Matte White

Technical Drawing
