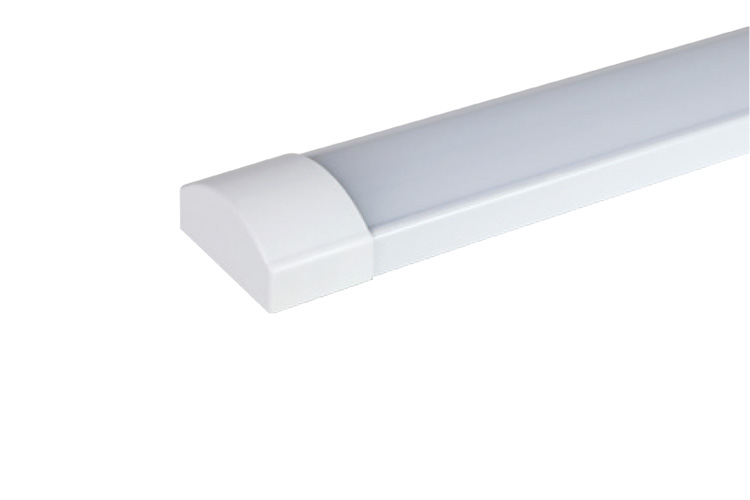

BATARY

BATARY

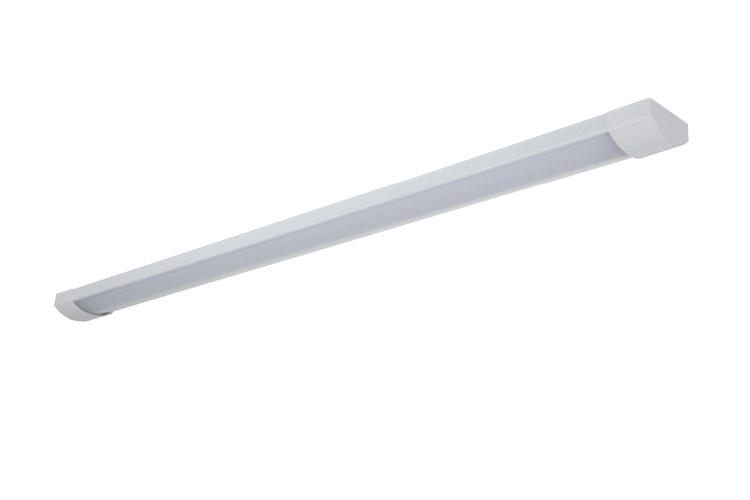

BATARY-1

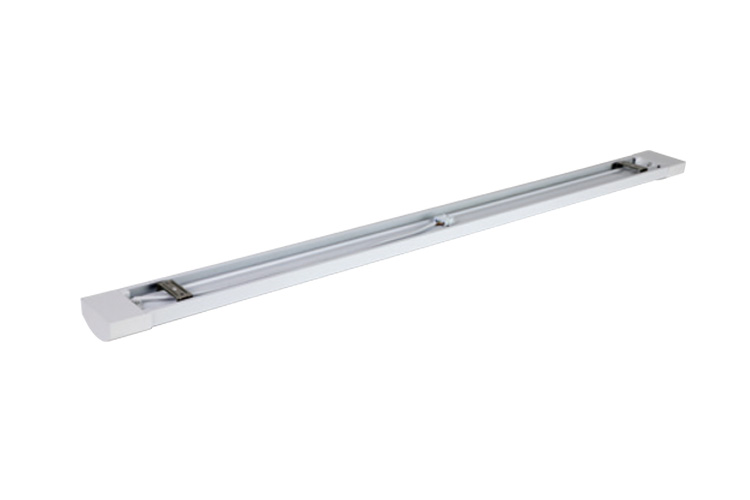

BATARY-2
W88xH42mm 60W Max IP44
LED Slim Batten Light

LED Slim Batten Light for replacing T5, T8, T10 fluorescent lamp;

White Coated Formed Stelel Body with Textured Opal Acrylic Diffuser

Injection Moulded Polycarbonated End Caps

Multiple control function is optional, switch on / off, motion sensor, DALI control dimming, emergency device, emergency + motion sensor and changeable CCT.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Surface Mounted Type

    明裝式燈具

    Superficie Tipo Montado

  • Operating voltage

    100-277VAC 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 20W @ 2 ft @ 4 ft
    • 40W  @ 4 ft
    • 50W @ 5 ft
    • 60W @ 5 ft
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    (Integrated-type LED Driver -Constant Current LED Driver:

    內置LED驅動 /Controlador de LED de tipo integrado)

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    3. Dali Dimming Driver AC100-240V 50/60HZ

    4. Microwave Sensor

    5. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features

    驅動特性

    Funciones del controlador de LED

    POWER FACTOR : PF>0.95 @ Full Load



  • Control

    控制

    Control

    • SW -ON/OFF
    • Dali Control
    • 0-10V Control
    • Microwave Sensor
    • Zigbee Wireless Control
    • Emergency
  • Light Source Brand-光源品牌-Fuente de luz de marca

    OSRAM - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"@ 25°C

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 83

  • Chromaticity Tolerance (initial Macadam)

    色度容差(初始Macadam)

    Tolerancia de cromaticidad (Macadam inicial)



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

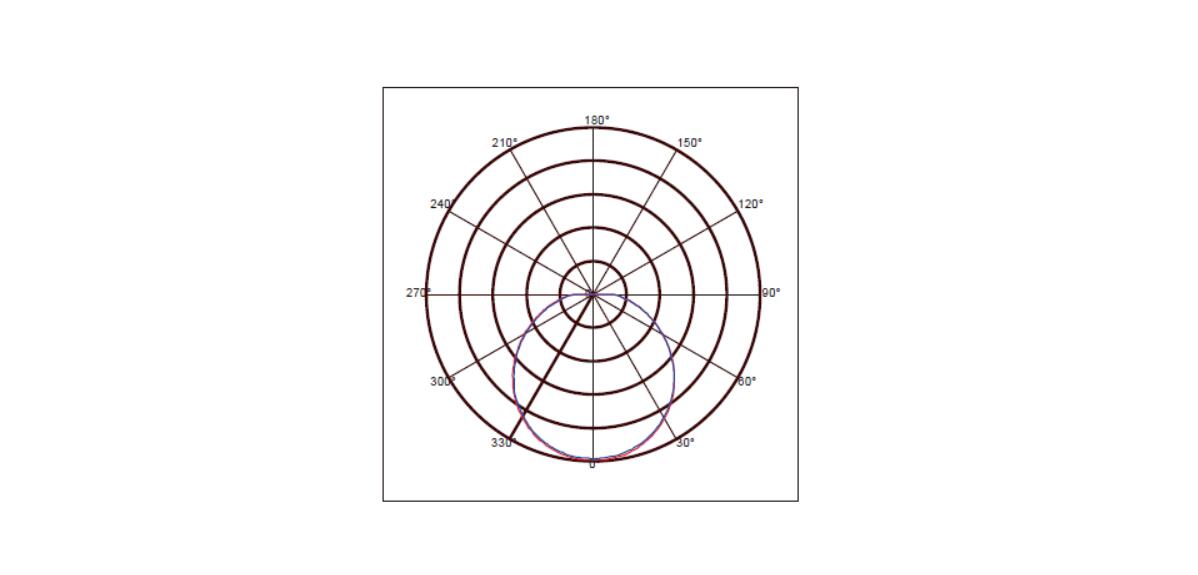

  • Beam Angle

    光束角

    ángulo de haz

    120°

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    • 120 Lm/w(2700K),
    • 120 Lm/w(3000K),
    • 125 Lm/w(4000K),
    • 130 Lm/w(5000K),
    • 130 Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    • 140 Lm/w(2700K),
    • 140 Lm/w(3000K),
    • 150 Lm/w(4000K),
    • 160 Lm/w(5000K),
    • 160 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Aluminium and Polycarbonate

    鋁和聚碳酸酯

    Aluminio y policarbonato

  • Ingress Protection

    IP44 - (IEC 60529)

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +60 °C /  -4 °F / +124 °F

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Batten Dimension  LxWxH (mm)

    • L: 632 x W: 88 x H: 42 mm @ 2 ft
    • L: 1260 x W: 88 x H: 42 mm @ 4 ft
    • L: 1561 x W: 88 x H: 42 mm @ 5 ft



  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaries:  IEC 60598-1;IEC 60598-2-1;IEC62471;

    LED Driver:          IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                                  IEC/EN 61000-3-3;IEC/EN61574;EN 55015

  • Certification

Specification Code

Example Product Code:
BATARY-20W-SW-40-2
BATARY
-
Power Consumption
-
LED Driver Type
-
Color Temperature
-
Fixture Lenght

Power Consumption

  • 20W
    20W @ 2 ft @ 4 ft
  • 40W
    40W @ 4 ft
  • 50W
    50W @ 5 ft
  • 60W
    60W @ 5 ft

LED Driver Type

  • SW
    ON/OFF Switch
  • AN
    Analog 0 -10V Dimming
  • DA
    DALI Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control
  • MS
    Microwave Sensor

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K

Fixture Lenght

  • 2
    2ft@ 632 mm
  • 4
    4ft@ 1260 mm
  • 5
    5ft@ 1561 mm

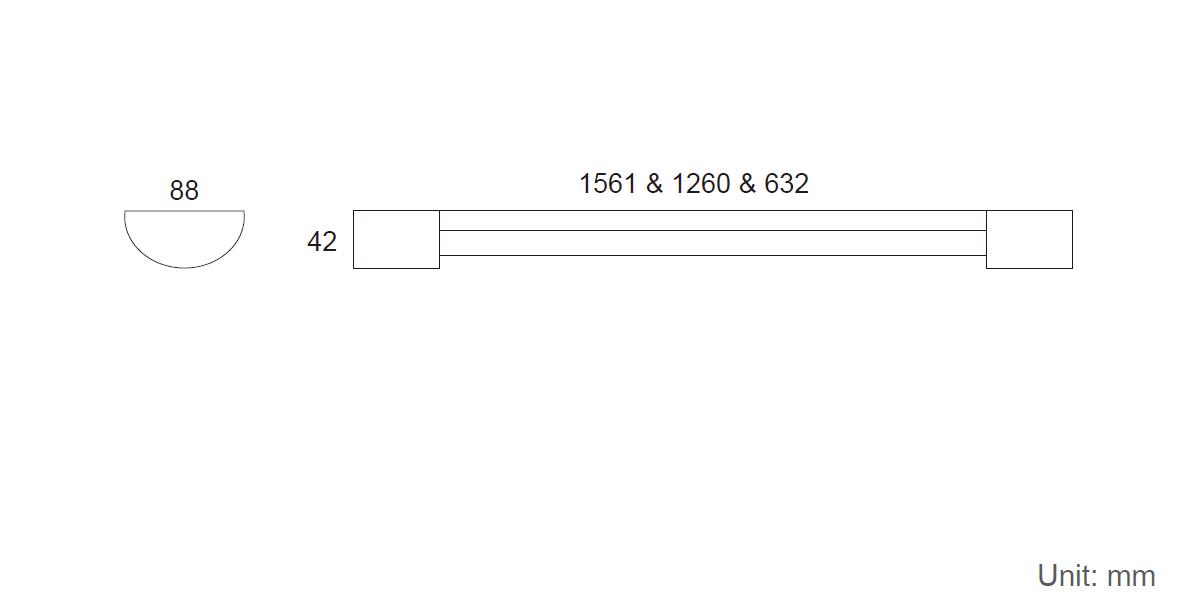

Technical Drawing

Accessories

  • Gateway- NANO
  • INNO-SENSOR-823
  • INNO-SENSOR-826
  • Z501-CZ
  • INNO719
  • INNO503
  • INNO816
