BATEMY

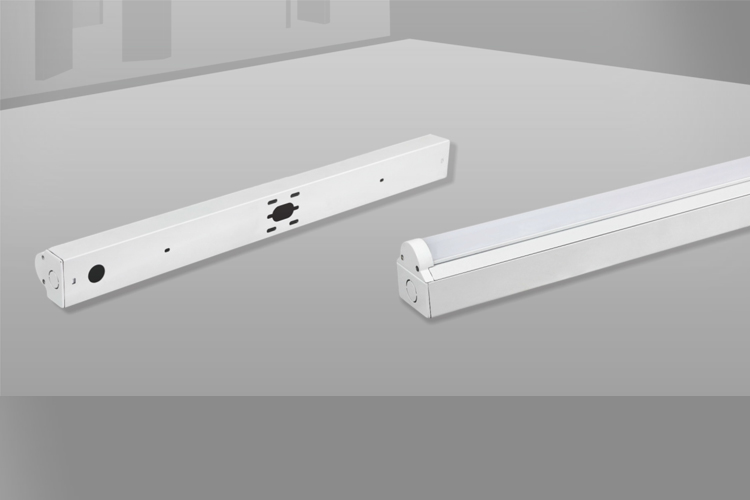

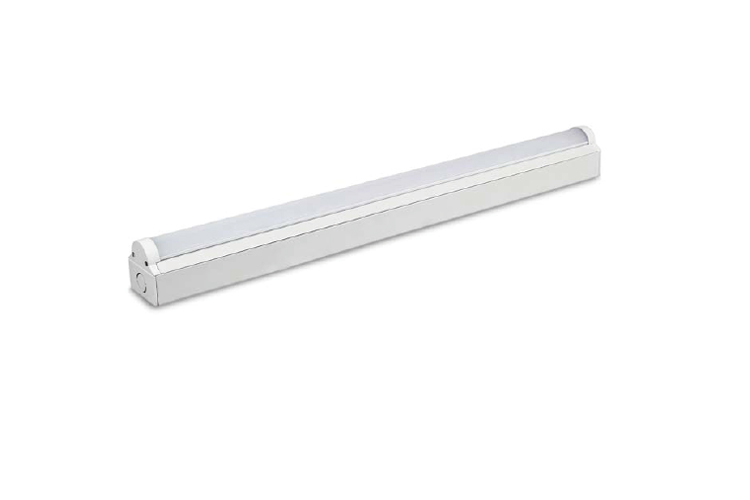

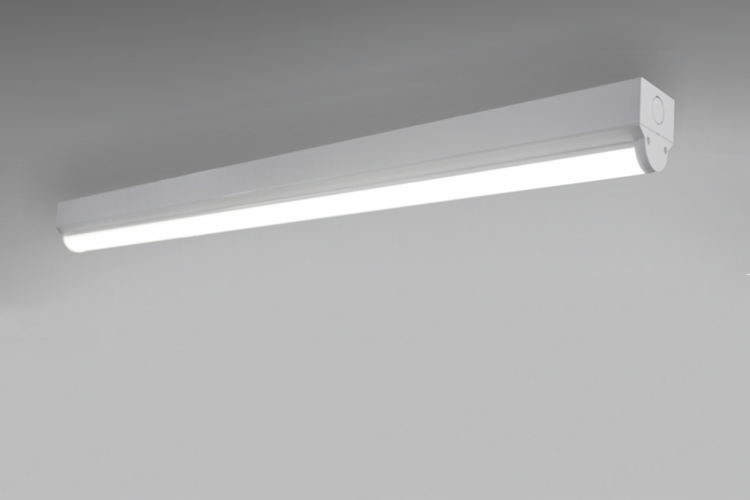

LED Slim Batten Light

LED Slim Batten Light for replacing T5, T8, T10 fluorescent lamp;
Aluminum alloy body with white coated, polycarbonate end caps and opal diffuser
Multiple control function is optional, switch on / off, motion sensor, DALI control dimming, emergency device, emergency + motion sensor and changeable CCT.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria
Surface Mounted Type

明裝式燈具

Superficie Tipo Montado
Operating voltage

100-240V AC 50/60HZ or AC220-240VAC 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
- 12W / 14W @ 2 ft 600mm
- 24W / 28W @ 4 ft 1200mm
- 33W / 38W @ 5 ft 1500mm
- 50W / 60W @ 6 ft 1800mm
LED Driver Type

LED驅動款式

Tipo de controlador LED
(Integrated-type LED Driver / 內置LED驅動 /Controlador de LED de tipo integrado)

1. ON/OFF Switch AC100-240V 50/60HZ

2. 0 -10V Dimming Driver AC100-240V 50/60HZ

3. Dali Dimming Driver AC100-240V 50/60HZ

4. Microwave Sensor

5. Emergency Backup
Power Factor / 功率因數/Factor de potencia
PF>0.92
Total Harmonic Distortion/總諧波失/Distorsión armónica total
THD<20%
Control

控制

Control
- SW -ON/OFF
- Dali Control
- 0-10V Control
- Microwave Sensor
- Zigbee Wireless Control
- Emergency
Light Source Brand-光源品牌-Fuente de luz de marca
CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"
1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫

Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática
> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM

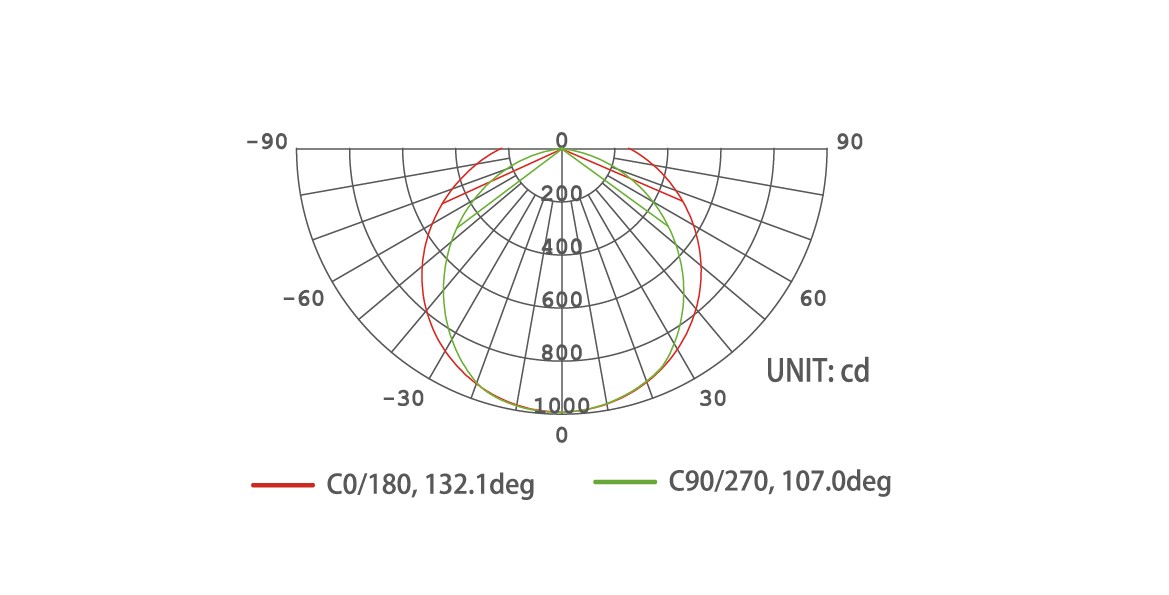

Beam Angle

光束角

ángulo de haz
120°
Luminaire Efficacy

燈具效率

La eficacia de la luminaria
- 120 Lm/w(2700K),
- 130 Lm/w(3000K),
- 140 Lm/w(4000K),
- 150 Lm/w(5000K),
- 150 Lm/w(6500K),
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 140 Lm/w(2700K),
- 150 Lm/w(3000K),
- 160 Lm/w(4000K),
- 170 Lm/w(5000K),
- 170 Lm/w(6500K),
Housing Color

外殼顏色

color de la carcasa
Matte White

啞光白色

Blanco mate
Housing materials-外殼材料

Materiales de la carcasa
Aluminium with white coating

鋁白色塗層

Aluminio con revestimiento blanco.
Ingress Protection

IP20 - (IEC 60529)
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento
-20 °C / +60 °C / -4 °F / +124 °F

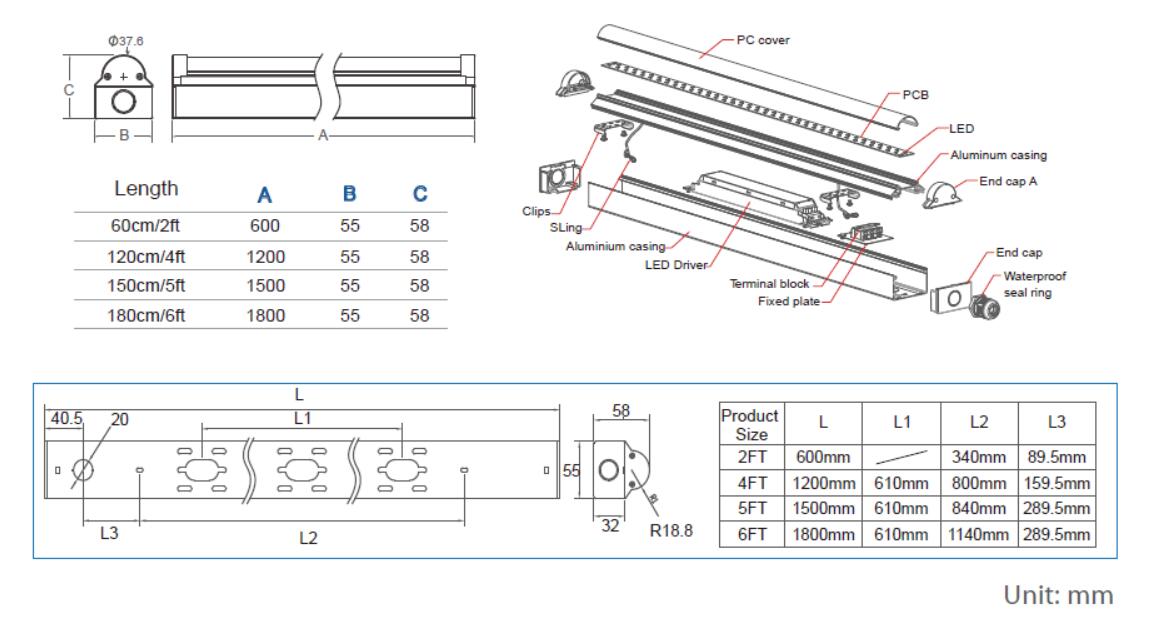

Batten Dimension LxWxH (mm)
- L: 600 x W: 55 x H: 58 @ 2 ft
- L: 1200 x W: 55 x H: 58 @ 4 ft
- L: 1500 x W: 55 x H: 58 @ 5 ft
- L: 1800 x W: 55 x H: 58 @ 6 ft
Net Weight /Gross Weight

淨重/毛重

Peso Neto / Peso bruto
- 0.5kg / 0.6 kg @ 2ft 600mm
- 0.88kg / 1.3kg @ 4ft 1200mm
- 1.1kg /1.6kg @5ft 1500mm
- 1.3kg / 1.7kg @ 6ft 1800mm
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento
LED Luminaries: IEC 60598-1;IEC 60598-2-1;IEC62471;RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015
