BATEYA

W115xH79 mm 70W Max IP67

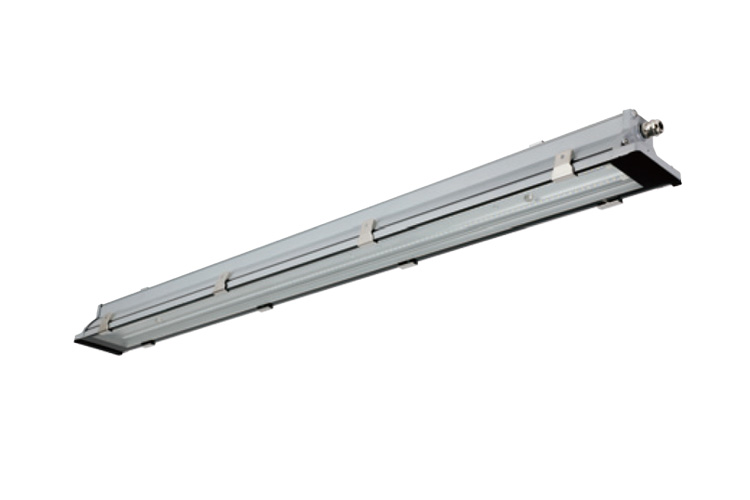

LED WATERPROOF BATTEN

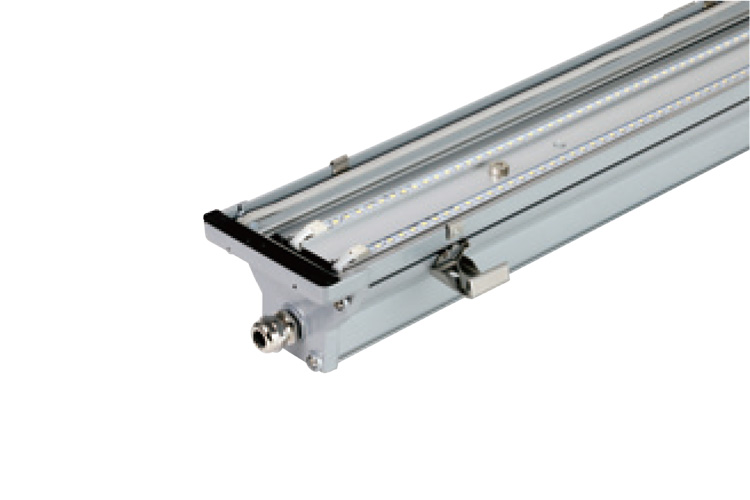

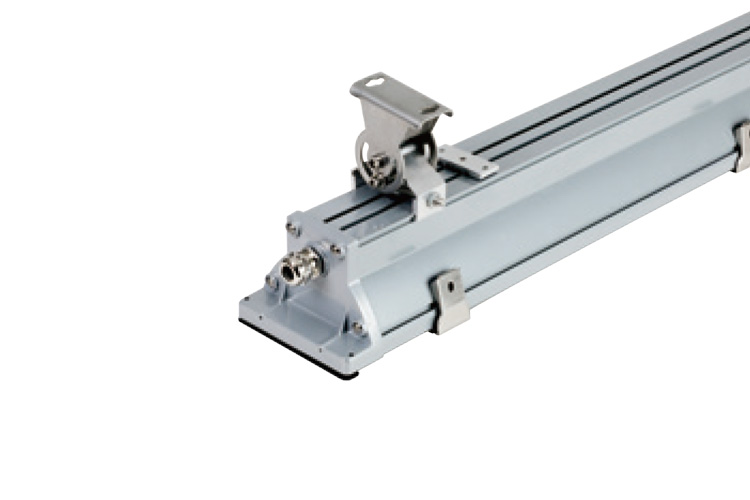

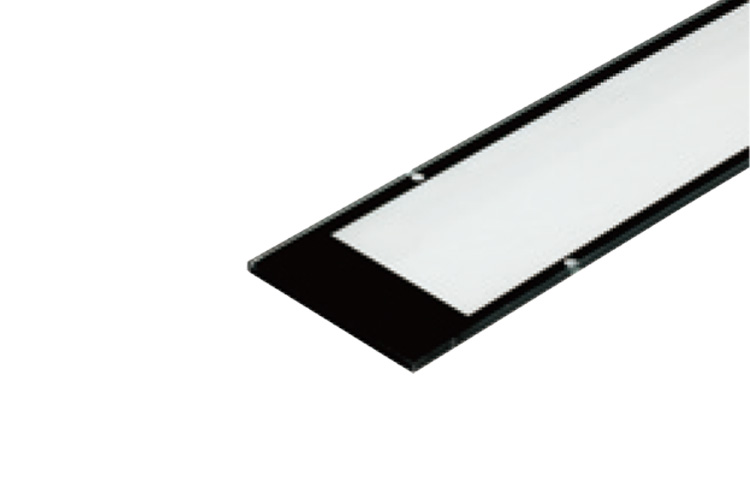

LED WATERPROOF BATTEN: Fixture body made of stretching aluminum body and with stainless steel mounting bracket clips, silicon perimeter gasket. Anti-glare reflector and diffusor system made of tempered glass lens. SMD LEDS CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV , 0-10V, DALI, DMX and RDM LED constant current control gear. Waterproof luminaire. Ingress-protected to a level of IP67. This is a competitive energy-saving solution for wet spaces.A flexible ceiling clip(Stainless steel clips) facilitates easy installation and maintenance.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Surface Mounted Type

明裝式燈具

Superficie Tipo Montado

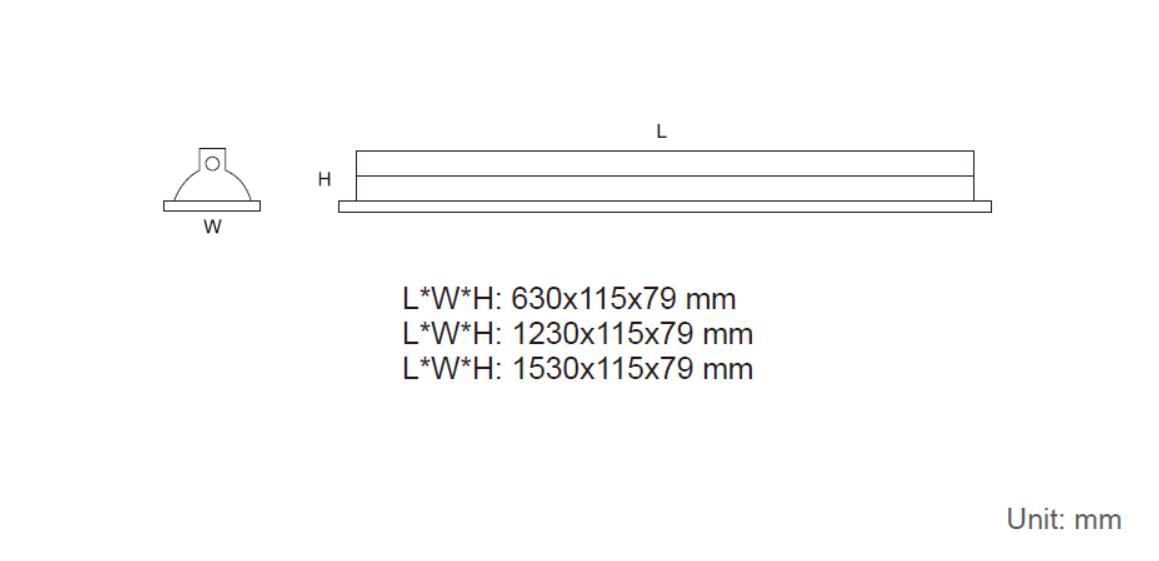

Dimension-尺寸-Dimensión
- W:115 x H:79 x L:630 mm
- W:115 x H:79 x L:1230 mm
- W:115 x H:79 x L:1530 mm
Input Voltage-輸入電壓-Voltaje de entrada

AC100-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
- 20W @ L: 630 mm
- 28W@ L: 1230 mm
- 35W@ L: 1230 mm @ L: 1530 mm
- 40W @ L: 1230 mm@ L: 1530 mm
- 50W @ L: 1230 mm@ L: 1530 mm
- 60W @ L: 1230 mm @ L: 1530 mm
- 70W @ L: 1530 mm
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0-10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ

6. RDM Driver  AC100-240V 50/60HZ

7. ZIGBEE Wireless Control (Remoted Driver ) AC100-240V 50/60HZ

8. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features

驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control
- SW -ON/OFF
- Dali Control
- 0-10V Control
- Microwave Sensor
- Zigbee Wireless Control
- Emergency

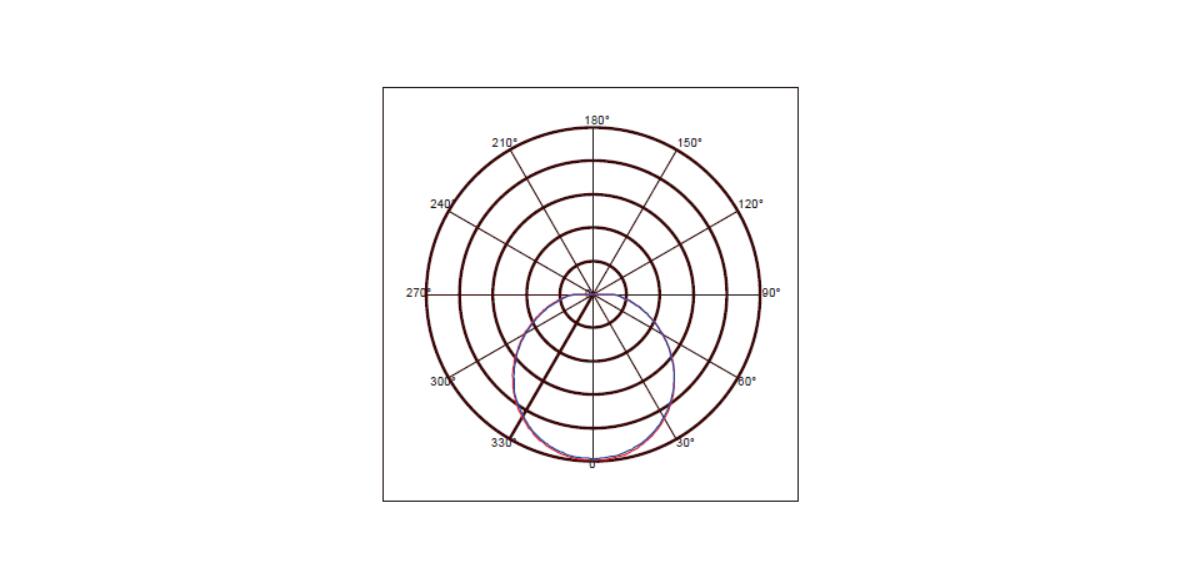

Beam Angle

光束角

ángulo de haz

120°
Light Source Brand-光源品牌-Fuente de luz de marca

SMD - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 83
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy

燈具效率

La eficacia de la luminaria
- 120 Lm/w(2700K),
- 120 Lm/w(3000K),
- 125 Lm/w(4000K),
- 130 Lm/w(5000K),
- 130 Lm/w(6500K),
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 140 Lm/w(2700K),
- 140 Lm/w(3000K),
- 150 Lm/w(4000K),
- 160 Lm/w(5000K),
- 160 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Aluminum and Tempered Glass Lens (Stainless steel clips)

鋁和鋼化玻璃（不鏽鋼卡扣）

Lente de aluminio y vidrio templado (clips de acero inoxidable)
Housing Color

外殼顏色

color de la carcasa

Grey body

灰色燈身

Cuerpo Gris
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection-防護等級 Protección de ingreso

IP67 - (IEC 60529)
Environment-使用環境-medio ambiente

Outdoor
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
