DRICT

D85 & CO75mm 7W

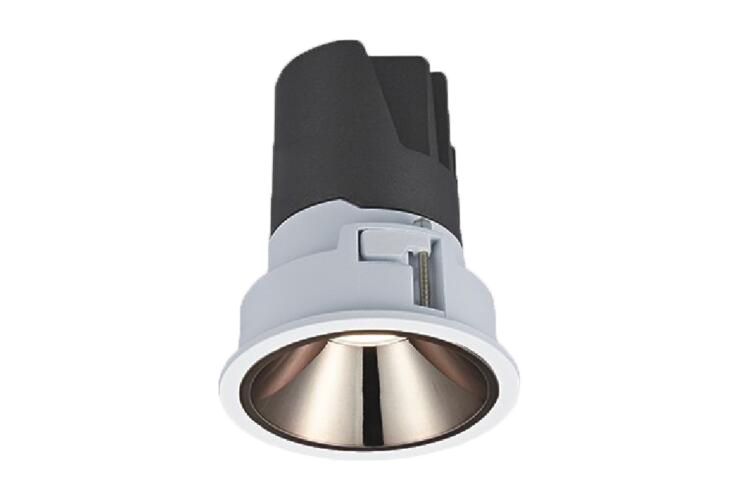

WALL WASHER SPOT LIGHT

LED WALL WASHER SPOT LIGHT. Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of PMMA. LED module: high-power CREE LEDs Array,  CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria



    Recessed Mount and Adjustable Type

    嵌入式可調筒燈

    Empotrar y tipo ajustable

  • Dimension-尺寸-Dimensión

    Dia: 85 x H: 108 mm

  • Cut off Dimension-開孔尺寸-Cortar Dimensión

    Dia 75 mm

  • QTY of LEDs-燈珠數量-CANT de LEDs

    1 pcs CREE LED Array

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ (with remote driver)

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    7W



  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver  AC100-240V 50/60HZ

    7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features

    驅動特性

    Funciones del controlador de LED



    EFFICIENCY (Typ.): >85%

    MAX. No. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 40 units (circuit breaker of type C at 230VAC)

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Beam Angle

    光束角

    ángulo de haz



    15°

    24°

    35°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80 or >90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    75 Lm/w(2700K),

    75 Lm/w(3000K),

    80 Lm/w(4000K),

    85 Lm/w(5000K),

    85 Lm/w(6500K),

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    100 Lm/w(2700K),

    100 Lm/w(3000K),

    105 Lm/w(4000K),

    120 Lm/w(5000K),

    120 Lm/w(6500K),

  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and acrylic

    壓鑄鋁和亞克力

    Fundición de aluminio y acrílico

  • Housing Color

    外殼顏色

    color de la carcasa



    Anodised Aluminium with black coating in headsink

    陽極氧化鋁的散熱片加黑色塗層

    Anodizado de aluminio con recubrimiento negro en el disipador de calor

  • Optical materials

    光學材料

    Materiales ópticos

    Matte Black

    Matte White

    Gold

  • Trim Color-框邊顏色-Estilo Color

    Matte white / Matte black

    啞光白色 / 啞光黑色

    Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20 - (IEC 60529)

  • Environment-使用環境-medio ambiente

    Indoor

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547W

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DRICT-7W-SW-40-S-90-MW-MW
DRICT
-
7W
-
LED Driver Type
-
Color Temperature
-
BEAM Angle
-
Color Rendering Index
-
Reflector Color
-
Trim Color

Power Consumption

  • 7W
    1 x 7W

LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    Analog 0 -10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K

BEAM Angle

  • S
    15°
  • M
    24°
  • L
    35°

Color Rendering Index

  • 80
    >80
  • 90
    >90

Reflector Color

  • MB
    Matte Black
  • MW
    Matte White
  • G
    Gold

Trim Color

  • MW
    Matte white
  • MB
    Matte black

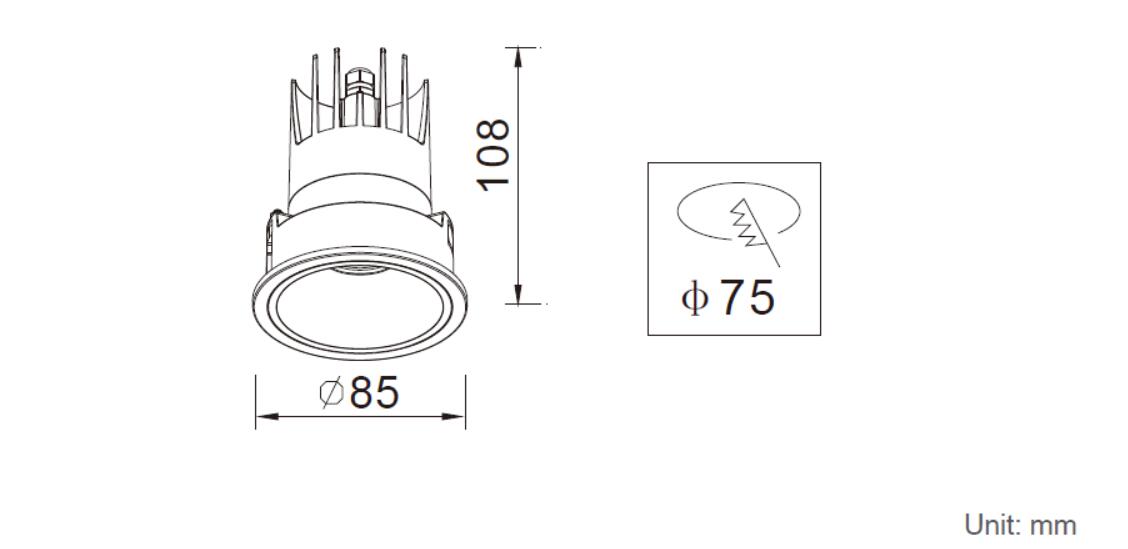

Technical Drawing
