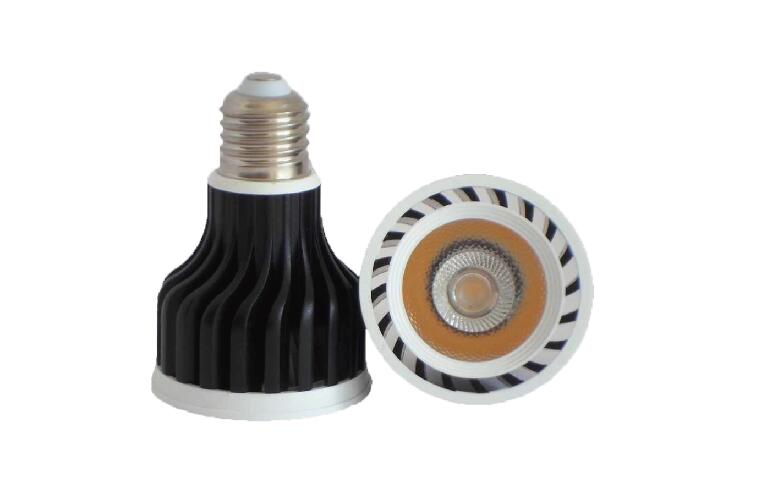

PART

D64 x H78&95mm 8W-10W
BULB

Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of PMMA. LED module: high-power CITIZEN LEDs Array, CRI>80, LM-80 performance approval >50,000 hours.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    E27 Connector

    E27接头

    E27 Conector

  • Dimension-尺寸-Dimensión

    DIA 64 x H:78 mm @8W

    DIA 64 x H:95 mm @10W

  • QTY of LEDs-燈珠數量-CANT de LEDs

    1 pcs CITIZEN LED Array

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    8W

    10W

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC200-240V 50/60HZ

    2. ELV Dimming Driver (5-100%)  AC 200-240V 50/60HZ



  • LED Driver Features

    驅動特性

    Funciones del controlador de LED

    EFFICIENCY (Typ.): >85%

    MAX. No. of PSUs on 16A CIRCUIT BREAKER: 35 units (circuit breaker of type B) / 50 units (circuit breaker of type C at 230VAC)

  • Beam Angle

    光束角

    ángulo de haz

    12°@10W

    24°@8W@10W

    38°@8W

    60°@8W



  • Light Source Brand-光源品牌-Fuente de luz de marca

    CITIZEN - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    95 Lm/w(2700K),

    100 Lm/w(3000K),

    100 Lm/w(4000K),

    105 Lm/w(5000K),

    105 Lm/w(6500K),

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    105 Lm/w(2700K),

    110 Lm/w(3000K),

    110 Lm/w(4000K),

    120 Lm/w(5000K),

    120 Lm/w(6500K),

  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and acrylic

    壓鑄鋁和亞克力

    Fundición de aluminio y acrílico

  • Housing Color

    外殼顏色

    color de la carcasa

    Powder Coating : White + black body

    粉末塗料:白色+黑色燈身

    Recubrimiento en Polvo: Cuerpo blanco y negro de arena

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20 - (IEC 60529)

  • Environment-使用環境-medio ambiente

    Indoor

  • Certification-認證-Certificación

Specification Code

Example Product Code:
PART-10W-SW-S-30
PART
-
Power Consumption
-
LED Driver Type
-
BEAM Angle
-
Color Temperature

Power Consumption

  • 8W
    1 x 8W @ H78mm
  • 10W
    1 x 10W @ H95mm

LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control

BEAM Angle

  • N
    12° @10W
  • S
    24° @8W@10W
  • M
    38° @8W
  • L
    60° @8W

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K
