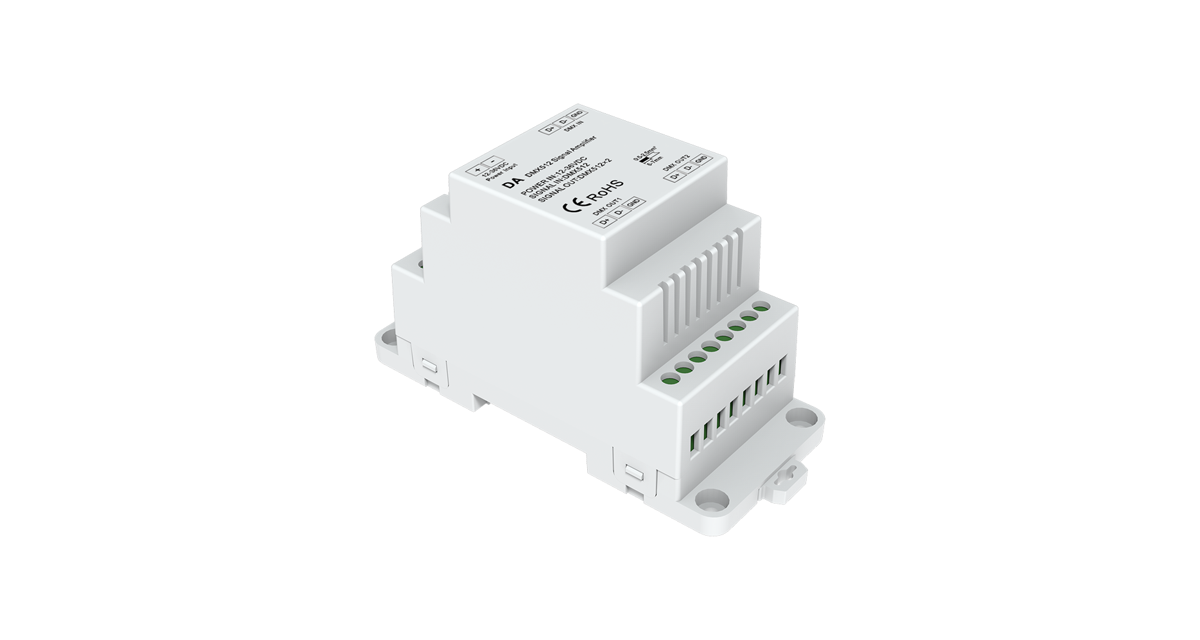

DMX Signal Amplifier DA

DA
DMX Signal Amplifier DA

● One DMX512 signal input, two DMX512 signal output.
● Dedicated to amplify, distribute and insulate the siganl that comes from the lighting system equipment when it is connected to the bus of DMX512(or RS-485).
● Realize extending the signal transmission distance.
● Signals expansion output control, increase DMX (485) signal amplifier to distribute multi-channel control.
● Photo-electricity insulation between input and output terminals, output terminals among channels, so as to avoid the expensive equipment such as light, 485 communications equipment, DMX driver, precise digital lighting controller, being burnt by the possible high voltage which caused from the wrong wire connection and a broken equipment, also can avoid the signal interference between each DMX equipment.

Technical Data

  • Input voltage

    5-24VDC

  • Input signal

    DMX512

  • Output signal

    DMX512×2

  • Working temperature

    -30℃~55℃

  • Product size

    L115×W48×H67mm

  • Net weight

    102g

  • Certification

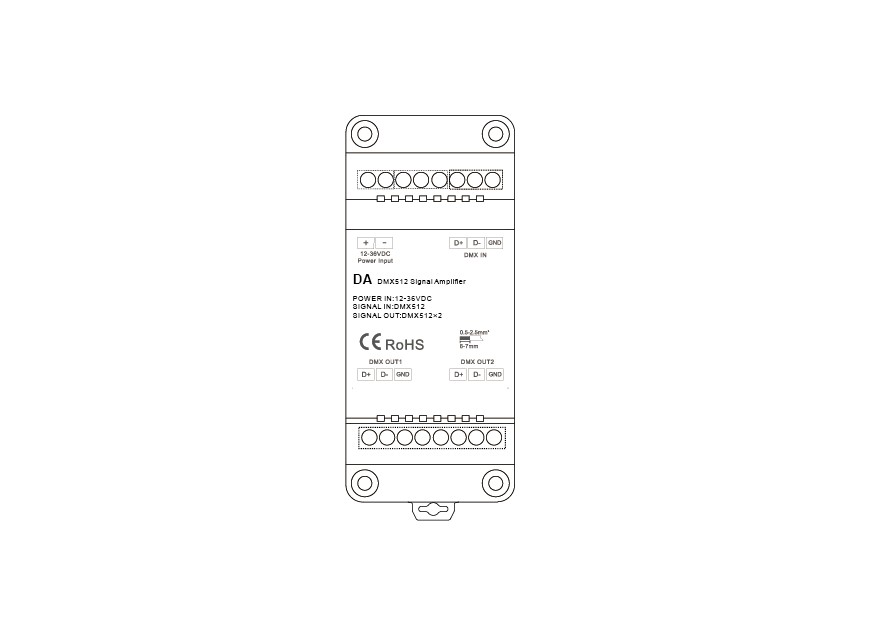

Technical Drawing
