D24 -DMX512 Decoder

D24
D24

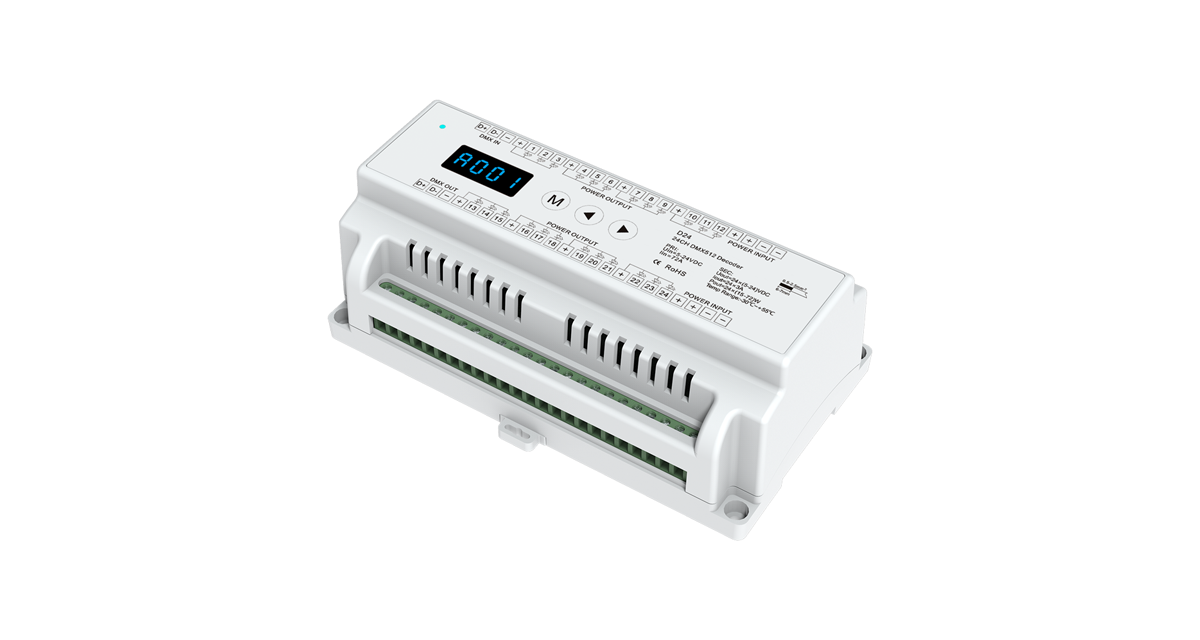

24 CH Constant Voltage DMX512 Decoder

● Din rail mounted DMX512 constant voltage decoder, 24 channel output, 3A per channel.
● With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.
● It also can work as stand-alone 24ch RGB controller, have 4 kinds dynamic mode.
● It also can work as stand-alone 24ch dimming controller, each channel adjust brightness independently, and save up to 8    groups brightness.
● Work with power repeater to expand output unlimitedly.

Technical Data

  • Input voltage

    5-24VDC

  • Input signal

    DMX512

  • Output type

    PWM constant voltage

  • Output current

    24CH,3A/CH

  • Output power

    24 x (15-72)W

  • Decode number

    1/3/6/24 DMX Channel

  • Grey levels

    16 Bit

  • Dimming range

     0-100%

  • Working temperature

    -30 °C~55 °C

  • Dimension

    L160×W88×H60mm

  • Weight

    306g

  • Certification

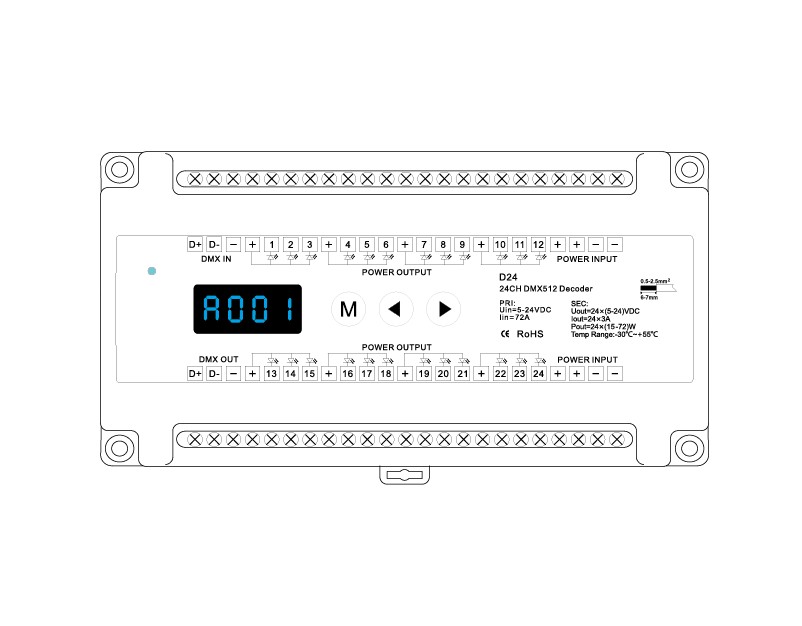

Technical Drawing
