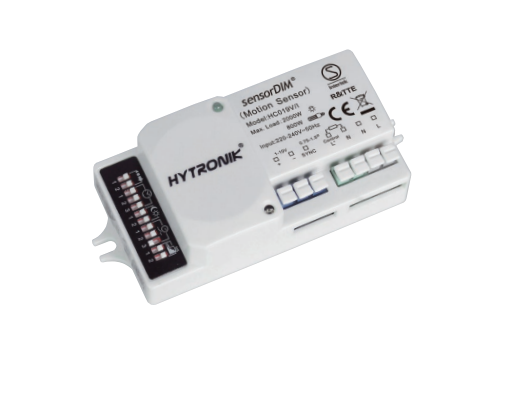

HC019V-I-1

Synchronised Control Version with Photocell Advance
Occupancy detector with tri-level control
  • Special photocell to measure and differentiate natural light from LED light from behind the Fixture cover
  • Tri-level dimming control based upon occupancy (also known as corridor function)
  • One-key commissioning via programmable remote control
  • 1-10V dimming control method
  • Synchronised dimming with multiple sensor circuits
  • Zero crossing detection circuit reduces in-rush current and prolongs relay life
  • Loop-in and loop-out terminal for efcient installation

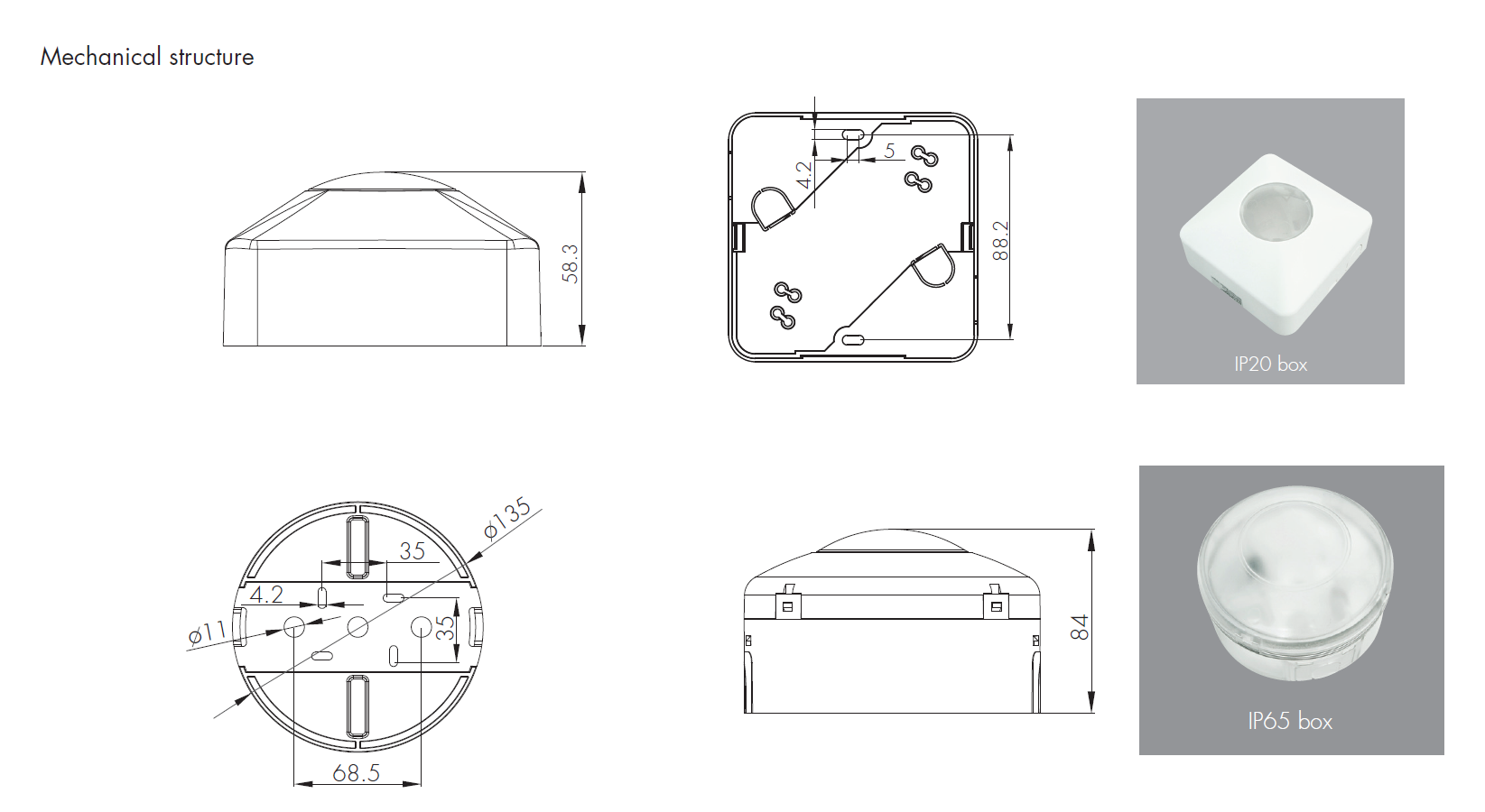

Technical Drawing
