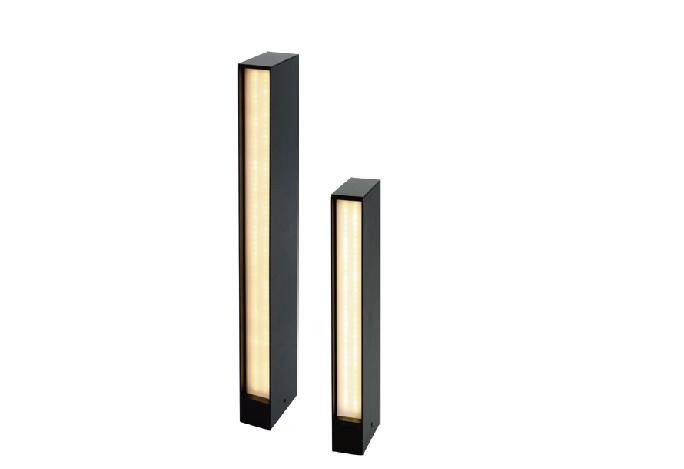

BOVA

L50xW100xH450&600 15W-24W

LED BOLLARDS LIGHT IP65

LED BOLLARDS Light with symmetrical light distribution and double side light.Die-casting aluminum body, extruded aluminum pole. Surface anti-ageing electrostatic spray processing. Remote-Type ELV , 0-10V, DALI, DMX and RDM LED constant current control gear. LM-80 performance approval >50,000 hours. Anti-glare reflector lens system made of optical PMMA. Waterproof design with IP65 protection. For illuminating paths, streets, parking spaces and traffic-calmed areas.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Surface Mounted Type

明裝式燈具

Superficie Tipo Montado
Dimension-尺寸-Dimensión

L: 100 x W: 50 x H: 450 mm

L: 100 x W: 50 x H: 600 mm
Power Consumption Max-燈具功率

Consumo de energía Max

15W

24W
Input Voltage-輸入電壓-Voltaje de entrada

AC 100-240V 50/60Hz
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 220-240V 50/60HZ

3. 0-10V Dimming Driver AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ
LED Driver Features

驅動特性

Funciones del controlador de LED

POWER FACTOR : PF≧0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%

EFFICIENCY (Typ.): >90%

MAX. No. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 40 units (circuit breaker of type C at 230VAC)
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle

光束角

ángulo de haz

360°
Light Source Brand-光源品牌-Fuente de luz de marca

SMD - (Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk))
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy

燈具效率

La eficacia de la luminaria

65 Lm/w(2700K),

65 Lm/w(3000K),

70 Lm/w(4000K),

75 Lm/w(5000K),

75 Lm/w(6500K),
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia

100 Lm/w(2700K),

100 Lm/w(3000K),

105 Lm/w(4000K),

120 Lm/w(5000K),

120 Lm/w(6500K)
Housing materials-外殼材料

Materiales de la carcasa

Aluminium and PMMA

鋁和PMMA

Aluminio y PMMA
Housing Color

外殼顏色

color de la carcasa

Matte Black

Matte White

Dark Gray

Customized finishing color
Ingress Protection-防護等級

Protección de ingreso

IP65 - (IEC 60529)
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Net Weight

淨重

Peso Neto

1.7 kg @ 15W

2.2 kg @ 24W
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-1 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
