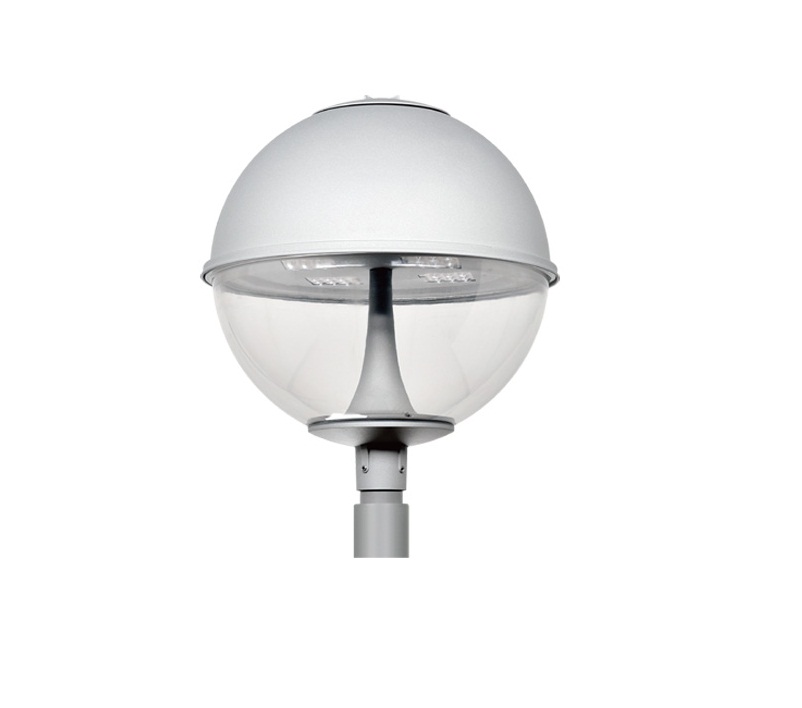

GAI

D520xH560mm 30W-80W

GARDEN LIGHTING

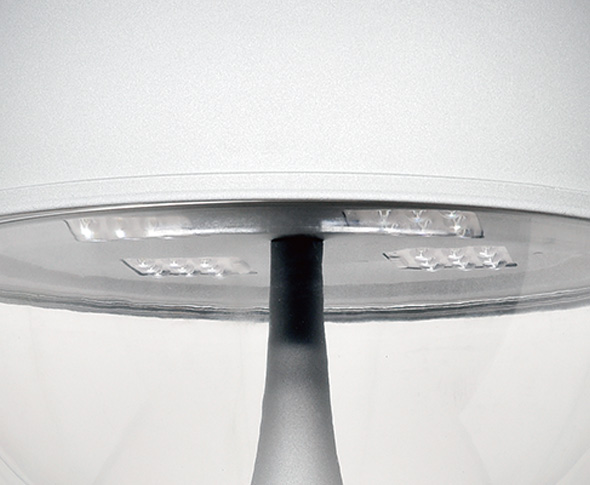

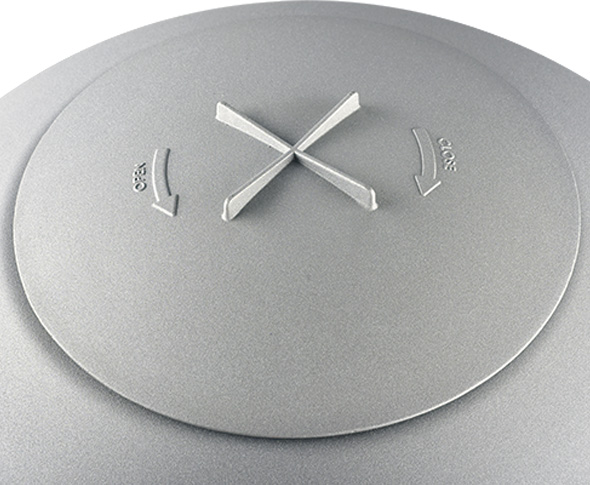

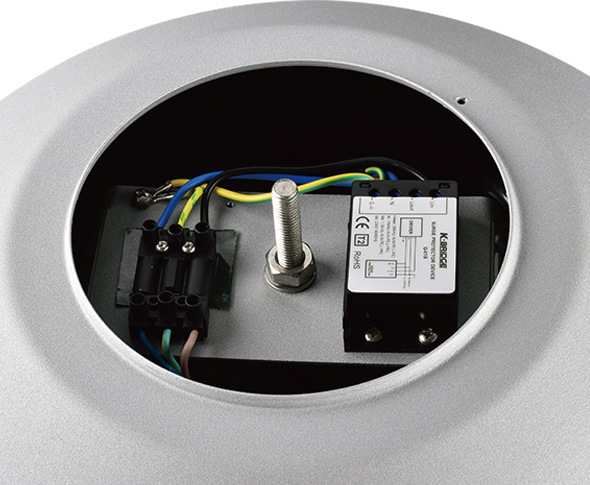

The Garden Light GAI is finished by Die-cast aluminium with separated and integrated LED Driver Box , with surface anti-ageing electrostatic spray processing,super resistance to corrosion and rotated bracket, Gaskets in anti-aging rubber , with clear polycarbornate diffusor and Heat Resisting Cable. It’s as well a great alternative to urban furniture due to its IP65 protection rating and IK08 Impact protection. Button design for opening LED driver box for easy power circuit connection. And, It is able to be controlled by ELV, 0-10V,DALI,Zigbee dimming system. LED module: high-power Philips 140 Lm/w . LM-80 performance approval >50,000 hours; Fixing: Top mounted for Dia 60mm pole.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Dia 60mm Pole Mounted . Top Mounted or Side Mounted

適合直徑60mm 燈杆安装,頂部安裝或側面安裝

Dia 60mm montado en polos. Montaje en la parte superior o lateral
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

30W @ 18 pcs LED PHILIPS

40W @ 18 pcs LED PHILIPS

60W @ 36 pcs LED PHILIPS

80W @ 48 pcs LED PHILIPS
Input Voltage / 輸入電壓

Voltaje de entrada

90-305VAC/50-60HZ
Control Protocol/控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Power Factor / 功率因數/Factor de potencia

PF>0.9
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD < 20%
Light Source Brand-光源品牌-Fuente de luz de marca

PHILIPS (Risk group 1 (low risk) from this according to EN 62471-photo biological safety)
"Lumen Maintenance LM-80 Reported by TM-21"

L70> 50,000 hrs
LED Life-LED壽命-La vida del LED

>50,000 hours
Color Temperature and Color

色溫和顏色

Temperatura y color del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色 < 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Beam Angle

光束角

ángulo de haz

Symmetric 145°
uminaire Efficacy

燈具效率

La eficacia de la luminaria

100 Lm/w(2700K),

100 Lm/w(3000K),

120 Lm/w(4000K),

130 Lm/w(5000K),

130 Lm/w(6500K),
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia

134 Lm/w(2700K),

134 Lm/w(3000K),

143 Lm/w(4000K),

153 Lm/w(5000K),

153 Lm/w(6500K),
Housing materials

外殼材料

Materiales de la carcasa
- Die-cast aluminium and clear polycarbonate (PC)
- 壓鑄鋁和透明聚碳酸酯（PC）
- Aluminio fundido a presión y policarbonato transparente (PC)
Housing Color

外殼顏色

color de la carcasa
- Polyester powders Coating: Matte Gray -RAL 9006 and Matte Black -RAL 9005
- 聚酯粉末塗層 :啞光灰色-RAL 9006和啞光黑色-RAL 9005
- Polvos de poliéster Recubrimiento: gris mate -RAL 9006 y negro mate -RAL 9005
Ingress Protection-防護等級

Protección de ingreso

IP65 - (IEC 60529)
Mech impact protection

機械衝擊保護

Protección contra impactos mecánicos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +60 °C / -4 °F / +124 °F
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Installation Height

安裝高度

Altura de montaje

3 - 9 M
Dimension

尺寸

Dimensión

Dia 510 x H: 560 mm
Net Weight /Gross Weight

淨重/毛重

Peso Neto / Peso Bruto
9.3kg / 12.4kg @ 30W & 40W

9.5kg /12.6kg @ 60W & 80W
Packing box size

包裝箱尺寸

Tamaño de la caja de embalaje
525 x 525 x 580mm

Remark( 176 pcs / 20"container or 352 pcs / 40"container)
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento
- LED Luminaires: IEC 60598-1 / IEC 60598-2-1 / Photometric data-IES format
- LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
