GAN

GAN
SQ425xH743mm 40W-60W
GARDEN LIGHTING

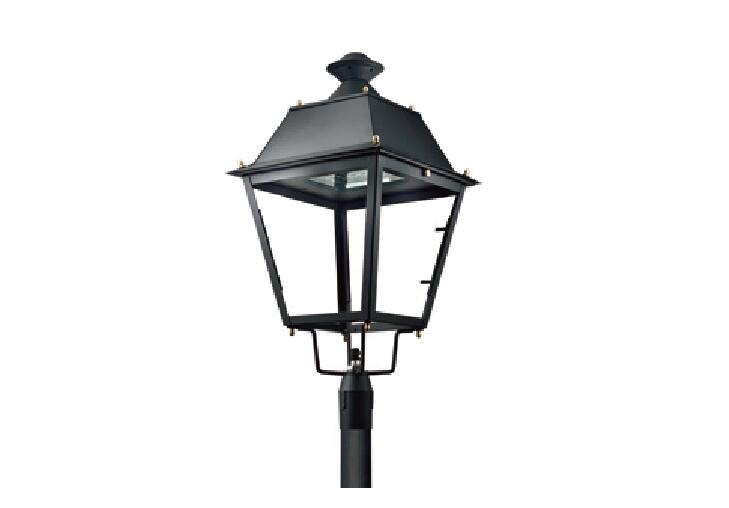

The Garden Light GAN is finished by Galvanized steel plate after jointing welding with separated and integrated LED Driver Box , anodized aluminium reflector and PMMA high
transparent diffuser. Galvanized steel plate, special screw fastening.Surface anti-ageing electrostatic spray processing, super resistance to corrosion. It’s as well a great alternative to urban furniture due to its IP65 protection rating and IK08 Impact protection. Button design for opening LED driver box for easy power circuit connection. And, It is able to be controlled by ELV, 0-10V,DALI,Zigbee dimming system. LED module: high-power CREE LED. LM-80 performance approval >50,000 hours; Fixing: Top mounted for Dia 60mm pole or 3/4’’ gas thread.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Dia 60mm Pole Mounted

    適合直徑60mm 燈杆安装

    Dia 60mm montado en polos

  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    40W @ 30 pcs LED CREE

    60W @ 30 pcs LED CREE



  • Input Voltage / 輸入電壓

    Voltaje de entrada

    100 - 240VAC/50-60HZ

  • Control Protocol/控制協議

    Protocolo de Control



    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Power Factor / 功率因數/Factor de potencia

    PF>0.9

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD < 20%

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE (Risk group 1 (low risk)  from this according to EN 62471-photo biological safety)

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70> 50,000 hrs

  • LED Life-LED壽命-La vida del LED



    >50,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色 < 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Beam Angle

    光束角

    ángulo de haz

    T12

    T13

    T14

  • uminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    85 Lm/w(2700K),

    85 Lm/w(3000K),

    90 Lm/w(4000K),

    100 Lm/w(5000K),

    100 Lm/w(6500K),

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    100 Lm/w(2700K),

    100 Lm/w(3000K),

    105 Lm/w(4000K),

    120 Lm/w(5000K),

    120 Lm/w(6500K),

  • Housing materials

    外殼材料

    Materiales de la carcasa

    Galvanized steel plate after jointing welding and Glass

    鍍鋅鋼板折彎焊接成型和玻璃

    Placa de acero galvanizado después de la soldadura de juntas y vidrio

  • Housing Color

    外殼顏色

    color de la carcasa

    Polyester powders Coating:  Matte Gray -RAL 9006 and Matte Black -RAL 9005

    聚酯粉末塗層 :啞光灰色-RAL 9006和啞光黑色-RAL 9005

    Polvos de poliéster Recubrimiento: gris mate -RAL 9006 y negro mate -RAL 9005

  • Ingress Protection-防護等級

    Protección de ingreso

    IP66 - (IEC 60529)

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánicos

    IK08

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +60 °C /  -4 °F / +124 °F

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Installation Height

    安裝高度

    Altura de montaje

    4 - 6 M



  • Dimension

    尺寸

    Dimensión

    W 425 x L 425 x H: 743 mm



  • Net Weight /Gross Weight

    淨重/毛重

    Peso Neto / Peso Bruto

    5.5kg / 6.3kg @ 40W

    5.7kg / 6.5kg @ 60W





  • Packing box size

    包裝箱尺寸

    Tamaño de la caja de embalaje

    445 x 445 x 780mm

    Remark(  195 pcs /  20"container or 390 pcs / 40"container)

  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaires: IEC 60598-1 / IEC 60598-2-1 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
GAN-40W-SW-30-MB
GAN
-
POWER CONSUMPTION
-
LED DRIVER TYPE
-
COLOR TEMPERATURE
-
Housing Color

POWER CONSUMPTION

  • 40W
    40W
  • 60W
    60W

LED DRIVER TYPE

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • ZI
    ZIGBEE Wireless Control

COLOR TEMPERATURE

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K

Housing Color

  • MB
    Matte Black
  • MG
    Matte Gray

Technical Drawing

Product Download Tab

DATA SHEET

DIMENSION DRAWING

INSTALLATION INSTRUCTION
