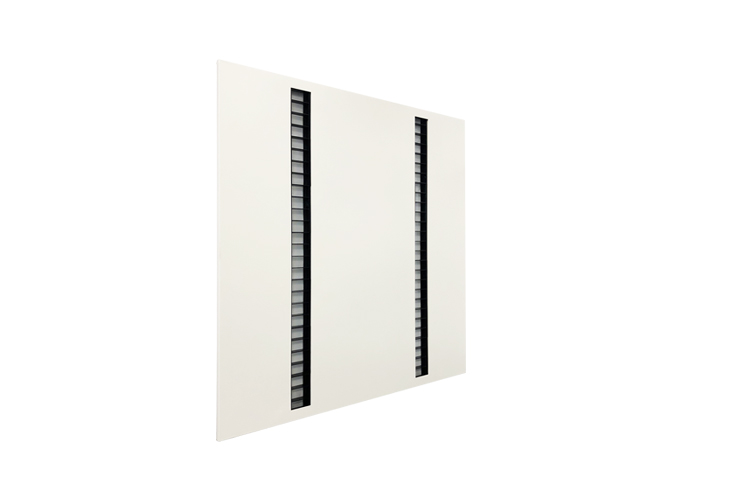

PANCY

PANCY
PANCY

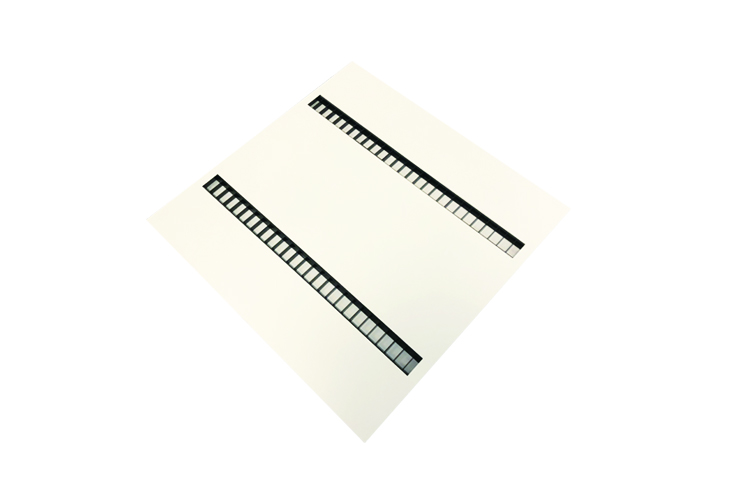

PANCY-2

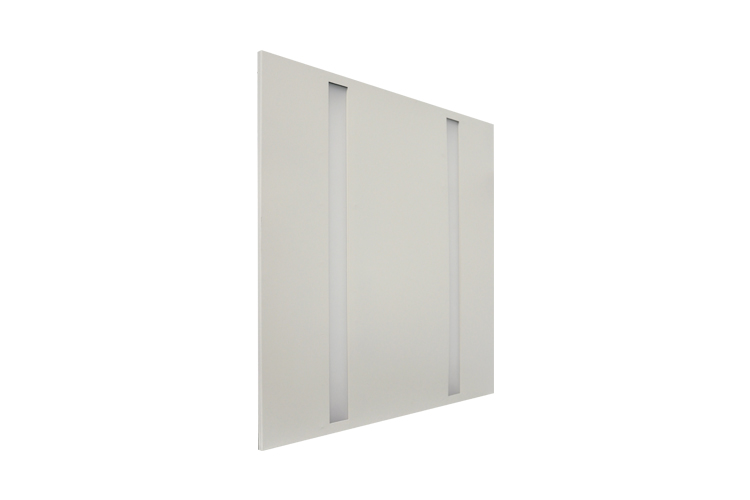

PANCY-3
30W~44W IP40
LED MODULAR TROFFER

LED MODULAR TROFFER.  Housing: made by Extrusion aluminum fixture body with multi-type of Diffuser,  Louver and Lens system to achieve Low Glare application UGR<6 , UGR<13 , UGR<19, UGR<23.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Recessed & Suspended  Mounted

    嵌入式,或吊裝

    Empotrado y suspendido montado

  • Dimension-尺寸-Dimensión



    • L: 595 x W: 595 x H: 36 mm  (with driver box)

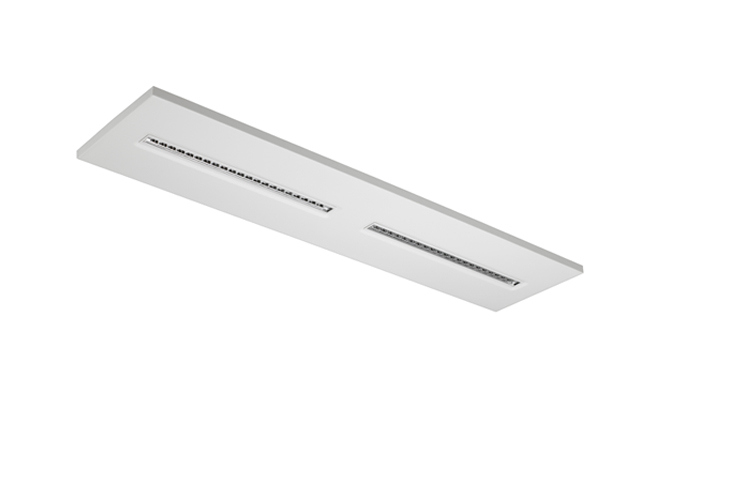

    • L: 1195 x W: 295 x H: 36 mm  (with driver box)



  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • 30W
    • 36W
    • 40W
    • 44W





  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated -type LED Driver--Constant Current LED Driver

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver AC100-240V 50/60HZ

    7. ZIGBEE Wireless Control  AC100-240V 50/60HZ

    8. Remoted-Type Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

  • Control Protocol/控制協議/Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Light Source Brand-光源品牌-Fuente de luz de marca

    OSRAM  - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K / CCT Adjustable (2700K-6500K)

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • >80
    • >90
  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Beam Angle

    光束角

    ángulo de haz



    • 100° PC Diffuser UGR 22
    • 70° PC Diffuser+ Louver A UGR 19
    • 66° PC Diffuser+ Louver B UGR 13
    • 43° Lens UGR 6
    • 60° Asymertric Angle for Wallwasher Application
    • 120°  Penta-PC-Diffuser
  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    • 110 Lm/w(2700K)
    • 115 Lm/w(3000K)
    • 120 Lm/w(4000K)
    • 125 Lm/w(5000K)
    • 125 Lm/w(6500K)
  • LED Source Luminous Efficacy

    LED光源光效Fuente luminosa LED Eficacia

    • 130 Lm/w(2700K)
    • 135 Lm/w(3000K)
    • 140 Lm/w(4000K)
    • 150 Lm/w(5000K)
    • 150 Lm/w(6500K)
  • Housing materials-外殼材料

    Materiales de la carcasa

    Aluminium Alloy and Polycarbonate or PMMA

    鋁合金和PC或亞克力

    Aleación de aluminio y policarbonato o PMMA

  • Modular Troffer Color

    模組格柵顏色

    Color de troffer modular



    Matte white / Matte black

    啞光白色 / 啞光黑色

    Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP40

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471  TM21

    LED Driver:           IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2  IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
PANCY-36W-SW-LA-40-80-0606
PANCY
-
Power Consumption
-
LED Driver Type (Remoted Type)
-
BEAM Angle (Diffuser System)
-
Color Temperature
-
COLOR RENDERING INDEX
-
DIMENSION

Power Consumption

  • 30W
    30W
  • 36W
    36W
  • 40W
    40W
  • 44W
    44W

LED Driver Type (Remoted Type)

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    Analog 0 -10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control

BEAM Angle (Diffuser System)

  • W
    120° Penta-PC-Diffuser
  • S
    43° Lens UGR 6
  • M
    66° PC Diffuser+ Louver B UGR 13
  • L
    70° PC Diffuser+ Louver A UGR 19
  • LA
    100° PC Diffuser UGR 22
  • A
    60° Asymertric Angle for Wallwasher Application

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K
  • CA
    CCT Adjustable (2700K-6500K)

COLOR RENDERING INDEX

  • 80
    >80
  • 90
    >90

DIMENSION

  • 0606
    L595 x W595 mm
  • 1206
    L1195 x W295 mm

Technical Drawing

Accessories

  • Gateway- NANO
  • INNO-SENSOR-823
  • INNO-SENSOR-826
  • Z501-CZ
  • INNO503
  • INNO817
