PEDDY

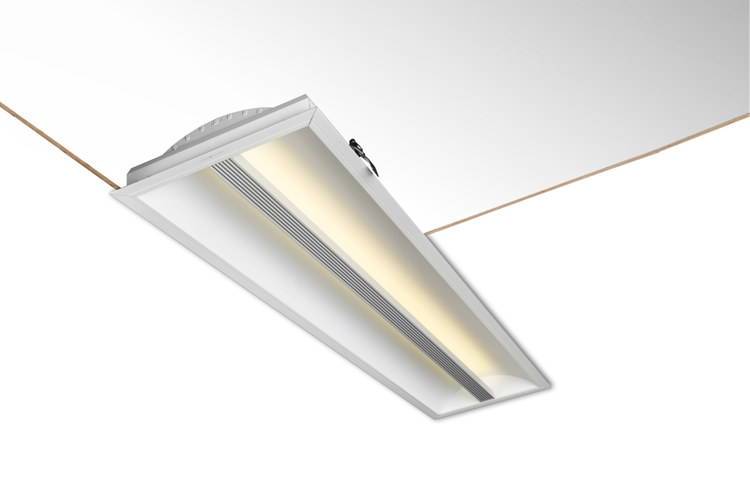

PEDDY

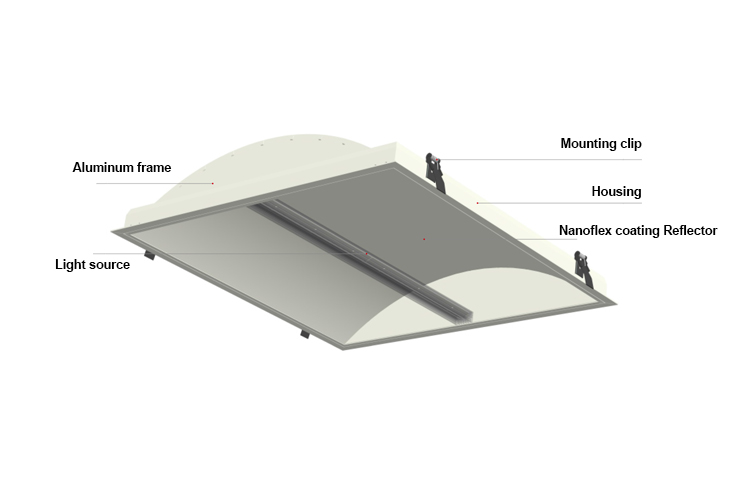

PEDDY-1

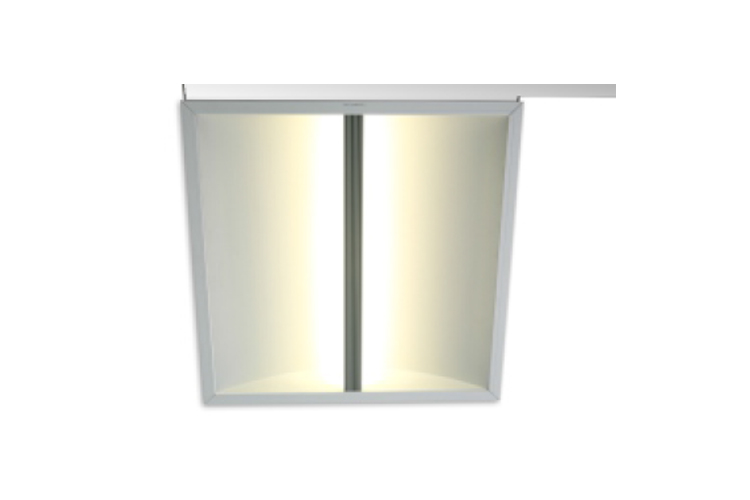

PEDDY-2

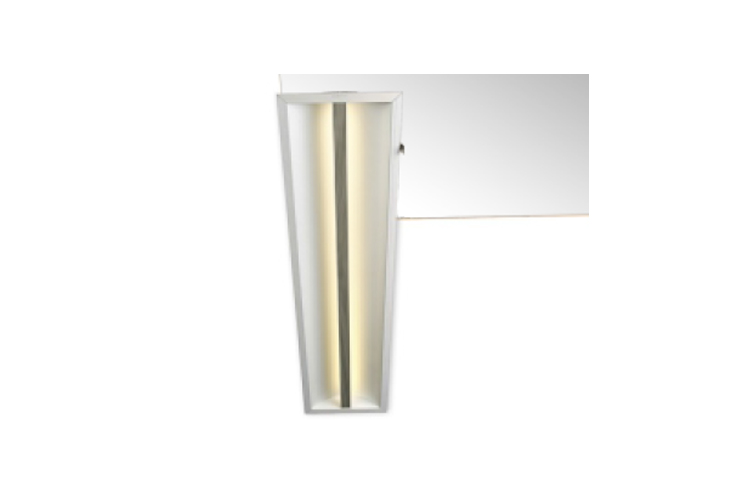

PEDDY-3
18W to 36W Max EU
LED RECESSED PANEL

LED RECESSED PANEL. Housing: die-cast aluminium with LED indirected reflection housing in Nanoflex powder coating technology to achieve the maximum output efficiency and makes soft and shadow free light output via secondary reflection and wider beam angle, designed as heatsink. Anti-glare reflector to Low glare (UGR<19). LED module: SMD LEDs, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear. Optional Tunable White controlled by DALI Driver

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Recessed Mounted Type嵌入式面板燈El panel de luz

  • Dimension-尺寸-Dimensión

    • L: 598 x W: 598 x H: 110 mm
    • L: 1198 x W: 298 x H: 80 mm
  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60Hz

  • Power Consumption -燈具功率

    Consumo de energía

    • 20W         25W         30W         36 W
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ or Tunable White controlled by DALI Dimming Only

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver  AC100-240V 50/60HZ

    7. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Beam Angle光束角ángulo de haz

    110°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    TAIWAN Everlight SMD LED

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    • 2700K / 3000K / 4000K / 5000K / 6500K
    • TW: Tunable White (2700K-6500K)
  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    •  >80
    •  >90
  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria



    • 110 Lm/w(2700K)           110 Lm/w(3000K)          120 Lm/w(4000K)
    • 120 Lm/w(5000K)          120 Lm/w(6000K)          120 Lm/w(6500K)
    • 110Lm/w(Tunable White)
  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    • 130 Lm/w(2700K)         130 Lm/w(3000K)         140 Lm/w(4000K)
    • 140 Lm/w(5000K)          140 Lm/w(6000K)        140 Lm/w(6500K)
    • 140Lm/w(Tunable White)
  • Housing materials-外殼材料

    Materiales de la carcasa

    High-quality Aluminum alloy  優質鋁合金

    Aleación de aluminio de alta calidad

  • Housing Color 外殼顏色

    color de la carcas

    Matte White Trim-Nano  Paint Finishing 啞白色框邊 (納米塗料整理)

    Adorno blanco mate (Acabado de pintura nano)

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20

  • Operating Humidity -工作濕度
    Humedad de funcionamiento

    0~90%, non-condensing-不結霜
    sin condensación

  • Operating Temperature Range / 工作溫度範圍
    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Risk Group 1)

    LED Driver:           IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                                 IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
PEDDY-36W
PEDDY
-
Power Consumption

Power Consumption

  • 20W
    20W
  • 25W
    25W
  • 30W
    30W
  • 36W
    36W

Technical Drawing
