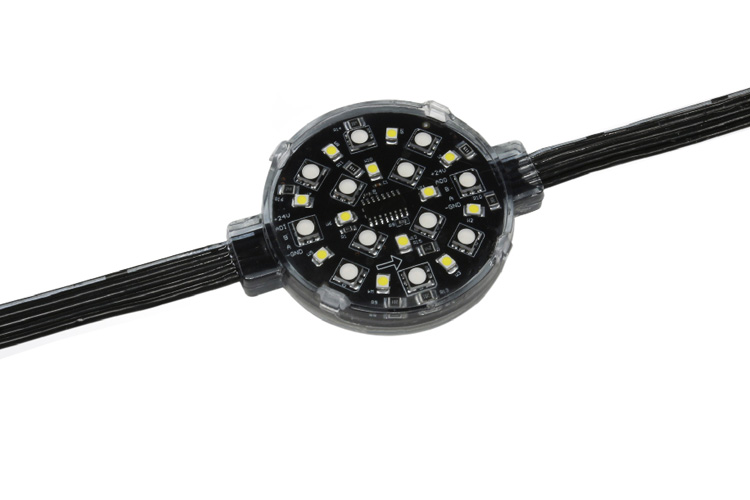

PIYAD

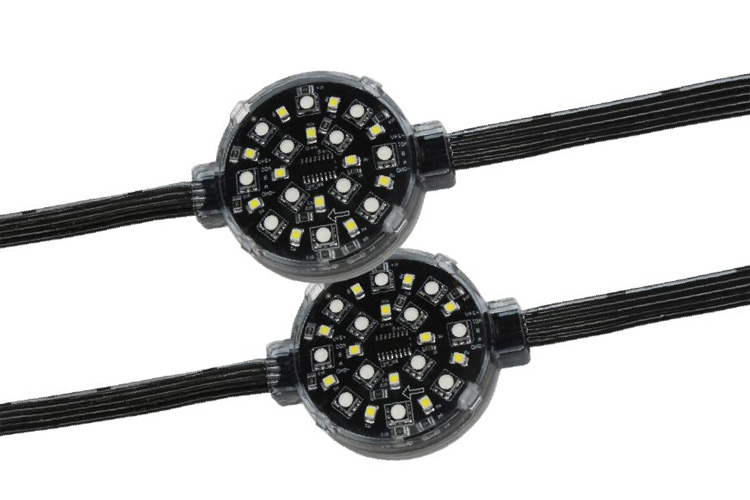

PIYAD-1
PIYAD-2

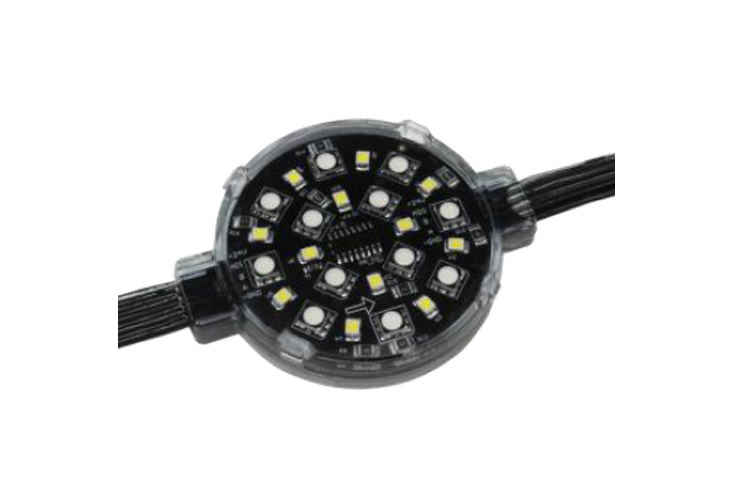

PIYAD-3
RGBW D60mm 3.8W Max IP68
LED PIXEL LIGHT

LED PIXEL LIGHT is a indoor and outdoor fixture with RGBW color for media façade application. It is able to be controlled by DMX and RDM. Built-in 16-bit PWM embedded LED IC, featuring 16-bit gray scale control, supports up to 65,536 gray scales for color depths. The high visual refresh rate can facilitate CCD cameras and video cameras to capture the full video images in real time without flickers.

Technical Data

  • Luminaire Type/ 安裝方式

    Tipo de luminaria

    Surface Mounted Type

    明裝式燈具

    Superficie Tipo Montado

  • QTY of LEDs-燈珠數量-CANT de LEDs

    12pcs RGB(3 in 1) SMD LEDs + 12pcs W SMD LEDs

  • Power Consumption Max

    燈具最大功率

    Consumo de energía Max

    3.8W



  • Color -顏色-Color

    • RGBO (Orange White: 2700K)
    • RGBW (Warm White: 3000K)
    • RGBN( Nature White: 4000K)
    • RGBD ( Day White: 5000K)
    • RGBC (Cool White:  6500K)
  • Pixels & DMX Channels

     像素和DMX 通道

    Píxeles y canales DMX



    1 PXL =4 DMX Channels

    1 PXL= 4 DMX Channels

    Tailor-made - 客制生產-Hecho a medida

  • Control Protocol-控制協議

    Protocolo de Control

    DMX 512A / RDM

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    DC24V

  • Color Range

    顏色範圍

    Gama de colores

    16.7 Million additive RGB colors and White LED

    1670萬RGB顏色配合白光LED

    16.7 Millones de colores aditivos RGB; LED blanco

  • RGBW Color Resolution with Gamma correction

    RGBW顏色經過伽馬校正的分辨率

    Resolución de color RGB W con la corrección de gamma

    4 x 16-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

    4 x 16位灰度控制,支持高達65,536個灰度級的顏色深度

    4 x control de escala de grises de 16 bits, soporta hasta 65.536 escalas de gris para profundidades de color



  • Beam Angle/光束角

    ángulo de haz

    110°

  • Light Source Brand/光源品牌

    Fuente de luz de marca

    EPISTAR - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • LED Life/LED壽命

    La vida del LED

    >50,000 hours

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 2 SDCM

    標準偏差配色< 2 SDCM

    Coincidencia de color estándar Desviación < 2 SDCM

  • LED Pitch

    LED像素間距

    LED Pitch



    150 mm min(can be customized)

  • Pixel Connection Max

    一串最大像素點

    Pixel Connection Max

    Max 40pcs / string

    24pcs 一串最大

    Max 24 unids / cadena

  • Luminaire Efficacy-燈具效率

    La eficacia de la luminaria

    • 20 Lm/w(RGBO@Full Load)
    • 20 Lm/w(RGBW@Full Load)
    • 25 Lm/w(RGBN@Full Load)
    • 30 Lm/w(RGBD@Full Load)
    • 30 Lm/w(RGBC@Full Load)
  • LED Source Luminous Efficacy-LED光源光效

    Fuente luminosa LED Eficacia

    • 40 Lm/w(RGBO@Full Load)
    • 40 Lm/w(RGBW@Full Load)
    • 50 Lm/w(RGBN@Full Load)
    • 60 Lm/w(RGBD@Full Load)
    • 60 Lm/w(RGBC@Full Load)
  • Housing materials/外殼材料

    Materiales de la carcasa

    Modified PVC

    PVC

    Modificado PVC





  • Housing Color

    外殼顏色

    color de la carcasa

    White with light gray wire / Black with black wire

    白色燈板及淺灰色線 / 黑色燈板及黑色線

    Blanco con cable gris claro / Negro con cable negro

  • Dimension/尺寸

    Dimensión

    Dia:60 x H:15 mm

  • Weight

    85g / pixel

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento



    -20 °C / +55 °C



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP68 - (IEC 60529)

  • Environment/ 使用環境

    Medio ambiente

    Outdoor /戶外/al aire libre

  • Country of Origin 產地

    PRC 中國

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-3 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1  / IEC 61347-2-13 6 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
PIYAD-3.8W-RGBW
PIYAD
-
Power Consumption
-
Color Tempreture

Power Consumption

  • 3.8W
    3.8W Max
  • XXW
    Tailor-Made

Color Tempreture

  • RGBO
    RGBO(2700K)
  • RGBW
    RGBW(3000K)
  • RGBN
    RGBN(4000K)
  • RGBD
    RGBD(5000K)
  • RGBC
    RGBC(6500K)

Accessories

  • MANYA
  • SLADE
  • CORE-DMX SPLITER
  • HLG-100H
