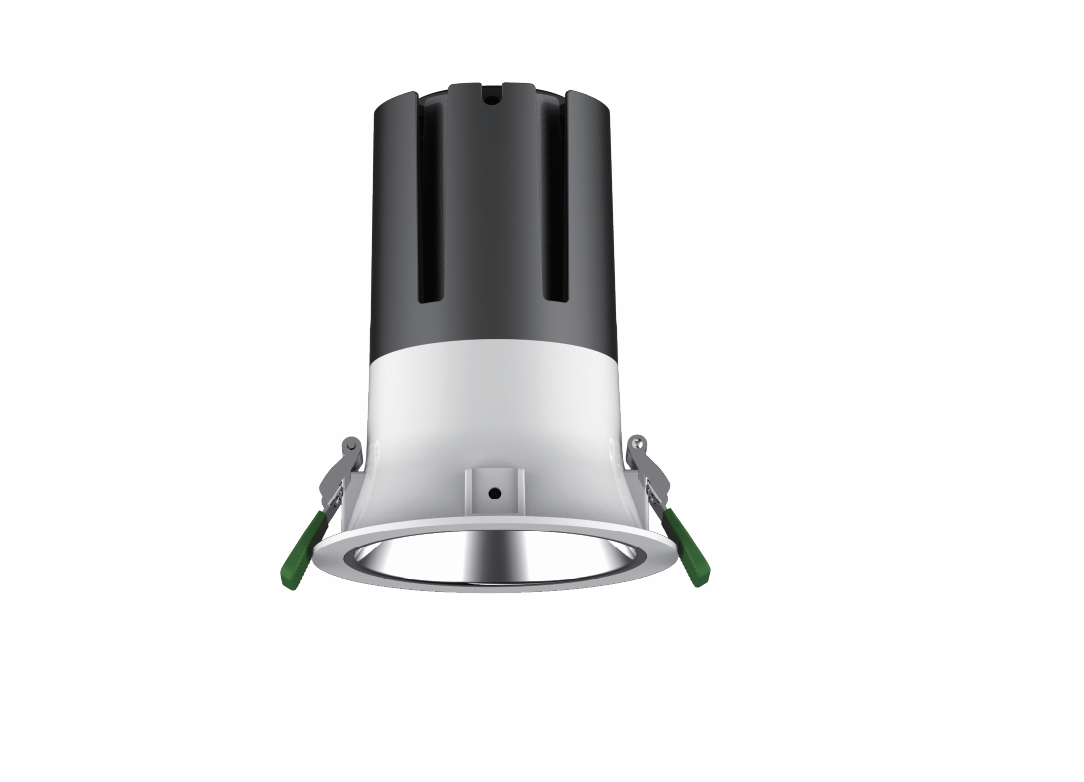

D102~124mm 33W Max IP44
RECESSED SPOTLIGHTS

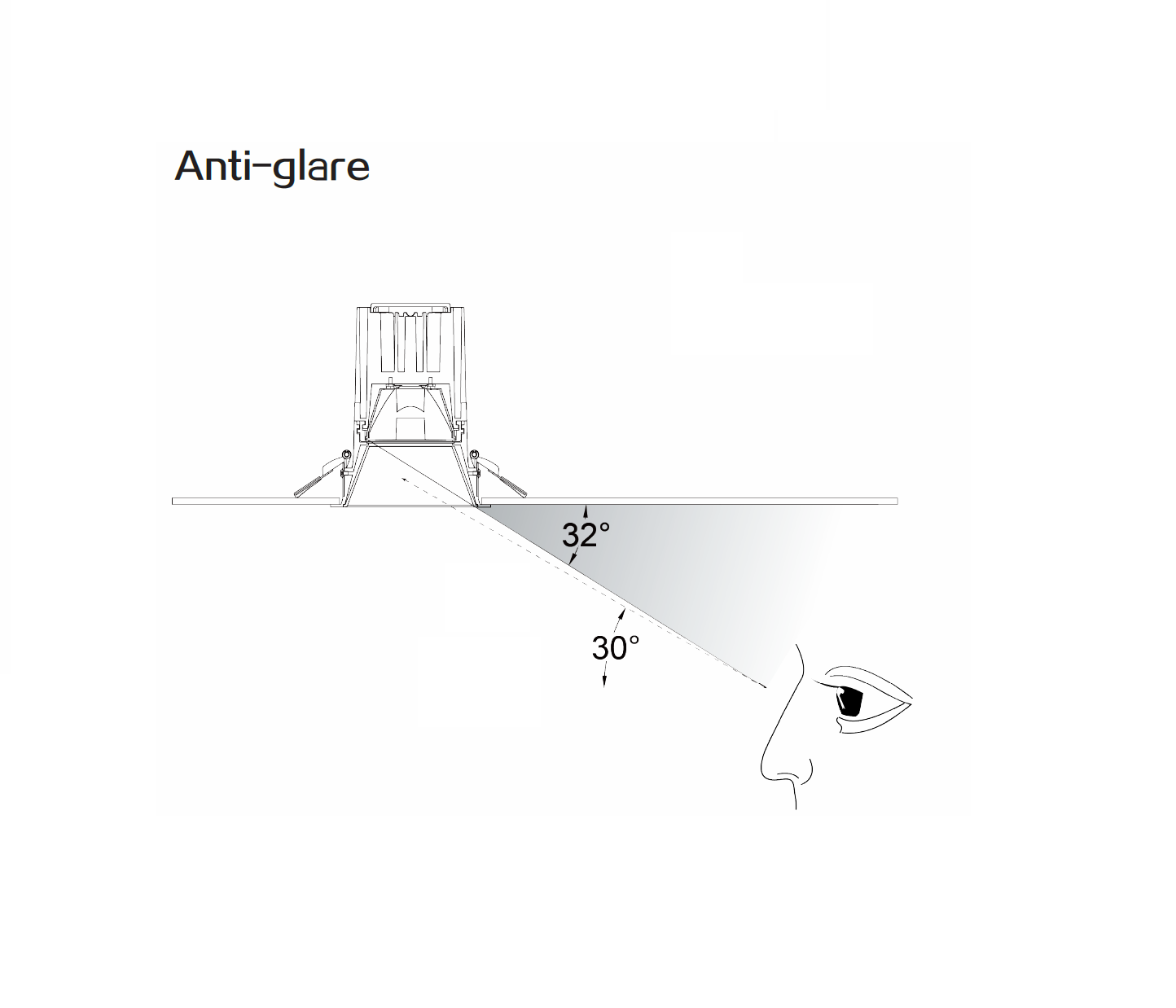

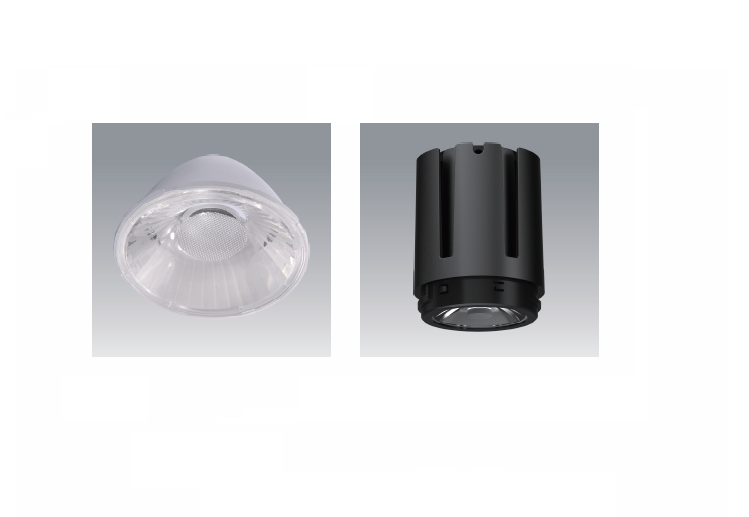

Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of PC. LED module: high-power CREE LEDs Array, CRI>90, LM-80 performance approval >50,000 hours. Integrated-Type ELV , 0-10V, DALI, DMX and RDM LED constant current control gear. Deep recessed design achieves super eye comfort.Ingress Protection :IP 44.

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Recessed Mount Type 嵌入式筒燈  Empotrada Tipo Mount

  • Dimension-尺寸-Dimensión

    • DIA 102 x H:131 mm                                                   DIA 124 x H:158 mm
  • Cut off Dimension-開孔尺寸-Cortar Dimensión

    • DIA 90mm   @ DIA 102 x H:131 mm                       DIA 110mm @ DIA 124 x H:158 mm
  • QTY of LEDs-燈珠數量-CANT de LEDs

    1 pcs CREE LED Array COB

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ or Refer to LED Driver data sheet

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 15W @ DIA 102mm or DIA 124 mm
    • 20W @ DIA 102mm or DIA 124 mm
    • 25W @ DIA 102mm or DIA 124 mm
    • 28W@  DIA 124 mm
    • 30W@  DIA 124 mm
    • 33W@  DIA 124 mm
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)

    6. RDM Driver  AC100-240V 50/60HZ

    7. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features

    驅動特性 Funciones del controlador de LED

    • POWER FACTOR : PF>0.90 @ Full Load  -Refer to LED Driver data sheet
    • TOTAL HARMONIC DISTORTION: THD< 20%- Refer to LED Driver data sheet
  • Control Protocol-控制協議

    Protocolo de Control

    1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

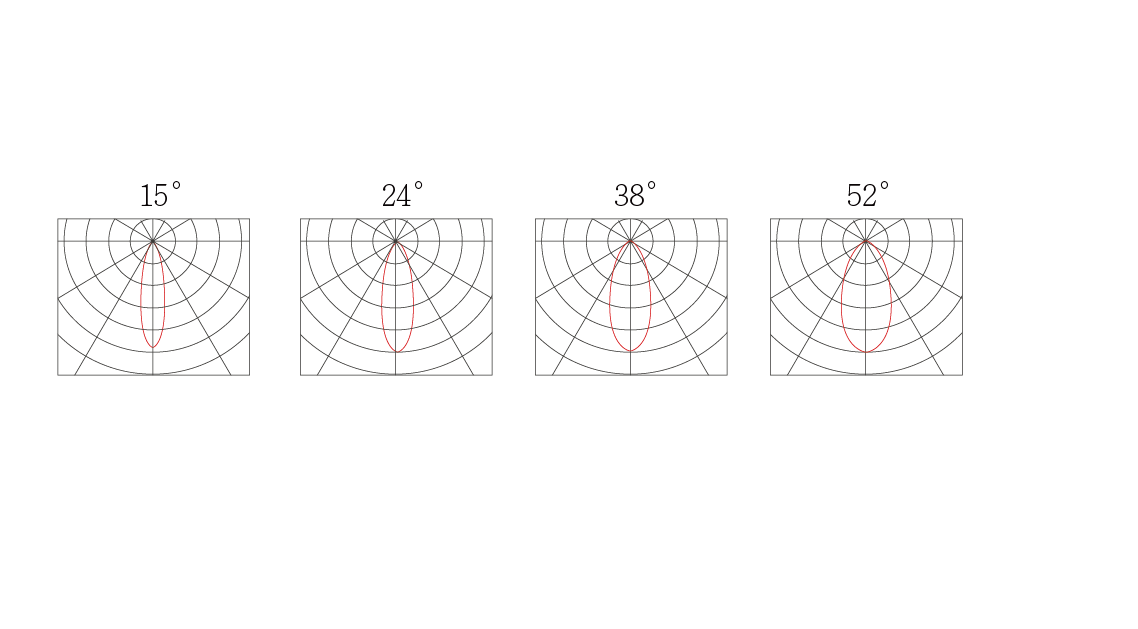

  • Beam Angle 光束角 ángulo de haz

    • 15°                   24°                   38°                     52°
  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L90(10k) = 50,700 hrs    L80(10k) > 63,500 hrs    L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

    > 90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria

    • 95 Lm/w(2700K),
    • 100 Lm/w(3000K),
    • 100 Lm/w(4000K),
    • 110 Lm/w(5000K),
    • 110  Lm/w(6500K),
  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    • 125 Lm/w(2700K),
    • 130 Lm/w(3000K),
    • 130 Lm/w(4000K),
    • 140 Lm/w(5000K),
    • 140  Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and acrylic

    壓鑄鋁和亞克力

    Fundición de aluminio y acrílico

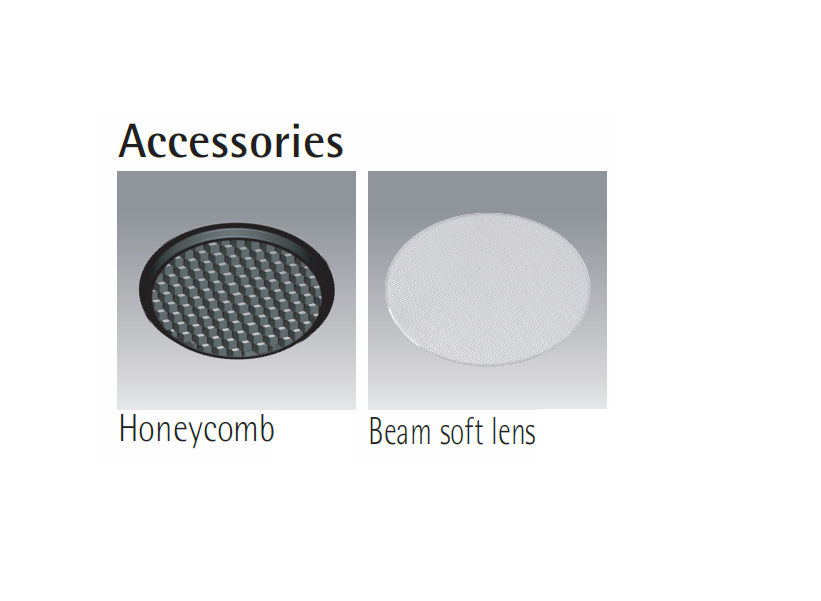

  • Trim Color-框邊顏色-Estilo Color



    Matte white / Matte black

    啞光白色 / 啞光黑色

    Blanco mate / Matte black

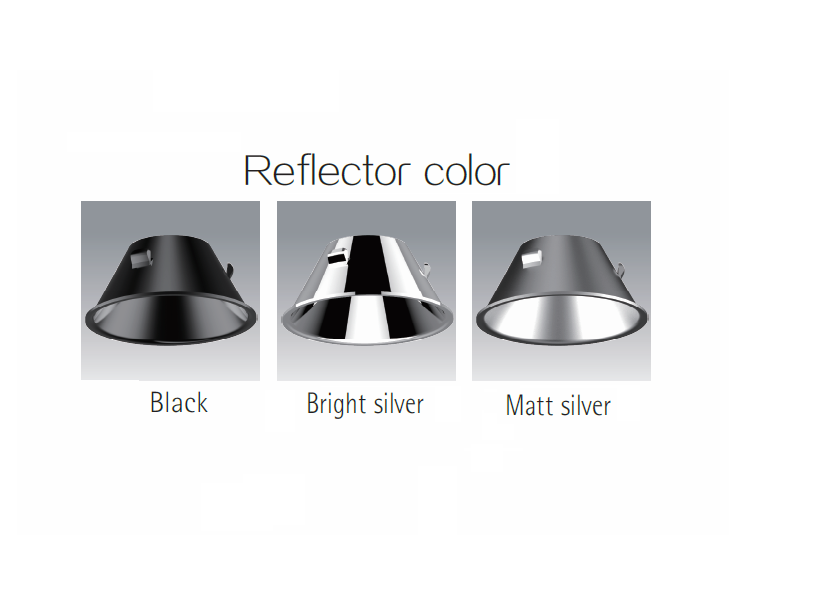

  • Reflector Color-反光杯顏色-Reflector  color

    Matte Black  / Bright silver / Matte silver

    啞黑 / 亮銀 / 啞光銀

    Negro Mate / Plata brillante / Plata mate

  • Ingress Protection-防護等級

    Protección de ingreso

    IP44



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DELLANO-25W
DELLANO
-
Power Consumption

Power Consumption

  • 15W
    15W @ DIA 102mm or DIA 124 mm
  • 20W
    20W @ DIA 102mm or DIA 124 mm
  • 25W
    25W @ DIA 102mm or DIA 124 mm
  • 28W
    28W@ DIA 124 mm
  • 30W
    30W@ DIA 124 mm
  • 33W
    33W@ DIA 124 mm

Technical Drawing

Product Download Tab

DATA SHEET

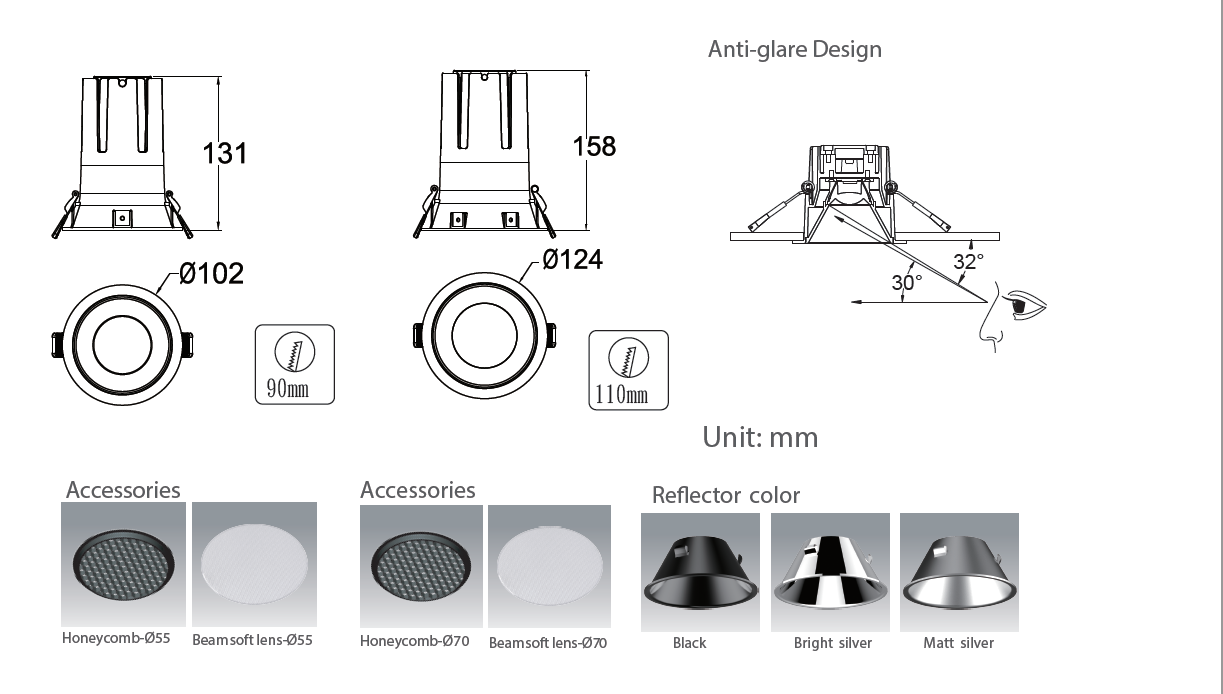

DIMENSION DRAWING
