DRIFE

Dia 84-129mm 30W

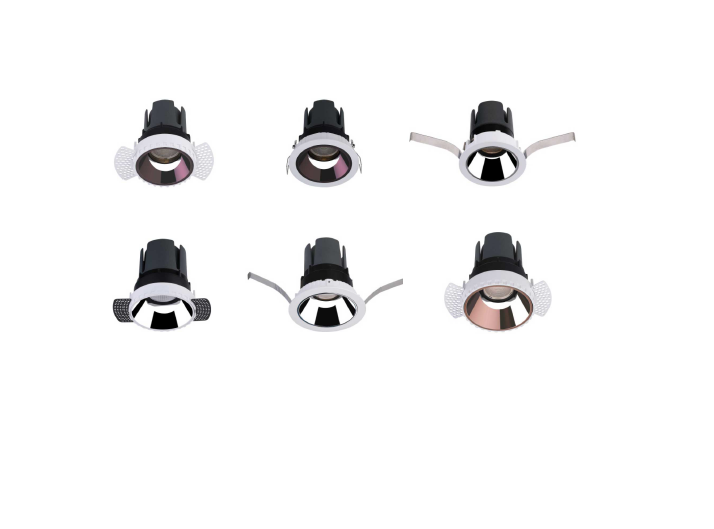

Trimless & Adjustable

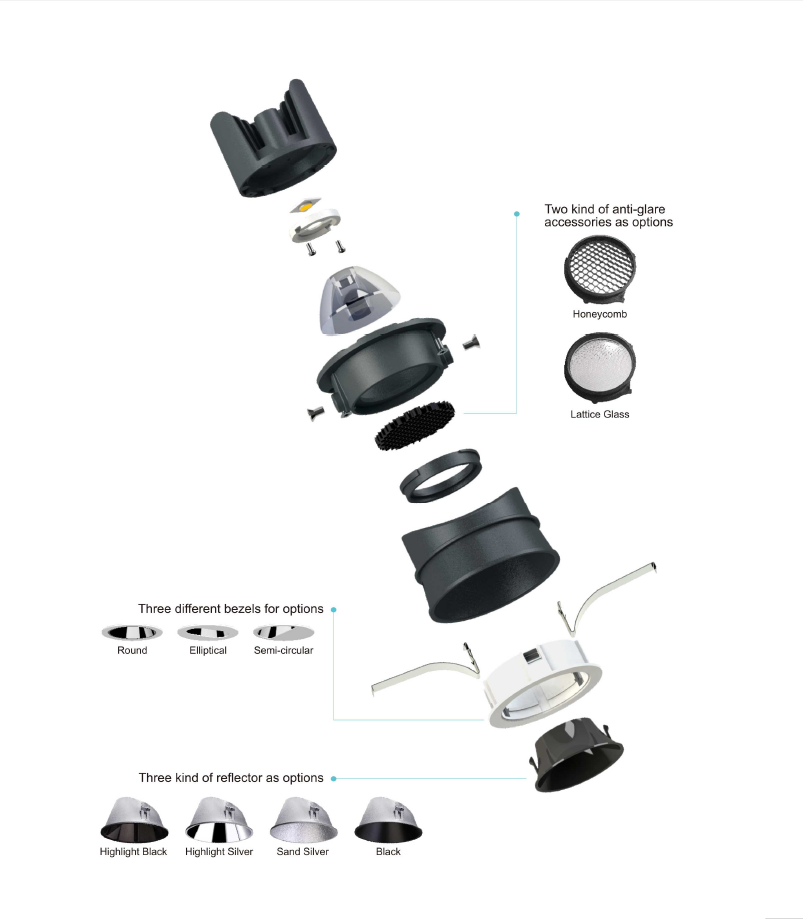

  • Deep Anti Glare Design
  • Housing: die-cast aluminium body
  • Bezels  Type: Round, Elliptical , Semi-circular
  • Aluminium reflector : Golden  coating, Chrome , Silver  and Black
  • Anti-Glare Parts: Honey Comb and Lattice Glass

Technical Data

  • Luminaire Type-安裝方式

    Tipo de luminaria

    • Recessed Mount  and Tilt-Angle Type 嵌入式安裝和可調角度Montaje empotrado y tipo de ángulo de inclinación
    • Trimless Mount  and Tilt-Angle Type 無裝飾安裝和可調角度類型Tipo sin montura y ángulo de inclinación
  • Dimension-尺寸-Dimensión / mm

    Cut off Dimension-開孔尺寸-Cortar Dimensión / mm

    • Dia: 83 x H: 88   Cut off:  Dia 75 @ 5W & 8W  Trim Type
    • Dia: 95 x H: 105   Cut off:  Dia 86 @ 7W & 10W  Trim Type
    • Dia: 120 x H: 126   Cut off:  Dia 104 @ 15W & 20W  Trim Type
    • Dia: 148 x H: 152   Cut off:  Dia 134 @ 25W & 30W  Trim Type
    • Dia: 84 x H: 105   Cut off:  Dia 86  @ 7W &10W   Trimless
    • Dia: 101 x H: 126  Cut off:  Dia 105 @ 15W &20W   Trimless
    • Dia: 129x H: 152  Cut off:  Dia 131  @ 25W &30W  Trimless
  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 5W & 8W @ Dia: 83 x H: 88mm
    • 7W &10W  @ Dia: 84 x H: 105 mm  & Dia: 95 x H: 105mm
    • 15W &20W  @ Dia: 101 x H: 126  mm & Dia: 120 x H: 126mm
    • 25W &30W @ Dia: 129x H: 152  mm & Dia: 148 x H: 152mm
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Constant Current LED Driver: Refer to LED driver specification

    請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC 220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. Zigbee Wireless Control Driver  AC100-270V 50/60HZ

    6. DMX Driver AC100-240V 50/60HZ

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

    LIFE HOUR : 50,000 Hours

  • Control Protocol-控制協議Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Beam Angle 光束角 /ángulo de haz

    20°  / 24° / 25° / 36°  / 40°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    Samsung -Replaceable LED Module ( IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"@ 25°C

     L90(10k) = 50,000 hrs /  L80(10k) > 60,000 hrs / L70(10k) > 60,000 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6000K/ 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 90

  • Chromaticity Tolerance (initial Macadam)

    色度容差(初始Macadam)

    Tolerancia de cromaticidad (Macadam inicial)

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    •  93 Lm/w(2700K),  100 Lm/w(3000K),
    • 100 Lm/w(4000K), 110Lm/w(5000K),
    • 110 Lm/w(6000K),  110Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    • 120 Lm/w(2700K), 120 Lm/w(3000K),
    • 130 Lm/w(4000K), 140 Lm/w(5000K),
    • 140 Lm/w(6000K), 140 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    • Die-cast aluminum 壓鑄鋁 Aluminio fundido a presión
  • Reflector Type

    反光杯款式

    Tipo de reflector

    • Round  / Elliptical / Semi-Circular
    • 圓形/橢圓形/半圓形
    • Redondo / Elíptico / Semicircular
  • Trim Color-框邊顏色-Estilo Color

    Matte white or Matte Black  / 啞光白色或啞光黑色 / Blanco mate o Negro Mate

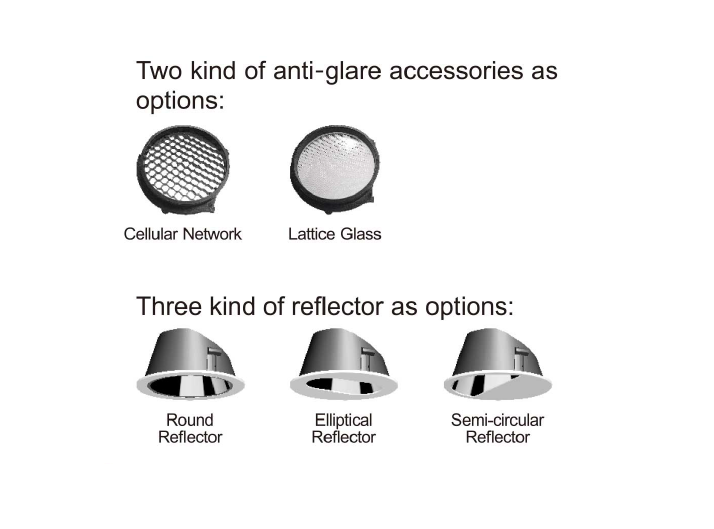

  • Anti-Glare Accessories

    防眩光配件

    Accesorios antideslumbrantes

    • Cellular Network  蜂窩網絡  Red celular
    • Lattice Glass  格子玻璃 Vidrio de celosía
  • Ingress Protection-防護等級

    Protección de ingreso

    IP44

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C  To +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DRIFE-10W-SW-40-S--S-MW
DRIFE
-
Power Consumption
-
LED Driver Type
-
Color Temperature
-
BEAM ANGLE
-
REFLECTOR
-
TRIM COLOR

Power Consumption

  • 5W
    5W @Trim Dia: 83 x H: 88mm
  • 7W
    7W@ Trimless Dia: 84 x H: 105 mm & Trim Dia: 95 x H: 105mm
  • 8W
    8W@ Trim Dia: 83 x H: 88mm
  • 10W
    10W  @ Trimless Dia: 84 x H: 105 mm & Trim Dia: 95 x H: 105mm
  • 15W
    15W@ Trimless Dia: 101 x H: 126 mm & Dia: Trim 120 x H: 126mm
  • 20W
    20W@ Trimless Dia: 101 x H: 126 mm & Dia: Trim 120 x H: 126mm
  • 25W
    25W@ Trimless Dia: 129x H: 152 mm & Dia: Trim 148 x H: 152mm
  • 30W
    30W@ Trimless Dia: 129x H: 152 mm & Dia: Trim 148 x H: 152mm

LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    1-10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 60
    6000K
  • 65
    6500K

BEAM ANGLE

  • N
    20°
  • S
    24°
  • M
    25°
  • L
    36°
  • W
    40°

REFLECTOR

  • R
    Round
  • E
    Elliptical
  • S
    Semi-Circular

TRIM COLOR

  • MB
    Matte Black
  • MW
    Matte White
