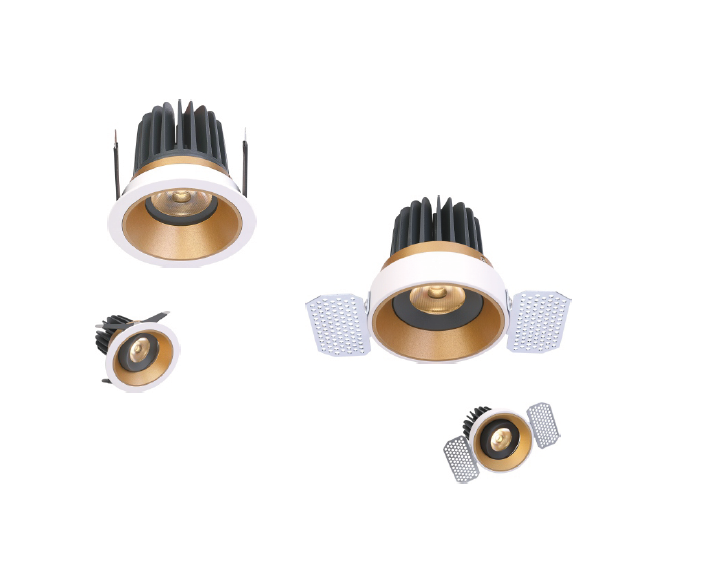

Dia 81-102mm 15W
Trimless & Adjustable

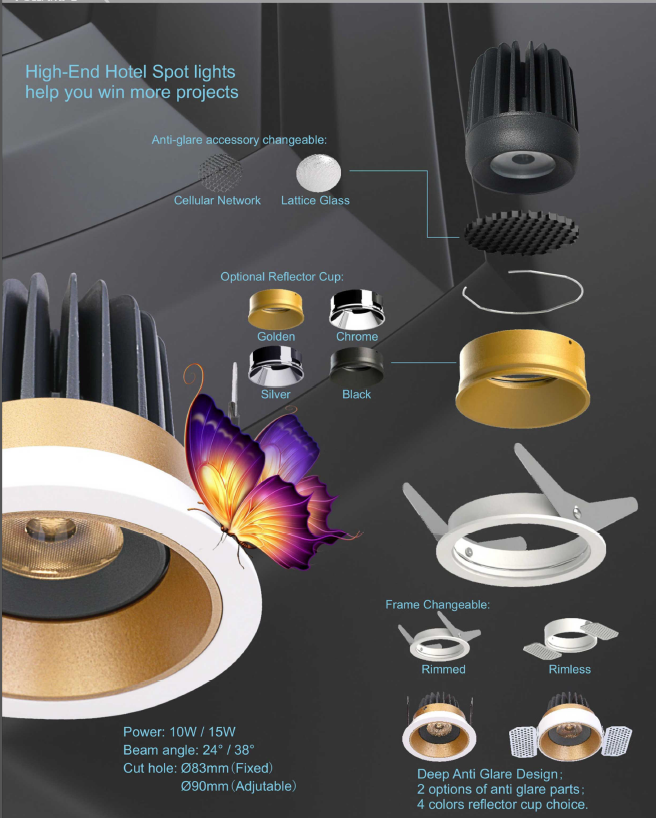

  • Deep Anti Glare Design
  • Housing: die-cast aluminium body
  • Aluminium reflector : Golden  coating, Chrome , Silver  and Black
  • Diffuser system with Cellular Network and Lattice Glass to distribute soft and diffused light effect

Technical Data

  • Luminaire Type-安裝方式

    Tipo de luminaria

    • Recessed Mount and Non-Tilt Type 嵌入式安裝和不可調角 Montaje empotrado y tipo sin inclinación
    • Recessed Mount  and Tilt-Angle Type 嵌入式安裝和可調角度Montaje empotrado y tipo de ángulo de inclinación
    • Trimless Mount  and Non-Tilt Type 無邊安裝安裝和不可調角 Tipo sin montaje y sin inclinación
    • Trimless Mount  and Tilt-Angle Type 無裝飾安裝和可調角度類型Tipo sin montura y ángulo de inclinación
  • Dimension-尺寸-Dimensión / mm

    Cut off Dimension-開孔尺寸-Cortar Dimensión / mm

    • Dia: 92 x H: 69 Cut off:  Dia 83 @ 7W &10W Fixed Fixture
    • Dia: 92 x H: 89 Cut off:  Dia 83 @ 10W&12W &15W Fixed Fixture
    • Dia: 81x H: 69 Cut off:  Dia 83@7W &10W Trimless
    • Dia: 81x H: 89  Cut off:  Dia 83@10W & 12W &15W Trimless
    • Dia: 102 x H: 71   Cut off:  Dia 90 @ 7W &10W Tilt-Angle Type
    • Dia: 102 x H: 91  Cut off:  Dia 90 @ 10W & 12W &15W Tilt-Angle Type
    • Dia: 88x H: 71 Cut off:  Dia 90 @7W &10W Trimless & Tilt-Angle Type
    • Dia: 88x H: 91 Cut off:  Dia 90 @ 10W & 12W &15W Trimless& Tilt-Angle Type
  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 7W  @ Dia 92 x69mm  or Dia 81x69mm  or Dia 102 x 71mm or Dia 88x 71mm
    • 10W@ Dia 92 x69mm  or Dia 81x69mm or Dia 81x89mm @ Dia 92 x 89 mm  or Dia 102 x 71mm or Dia 88x 71mm or Dia 102 x 91mm or Dia 88x 91mm
    • 12W @ Dia 92 x 89 mm  or Dia 81x89mm  or Dia 102 x 91mm or Dia 88x 91mm
    • 15W @ Dia 92 x 89 mm  or Dia 81x89mm  or Dia 102 x 91mm or Dia 88x 91mm
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Constant Current LED Driver: Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC 220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. Zigbee Wireless Control Driver  AC100-270V 50/60HZ

    6. DMX Driver AC100-240V 50/60HZ

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    • POWER FACTOR : PF>0.90 @ Full Load
    • TOTAL HARMONIC DISTORTION: THD< 20%
    • LIFE HOUR : 50,000 Hours
  • Control Protocol-控制協議Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

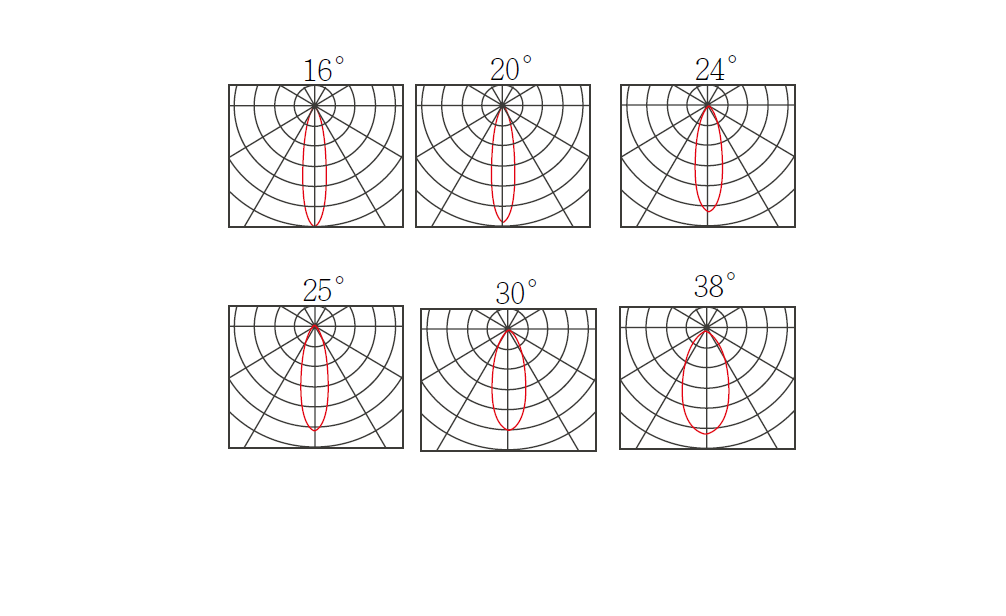

  • Beam Angle 光束角 /ángulo de haz

    • 16° / 24° /25° / 30° /38°
  • Light Source Brand-光源品牌-Fuente de luz de marca

    Samsung -Replaceable LED Module ( IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"@ 25°C

     L90(10k) = 50,000 hrs /  L80(10k) > 60,000 hrs / L70(10k) > 60,000 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6000K/ 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 90

  • Chromaticity Tolerance (initial Macadam)

    色度容差(初始Macadam)

    Tolerancia de cromaticidad (Macadam inicial)

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    •  93 Lm/w(2700K),  100 Lm/w(3000K),
    • 100 Lm/w(4000K), 110Lm/w(5000K),
    • 110 Lm/w(6000K),  110Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    • 120 Lm/w(2700K), 120 Lm/w(3000K),
    • 130 Lm/w(4000K), 140 Lm/w(5000K),
    • 140 Lm/w(6000K), 140 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    • Die-cast aluminum  with PMMA Lens Diffuser
    • 壓鑄鋁與PMMA鏡頭擴散器
    • Cuerpo y adorno de aluminio fundido a presión con difusor de lentes de PMMA

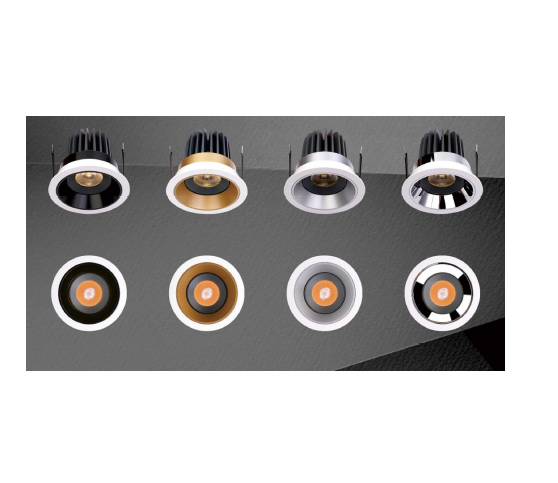

  • Reflector

    反光杯

    Reflector

    • Golden / Chrome / Silver / Black
    • 金色/鍍鉻/銀色/黑色
    • Dorado / Cromo / Plata / Negro
  • Trim Color-框邊顏色-Estilo Color

    Matte white or Matte Black  / 啞光白色或啞光黑色 / Blanco mate o Negro Mate

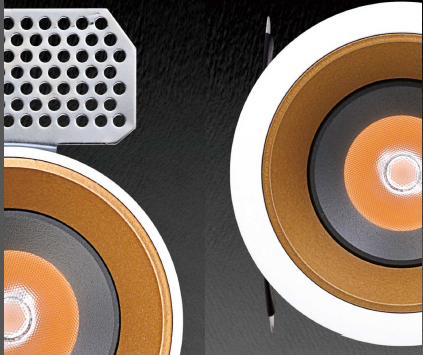

  • Anti-Glare Accessories

    防眩光配件

    Accesorios antideslumbrantes

    • Cellular Network  蜂窩網絡  Red celular
    • Lattice Glass  格子玻璃 Vidrio de celosía
  • Ingress Protection-防護等級

    Protección de ingreso

    IP44

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C  To +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DRIFO-12W-SW-40-S--S-MW
DRIFO
-
Power Consumption
-
LED Driver Type
-
Color Temperature
-
BEAM ANGLE
-
REFLECTOR
-
TRIM COLOR

Power Consumption

  • 7W
    7W @Dia 92 x69mm or Dia 81x69mm or Dia 102 x 71mm or Dia 88x 71mm
  • 10W
    10W@ Dia 92 x69mm or Dia 81x69mm or Dia 81x89mm @ Dia 92 x 89 mm or Dia 102 x 71mm or Dia 88x 71mm or Dia 102 x 91mm or Dia 88x
  • 12W
    12W @ Dia 92 x 89 mm or Dia 81x89mm or Dia 102 x 91mm or Dia 88x 91mm
  • 15W
    15W @ Dia 92 x 89 mm or Dia 81x89mm or Dia 102 x 91mm or Dia 88x 91mm

LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    1-10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 60
    6000K
  • 65
    6500K

BEAM ANGLE

  • N
    16°
  • S
    24°
  • M
    25°
  • L
    30°
  • W
    38°

REFLECTOR

  • G
    Golden
  • S
    Silver
  • C
    Chrome
  • B
    Black

TRIM COLOR

  • MB
    Matte Black
  • MW
    Matte White

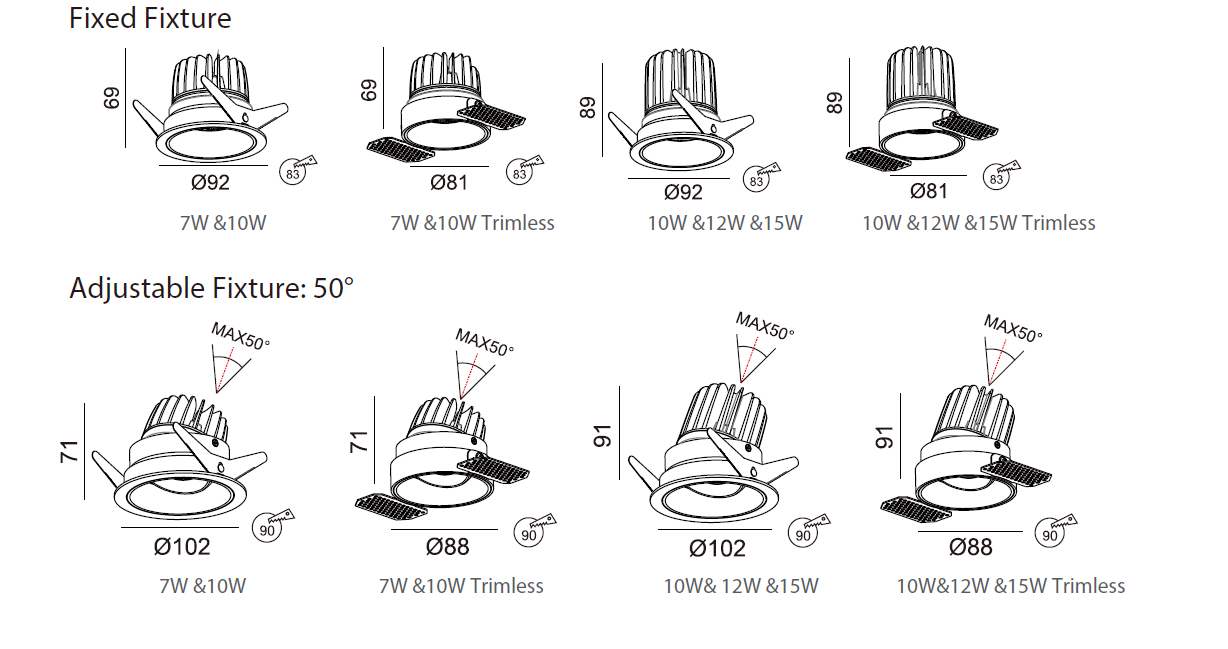

Technical Drawing
