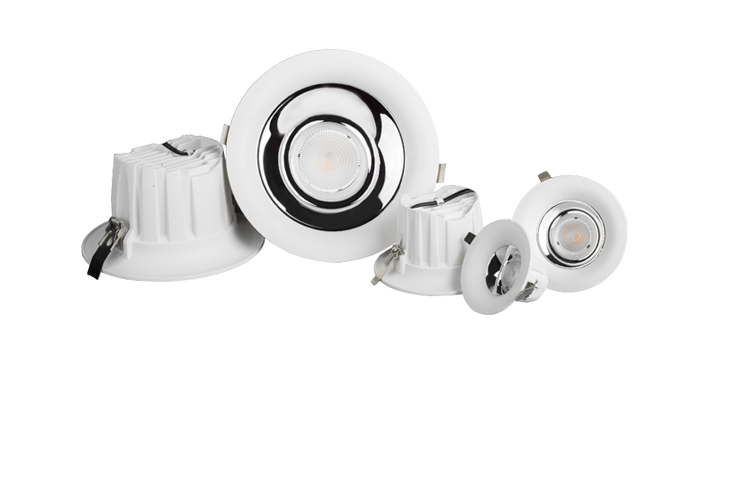

DRIGY

DRIGY

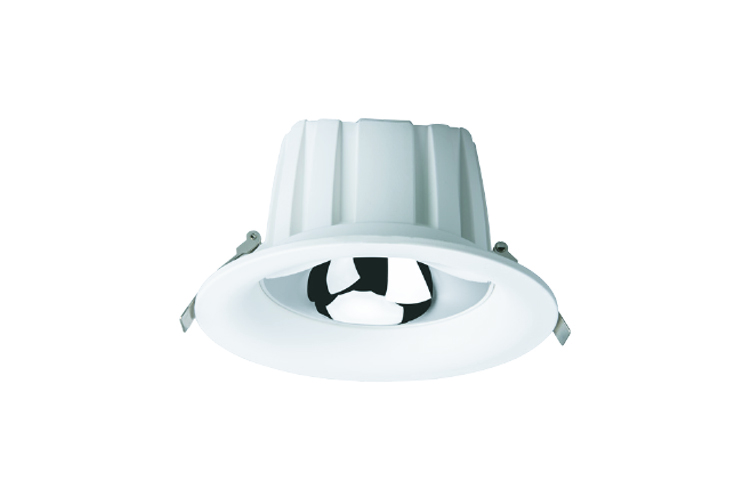

DRIGY-1

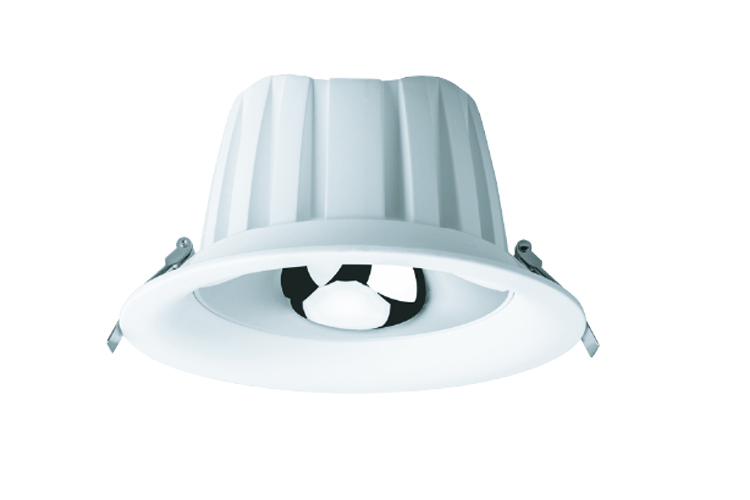

DRIGY-2

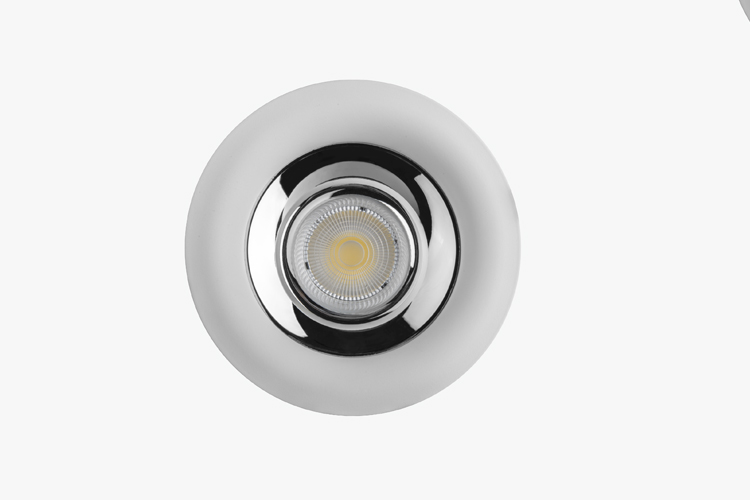

DRIGY-3
D90-230mm 7W-33W IP20
RECESSED SPOTLIGHTS

Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of tempered glass or PC. LED module: high-power CREE LEDs Array, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV , 0-10V, DALI, DMX and RDM LED constant current control gear. Deep recessed design achieves super eye comfort.Ingress Protection :IP 20.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria



    Recessed Mount Type

    嵌入式筒燈

    Empotrada Tipo Mount

  • Dimension-尺寸-Dimensión

    • DIA 90 x H:52 mm
    • DIA 115 x H:65 mm
    • DIA 140 x H:76 mm
    • DIA 200 x H:108 mm
    • DIA 230 x H:120 mm
  • Cut off Dimension-開孔尺寸-Cortar Dimensión

    • DIA 65 mm @ DIA 90 x H:52 mm
    • DIA 90 mm @ DIA 115 x H:65 mm
    • DIA 115 mm @ DIA 140 x H:76 mm
    • DIA 160 mm @ DIA 200 x H:108 mm
    • DIA 195 mm @ DIA 230 x H:120 mm
  • QTY of LEDs-燈珠數量-CANT de LEDs

    1 pcs CREE LED Array

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC100-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 7W @ Dia 90mm
    • 9W @ Dia 115mm
    • 15W @ Dia 140mm
    • 25W @ Dia 200mm
    • 33W @ Dia 230mm
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)

    6. RDM Driver  AC100-240V 50/60HZ

    7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features

    驅動特性

    Funciones del controlador de LED



    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

    EFFICIENCY (Typ.): >85%

    MAX. No. of PSUs on 16A CIRCUIT BREAKER: 25 units (circuit breaker of type B) / 40 units (circuit breaker of type C at 230VAC)

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

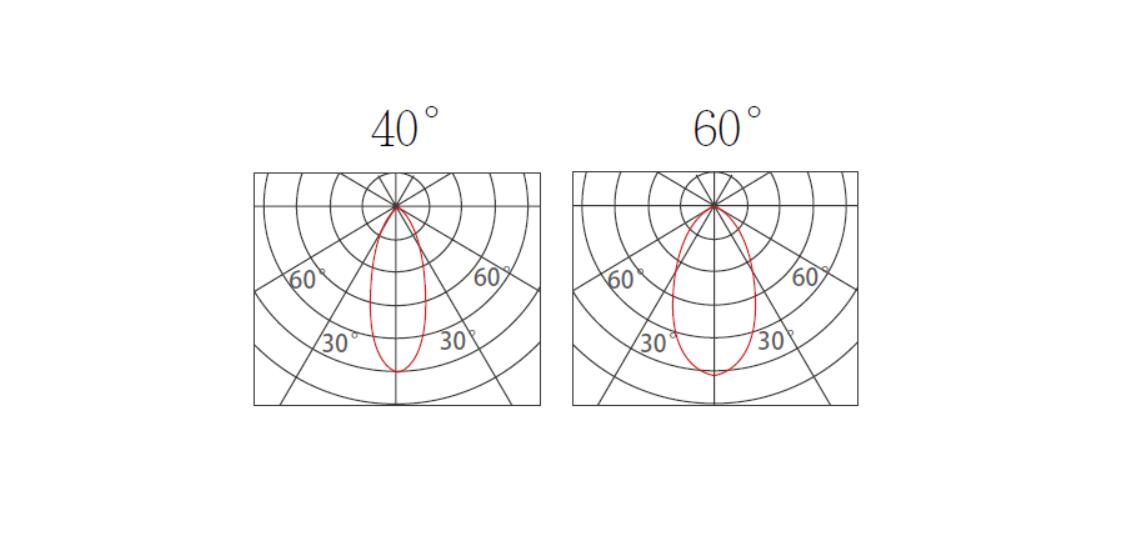

  • Beam Angle

    光束角

    ángulo de haz



    • 40°
    • 60°



  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • > 80
    • > 90
  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    • 70 Lm/w(2700K),
    • 70 Lm/w(3000K),
    • 75 Lm/w(4000K),
    • 80 Lm/w(5000K),
    • 80 Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    • 100 Lm/w(2700K),
    • 100 Lm/w(3000K),
    • 110 Lm/w(4000K),
    • 115 Lm/w(5000K),
    • 115 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and acrylic

    壓鑄鋁和亞克力

    Fundición de aluminio y acrílico

  • Housing Color

    外殼顏色

    color de la carcasa

    Matte white / Matte black

    啞光白色 / 啞光黑色

    Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20 - (IEC 60529)



  • Environment-使用環境-medio ambiente

    Indoor



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DRIGY-33W-SW-S-30-MW-80
DRIGY
-
Power Consumption
-
LED Driver Type
-
BEAM Angle
-
Color Temperature
-
Housing Color
-
Color Rendering Index

Power Consumption

  • 7W
    1x 7W @ Dia 90mm
  • 9W
    1x 10W @ Dia 115mm
  • 15W
    1x 15W @ Dia 140mm
  • 25W
    1x 25W @ Dia 200mm
  • 33W
    1x33W @ Dia 230mm

LED Driver Type

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    Analog 0-10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming @ (Dimming range from 0-100%)
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control

BEAM Angle

  • S
    40°
  • M
    60°

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K

Housing Color

  • MW
    Matte White
  • MB
    Matte Black

Color Rendering Index

  • 80
    >80
  • 90
    >90

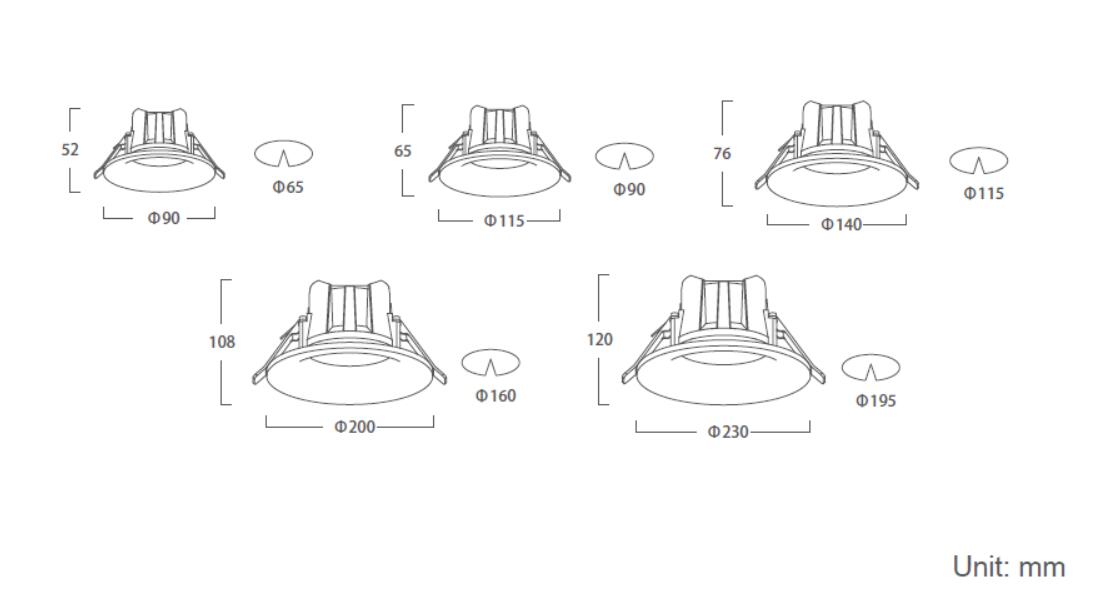

Technical Drawing

Accessories

  • Gateway- NANO
  • INNO-SENSOR-823
  • INNO-SENSOR-826
  • Z501-CZ
  • INNO812
  • INNO719
  • INNO503
