DRIKE

D40&D50&D52mm 4.5W Max IP20
CABINET SPOT LIGHT

LED SPOT LIGHT. Housing: die-cast aluminium, powder-coated, designed as heatsink. Anti-glare reflector and diffusor system made of PMMA. LED module: LUMILEDS SMD, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria



    Recessed Mount Type

    嵌入式筒燈

    Empotrada Tipo Mount

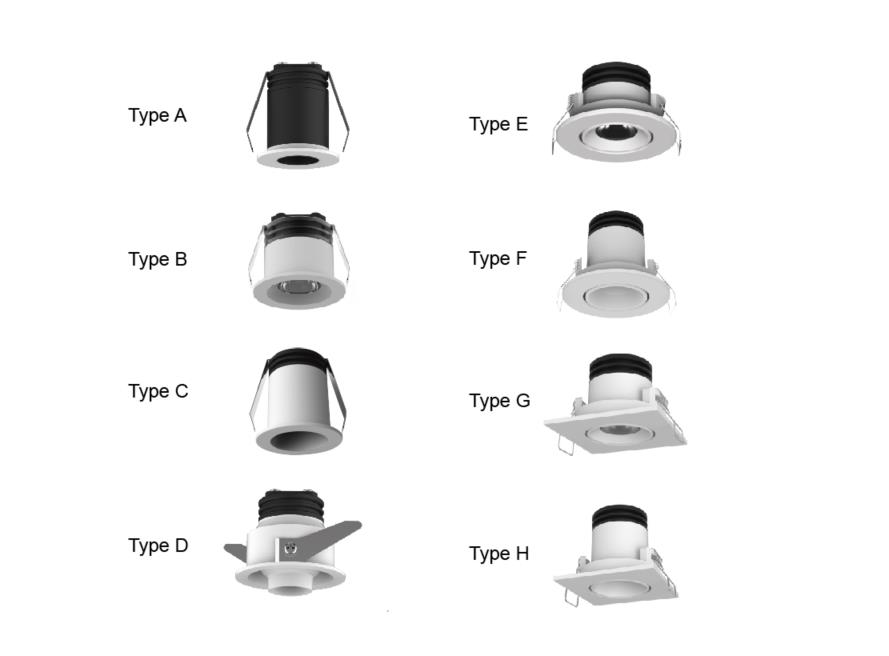

  • Dimension-尺寸-Dimensión

    • Dia: 40 x H: 49 mm @ Type A        Dia: 40 x H: 38 mm @ Type B
    • Dia: 40 x H: 51 mm @ Type C        Dia: 50 x H: 42 mm @ Type D
    • Dia: 52 x H: 38 mm @ Type E        Dia: 52 x H: 50 mm @ Type F
    • SQ: 52 x H: 38 mm @ Type G        SQ: 50 x H: 50 mm @ Type H



  • Cut off Dimension-開孔尺寸-Cortar Dimensión

    • Dia 35mm @ Dia: 40 x H: 49 mm @ Type A        Dia 35mm @ Dia: 40 x H: 38 mm @ Type B
    • Dia 35mm @ Dia: 40 x H: 51 mm @ Type C       Dia 45mm @ Dia: 50 x H: 42 mm @ Type D
    • Dia 45mm @ Dia: 52 x H: 38 mm @ Type E       Dia 45mm @ Dia: 52 x H: 50 mm @ Type F
    • Dia 45mm @ SQ: 52 x H: 38 mm @ Type G       Dia 45mm @ SQ: 50 x H: 50 mm @ Type H
  • QTY of LEDs-燈珠數量-CANT de LEDs

    1 pcs CREE COB

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ (with remote driver)

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 2W      3W      4.5W





  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver  AC100-240V 50/60HZ

    7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

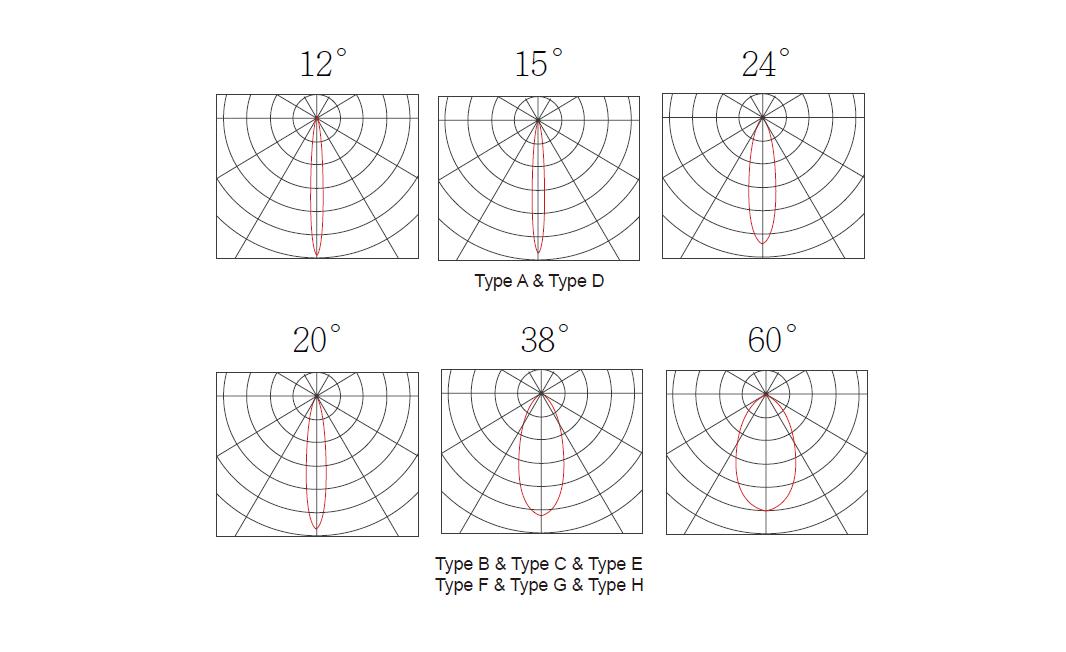

  • Beam Angle

    光束角

    ángulo de haz



    • 12°     15°    24° @ Type A & Type D
    • 20°     38°    60° @ Type B & Type C & Type E & Type F & Type G & Type H
  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • > 80
    • > 90
  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    • 60 Lm/w(2700K),
    • 60 Lm/w(3000K),
    • 65 Lm/w(4000K),
    • 70 Lm/w(5000K),
    • 70 Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    • 90 Lm/w(2700K),
    • 90 Lm/w(3000K),
    • 95 Lm/w(4000K),
    • 100 Lm/w(5000K),
    • 100 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and acrylic

    壓鑄鋁和亞克力

    Fundición de aluminio y acrílico

  • Housing Color

    外殼顏色

    color de la carcasa



    Matte white / Matte black

    啞光白色 / 啞光黑色

    Blanco mate / Matte black

  • Reflector Color-反光杯顏色-Reflector  color

    Matte white / Matte black

    啞光白色 / 啞光黑色

    Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20 - (IEC 60529)

  • Environment-使用環境-medio ambiente

    Indoor

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Hot Wire Testing: 850°C

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DRIKE-3W
DRIKE
-
Power Consumption

Power Consumption

  • 2W
    1x2W
  • 3W
    1x3W
  • 4.5W
    1x4.5W

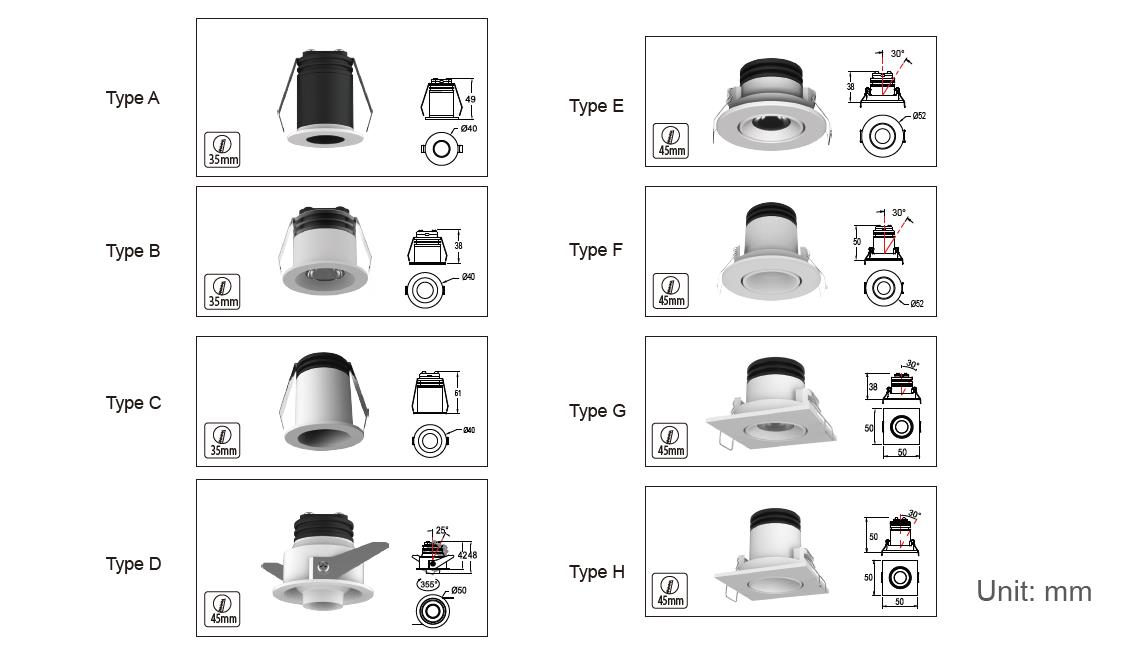

Technical Drawing
