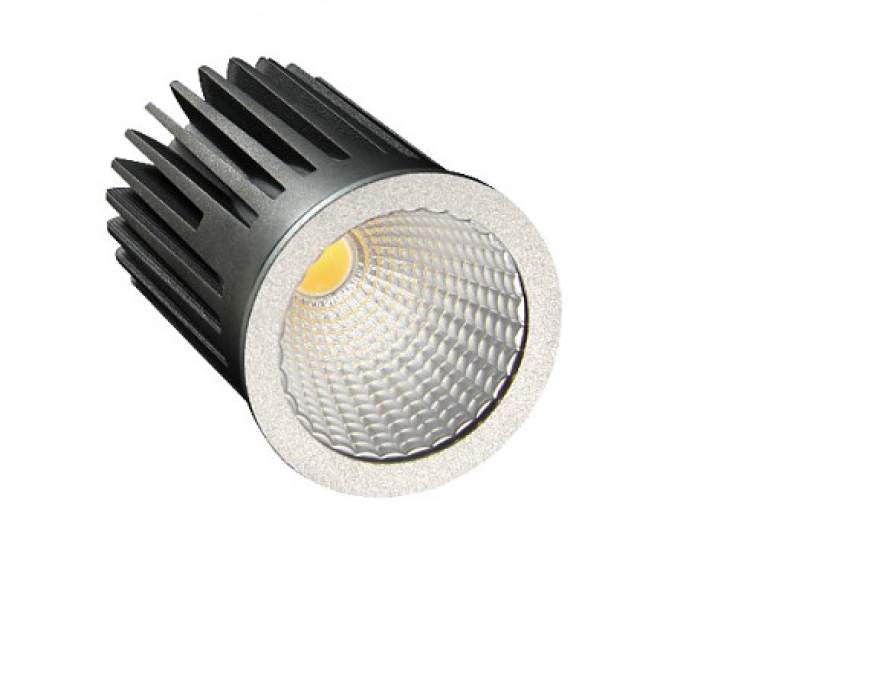

DROG (LED MODULE)

DAI 50 xH 60 mm Max 12W

RECESSED SPOTLIGHTS

Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system LED module: high-power CREE LEDs Array, CRI>90,

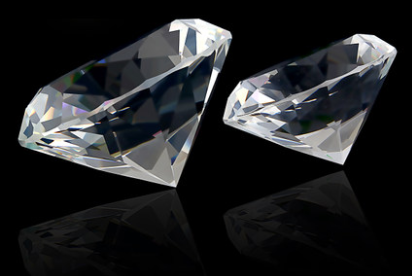

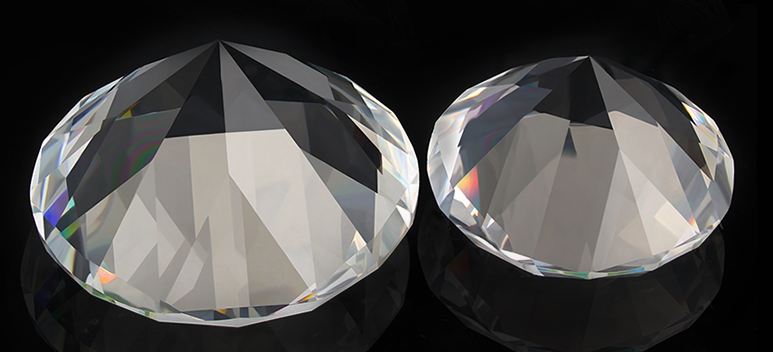

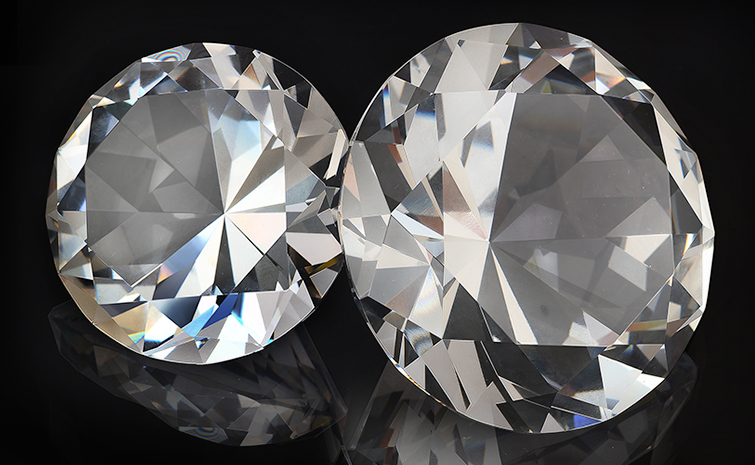

Special Accessories : Clear Crystal Glass with diamond shape diffuser to create a clouding and a sparkling effect

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Recessed Mount Type

嵌入式筒燈

Empotrada Tipo Mount

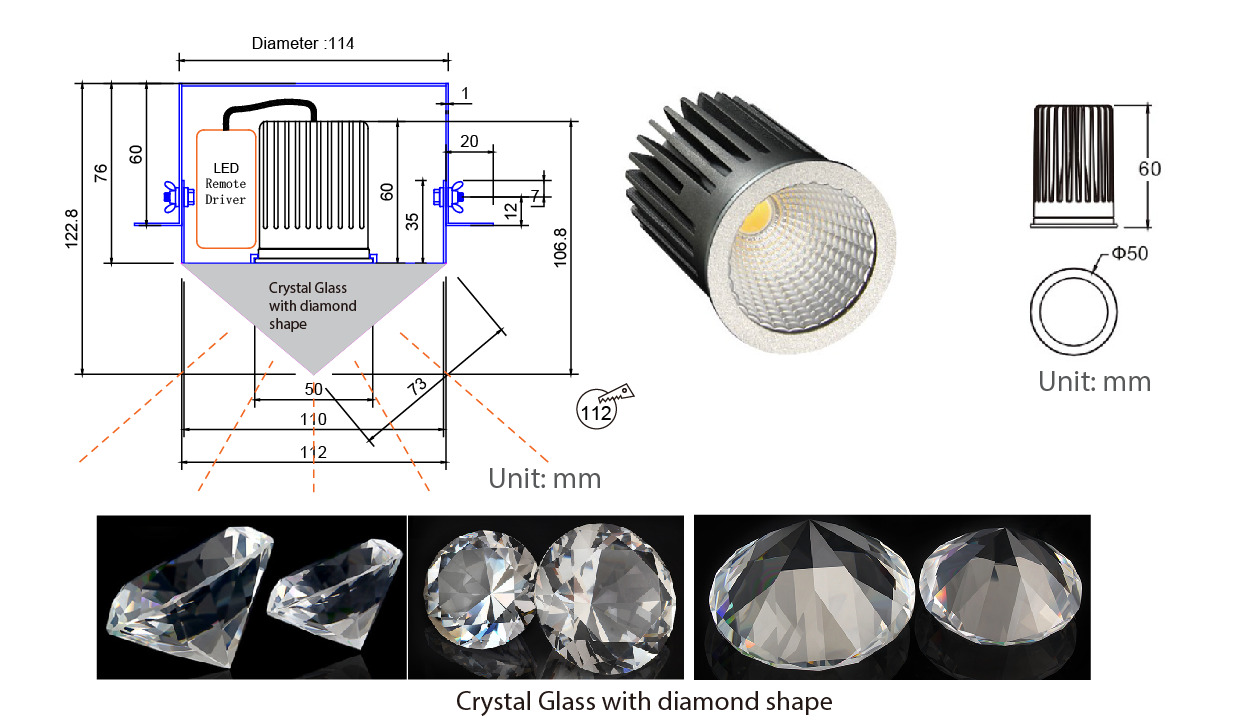

Dimension-尺寸-Dimensión
- DIA 50 x H: 60mm DROG (LED MODULE)
- Clear Crystal Glass with diamond shape diffuser Dia : 114 x H: 122.8mm
Cut off Dimension-開孔尺寸-Cortar Dimensión

Dia 112mm with Clear Crystal Glass with diamond shape diffuser
QTY of LEDs-燈珠數量-CANT de LEDs

1 pcs CREE LED Array
Input Voltage-輸入電壓-Voltaje de entrada

AC100-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
- 7W
- 10W
- 12W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0-10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)

6. RDM Driver  AC100-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features

驅動特性

Funciones del controlador de LED
- POWER FACTOR : PF>0.90 @ Full Load
- TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

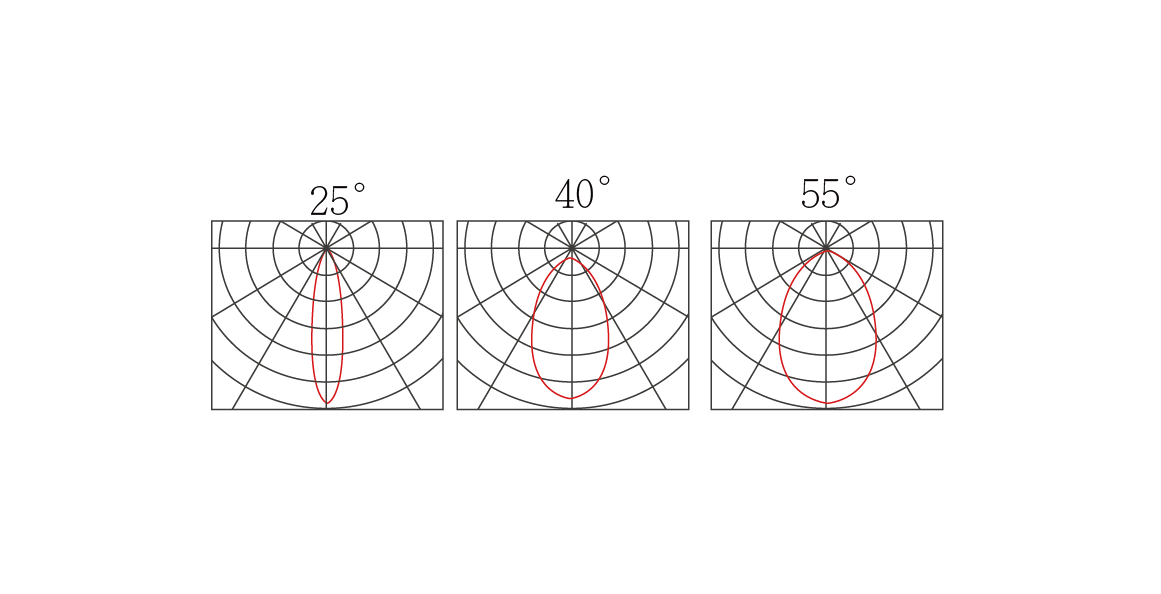

Beam Angle

光束角

ángulo de haz
- 25°
- 40°
- 55°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21" @25°C

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- > 90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy

燈具效率

La eficacia de la luminaria
- 60 Lm/w(2700K),
- 60 Lm/w(3000K),
- 70 Lm/w(4000K),
- 80 Lm/w(5000K),
- 80 Lm/w(6500K),
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 110 Lm/w(2700K),
- 110 Lm/w(3000K),
- 115 Lm/w(4000K),
- 120 Lm/w(5000K),
- 120 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum and Clear Crystal Glass with diamond shape diffuser

壓鑄鋁和透明水晶玻璃鑽石形狀的擴散器

Aluminio fundido a presión y cristal transparente con difusor en forma de diamante
Housing Color

外殼顏色

color de la carcasa

Anodised Aluminium with black coating in headsink

陽極氧化鋁的散熱片加黑色塗層

Anodizado de aluminio con recubrimiento negro en el disipador de calor
Ingress Protection-防護等級

Protección de ingreso

IP20
Environment-使用環境-medio ambiente

Indoor
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
