RILEY

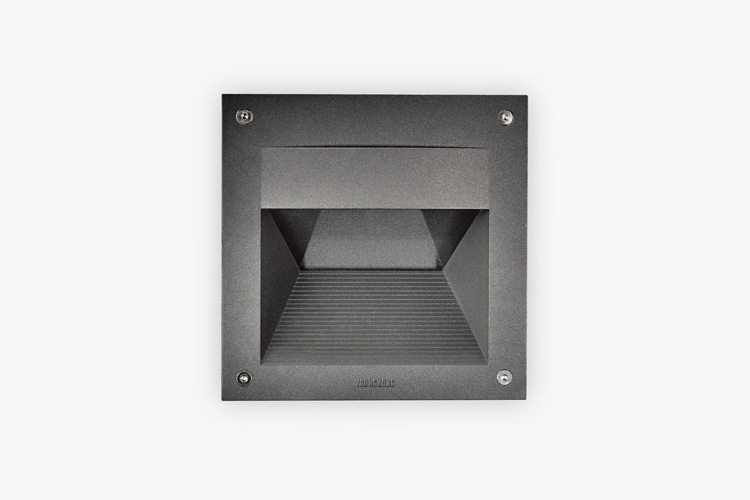

RILEY-1

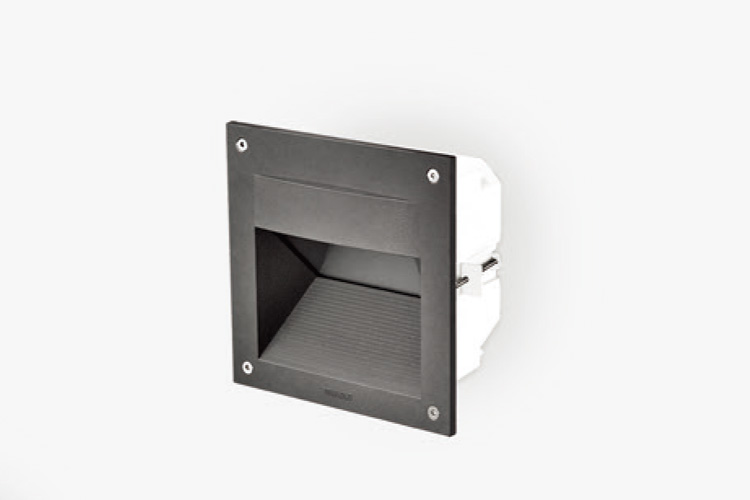

RILEY-2
L190 x W190mm 8W IP65
OUTDOOR RECESSED WALL LIGHT

Riley is a recessed wall luminaire developed to brighten the floor using the high performance of the LED light sources. The outdoor lighting fixture is designed with a simple square shape with the point frame in the centre to complete the unique and contemporary look. The special feature of lighting design is to make the eyes comfortable and minimize the dark zone area from the wall. Riley is specially designed to create a beautiful shape of the light pattern on the floor.

· High-performance LED module
· Clear tempered glass
· Diecast aluminum, Stainless steel recessed housing
· Dark gray (powder-coated) color
· Protection class IP65
· 220~240Vac 50~60Hz integral driver


Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Recessed Wall Light Type

    嵌入式燈具

    Tipo de Recessed

  • Dimension-尺寸-Dimensión

    L:190 x W:190 x H:107mm

  • Recessed housing size

    預埋件尺寸

    Tamaño de carcasa empotrable

    L:177 x H:177 x W:115 mm

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    8W

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60Hz

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver--Refer to LED driver specification

    請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch   AC220-240V 50/60HZ



  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >50,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K/ 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Beam Angle

    光束角

    ángulo de haz

    Asymmetric

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    • 50 Lm/w(2700K),
    • 50 Lm/w(3000K),
    • 55 Lm/w(4000K),
    • 60 Lm/w(5000K),
    • 60 Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    • 100 Lm/w(2700K),
    • 100 Lm/w(3000K),
    • 105 Lm/w(4000K),
    • 120 Lm/w(5000K),
    • 120 Lm/w(6500K)
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum \ stainless steel recessed housing and clear tempered glass

    壓鑄鋁\不鏽鋼預埋件和鋼化玻璃

    Carcasa empotrada de aluminio fundido a presión / acero inoxidable y vidrio templado transparente

  • Housing Color

    外殼顏色

    color de la carcasa

    • Powder Coating :Matte White body--粉末塗料:啞光白色燈身--Recubrimiento en Polvo: Cuerpo blanco mate
    • Powder Coating :Dark Gray Cover--粉末塗料:深灰面蓋--Recubrimiento en Polvo: Cubierta gris oscuro
    • Powder Coating :Sliver Gray Cover--粉末塗料:銀灰面蓋--Recubrimiento en Polvo: Cubierta gris de la astilla
  • Ingress Protection-防護等級

    Protección de ingreso

    IP65

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +60 °C /  -4 °F / +124 °F

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Environment-使用環境-medio ambiente

    Outdoor

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    EN/ IEC  60598-1;EN/IEC 60598-2-1;EN/IEC 62471 (RG1) ;EN/IEC 62493;EN/IEC 62031;IEC TR 62778; IEC62262;

    IEC62722-1; IEC 62722-2-1  RoHS  CIBSE TM5 or IES  TM21-L70

    EN 55015; EN/IEC 61547 ;EN/IEC 61000-3-2; EN/IEC 61347-1;EN/IEC 61347-2-13;EN/ IEC 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
RILEY-8W
RILEY
-
8W

Power Consumption

  • 8W
    8W
