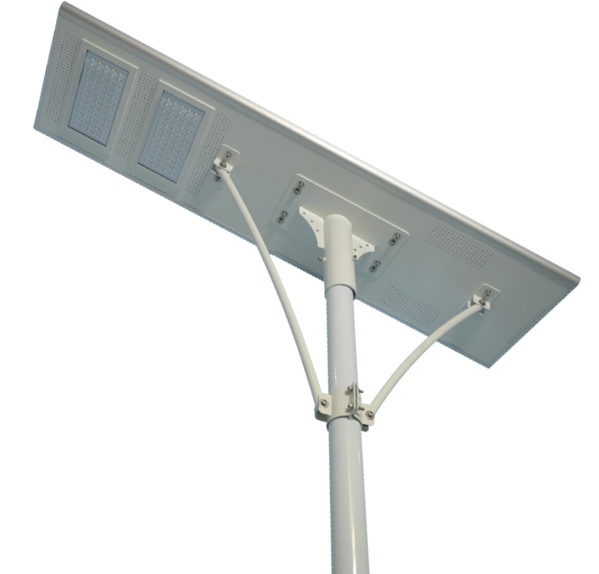

Smart All in one Solar Led Street Light 120w
AC Power Complementary

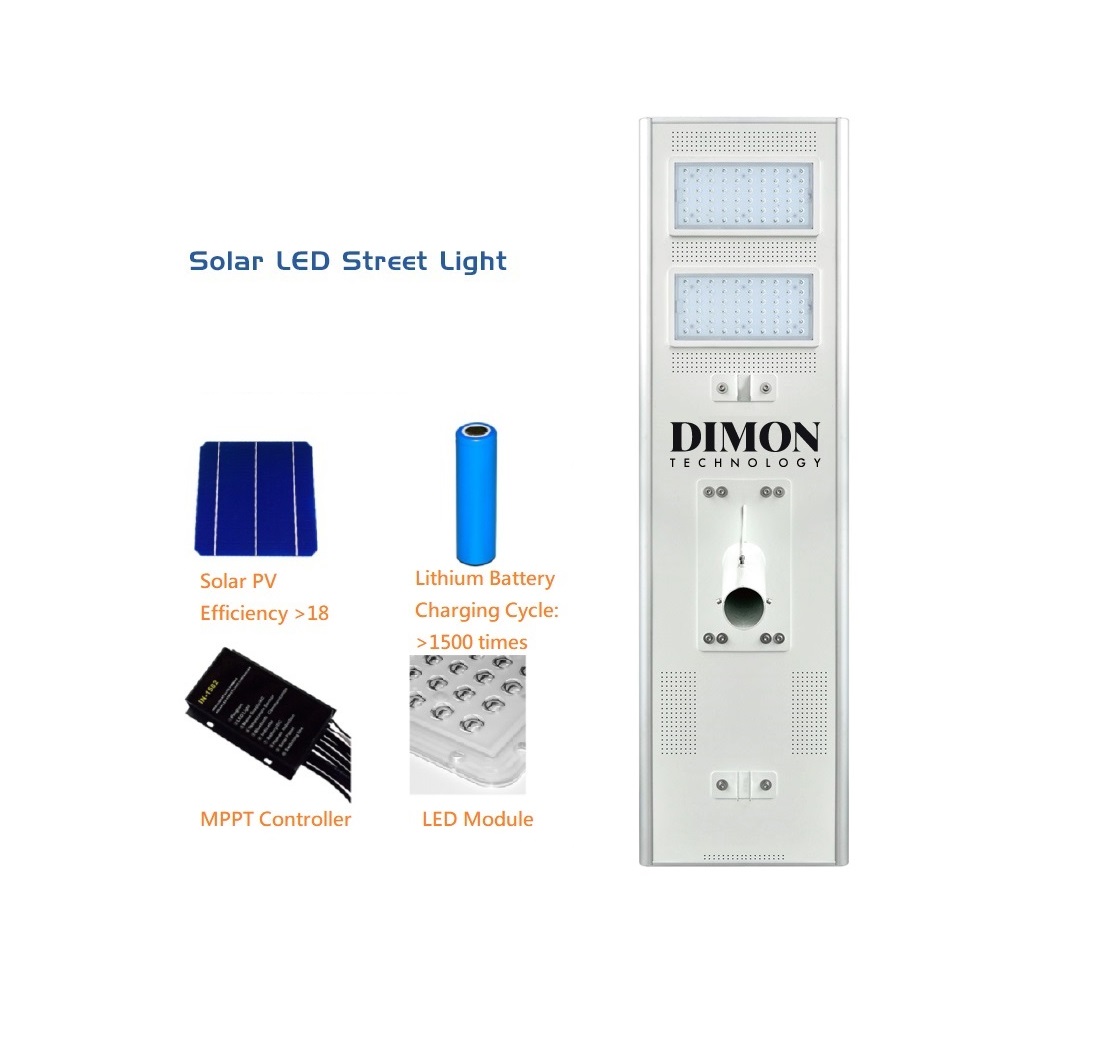

  • Smart All-in-one -Professional design to combine solar panel, light source, controller, battery as one.
  • Third generation military induction technology microwave radar. Have the pattern to track the moving object for adjusting the light brightness. It is more energy-saving and humanized.
  • Intelligent battery protection, ultra-large capacity lithium battery, ultra long endurance, safe and reliable, the maximum cycles up to 30,000 times.
  • Auto AC Power Complementary in case the battery is out of Energy

Technical Data

  • Power Consumption

    120W

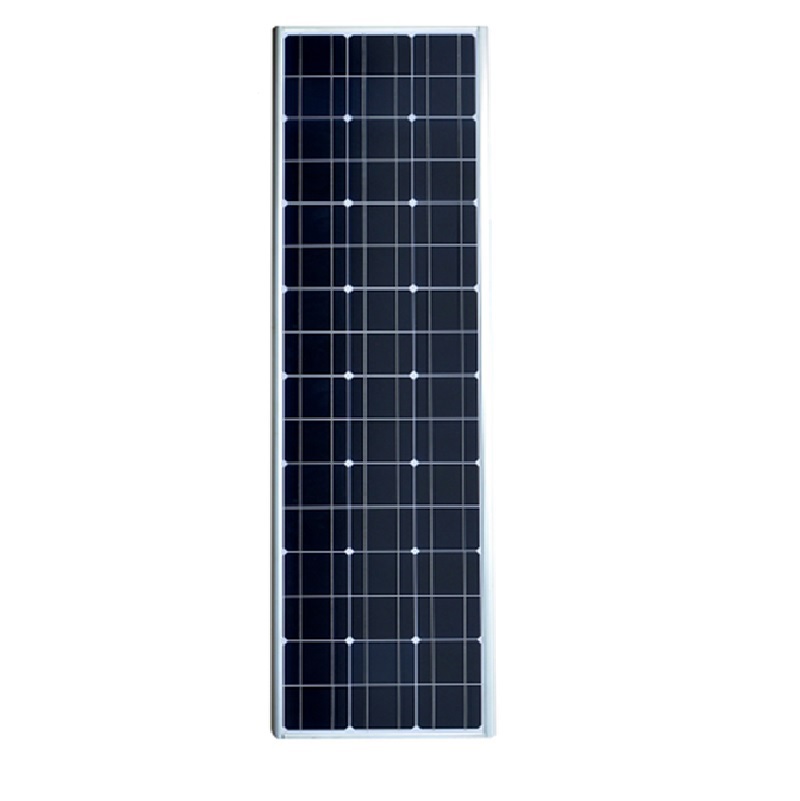

  • Solar Panel Power

    18V  120W

  • Battery Capacity

    1065.6 WH   Lithium Battery

  • Charge Time

    6-8 Hours

  • Duration Time

    24 hours

  • Switch Threshold

    >15 Lux , LED Light OFF

    <15 Lux , LED Light ON

  • LED Power Consumption Max

    120W

  • Color Temperature

    3000K / 4000K / 5000K / 5700K

  • Color Rendering Index

    > 80

  • Luminaire Efficacy

    • 120 Lm/w(3000K),
    • 120 Lm/w(4000K),
    • 140 Lm/w(5000K),
    • 140 Lm/w(5700K),

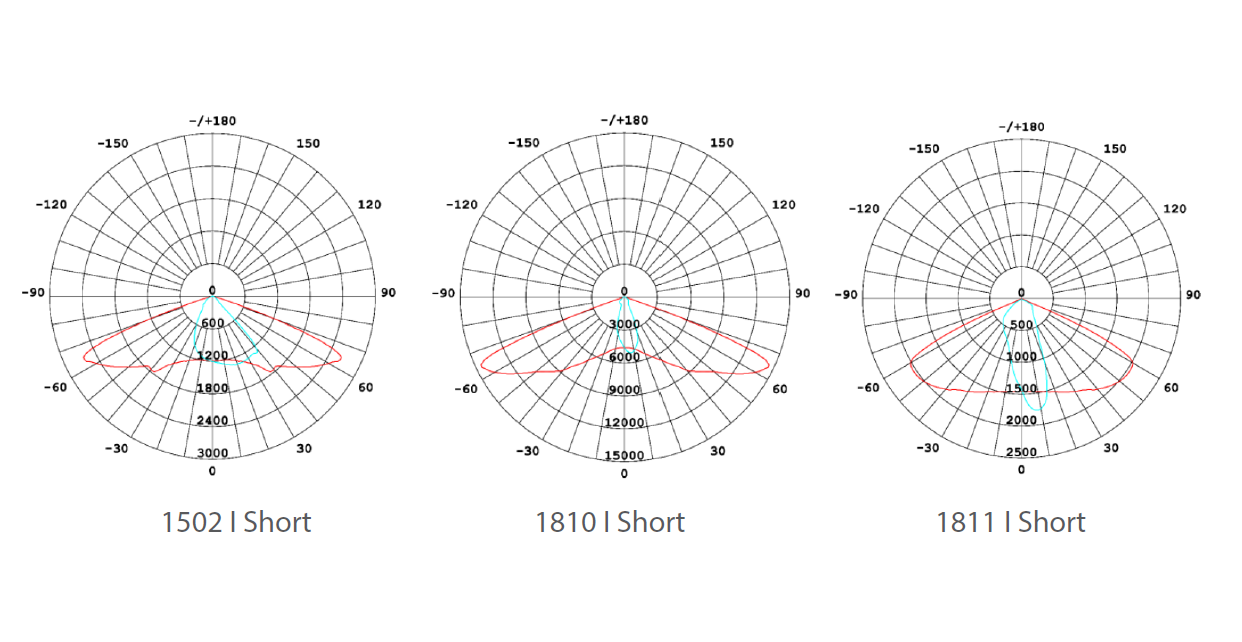

  • Beam Angle

     Asymmetric

    • 1502 I Short
    • 1810 I Short
    • 1811 I Short

  • Housing materials

    Aluminium alloy, Silicone gasket and stainless steel Screws

  • Housing Color

    Aluminium Silver @ RAL 9006

  • Ingress Protection

    P66

  • Dimension

    1670  x 450 x 45mm

  • Net Weight

    23kg

  • Installation Height

    5-10M

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    30 °C / +50 °C

  • Certification

Specification Code

Example Product Code:
SONGNE-L
SONGNE-L
-
120W

POWER

  • 120W
    120W

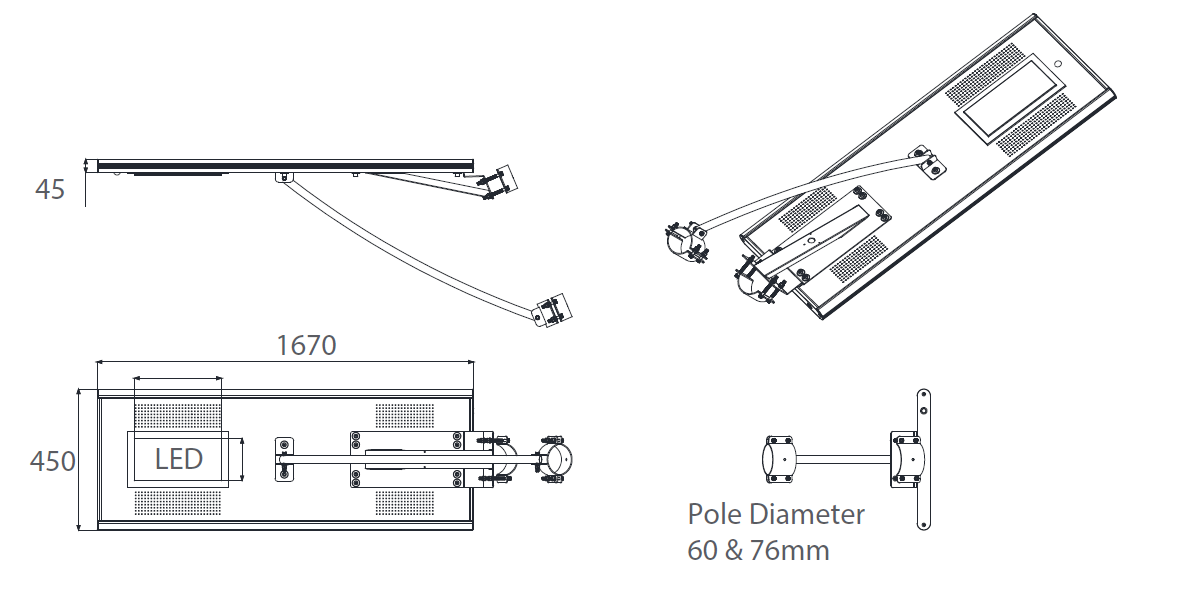

Technical Drawing

Product Download Tab
