LATARY

30W Max IP66
LED OUTDOOR SURFACE MOUNTED DOWN LIGHT
  • Housing: Extrusion aluminium housing with corrosion -resistance powder coating and die-cast aluminium cover.
  • Anti-glare and high purity anodized aluminum reflector to distribute comfortable light
  • Ingress Protection: IP66 and Mech impact protection: IK10
  • LED module: high-power CREE LEDs Array, CRI>80, LM-80 performance approval >50,000 hours.
  • Integrated-Type ELV , 0-10V, DALI, LED constant current control gear.

Technical Data

  • Luminaire Type-安裝方式-Tipo de luminaria

    Surface Mounted Type 明裝式燈具 Superficie Tipo Montado

  • Dimension-尺寸-Dimensión

    • DIA: 90 x  H: 110 mm     DIA: 110 x  H: 140 mm     DIA: 135 x  H: 170 mm
  • Input Voltage-輸入電壓-Voltaje de entrada

    AC100-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 6W       9W      10W      12W       15W  @ DIA: 90 x  H: 110 mm
    • 15W    20W     24W @ DIA: 110 x  H: 140 mm
    • 25W    28W     30W @ DIA: 135 x  H: 170 mm
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Constant Current LED Driver: Refer to LED driver specification 請參閱LED驅動器規格 Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC100-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. Remoted Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features

    驅動特性

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

    LIFE HOUR : 50,000 Hours

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

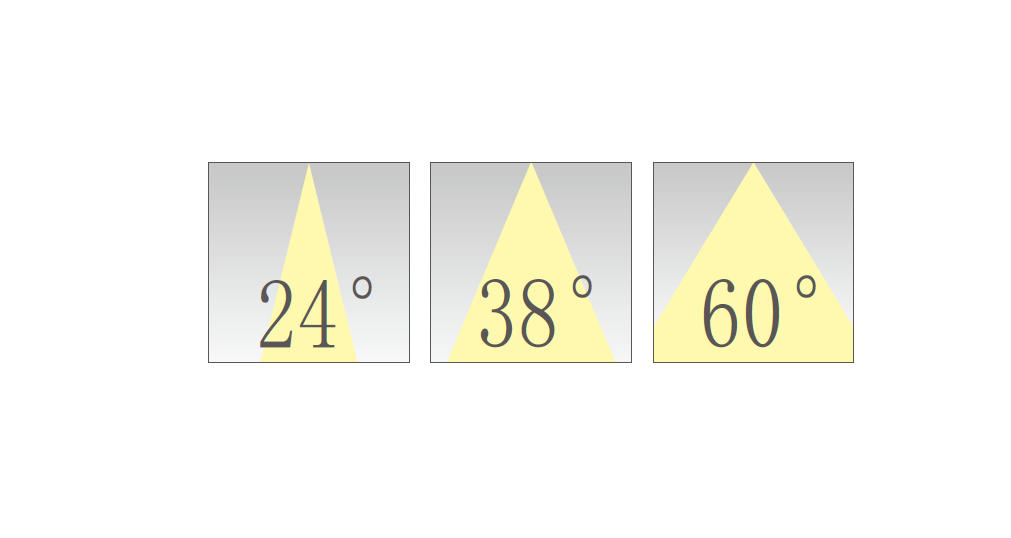

  • Beam Angle - symmetrical wide beam light distribution

    光束角 - 對稱寬光束光分佈

    Ángulo de haz - distribución de luz de haz amplio simétrico



    24°     38°    60°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    U.S.A Bridgelux COB LED

  • Photobiological safety-EN 62471 /  of Luminaire

    光生物安全檢驗(EN 62471) 结果:

    Seguridad fotobiológica-EN 62471

    Low Risk Group 1 (RG1)

    低風險組1(RG1)

    Grupo de bajo riesgo 1 (RG1)

  • "Lumen Maintenance LM-80 Reported by TM-21"25°C

     L90(10k) = 50,700 hrs   L80(10k) > 63,500 hrs   L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • > 80
    • > 90
  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria

    • 90 Lm/w(2700K),       90Lm/w(3000K),      100Lm/w(4000K),
    • 110 Lm/w(5000K),     110 Lm/w(6500K),
  • LED Source Luminous Efficacy   LED光源光效

    Fuente luminosa LED Eficacia

    • 120 Lm/w(2700K),     120Lm/w(3000K),      130Lm/w(4000K),
    • 140 Lm/w(5000K),     140 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum  & Clear safety glass lampshade

    壓鑄鋁和透明安全玻璃燈罩

    Pantalla de aluminio fundido a presión y cristal de seguridad transparente

  • Housing Color

    外殼顏色

    color de la carcasa



    Powder Coating : Matte White RAL 9003  or Matte Black RAL9005

    粉末塗料:啞光白色燈身 RAL9003 或啞光黑色燈身RAL9005

    Recubrimiento en polvo: blanco mate RAL 9003 / Matte black RAL9005

  • Reflector Color-反光杯顏色-Reflector  color

    Chrome Sliver 鉻銀 Cromo plata

  • Ingress Protection-防護等級

    Protección de ingreso

    IP66

  • Mech impact protection 機械衝擊保護

    Protección contra impactos mecánicos

    IK10

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires:LVD:  EN 60598-1 / EN 60598-2-1/ IEC 62031 / EN 62471  IEC 60529 / IEC 62262 / RoHS

    LED Driver:          IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                                 IEC/EN 61000-3-3;IEC/EN61574;EN 55015

  • Certification-認證-Certificación

Specification Code

Example Product Code:
LATARY-30W
LATARY
-
Power Consumption

Power Consumption

  • 6W
    6W @ Dia 90 mm
  • 9W
    9W @ Dia 90 mm
  • 10W
    10W @ Dia 90 mm
  • 12W
    12W @ Dia 90 mm
  • 15W
    15W @ Dia 90 mm
  • 15W
    15W @ Dia 110 mm
  • 20W
    20W @ Dia 110 mm
  • 24W
    24W @ Dia 110 mm
  • 25W
    25W @ Dia 135 mm
  • 28W
    28W @ Dia 135 mm
  • 30W
    30W @ Dia 135 mm

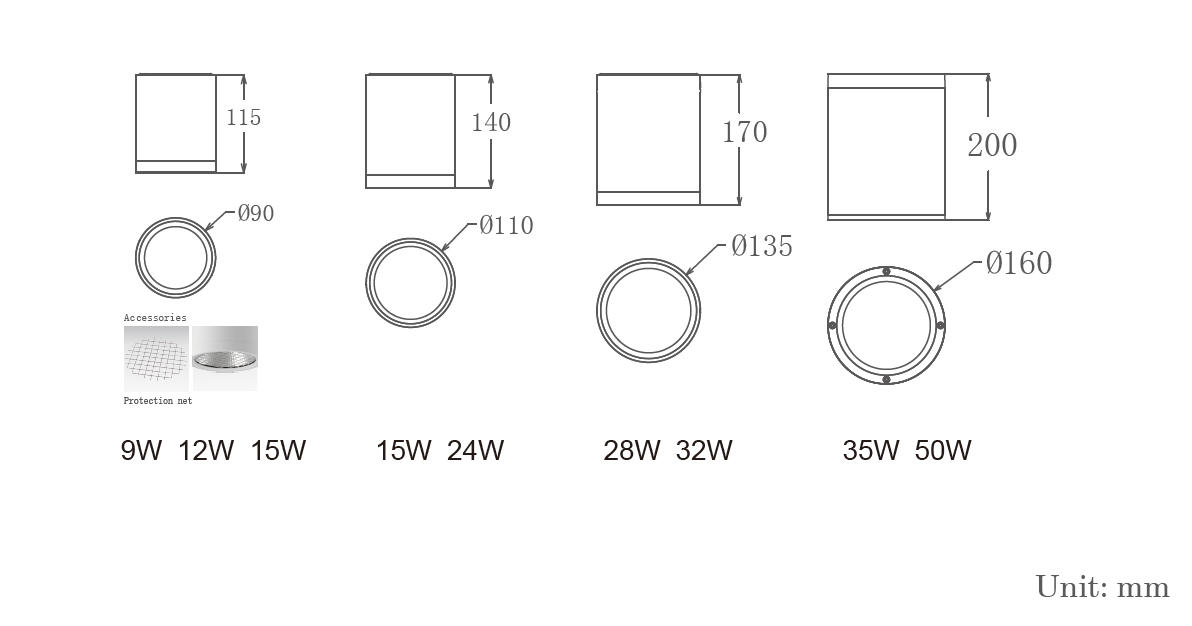

Technical Drawing
