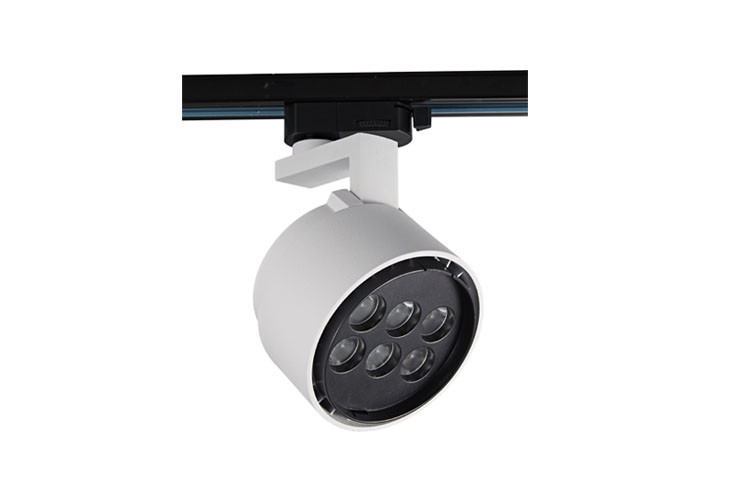

TELE-24W

TELE-24W
D110xL77 mm 24W Max
TRACK LIGHT

LED track light Feature:

Housing: die-cast aluminium with Anti-glare reflector and diffusor system made of PMMA

Roated Through 350° and Tilted up to 90°.

Power Connection: Pole Terminal .

LED module: LUMINUS SMD, CRI>90, LM-80 performance approval >50,000 hours. Integrated-Type ELV , 0-10V, DALI, DMX and RDM LED constant current control gear.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria



    Track Mounted Type

    軌道燈具

    Tipo de huella Montado

  • Dimension-尺寸-Dimensión

    DIA 110 x L: 77 mm



  • QTY of LEDs-燈珠數量-CANT de LEDs

    6 pcs LEDs

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 4W
    • 8W
    • 12W
    • 24W
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Constant Current LED Driver:

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ @ Integrated-type

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver  AC100-240V 50/60HZ

    7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features

    驅動特性

    Funciones del controlador de LED



    POWER FACTOR : PF>0.90 @ Full Load @12W @24W

    TOTAL HARMONIC DISTORTION: THD< 20% @12W @24W

    LIFE HOUR : 50,000 Hours

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

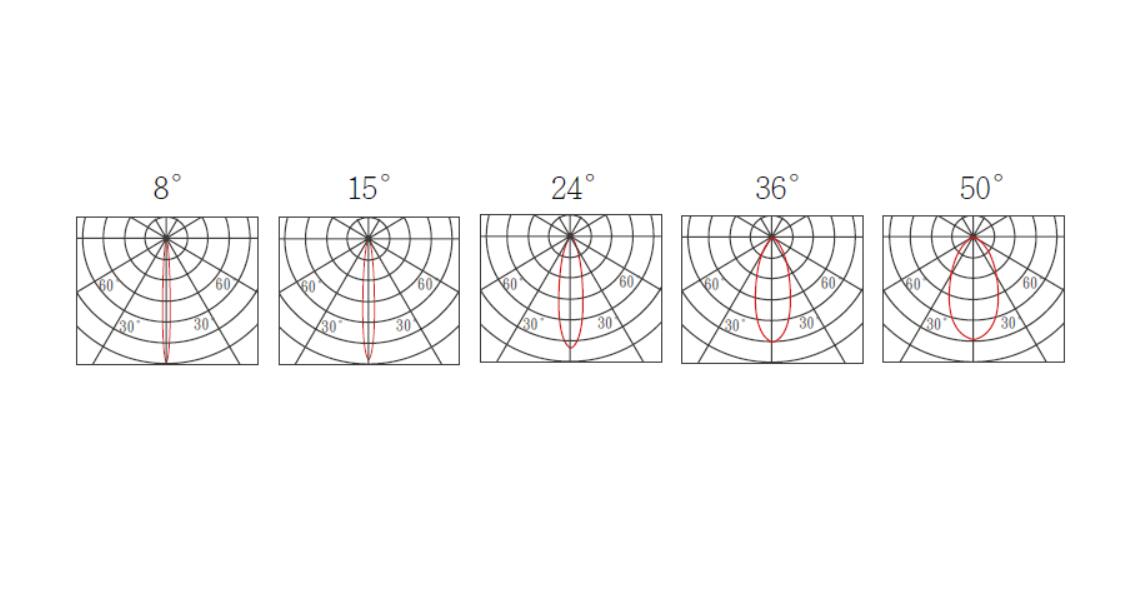

  • Beam Angle

    光束角

    ángulo de haz



    • 15°
    • 24°
    • 30°
    • 50°
  • Light Source Brand-光源品牌-Fuente de luz de marca

    LUMINUS - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"@ 25°

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • >80
    • >90
  • Chromaticity Tolerance (initial Macadam)

    色度容差(初始Macadam)

    Tolerancia de cromaticidad (Macadam inicial)

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria



    • 105 Lm/w(2700K),
    • 105 Lm/w(3000K),
    • 110 Lm/w(4000K),
    • 115 Lm/w(5000K),
    • 115 Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia



    • 130 Lm/w(2700K),
    • 130 Lm/w(3000K),
    • 140 Lm/w(4000K),
    • 150 Lm/w(5000K),
    • 150 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and acrylic

    壓鑄鋁和亞克力

    Fundición de aluminio y acrílico

  • Housing Color

    外殼顏色

    color de la carcasa



    Matte white / Matte black

    啞光白色 / 啞光黑色

    Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20 - (IEC 60529)

  • Environment-使用環境-medio ambiente

    Indoor

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
TELE-24W
TELE-24W
-
LED Driver Type

LED Driver Type

  • 4W
    4W
  • 8W
    8W
  • 12W
    12W
  • 24W
    24W

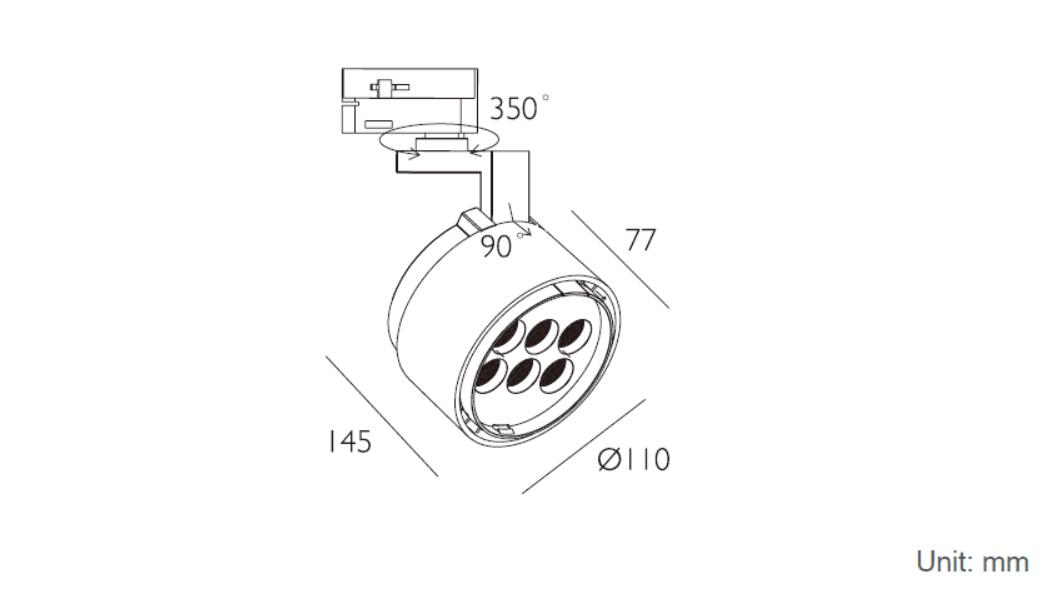

Technical Drawing
