DIA85 xH 133mm 8W-10W

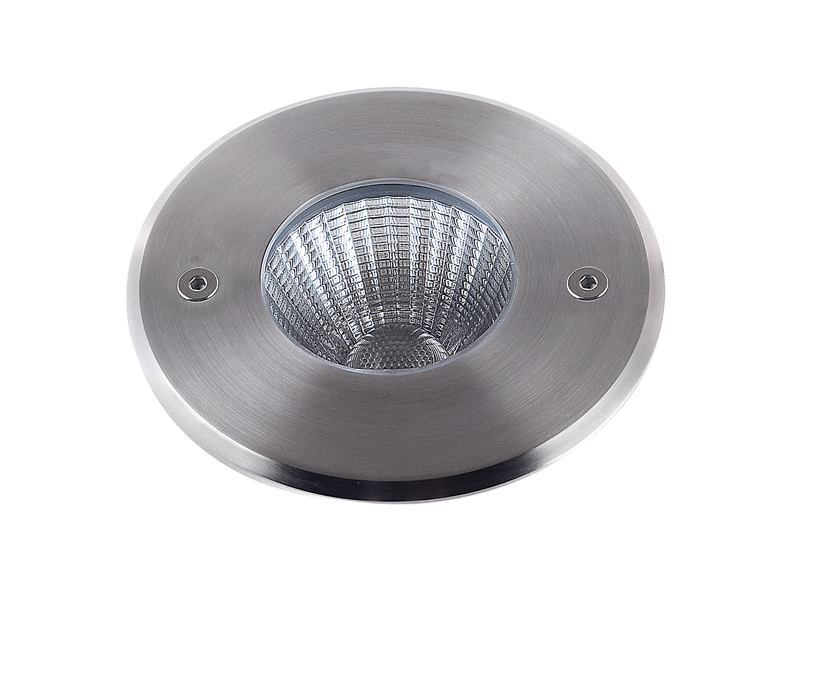

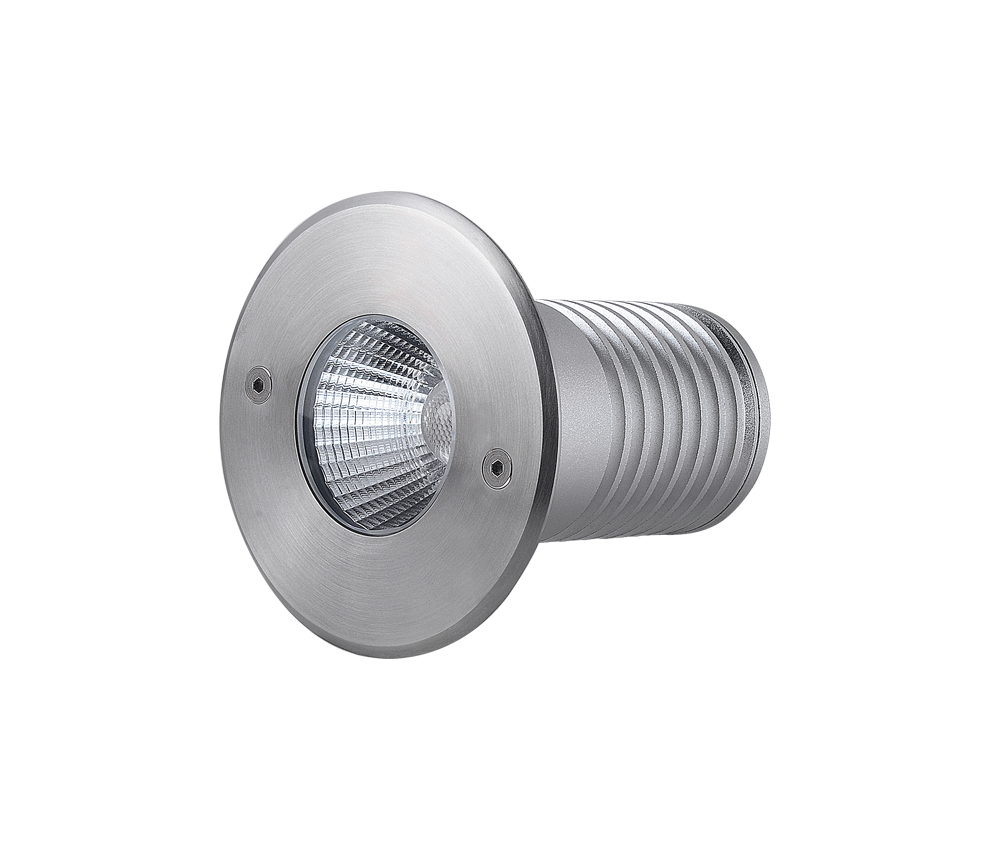

Recessed In-Ground Up Light with IP67 protection

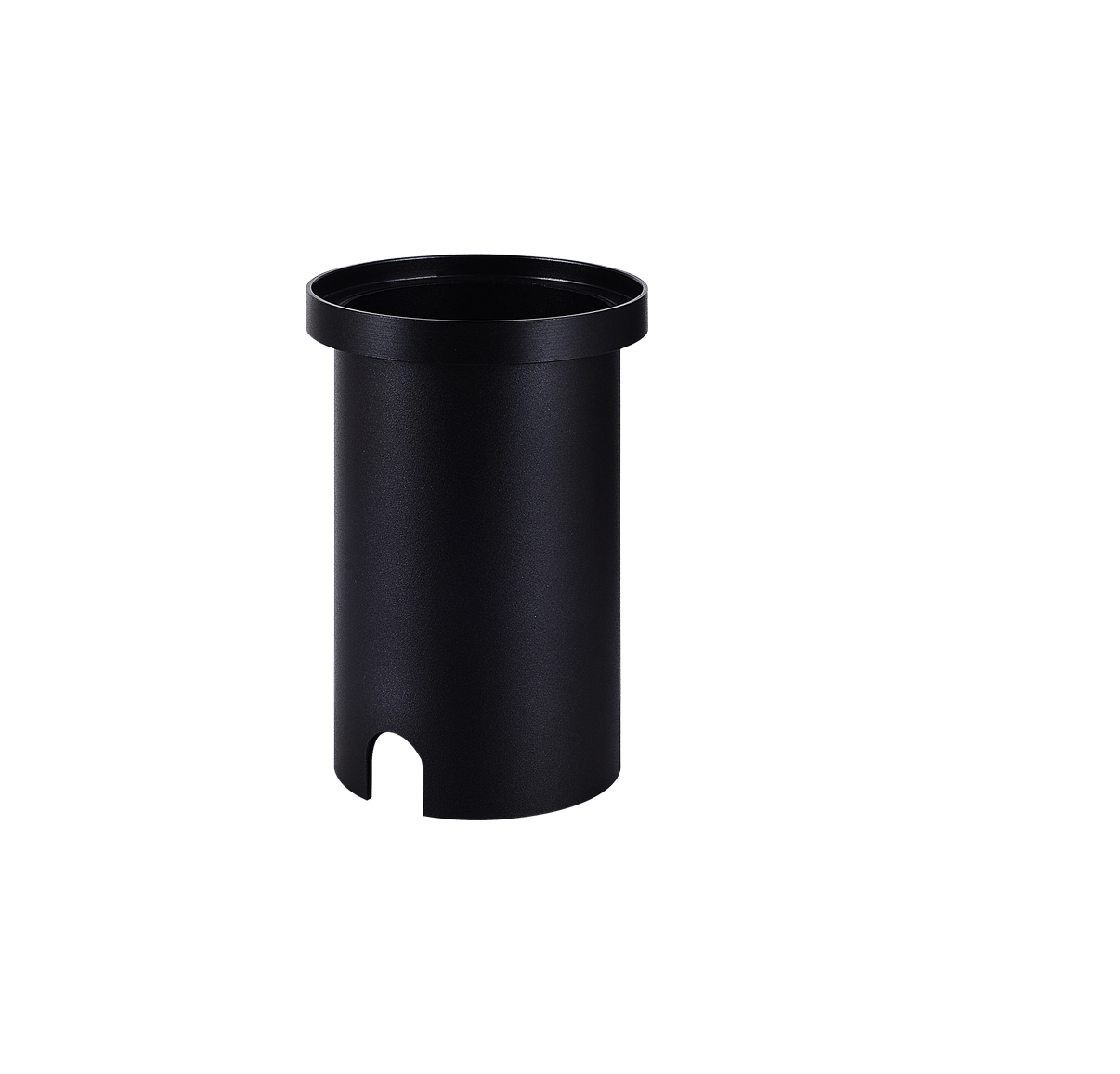

LED in-ground luminaires with small dimensions for flush-mounting installation. The luminaire housing made of die-cast alumiumim and AISI 316 stainless steel Cover with tempered glass , 1.2 m PVC cable conduit . Optics with reflector or PMMA Lens.Outer casing made of plasticpropylene material to be ordered separately. It is able to be controlled by DMX and RDM. It’s as well a great alternative to urban furniture due to its IP67 protection rating.Static load resistance 2000 kg

Technical Data

  • Luminaire Type/ 安裝方式

    Tipo de luminaria

    Recessed In-Ground Type / 內嵌式地埋燈

    Empotrada en el suelo del Tipo

  • Power Consumption Max

    燈具功率

    Consumo de energía Max

    • 8W
    • 10W
  • Input Voltage / 輸入電壓

    Voltaje de entrada

    AC100-240V Input

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    1.  ON/OFF AC220-240V 50/60Hz -Integrated-type LED Driver
    2.  1-10V Dimming Driver  AC100-240V 50/60Hz -Remote-type  LED Driver
    3. Dali Dimming Driver  AC100-240V 50/60Hz-Remote-type  LED Driver
    4.  DMX Driver -Remote-type  LED Driver
    5. RDM Driver  -Remote-type  LED Driver



  • Control Protocol/控制協議

    Protocolo de Control

    1-10V / Dali/ DMX 512 / RDM

  • Beam Angle/光束角

    ángulo de haz

    Symmetric Angle-對稱發光角度-Ángulo simétrica

    • 10°
    • 20°
    • 30°
  • Light Source Brand/光源品牌

    Fuente de luz de marca

    CREE

  • "Lumen Maintenance LM-80 Reported by TM-21"

     L90(10k) = 50,700 hrs / L80(10k) > 63,500 hrs /  L70(10k) > 63,500 hrs

  • LED Life/LED壽命

    La vida del LED

    >60,000 hours

  • Color Temperature / 色溫

    Temperatura del color

    2700K / 3000K / 4000K/ 5000K/ 6500K



  • Color Rendering Index/顯色指數

    Índice de reproducción cromática

    >80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 2 SCDM

    標準偏差配色 < 2 SCDM

    Coincidencia de color estándar Desviación

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    • 90 Lm/w(2700K),
    • 90 Lm/w(3000K),
    • 100 Lm/w(4000K),
    • 100 Lm/w(5000K),
    • 100 Lm/w(6500K),
  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    • 110 Lm/w(2700K),
    • 110 Lm/w(3000K),
    • 135 Lm/w(4000K),
    • 140 Lm/w(5000K),
    • 140 Lm/w(6500K)
  • Housing materials/外殼材料

    Materiales de la carcasa

    Die cast aluminium , 4mm thick tempered glass wiht #316 Stainless Steel Cover

    壓鑄鋁,鋼化玻璃和#316不锈鋼面蓋

    Aluminio fundido, vidrio templado de 4 mm de espesor con # 316 de la cubierta de acero inoxidable

  • Housing Color/ 外殼顏色

    Color de la carcasa

    #316 Stainless Steel Cover

    #316不锈鋼面蓋

    # 316 de la cubierta de acero inoxidable

  • Materials  of Embedded Parts and Color

    嵌入式零件和顏色材料

    Materiales de Piezas y Color Embebidos

    Die cast aluminium / Black

    壓鑄鋁/黑色

    Aluminio fundido / Negro

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +60 °C /  -4 °F / +124 °F



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP67

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánicos

    IK08

  • Dimension/尺寸/Dimensión

    Light Fixture Dia 95 x H: 112mm    Outer casing: Dia 84 x H: 133mm   Cut off:Dia 85mm

  • Country of Design 設計國家

    United Kingdom 英國

  • Country of Origin 產地



    PRC 中國

  • Environment/ 使用環境

    Medio ambiente

    Outdoor /戶外/al aire libre

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
IBLE-10W-SW-S-30
IBLE
-
Power Consumption
-
LED DRIVER TYPE
-
Beam Angle
-
Color Temperature

Power Consumption

  • 8W
    8W
  • 10W
    10W

LED DRIVER TYPE

  • SW
    ON/OFF Switch (Integrated-type)
  • ELV
    ELV Leading Edge Control (Remote-Type)
  • AN
    Analog 1-10V dimming (Remote-Type)
  • DA
    DALI Dimming (Remote-Type)
  • ZI
    ZIGBEE Wireless Control (Remote-Type)
  • DMX
    DMX Dimming(Remote-Type)
  • RDM
    RDM Dimming (Remote-Type)

Beam Angle

  • S
    10°
  • M
    20°
  • L
    30°

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K

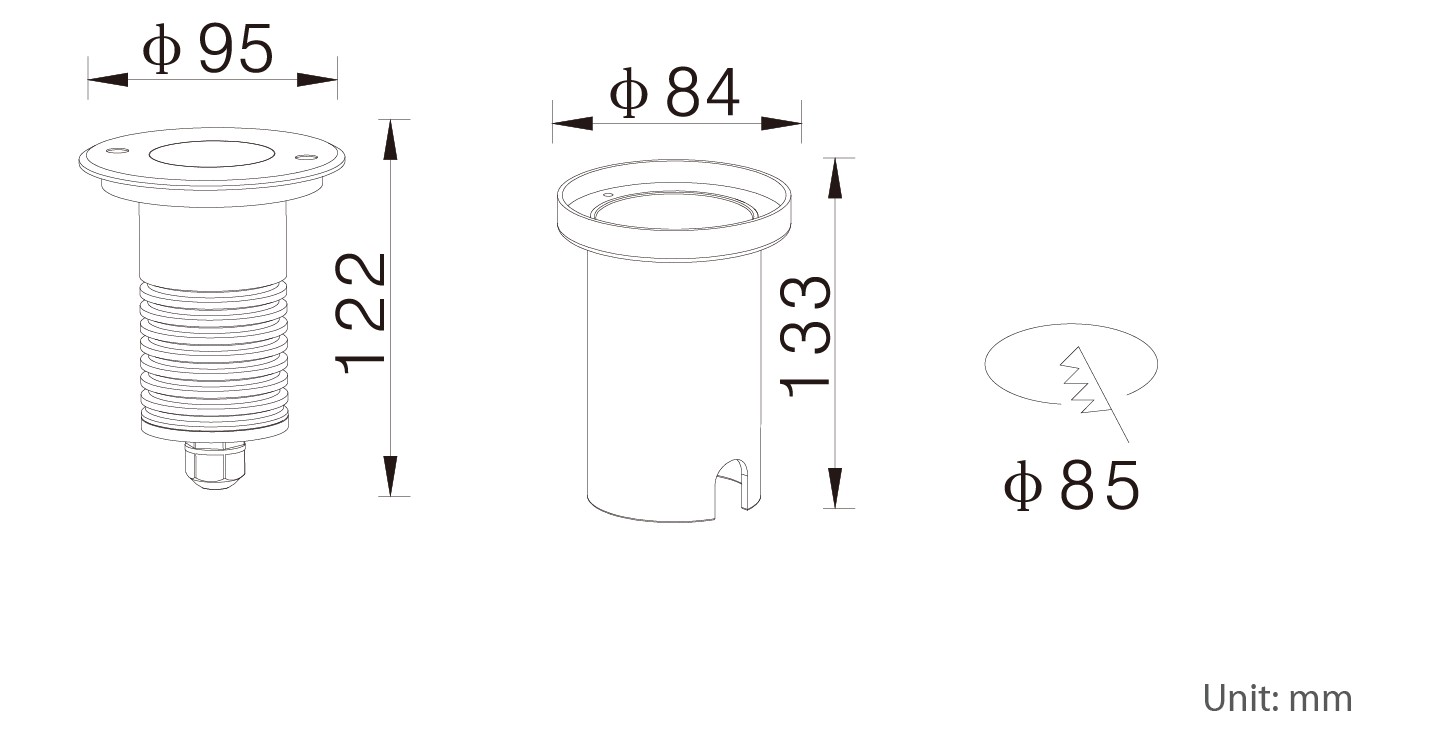

Technical Drawing

Product Download Tab

DATA SHEET

DIMENSION DRAWING

MOUNTING GUIDE
