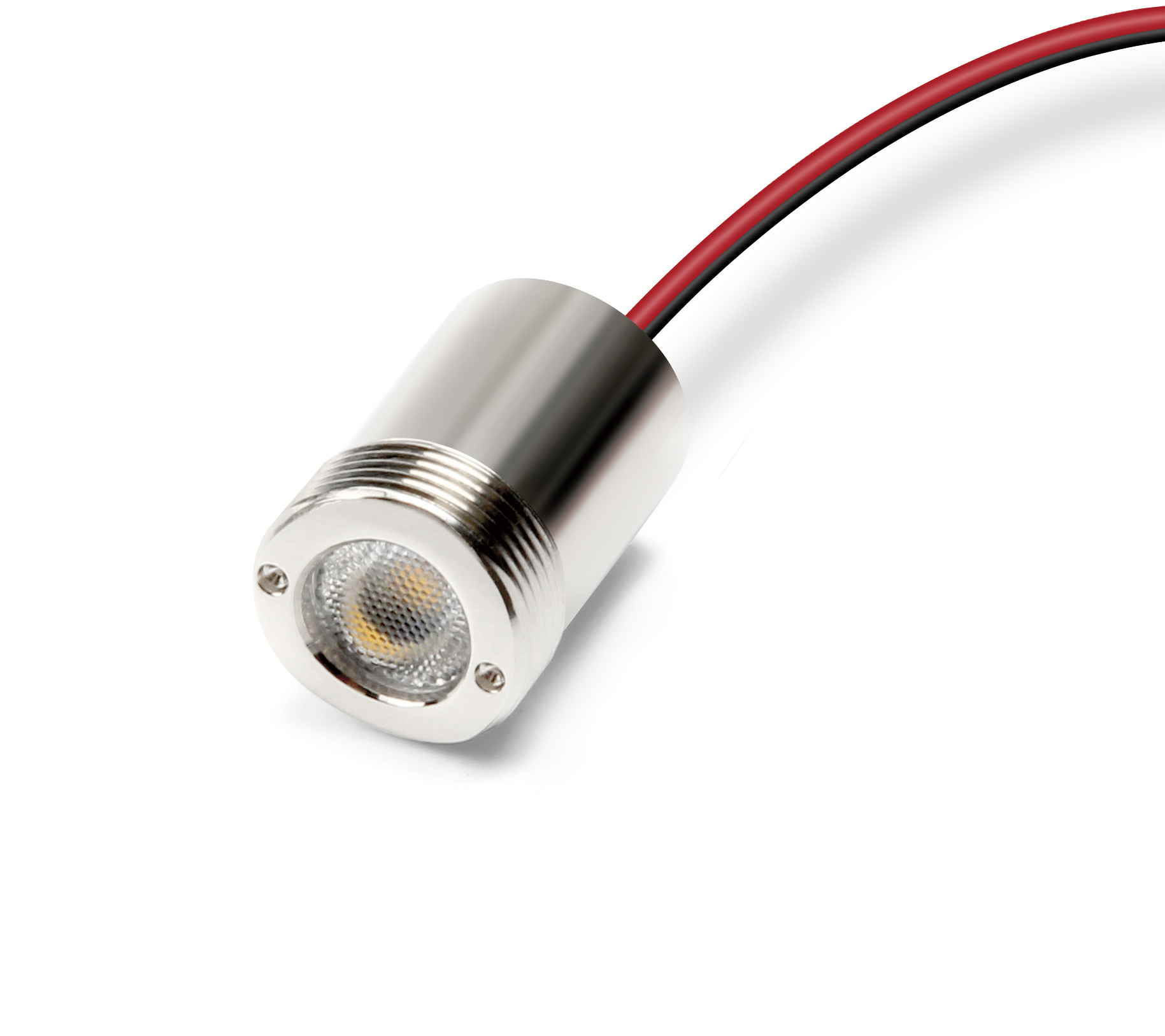

M18 Handrail Light IP67
M18 Handrail Light IP67

LED handrail lighting system, suit for standard handrail made by stainless steel and
aluminum.
Different colors from 2700- 6000K and blue for LEDs are available, IP67 waterproof.
Can be driven by Constant current LED power supply (350mA/500mA)
Aluminum anodized or stainless steel housing
Customized sizes, shape and beam angle on request
For handrail Ø38~42mm, wall thickness need to be T:1.5~2mm
For handrail Ø42~100mm, wall thickness need to be T:1.5~6mm
for a M18 hole 3M waterproof internal connectors

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Rail Mounted

    扶手安裝

    Montado en riel

  • Dimension-尺寸-Dimensión

    M18 x H 26mm

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    1W

  • Input Voltage-輸入電壓-Voltaje de entrada

    3V

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Remote type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. Output 350mA (ON/OFF Switch  AC220-240V 50/60HZ)

    2. Output 350mA (0/1-10V Dimming Driver  AC220-240V 50/60HZ)

    3. Output 350mA (DALI Dimming Driver AC220-240V 50/60HZ)



  • LED Driver Features

    驅動特性

    Funciones del controlador de LED

    Power Factor PF≧0.9

    THD< 20%

  • Control Protocol-控制協議

    Protocolo de Control

    0/1-10V / DALI

  • Beam Angle

    光束角

    ángulo de haz

    15° / 30° / 55°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    Lumileds / Cree

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L70 > 54,000 hrs

  • LED Life-LED壽命-La vida del LED

    >100,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K /  3000K / 4000K/ 5700K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SCDM

    標準偏差配色< 3 SCDM

    Coincidencia de color estándar Desviación

  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    50 Lm/W (2700K)   55 Lm/w (3000K),

    60 Lm/w (4000K),   65 Lm/w (5700K),

    65 Lm/w (6500K)

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    120 Lm/W (2700K)   130 Lm/w (3000K),

    140 Lm/w (4000K),   150 Lm/w (5700K),

    150 Lm/w (6500K)

  • Housing materials-外殼材料

    Materiales de la carcasa

    Stainless Steel & PMMA Lens

    不銹鋼和 PMMA 透鏡片

    Lente de acero inoxidable y PMMA

  • Housing Color

    外殼顏色

    color de la carcasa

    Bright Silver

    亮銀色

    Plata brillante

  • Ingress Protection-防護等級

    Protección de ingreso

    IP67

  • Environment-使用環境-medio ambiente

    Indoor / Outdoor

  • Net Weight /Gross Weight

    淨重/毛重

    pPeso Neto / Peso bruto

    0.2 KG

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-1/ Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
WEER-1W
WEER
-
1W

Power Consumption

  • 1W
    1W
