FACED

100W~180W
LED Flood Light IP66

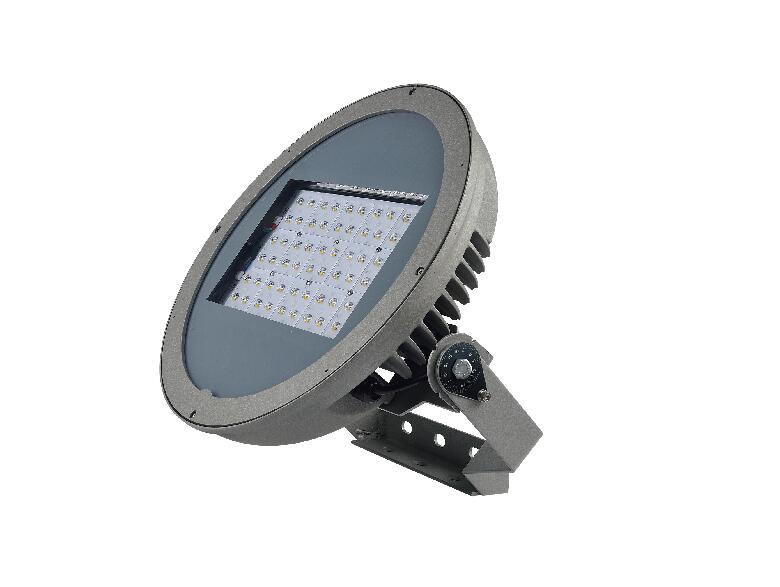

The FACED Flood Light is finished by Die-cast aluminium with separated and integrated LED Driver Box , with surface anti-ageing electrostatic spray processing,super resistance to corrosion and rotated bracket, Gaskets in anti-aging rubber , 5 mm tempered clear Glass and Heat Resisting Cable.  It’s as well a great alternative to urban furniture due to its IP66 protection rating and IK09 Impact protection. And, It is able to be controlled by ELV, 0-10V,DALI,DMX and RDM dimming system. LED module: high-power CREE CRI>80. LM-80 performance approve >50,000 hours;

Technical Data

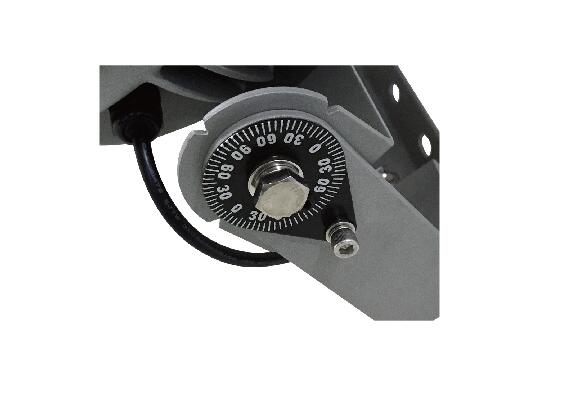

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Surface Mounted and Adjustable Type

    明裝可調安裝腳

    Tipo montado en superficie y ajustable

  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    100W @ 48 pcs LED CREE

    120W @ 48 pcs LED CREE

    150W @ 60 pcs LED CREE

    180W @ 60 pcs LED CREE

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    100-240VAC/50-60HZ

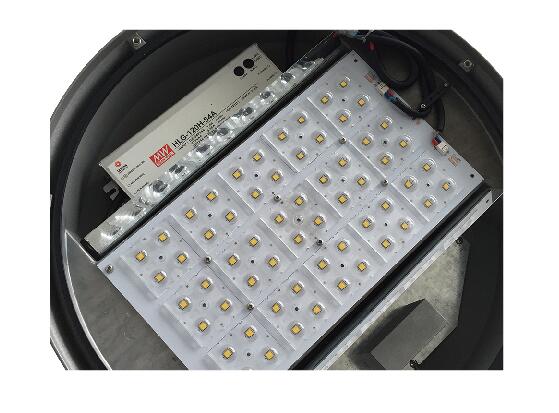

  • Integrated-type LED Driver

    內置LED驅動

    Controlador de LED de tipo integrado

    One Driver for driving one LED circuits PCB

    Two separated LED Drivers for driving two independent LED circuits PCB

  • Control Protocol/控制協議

    Protocolo de Control



    1-10V / Dali/ DMX 512  / RDM

  • Power Factor / 功率因數/Factor de potencia

    >0.9

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<18%

  • Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

    Line-Earth:6KV

    Line-Line:4KV

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE (Risk group 1 (low risk)  from this according to EN 62471-photo biological safety)

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED



    >60,000 hours

  • Color Temperature and Color

    色溫和顏色

    Temperatura y color del color

    2700K / 3000K / 4000K/ 5000K/ 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >70 or >80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 2 SCDM

    標準偏差配色< 2 SCDM

    Coincidencia de color estándar Desviación

  • Beam Angle

    光束角

    ángulo de haz

    Symmetric Optical Type : 25°

    Symmetric Optical Type : 60°

    Symmetric Optical Type :135°

    Asymmetric Optical Type :T4A

  • uminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    90  lm/w(2700K) @CRI >70 ; 80 lm/w(2700K) @CRI >80

    110 lm/w(3000K) @CRI >70 ; 100 lm/w(3000K) @CRI >80

    120 lm/w(4000K) @CRI >70 ; 110 lm/w(4000K) @CRI >80

    125 lm/w(5000K) @CRI >70 ; 115 lm/w(5000K) @CRI >80

    125 lm/w(6500K) @CRI >70 ; 115 lm/w(6500K) @CRI >80

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    134 m/w(2700K) @CRI >70 ; 134m/w(2700K) @CRI >80

    143 lm/w(3000K) @CRI >70 ; 134m/w(3000K) @CRI >80

    163 lm/w(4000K) @CRI >70 ; 143m/w(4000K) @CRI >80

    171 lm/w(5000K) @CRI >70 ; 153m/w(5000K) @CRI >80

    171 lm/w(60500K) @CRI >70 ; 153m/w(6500K) @CRI >80

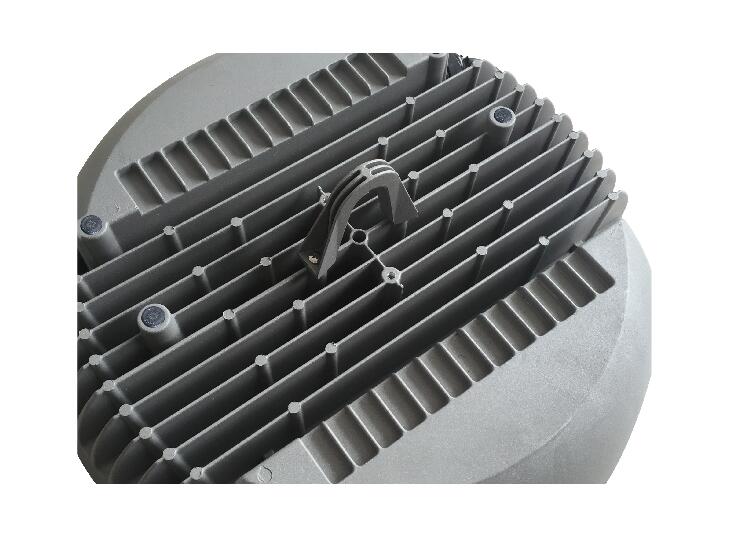

  • Housing materials

    外殼材料

    Materiales de la carcasa

    Die-cast aluminium and 5mm Tempered glass and Hot deep galvanized steel fixing bracket.

    壓鑄鋁和5mm鋼化玻璃和熱鍍鋅鋼固定支架

    Aluminio fundido a presión y 5 mm de vidrio templado y Soporte de fijación de acero galvanizado profundo.

  • Housing Color

    外殼顏色

    color de la carcasa

    Polyester powders Coating  (RAL 9006 Silver).

    聚酯粉末塗料(RAL 9006 銀灰色)

    Polvos de poliéster Revestimiento (RAL 9006 Plata).

  • Ingress Protection-防護等級

    Protección de ingreso

    IP66

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánicos

    IK09

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +60 °C /  -4 °F / +124 °F

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Dimension

    尺寸

    Dimensión

    Dia: 386 (With Bracket 545mm)x H:110 ( Without Bracket)



  • Net Weight /Gross Weight

    淨重/毛重

    Peso Neto / Peso bruto

    12.0kg /13.0kg @ 100W

    12.0kg /13.0kg @ 120W

    12.1kg /13.1kg @ 150W

    12.1kg /13.1kg @ 180W

  • Packing box size

    包裝箱尺寸

    Tamaño de la caja de embalaje

    560 x 545 x 145mm

    Remark(640pcs / 20"container or 1408 pcs / 40"container)

  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaries:  IEC 60598-1;IEC 60598-2-1;IEC62471;RoHS

    LED Driver:          IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                               IEC/EN 61000-3-3;IEC/EN61574;EN 55015

    LED Module:       IEC/EN 62031;IEC/EN 60838-2;IEC/EN 62471;LM-80-08:TM-21

  • Certification-認證-Certificación

Specification Code

Example Product Code:
FACED-1-100W-SW-S-30-70
FACED
-
POWER CONSUMPTION
-
QTY OF LED DRIVER
-
LED DRIVER TYPE
-
BEAM ANGLE
-
COLOR TEMPERATURE
-
COLOR RENDERING INDEX

POWER CONSUMPTION

  • 100W
    100W
  • 120W
    120W
  • 150W
    150W
  • 180W
    180W

QTY OF LED DRIVER

  • 1
    One Driver for driving one LED circuits PCB
  • 2
    Two separated LED drivers for driving two independent LED circuits PCB

LED DRIVER TYPE

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Ledge Control
  • AN
    Analog 1-10V dimming
  • DA
    DALI diming
  • DMX
    DMX diming
  • RDM
    RDM Dimming

BEAM ANGLE

  • S
    Symmetric Optical Type : 25°
  • M
    Symmetric Optical Type : 60°
  • L
    Symmetric Optical Type : 135°
  • XL
    Asymmetric Optical Type :T4A
  • T1
    Symmetric Optical Type :T1  135°

COLOR TEMPERATURE

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K

COLOR RENDERING INDEX

  • 80
    >80
  • 70
    >70
