HAI-I

LED CATENARY LIGHTING
100W-150W
LED CATENARY LIGHTING

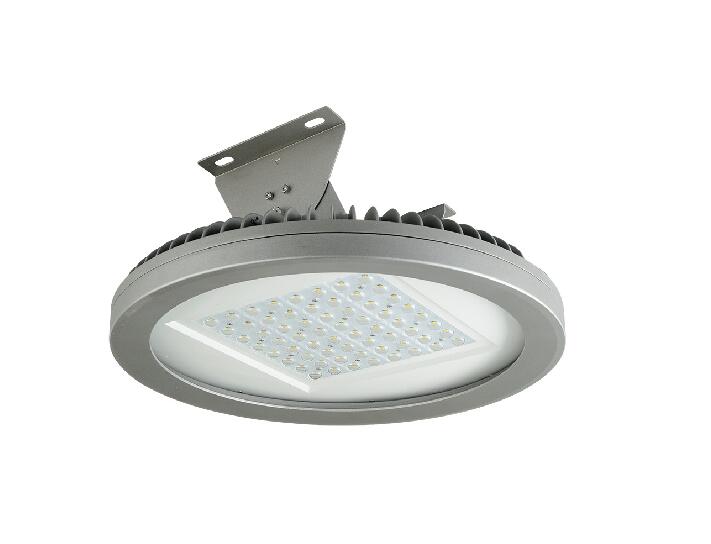

The HAI-I High Bay and Caternary Light is finished by Die-cast aluminium with separated and integrated LED Drive, with surface anti-ageing electrostatic spray processing,All die-casting components after mechanical and chemical anti-corrosion treatment, UV resistant exterior paint system, and with tempered clear Glass and Heat Resisting Cable. It’s as well a great alternative to urban furniture due to its IP65 protection rating and IK09 Impact protection. Adopt modular light distribution Lens and super clear tempered glass. Button design for opening LED driver for easy power circuit connection. And, It is able to be controlled by ELV, 0-10V,DALI,Zigbee dimming system. LED module: high-power CREE CRI>70 up to 140lm/w. LM-80 performance approve >50,000 hours; Fixing: Mouting by Brackett or Hanging.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Mouting by Bracket or Hanging.

    安裝支架固定或者吊裝

    Soporte de montaje fijo o elevación

  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    100W @ 64 pcs LED CREE

    120W @ 64 pcs LED CREE

    150W @ 64 pcs LED CREE



  • Input Voltage / 輸入電壓

    Voltaje de entrada

    100 ~ 305VAC(47 63HZ)  142 ~ 431VDC

  • Control Protocol/控制協議

    Protocolo de Control



    1-10V / Dali/ DMX 512  / RDM/Zigbee (wireless)

  • Power Factor / 功率因數/Factor de potencia

    PF>0.95/115VAC, PF>0.93/230VAC, PF>0.90/277VAC

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<18%

  • Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

    Line-Earth:6KV

    Line-Line:4KV

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE (Risk group 1 (low risk)  from this according to EN 62471-photo biological safety)

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED



    >60,000 hours

  • Color Temperature and Color

    色溫和顏色

    Temperatura y color del color

    2700K / 3000K / 4000K/ 5000K/ 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromáca

    >70 or >80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching 3 SCDM

    標準偏差配色  3 SCDM

    Coincidencia de color estándar Desviación

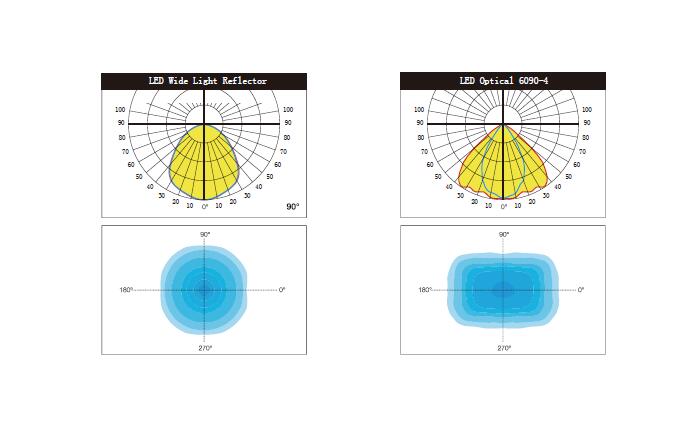

  • Beam Angle

    光束角

    ángulo de haz



    90°

    90°x60°



  • uminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    110 lm/w(2700K) @CRI >70 ; 100 lm/w(2700K) @CRI >80

    120 lm/w(3000K) @CRI >70 ; 100 lm/w(3000K) @CRI >80

    140 lm/w(4000K) @CRI >70 ; 120 lm/w(4000K) @CRI >80

    150 lm/w(5000K) @CRI >70 ; 130 lm/w(5000K) @CRI >80

    150 lm/w(6500K) @CRI >70 ; 130 lm/w(6500K) @CRI >80

  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    134 lm/w(2700K) @CRI >70 ; 134 lm/w(2700K) @CRI >80

    143 lm/w(3000K) @CRI >70 ; 134 lm/w(3000K) @CRI >80

    163 lm/w(4000K) @CRI >70 ; 143 lm/w(4000K) @CRI >80

    171 lm/w(5000K) @CRI >70 ; 153 lm/w(5000K) @CRI >80

    171 lm/w(6500K) @CRI >70 ; 153 lm/w(6500K) @CRI >80

  • Housing materials

    外殼材料

    Materiales de la carcasa

    Die-cast aluminium and Tempered glass

    壓鑄鋁和鋼化玻璃

    Aluminio fundido a presión y de vidrio templado

  • Housing Color

    外殼顏色

    color de la carcasa

    Polyester powders Coating  (RAL 9006 Silver)

    聚酯粉末塗料(RAL 9006 銀灰 色)

    Polvos de poliéster Revestimiento (RAL 9006 Plata)

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánicos

    IK09

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +60 °C /  -4 °F / +124 °F

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Dimension

    尺寸

    Dimensión

    Dia 450mm x H: 195mm



  • Net Weight /Gross Weight

    淨重/毛重

    Peso Neto / Peso Bruto

    9.0kg /10.0kg @ 100W

    9.3kg /10.3kg @ 120W

    9.3kg /10.3kg @ 150W





  • Packing box size

    包裝箱尺寸

    Tamaño de la caja de embalaje

    480 x 480 x 170mm

    Remark( 780pcs /  20"container or 1590 pcs / 40"container)

  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaries:  IEC 60598-1;IEC 60598-2-1;IEC62471;RoHS

    LED Driver:          IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                               IEC/EN 61000-3-3;IEC/EN61574;EN 55015

    LED Module:       IEC/EN 62031;IEC/EN 60838-2;IEC/EN 62471;LM-80-08:TM-21

  • Certification-認證-Certificación

Specification Code

Example Product Code:
HAI-I-100W-SW-S-30-70
HAI-I
-
POWER CONSUMPTION
-
LED DRIVER TYPE
-
BEAM ANGLE
-
COLOR TEMPERATURE
-
COLOR RENDERING INDEX

POWER CONSUMPTION

  • 100W
    100W
  • 120W
    120W
  • 150W
    150W

LED DRIVER TYPE

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Ledge Control
  • DA
    DALI diming
  • DMX
    DMX Diming
  • RDM
    RDM Diming
  • ZI
    ZIGBEE Wireless Control

BEAM ANGLE

  • S
    90°
  • M
    90°x60°

COLOR TEMPERATURE

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000k
  • 65
    6500K

COLOR RENDERING INDEX

  • 80
    >80
  • 70
    >70

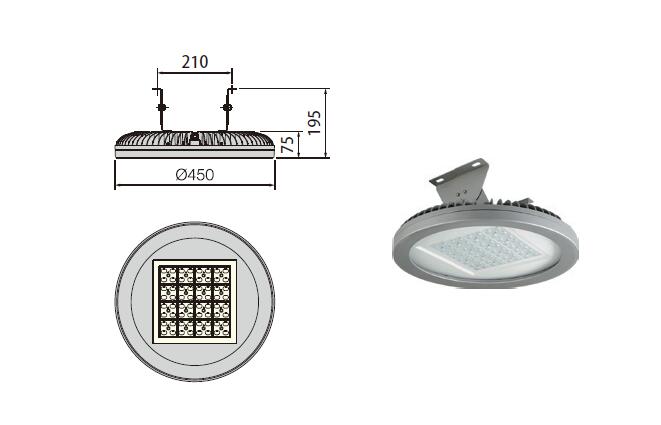

Technical Drawing

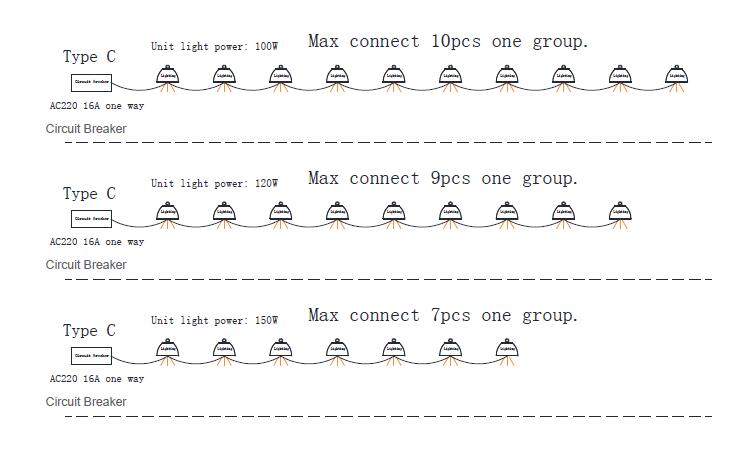

Wiring Drawing
