LAS-II

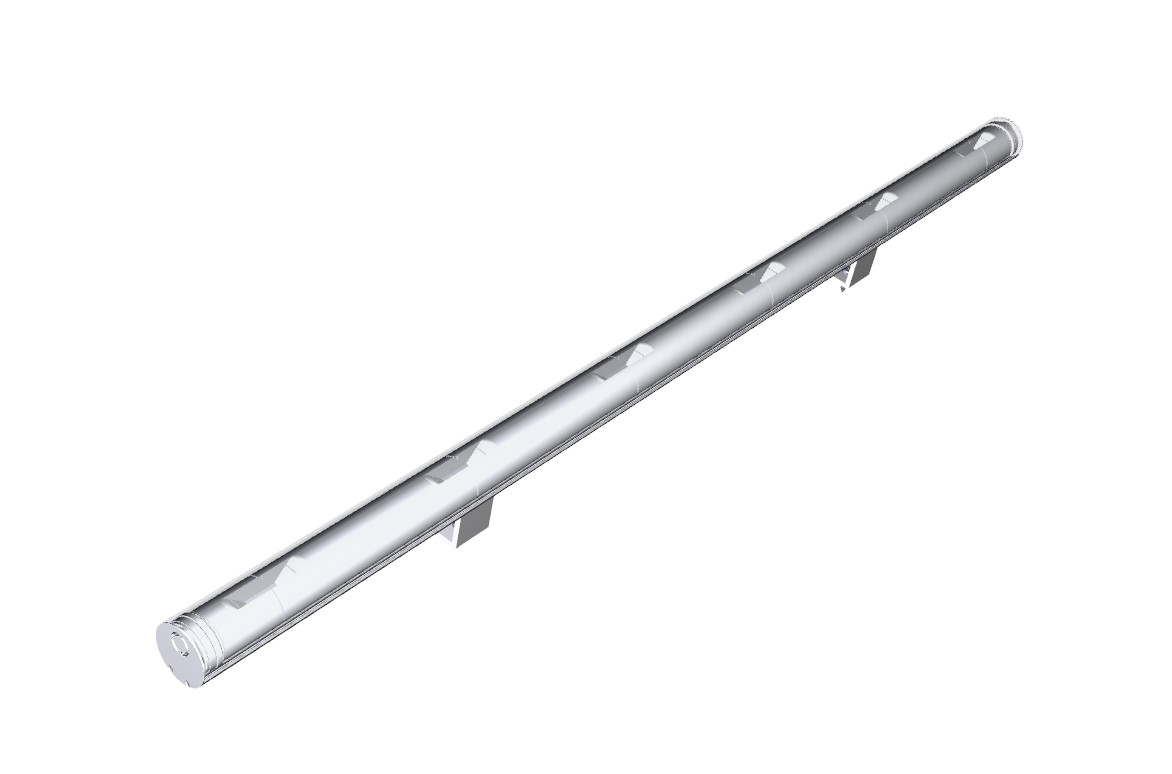

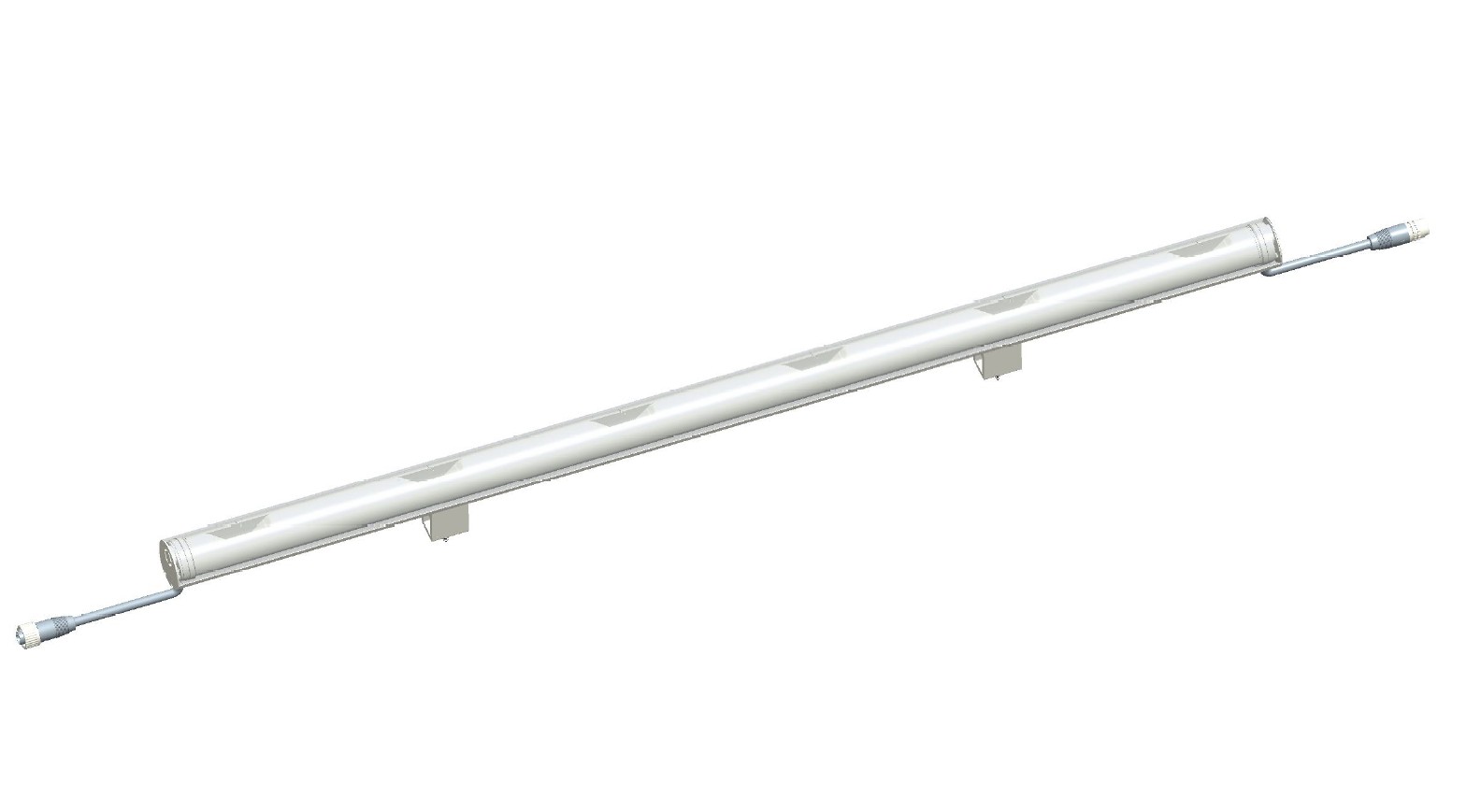

HYBRID LED BAR

LOW LED RGB MIX HIGH POWER LED RGB

LAS is a HYBRID LED BAR which mixes the Low Power LED RGB 3-in1 and High Power LED RGB 3-in-1 together. It is able to be controlled by DMX512A and RDM. Built-in FPGA and 16-bit PWM embedded LED IC, featuring Gamma Correction and 16-bit gray scale control, supports up to 65,536 gray scales for color depths. The high visual refresh rate can facilitate CCD cameras and video cameras to capture the full video images in real time without flickers.

Technical Data

Luminaire Type/ 安裝方式

Surface Mounted Type/明裝式
Power Consumption Max/ 燈具最大功率

LP: Low Power

HP: High Power

16W +/- 10% @ L:900mm (17 pcs LP RGB LEDs Mix 6 pcs HP RGB LEDs)

22W +/- 10% @ L:1213mm (23 pcs LP RGB LEDs Mix 8 pcs HP RGB LEDs)

34W +/- 10% @ L:1790mm (35 pcs LP RGB LEDs Mix 12pcs HP RGB LEDs)

37W +/- 10% @ L:1988mm (38 pcs LP RGB LEDs Mix 13pcs HP RGB LEDs)

42W +/- 10% @ L: 2230mm (44 pcs LP RGB LEDs Mix 15pcs HP RGB LEDs)

45W +/- 10% @ L: 2465mm (47 pcs LP RGB LEDs Mix 16pcs HP RGB LEDs)
QTY of First Layer (High Power RGB LEDs)
- Pitch: 156.5mm (+/-5%) @900mm& 1213mm &1988mm & 2465mm
- Pitch : 151.5mm (+/-5%) @ 1790mm & 2330mm
Max Driving Current of RGB @ 4800K +/-300K

6 pcs x 3-in- 1 High Power RGB LEDs@ L: 900mm

8 pcs x 3-in- 1 High Power RGB LEDs@ L: 1213mm

12 pcs x 3-in- 1 High Power RGB LEDs@ L: 1790mm

13 pcs x 3-in- 1 High Power RGB LEDs@ L: 1990mm

15 pcs x 3-in- 1 High Power RGB LEDs@ L: 2230mm

16 pcs x 3-in- 1 High Power RGB LEDs@ L: 2465mm
QTY of Second Layer (Low Power RGB LEDs)
- Pitch: 52.2mm (+/-5%)@900mm& 1213mm &1988mm & 2465mm
- Pitch: 50.5mm (+/-5%) @ 1799mm & 2330mm
Max Driving Current of RGB @ 4800K +/-300K

17 pcs x 3-in- 1 Low Power RGB LEDs@ L: 900mm

23 pcs x 3-in- 1 Low Power RGB LEDs@ L: 1213mm

35 pcs x 3-in- 1 Low Power RGB LEDs@ L: 1790mm

38 pcs x 3-in- 1 Low Power RGB LEDs@ L: 1990mm

44 pcs x 3-in- 1 Low Power RGB LEDs@ L: 2230mm

47 pcs x 3-in- 1 Low Power RGB LEDs@ L: 2465mm
Control Protocol/控制協議

DMX 512A / RDM (Auto Address and free connection in "right input or left input"
Color Range/顏色範圍

16.7 Million additive RGB colors/1670萬RGB顏色混合
Color Resolution with Gamma correction

RGB顏色經過伽馬校正的分辨率

(3x16) 48-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

By FPGA Chip: Brand : ALTERA P/N:EP4CE6F17C8N, PWM IC: MBI6023GP-C for Low Power and MY9231TE

(3x16) 48 位灰度控制，支持高達65,536個灰度級的顏色深度
Pixels & DMX Channels/像素和DMX 通道

69 chs (First Layrer:1~51 chs@ Low Power RGB LED; Second Layer: 52~69) @900mm

93 chs (First Layrer:1~69 chs@ Low Power RGB LED; Second Layer: 70~93) @1213mm

141 chs (First Layrer:1~105 chs@ Low Power RGB LED; Second Layer: 106~141) @1790mm

153 chs (First Layrer:1~114 chs@ Low Power RGB LED; Second Layer: 115~153) @1990mm

177 chs (First Layrer:1~132 chs@ Low Power RGB LED; Second Layer: 133~177) @2230mm

189 chs (First Layrer:1~141 chs@ Low Power RGB LED; Second Layer: 142~189) @2465mm
Input Voltage / 輸入電壓

48 V DC
Beam Angle/光束角

High Power RGB LED: Horizontal : 80°(+/-5°) & Vertical : 45°(+/-5°)

Low Power RGB LED: Horizontal : 120°(+/-5°) & Vertical : 120°(+/-5°)
Light Source Brand/光源品牌

3 in 1 SMD Low Power RGB LED: Nichia

High Power RGB LED: Cree
LED Life/LED壽命

>50,000 hours
Luminous Intensity (@5000K; white)

@High Power LED

33cd/ node
Luminous Intensity (@5000K; white)

@Low Power LED

1.2 cd/node
Housing materials/外殼材料

Aluminium Extrusion Bar / UV-Protected Clear Polycarbonate Tube

鋁擠壓棒/抗紫外線PC透明PC管
LED optical material /LED光學材料

@ High Power LEDs

UV-Protected Clear Polycarbonate Reflector with white surface

抗紫外線PC白色表面反光杯
LED optical material /LED光學材料

@ Lower Power LEDs

UV-Protected Milky Polycarbonate Diffuser

/抗紫外線乳白PC擴散器
Operating Temperature Range / 工作溫度範圍

-20 °C ~ +50 °C
Operating Humidity -工作濕度

0~90%, non-condensing-不結霜
Ingress Protection/ 防護等級

IP67
Dimension/尺寸
- L: 900(+/-3)mm x Dia:40 (+/-0.5)mm x H:68(+/-0.5)mm with Bracket
- L: 1213(+/-3)mm x Dia:40 (+/-0.5)mm x H:68(+/-0.5)mm with Bracket
- L: 1790(+/-3)mm x Dia:40 (+/-0.5)mm x H:68(+/-0.5)mm with Bracket
- L: 1990(+/-3)mm x Dia:40 (+/-0.5)mm x H:68(+/-0.5)mm with Bracket
- L: 2330(+/-3)mm x Dia:40 (+/-0.5)mm x H:68(+/-0.5)mm with Bracket
- L: 2465(+/-3)mm x Dia:40 (+/-0.5)mm x H:68(+/-0.5)mm with Bracket
