WED-S

4W- 8W

ARCHITECTURAL WALL LIGHT

ARCHITECTURAL WALL LIGHT. Housing: die-cast aluminium, powder-coated, designed as heat sink and stainless steel recessed housing. Anti-glare reflector and diffusor system made of tempered glass. LED module: CREE COB CRI>80 LM-80 performance approval >50,000 hours.Well balance light distribution and optimum lighting quality. Applications:schools,public buildings ,etc.It’s as well a great alternative to urban furniture due to its IP65 protection rating.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Recessed Wall Light Type

嵌入式燈具

Tipo de Recessed
Dimension-尺寸-Dimensión
- W 86 x H: 86 x D: 52mm ABS Plastic Embedded parts W 80 x H75 x D: 60mm
- W 150 x H: 150 x D: 70mm ABS Plastic Embedded parts W 142 x H142 x D: 84mm
Input Voltage-輸入電壓-Voltaje de entrada

AC100-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
- 4W @ W 86 x H: 86 x D: 52mm
- 6W @W 150 x H: 150 x D: 70mm
- 8W @W 150 x H: 150 x D: 70mm
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC100-240V 50/60HZ
LED Driver Features

驅動特性

Funciones del controlador de LED
- PF>0.95 for >6W only
- THD<18% for >6W only

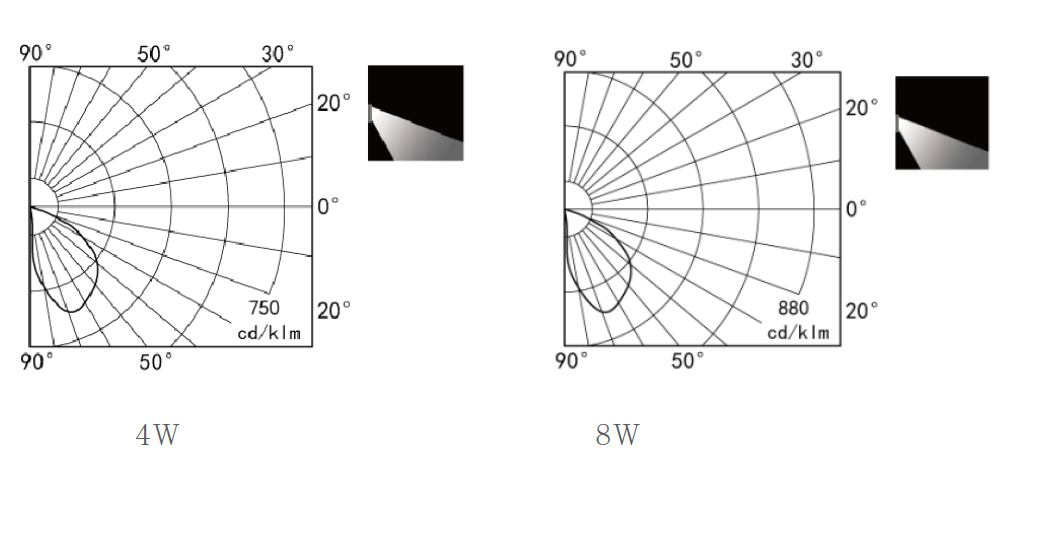

Beam Angle

光束角

ángulo de haz

Asymmetric 不對稱 Asimétrico
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率La eficacia de la luminaria
- 55 Lm/w(2700K), 55 Lm/w(3000K), 60 Lm/w(4000K),
- 65 Lm/w(5000K), 65 Lm/w(6500K),
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 110 Lm/w(2700K), 110 Lm/w(3000K), 135 Lm/w(4000K),
- 140 Lm/w(5000K), 140 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminium and Glass

壓鑄鋁和玻璃

Die fundición de aluminio y Vidrio
Housing Color外殼顏色color de la carcasa

Polyester powders Coating--Matte Black RAL 9005 or Matte Grey RAL9006

聚酯粉末塗料--哑光黑色RAL 9005 或哑光黑灰RAL9006

Polvos de poliéster Revestimiento--Matte Black RAL 9005 or Matte Grey RAL9006
Ingress Protection-防護等級

Protección de ingreso

IP65
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos
IK08
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
