LASHE

LASHE
LASHE-1
LASHE-3
W50xH95mm Max 93W IP40
LED Linear Light

LED Linear Light. Housing: made by Extrusion aluminum fixture body with multi-type of Diffuser , Louver and Lens  system to achieve Low Glare application UGR <6 , UGR 13, UGR 19 and UGR 22. Wall mounted, Recessed mounted, Pendant mounted is available.

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Wall Mounted Type & Surface & Suspended  Mounted & Recessed Mounted

    壁掛式 & 吸頂 & 吊裝 & 嵌入式安装

    Tipo montado en la pared y en superficie y suspendido y empotrado

  • Dimension-尺寸-Dimensión



    • L: 570 (140x4+10) x 95 x 50 mm (LxHxW)                  L: 710 (140x5+10) x 95 x 50 mm (LxHxW)
    • L: 850 (140x6+10) x 95 x 50 mm (LxHxW)                  L: 990 (140x7+10) x 95 x 50 mm (LxHxW)
    • L: 1130(140x8+10) x 95 x 50 mm (LxHxW)                 L: 1270(140x9+10) x 95 x 50 mm (LxHxW)
    • L: 1410(140x10+10) x 95 x 50 mm (LxHxW)               L: 1550(140x11+10) x 95 x 50 mm (LxHxW)
    • L: 1690(140x12+10) x 95 x 50 mm  (LxHxW)              L: 1830(140x13+10) x 95 x 50 mm  (LxHxW)
    • L: 3080 x 95 x 50 mm (LxHxW)
  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • 12W & 24W @ L: 570 (140x4+10) x 95 x 50 mm (LxHxW)
    • 15W & 30W @ L: 710 (140x5+10) x 95 x 50 mm (LxHxW)
    • 18W& 36W @ L 850 (140x6+10) x 95 x 50 mm (LxHxW) @ L:1130(140x8+10) x 95 x 50 mm (LxHxW)
    • 21W & 26W & 42W @ L: 990 (140x7+10) x 95 x 50 mm (LxHxW)
    • 12W & 24W & 48W @ L:1130(140x8+10) x 95 x 50 mm (LxHxW)
    • 27W & 54W @ L:1270(140x9+10) x 95 x 50 mm (LxHxW)
    • 30W & 60W @ L:1410(140x10+10) x 95 x 50 mm (LxHxW)
    • 33W & 66W @ L: 1550(140x11+10) x 95 x 50 mm (LxHxW)
    • 36W & 72W @ L: 1690(140x12+10) x 95 x 50 mm (LxHxW)
    • 39W & 78W @ L: 1830(140x13+10) x 95 x 50 mm (LxHxW)
    • 73W @ L: 3080 x 95 x 50 mm (LxHxW)
    • 93W @ L: 3080 x 95 x 50 mm (LxHxW)
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated -type LED Driver--Constant Current LED Driver

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming Driver AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

    6. RDM Driver AC100-240V 50/60HZ

    7. ZIGBEE Wireless Control  AC100-240V 50/60HZ

    8. Remoted-Type Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

  • Control Protocol/控制協議/Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Light Source Brand-光源品牌-Fuente de luz de marca

    OSRAM for PC Diffiser Version  & PMMA Aysmetric Diffuser     or  CREE for Lens Version

     ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs  2. L80(10k) > 63,500 hrs    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6000K / 6500K / CCT Adjustable (2700K-6500K)

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • >80
    • >90
  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

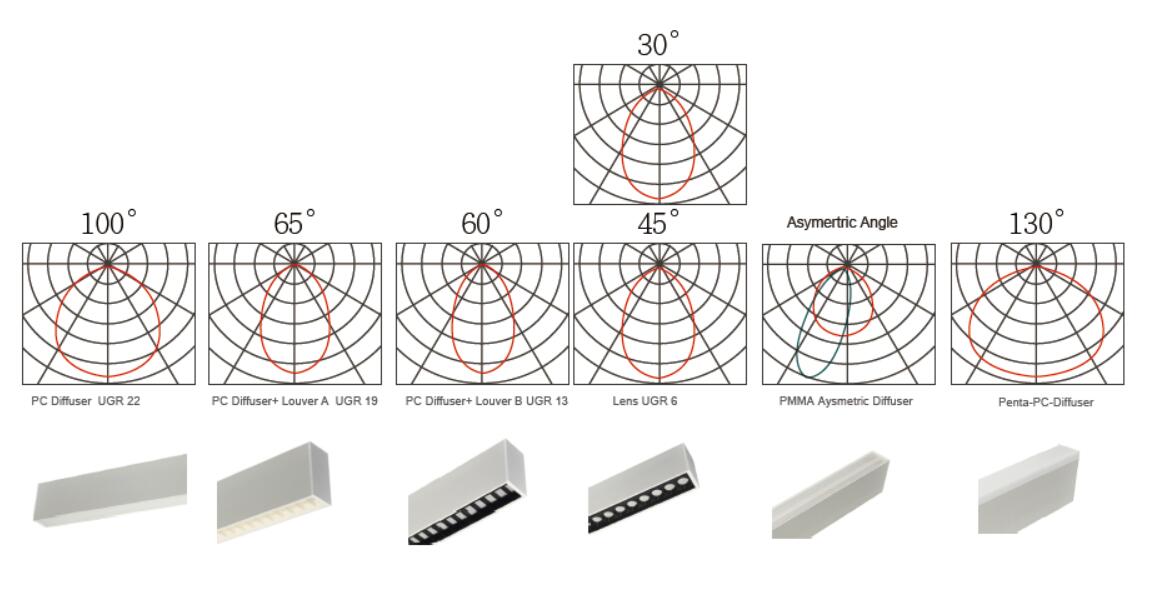

  • Beam Angle

    光束角

    ángulo de haz



    •    100° PC Diffuser UGR 19                                     65° PC Diffuser+ Louver A UGR 19

    •    60° PC Diffuser+ Louver B UGR 13                        30° Lens  or 45° Lens

    •    Asymertric Angle for Wallwasher Application         130° Penta-PC-Diffuser

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    • 110 Lm/w(2700K)      110 Lm/w(3000K)    120 Lm/w(4000K)
    • 120 Lm/w(5000K)      120 Lm/w(6000K)     120 Lm/w(6500K)
  • LED Source Luminous Efficacy

    LED光源光效Fuente luminosa LED Eficacia

    • 130 Lm/w(2700K)     130 Lm/w(3000K)    140 Lm/w(4000K)
    • 140 Lm/w(5000K)     140 Lm/w(6000K)    140 Lm/w(6500K)
  • Housing materials-外殼材料

    Materiales de la carcasa

    Aluminium Alloy and Polycarbonate or PMMA   鋁合金和PC或亞克力

    Aleación de aluminio y policarbonato o PMMA

  • Housing Color外殼顏色 color de la carcasa



    Matte white / Matte black 啞光白色 / 啞光黑色 Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP40

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471  TM21

    LED Driver:           IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2  IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
LASHE-36W-SW-80-40-M-990
LASHE
-
Power Consumption
-
LED Driver Type (Remoted Type)
-
Color Temperature
-
Color Rendering Index
-
BEAM Angle (Diffuser System)
-
LENGTH

Power Consumption

  • 12W
    12W @ L: 570mm @ L: 1130mm
  • 15W
    15W @ L: 710mm
  • 18W
    18W@ L: 850mm @ L: 1130 mm
  • 20W
    20W@ L:1270mm
  • 24W
    24W @ L: 570mm or @ L: 1130 mm
  • 26W
    26W @L: 990mm
  • 27W
    27W@ L:1270mm
  • 30W
    30W @ L: 710mm or @ 1410mm
  • 33W
    33W@ L:1270mm @ L: 1550mm
  • 36W
    36W @ L:850mm @ L:1130mm @ L: 1690mm
  • 39W
    39W @ L:1830mm
  • 42W
    42W @ L: 990mm
  • 48W
    48W @ L:1130mm
  • 54W
    54W @ L:1270mm
  • 60W
    60W @ L:1410mm
  • 72W
    72W @ L: 1690mm
  • 73W
    73W @ L: 3080mm
  • 78W
    78W @ L: 1830mm
  • 93W
    93W @ L: 3080mm

LED Driver Type (Remoted Type)

  • SW
    ON/OFF Switch
  • ELV
    ELV Leading Edge Control
  • AN
    Analog 0 -10V Dimming
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K
  • CA
    CCT Adjustable (2700K-6500K)

Color Rendering Index

  • 80
    CRI >80
  • 90
    CRI >90

BEAM Angle (Diffuser System)

  • S
    30° Lens
  • M
    45° Lens
  • T
    60° PC Diffiser+ Louver B UGR 13
  • G2
    65° PC Diffiser+ Louver A UGR 19
  • S
    Asymertric Angle for Wallwasher Application
  • G
    100° PC Diffiser UGR 19
  • P
    130° Penta-PC-Diffuser

LENGTH

  • 570
    L: 570mm
  • 710
    L: 710mm
  • 850
    L: 850mm
  • 990
    L: 990mm
  • 1130
    L: 1130mm
  • 1270
    L: 1270mm
  • 1410
    L: 1410mm
  • 1550
    L: 1550mm
  • 1690
    L: 1690mm
  • 1830
    L: 1830mm
  • 3080
    L: 3080mm

Technical Drawing

Accessories

  • Gateway- NANO
  • INNO-SENSOR-823
  • INNO-SENSOR-826
  • Z501-CZ
  • INNO503

Reference

  • Smart Zigbee Office Lighting
