LED LINEAR CEILING LIGHT. Housing: high quality aluminium alloy, electrostatic thermo-painting, designed as heatsink. Anti-glare reflector and diffusor system made of PC. LED module: SMD LEDs, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear. Deep recessed design achieves super eye comfort. The fixture can be available in different length and the light emission can be three sides.
LABITY Slim
Technical Data
-
Luminaire Type-安裝方式Tipo de luminaria
Surface & Suspended Mounted明裝或吊裝 superficie y suspendido montado
-
Dimension-尺寸-Dimensión ( L x W x H)
- 600x 42 x 64 mm 900x 42 x 64 mm
- 1200x 42 x 64 mm 1500x 42 x 64 mm
-
Power Consumption Max-燈具功率
Consumo de energía Max
- 600mm : 12W 14W 18W
- 900mm : 16W 20W 24W
- 1200mm : 26W 28W 30W
- 1500mm : 32W 36W 40W
-
Input Voltage-輸入電壓-Voltaje de entrada
- 100-240 VAC 50/60HZ
-
Power Factor / 功率因數/Factor de potencia
PF>0.95
-
Total Harmonic Distortion/總諧波失/Distorsión armónica total
THD <20%
-
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. 1 -10V Dimming Driver AC100-240V 50/60HZ
3. Dali Dimming Driver AC100-240V 50/60HZ
4. Remoted Type Emergency Backup >2 hours or >3 hours @ < 12charger hours應急電池/Copia de seguridad de emergencia
-
Control Protocol-控制協議
Protocolo de Control
1-10V or Dali
-

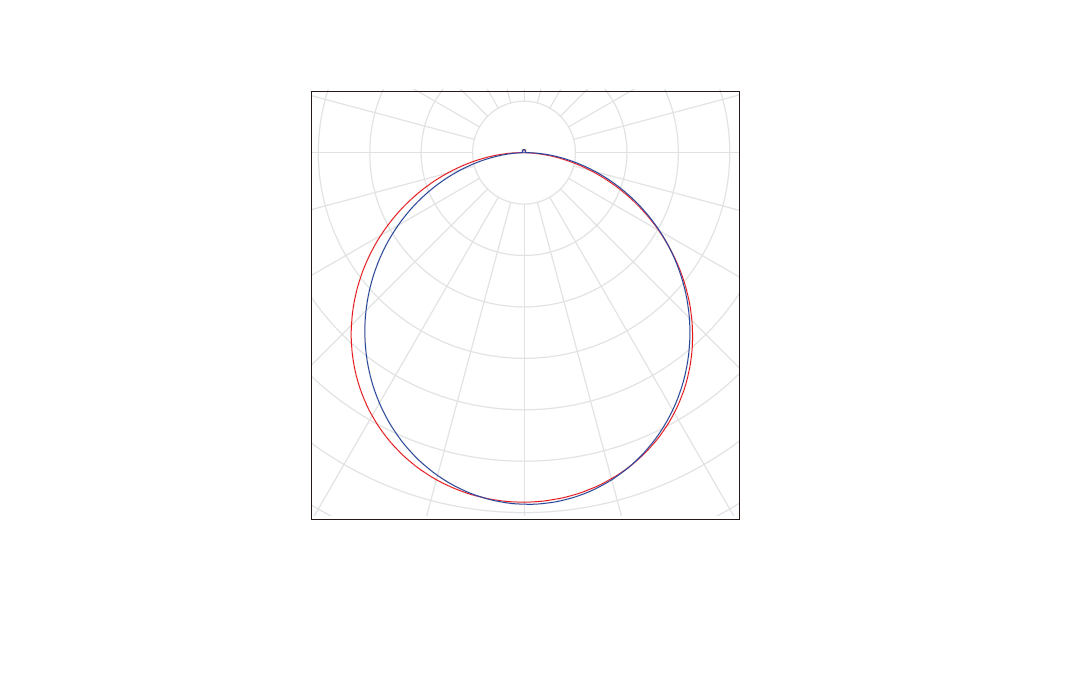

Beam Angle光束角ángulo de haz
120°
-
Light Source Brand-光源品牌-Fuente de luz de marca
OSRAM LED
-
LED Life-LED壽命-La vida del LED
>60,000 hours
-
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K
-
Color Rendering Index-顯色指數
Índice de reproducción cromática
- > 82
- > 90
-
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
-
Luminaire Efficacy 燈具效率
La eficacia de la luminaria
- 100 Lm/w(2700K), 100 Lm/w(3000K), 110 Lm/w(4000K),
- 120 Lm/w(5000K), 120 Lm/w(6500K),
-
LED Source Luminous EfficacyLED光源光效
Fuente luminosa LED Eficacia
- 130 Lm/w(2700K), 130 Lm/w(3000K), 140 Lm/w(4000K),
- 150 Lm/w(5000K), 150 Lm/w(6500K),
-
Housing materials-外殼材料
Materiales de la carcasa
Aluminium Alloy and Opal Polycarbonate 鋁合金和乳白PC罩
Aleación de aluminio y policarbonato o PMMA
-
Housing Color外殼顏色
color de la carcasa
Matte white / Matte black / Matte sliver
啞光白色 / 啞光黑色 / 啞光銀色
Blanco mate / Matte black / Astilla mate
-
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
-
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
-
Ingress Protection-防護等級
Protección de ingreso
IP20
-
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031;
IEC/EN 62493 ; IEC/EN 62471
LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;
IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
Specification Code
Power Consumption
-
12W12W@600mm
-
14W14W@600mm
-
18W18W@600mm
-
16W16W@900mm
-
20W20W@900mm
-
24W24W@900mm
-
26W26W@1200mm
-
28W28W@1200mm
-
30W30W@1200mm
-
32W32W@1500mm
-
36W36W@1500mm
-
40W40W@1500mm
