LED MODULAR TROFFER. Housing: made by Extrusion aluminum fixture body with multi-type of Diffuser, Louver and Lens system to achieve Low Glare application UGR<6 , UGR<13 , UGR<19, UGR<23.
PANCY
Technical Data
-
Luminaire Type-
安裝方式
Tipo de luminaria
Recessed & Suspended Mounted
嵌入式,或吊裝
Empotrado y suspendido montado
-
Dimension-尺寸-Dimensión
- L: 595 x W: 595 x H: 36 mm (with driver box)
- L: 1195 x W: 295 x H: 36 mm (with driver box)
-
Power Consumption with LED Driver
LED燈具包括LED驅動電源功率
Consumo de energía con controlador de LED
- 30W
- 36W
- 40W
- 44W
-
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated -type LED Driver--Constant Current LED Driver
Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ
3. 0-10V Dimming Driver AC100-240V 50/60HZ
4. Dali Dimming Driver AC100-240V 50/60HZ
5. DMX Driver AC100-240V 50/60HZ
6. RDM Driver AC100-240V 50/60HZ
7. ZIGBEE Wireless Control AC100-240V 50/60HZ
8. Remoted-Type Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
-
LED Driver Features Constant Current LED Driver:
驅動特性-恆流LED驅動器
Funciones del controlador de LED
POWER FACTOR : PF>0.90 @ Full Load
TOTAL HARMONIC DISTORTION: THD< 20%
-
Control Protocol/控制協議/Protocolo de Control
0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
-
Light Source Brand-光源品牌-Fuente de luz de marca
OSRAM - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
-
"Lumen Maintenance LM-80 Reported by TM-21"
1. L90(10k) = 50,700 hrs
2. L80(10k) > 63,500 hrs
3. L70(10k) > 63,500 hrs
-
LED Life-LED壽命-La vida del LED
>60,000 hours
-
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K / CCT Adjustable (2700K-6500K)
-
Color Rendering Index-顯色指數
Índice de reproducción cromática
- >80
- >90
-
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
-
Beam Angle
光束角
ángulo de haz

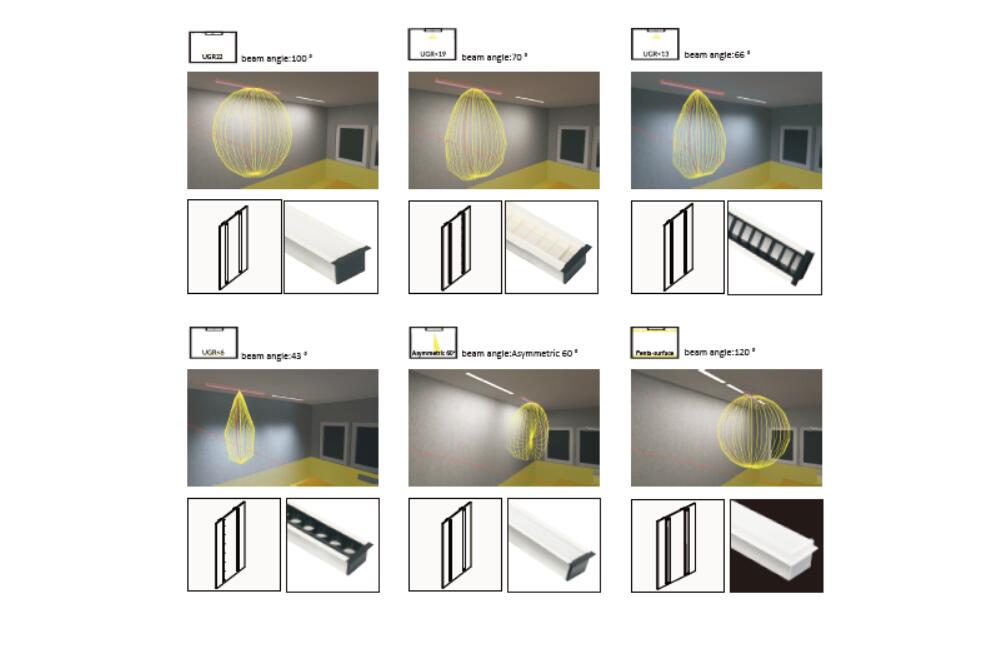

- 100° PC Diffuser UGR 22
- 70° PC Diffuser+ Louver A UGR 19
- 66° PC Diffuser+ Louver B UGR 13
- 43° Lens UGR 6
- 60° Asymertric Angle for Wallwasher Application
- 120° Penta-PC-Diffuser
-
Luminaire Efficacy燈具效率
La eficacia de la luminaria
- 110 Lm/w(2700K)
- 115 Lm/w(3000K)
- 120 Lm/w(4000K)
- 125 Lm/w(5000K)
- 125 Lm/w(6500K)
-
LED Source Luminous Efficacy
LED光源光效Fuente luminosa LED Eficacia
- 130 Lm/w(2700K)
- 135 Lm/w(3000K)
- 140 Lm/w(4000K)
- 150 Lm/w(5000K)
- 150 Lm/w(6500K)
-
Housing materials-外殼材料
Materiales de la carcasa
Aluminium Alloy and Polycarbonate or PMMA
鋁合金和PC或亞克力
Aleación de aluminio y policarbonato o PMMA
-
Modular Troffer Color
模組格柵顏色
Color de troffer modular
Matte white / Matte black
啞光白色 / 啞光黑色
Blanco mate / Matte black
-
Ingress Protection-防護等級
Protección de ingreso
IP40
-
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
-
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
-
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 TM21
LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2 IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
Specification Code
Power Consumption
-
30W30W
-
36W36W
-
40W40W
-
44W44W
LED Driver Type (Remoted Type)
-
SWON/OFF Switch
-
ELVELV Leading Edge Control
-
ANAnalog 0 -10V Dimming
-
DADALI Dimming
-
DMXDMX Dimming
-
RDMRDM Dimming
-
EMEmergency Battery
-
ZIZIGBEE Wireless Control
BEAM Angle (Diffuser System)
-
W120° Penta-PC-Diffuser
-
S43° Lens UGR 6
-
M66° PC Diffuser+ Louver B UGR 13
-
L70° PC Diffuser+ Louver A UGR 19
-
LA100° PC Diffuser UGR 22
-
A60° Asymertric Angle for Wallwasher Application
Color Temperature
-
272700K
-
303000K
-
404000K
-
505000K
-
656500K
-
CACCT Adjustable (2700K-6500K)
COLOR RENDERING INDEX
-
80>80
-
90>90
DIMENSION
-
0606L595 x W595 mm
-
1206L1195 x W295 mm
