WARETY

W70xL70xD50 mm 0.5W Max IP65

Recessed Wall Light Type

Housing: die-cast aluminium, powder-coated, designed as heat sink and ABS plastic recessed housing, stainless steel cover. Anti-glare reflector and diffusor system made of polycarbonate. LED module: CREE CRI>80 LM-80 performance approval >50,000 hours.Well balance light distribution and optimum lighting quality. Applications:schools,public buildings ,etc.It’s as well a great alternative to urban furniture due to its IP65 protection rating.

Technical Data

Luminaire Type-安裝方式-Tipo de luminaria

Recessed Wall Light Type 嵌入式燈具 Tipo de Recessed
Dimension-尺寸-Dimensión

W:70 x L:70 x D: 50 mm
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max

0.5W
LED Driver Type LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512

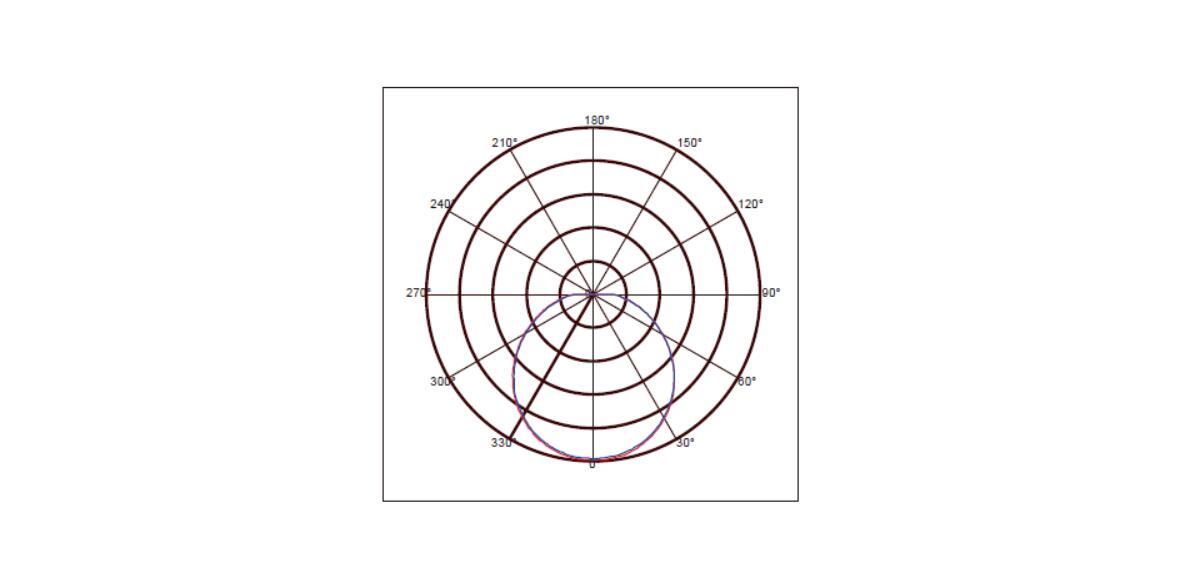

Beam Angle光束角ángulo de haz

110°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率

La eficacia de la luminaria
- 60 Lm/w(2700K), 60 Lm/w(3000K), 65 Lm/w(4000K),
- 70 Lm/w(5000K), 70 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 120 Lm/w(2700K), 120 Lm/w(3000K), 125 Lm/w(4000K),
- 130 Lm/w(5000K), 130 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminium & Stainless steel & PC
Housing Color外殼顏色

color de la carcasa

Stainless Steel
Ingress Protection-防護等級

Protección de ingreso

IP65 - (IEC 60529)
Environment-使用環境-medio ambiente

Outdoor
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
