W50xH95mm Max 52W IP40

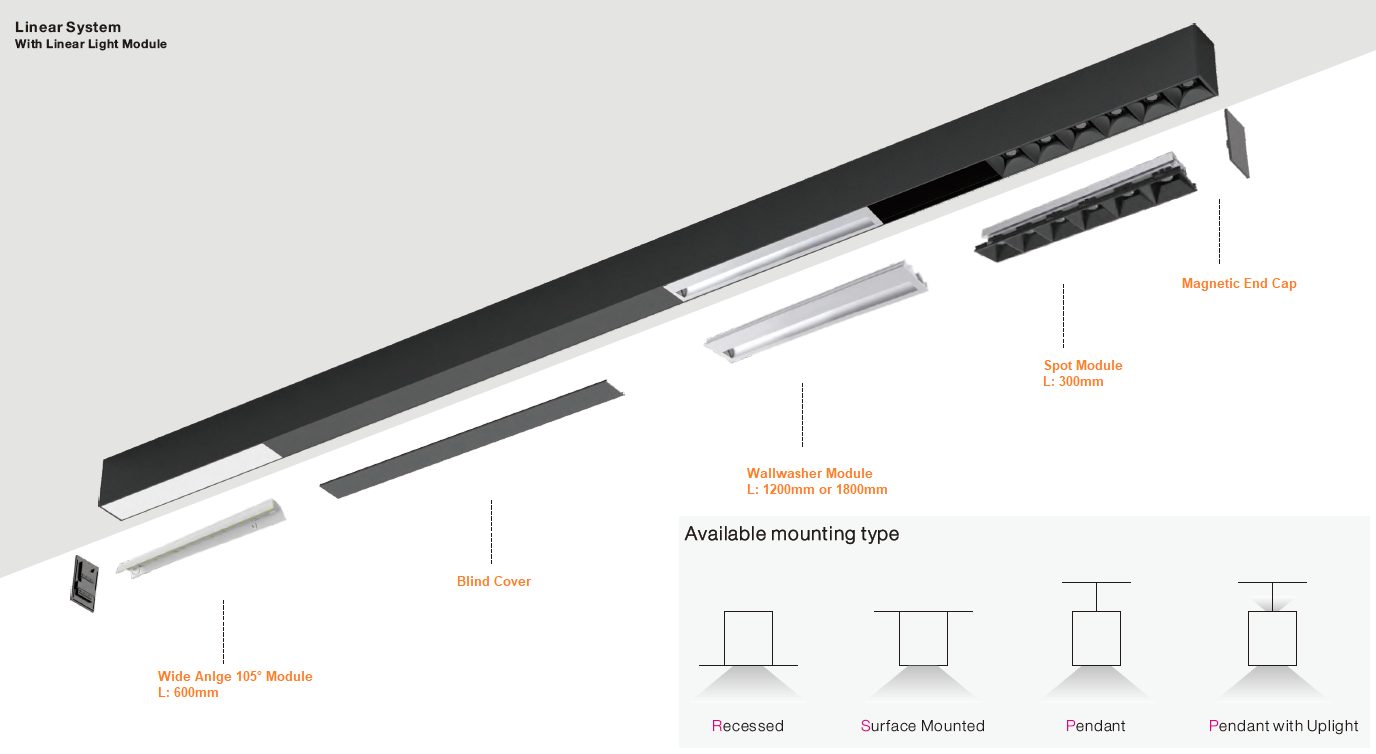

LED Linear System
  • Profile system made of extruded aluminium with 50mm width.
  • Various lighting modules with multiple lighting applications. General light, wall washer and spotlight module for choice.
  • Tool-free inserts mounting by clip-in mechanism.
  • Standard and customized length of module and cover for high precise system.
  • Magnetic end cap without fixing screws.
  • Integrated -type LED Driver -ON/OFF / 0-10V , DALI , DMX .

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Trimless Recessed  Mounted Type & Surface & Suspended  Mounted 內嵌式無框安裝 & 吸頂 & 吊裝

    Tipo montado empotrado sin molduras y montado en superficie y suspendido

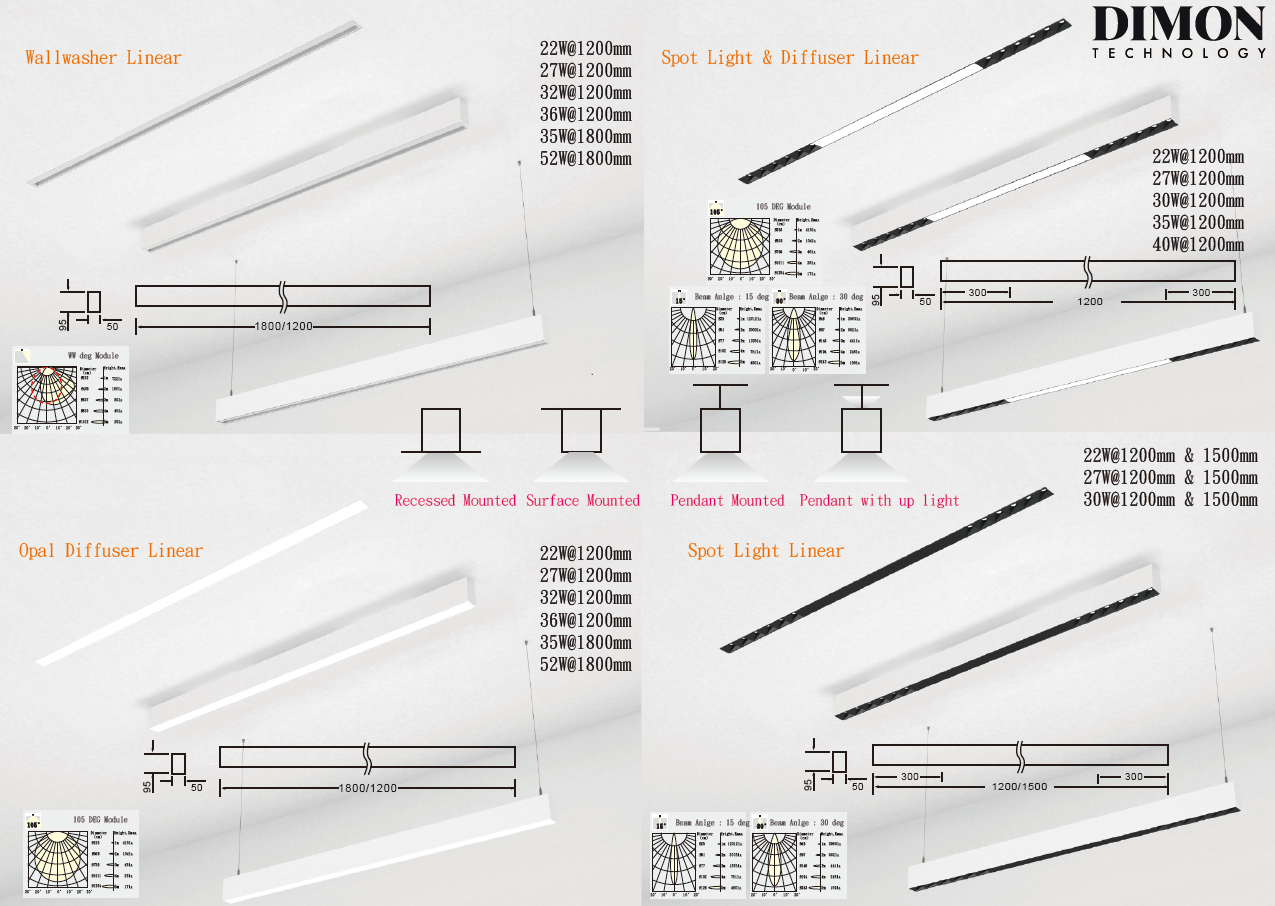

  • Dimension-尺寸-Dimensión



    • Wallwasher Linear :L: 1200 x W: 50 x H: 95mm
    • Wallwasher Linear :L: 1800 x W: 50 x H: 95mm
    • Opal Diffuser Linear :L: 1200 x W: 50 x H: 95mm
    • Opal Diffuser Linear :L: 1800 x W: 50 x H: 95mm
    • Spot Light & Diffuser Linear :L: 1200 x W: 50 x H: 95mm
    • Spot Light Linear : L: 1200 x W: 50 x H: 95mm
    • Spot Light Linear : L: 1500 x W: 50 x H: 95mm
  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • 22W @ Wallwasher Linear @ L: 1200mm                27W @ Wallwasher Linear @ L: 1200mm
    • 32W @ Wallwasher Linear @ L: 1200mm                36W @ Wallwasher Linear @ L: 1200mm
    • 35W @ Wallwasher Linear @ L: 1800mm                52W @ Wallwasher Linear @ L: 1800mm
    • 22W @ Opal Diffuser  Linear @ L: 1200mm             27W @ Opal Diffuser  Linear @ L: 1200mm
    • 32W @ Opal Diffuser  Linear @ L: 1200mm             36W @ Opal Diffuser  Linear @ L: 1200mm
    • 35W @ Opal Diffuser  Linear @ L: 1800mm             52W @ Opal Diffuser  Linear @ L: 1800mm
    • 22W @Spot Light & Diffuser Linear :L: 1200mm       27W @Spot Light & Diffuser Linear :L: 1200mm
    • 30W @Spot Light & Diffuser Linear :L: 1200mm       35W @Spot Light & Diffuser Linear :L: 1200mm
    • 38W @Spot Light & Diffuser Linear :L: 1200mm       40W @Spot Light & Diffuser Linear :L: 1200mm
    • 22W @ Spot Light Linear : L: 1200 mm                     27W @ Spot Light Linear : L: 1200 mm
    • 30W @ Spot Light Linear : L: 1200 mm
    • 22W @ Spot Light Linear : L: 1500 mm                     27W @ Spot Light Linear : L: 1500 mm
    • 30W @ Spot Light Linear : L: 1500 mm
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated -type LED Driver--Constant Current LED Driver

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0-10V Dimming (1%-100%) Driver AC100-240V 50/60HZ

    4. Dali Dimming Driver (1%-100%) AC100-240V 50/60HZ

    5. DMX Driver (1%-100% dimming )AC100-240V 50/60HZ

    6. RDM Driver (1%-100% dimming) AC100-240V 50/60HZ

    7. ZIGBEE Wireless Control  (1%-100% dimming) AC100-240V 50/60HZ

    8. Remoted-Type Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

  • Control Protocol/控制協議/Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Light Source Brand-光源品牌-Fuente de luz de marca

    Samsung LED  for Wallwasher and  Diffuser Version  or  OSRAM  for Spot Light  Version

     ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs  2. L80(10k) > 63,500 hrs    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >80

    >90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

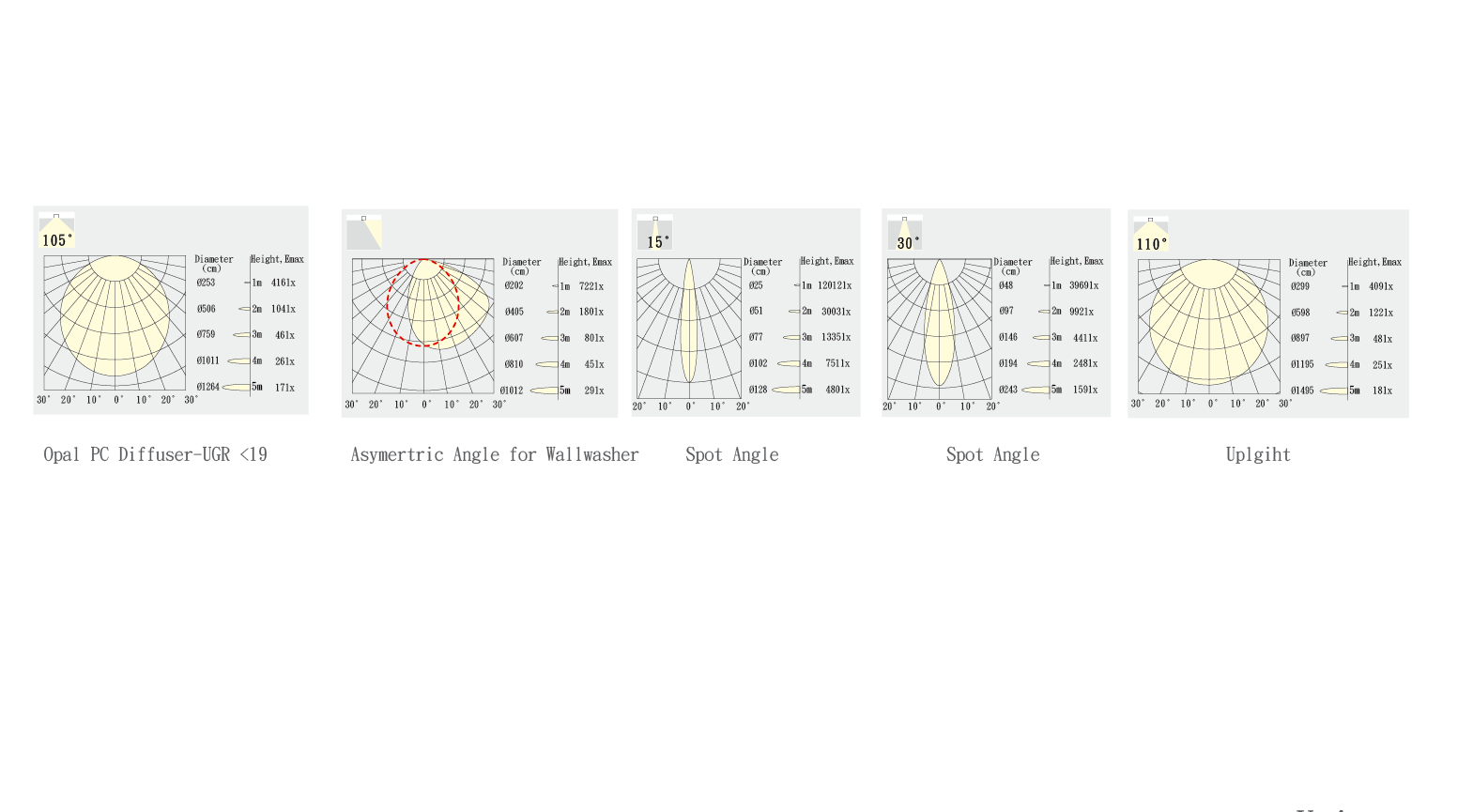

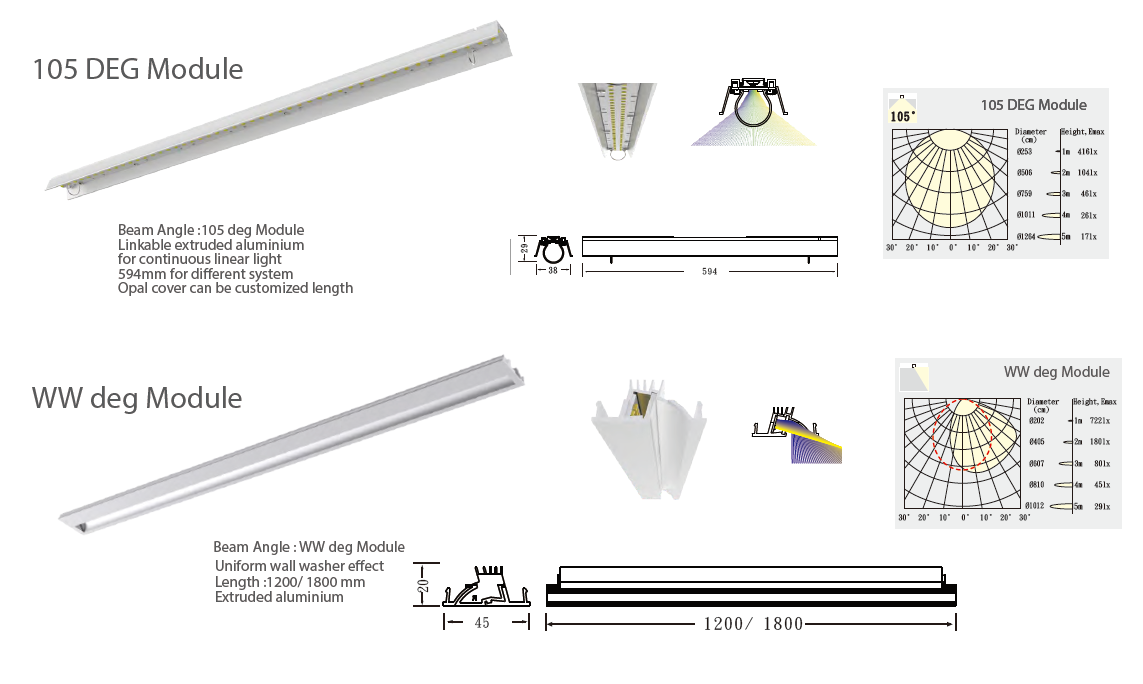

  • Beam Angle

    光束角

    ángulo de haz



    •   Asymertric Angle for Wallwasher Application
    •  105°  Opal PC Diffuser-UGR <19

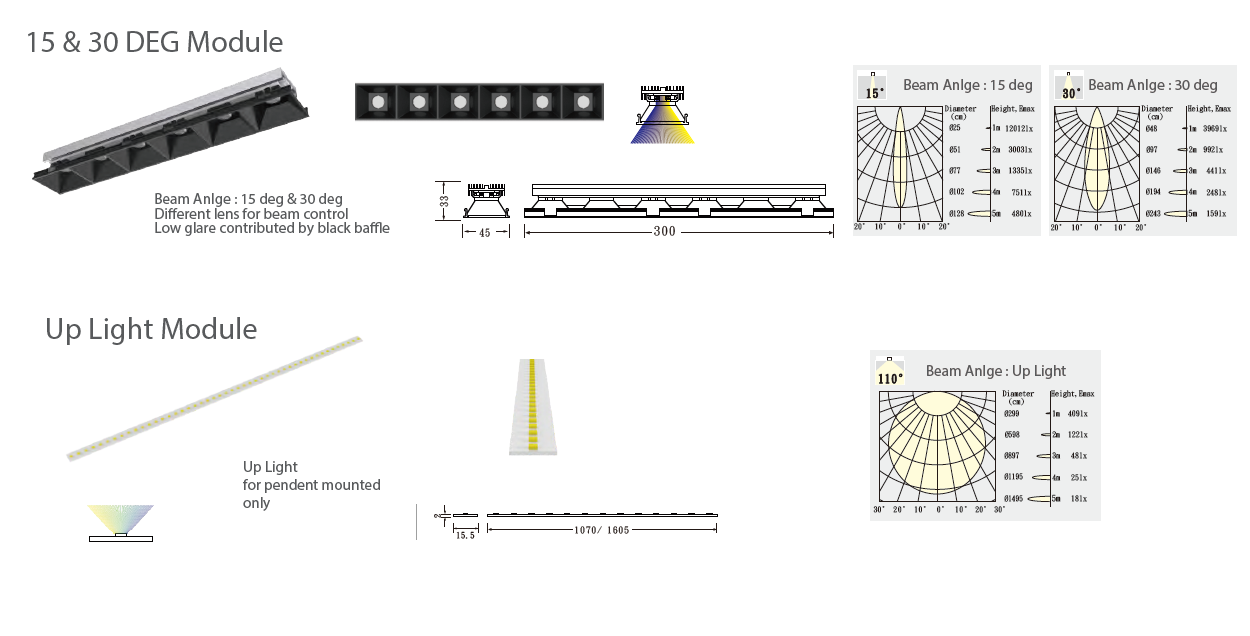

    •  15°   Low glare contributed by black baffle
    •  30°   Low glare contributed by black baffle

    Cross option for Pendant Light -Up Light

    • 110°  Up Light
  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    • Spot Light and Wallwasher   Version

    75Lm/w(2700K)      75 Lm/w(3000K)     80 Lm/w(4000K)

    85 Lm/w(5000K)     85 Lm/w(6000K)    85 Lm/w(6500K)

    • Diffuser Version

    90Lm/w(2700K)      100 Lm/w(3000K)     110 Lm/w(4000K)

    120 Lm/w(5000K)    120 Lm/w(6000K)   120 Lm/w(6500K)

  • LED Source Luminous Efficacy

    LED光源光效Fuente luminosa LED Eficacia

    130 Lm/w(2700K)     130 Lm/w(3000K)    140 Lm/w(4000K)

    140 Lm/w(5000K)     140 Lm/w(6000K)    140 Lm/w(6500K)

  • Housing materials-外殼材料

    Materiales de la carcasa

    Aluminium Alloy and Polycarbonate or PMMA   鋁合金和PC或亞克力

    Aleación de aluminio y policarbonato o PMMA

  • Housing Color外殼顏色 color de la carcasa



    Matte white / Matte black 啞光白色 / 啞光黑色 Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP40

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471  TM21

    LED Driver:           IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2  IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
PEDDY-30W
PEDDY-
-
Power Consumption

Power Consumption

  • 27W
    27W @ Wallwasher Linear @ L: 1200mm
  • 22W
    22W@ Wallwasher Linear @ L: 1200mm
  • 32W
    32W @ Wallwasher Linear @ L: 1200mm
  • 36W
    36W @ Wallwasher Linear @ L: 1200mm
  • 35W
    35W @ Wallwasher Linear @ L: 1800mm
  • 52W
    52W @ Wallwasher Linear @ L: 1800mm
  • 22W
    22W @ Opal Diffuser Linear @ L: 1200mm
  • 27W
    27W @ Opal Diffuser Linear @ L: 1200mm
  • 32W
    32W @ Opal Diffuser Linear @ L: 1200mm
  • 36W
    36W @ Opal Diffuser Linear @ L: 1200mm
  • 35W
    35W @ Opal Diffuser Linear @ L: 1800mm
  • 30W
    30W @ Spot Light Linear : L: 1500 mm
  • 22W
    22W @Spot Light & Diffuser Linear :L: 1200mm
  • 27W
    27W @Spot Light & Diffuser Linear :L: 1200mm
  • 30W
    30W @Spot Light & Diffuser Linear :L: 1200mm
  • 35W
    35W @Spot Light & Diffuser Linear :L: 1200mm
  • 38W
    38W @Spot Light & Diffuser Linear :L: 1200mm
  • 40W
    40W @Spot Light & Diffuser Linear :L: 1200mm
  • 22W
    22W @ Spot Light Linear : L: 1200 mm
  • 27W
    27W @ Spot Light Linear : L: 1200 mm
  • 30W
    30W @ Spot Light Linear : L: 1500 mm
  • 30W
    30W @ Spot Light Linear : L: 1200 mm
  • 22W
    22W @ Spot Light Linear : L: 1500 mm
  • 27W
    27W @ Spot Light Linear : L: 1500 mm
  • 30W
    30W @ Spot Light Linear : L: 1500 mm
