- Surface / Suspension mount
- Compatible with most emergency power pack
- 0.6mm anti-rust and corrosion treated white-painted steel sheet housing
- 0.4mm steel sheet silver high efficiency reflector
- BJB Lamp holder
BOSCA CLASSIC
Technical Data
-
Luminaire Type- 安裝方式 Tipo de luminaria
Surface Mounted Type 明裝式燈具 Superficie Tipo Montado
-
Dimension-尺寸-Dimensión
Refer to Technical Drawing 參考技術圖紙
Consulte el dibujo técnico.
-
Input Voltage-輸入電壓-Voltaje de entrada
AC 220 -240V 50/60HZ
-
Power Consumption Max-燈具功率
Consumo de energía Max
Qty of LED T5 /T8 in Panel Dimension L x W x H (mm) 2x 6-9W 2feet LED T5 643 x 322 x 72 3x 6-9W 2feet LED T5 643 x 442 x 72 4x 6-9W 2feet LED T5 643 x 562 x 72 1 x 12-18W 4feet LED T5 1243 x 195 x 72 2 x 12-18W 4feet LED T5 1243 x 322 x 72 3 x 12-18W 4feet LED T5 1243 x 442 x 72 1 x 20-30W 5feet LED T5 1543 x 195 x 72 2 x 20-30W 5feet LED T5 1543 x 322 x 72 2 x 6-9W 2feet LED T8 683 x 322 x 72 3x 6-9W 2feet LED T8 683 x 442 x 72 4x 6-9W 2feet LED T8 683 x 562 x 72 2 x 12-18W 4feet LED T8 1293 x 322 x 72 3 x 12-18W 4feet LED T8 1293 x 442 x 72 -
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated-type LED Driver for DC LED T5 / T8 Application--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. ELV Dimming Driver (5-100%) AC 220-240V 50/60HZ for DC LED Tube
3. 1-10V Dimming Driver AC220-240V 50/60HZ for DC LED Tube
4. Dali Dimming Driver AC220-240V 50/60HZ for DC LED Tube
5. DMX Driver AC220-240V 50/60HZ for DC LED Tube
6. RDM Driver AC220-240V 50/60HZ for DC LED Tube
7. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ for DC LED Tube
8. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
9. Microwave Sensor ON/OFF
-
Control Protocol-控制協議
Protocolo de Control
1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
-

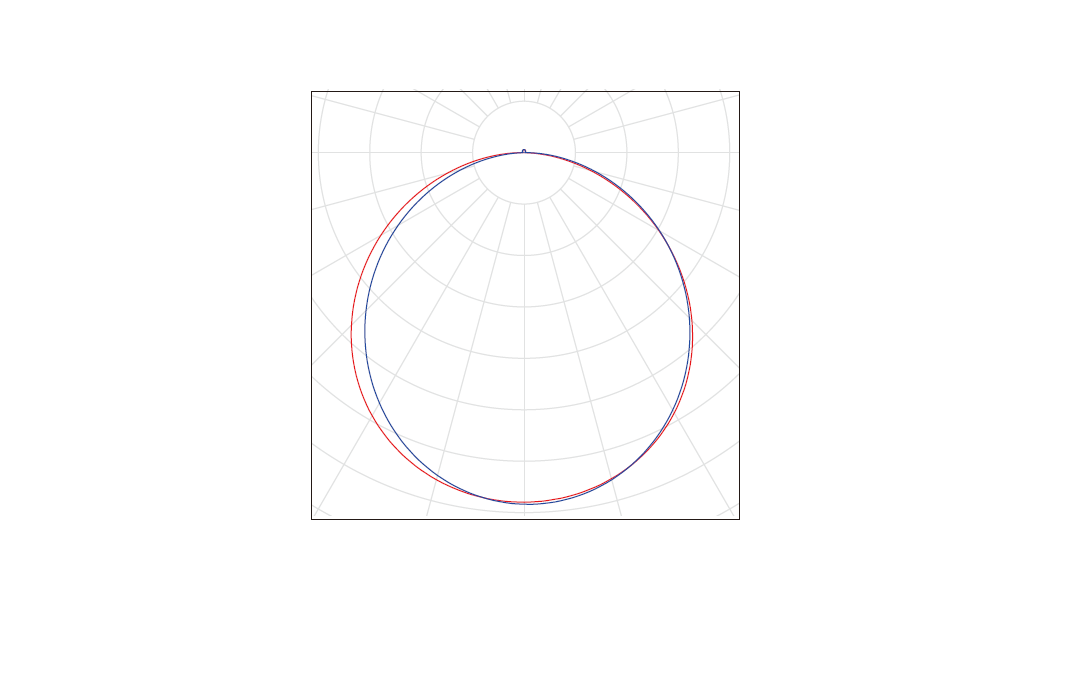

Beam Angle 光束角 ángulo de haz
Refer to LED T5 / T8 tube data sheet
-
Photobiological safety-IEC 62471 / of Luminaire
光生物安全檢驗(ICE/EN 62471) 结果:
Seguridad fotobiológica-IEC 62471
• Low Risk Group 1 (RG1) Refer to LED T5 / T8 Specification
• 低風險組1 (RG1) 參閱LED T5 / T8規格
• Grupo de bajo riesgo 1 (RG1) Consulte la especificación LED T5 / T8
-
Housing materials-外殼材料
Materiales de la carcasa
Steel sheet 鋼板 Hoja de acero
-
Housing Color 外殼顏色
color de la carcasa
White coating 白色塗層Recubrimiento blanco
-
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
-
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
-
Ingress Protection-防護等級 Protección de ingreso
IP20
-
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: IEC/ EN 60598-1 / EN 60598-2-1 / EN 62031 / EN 62493 / IEC/EN 62471 / IEC 60598-2-22 / IEC 62031 /EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547 / IEC 62262 / IEC 60529 / IEC TR62778
Luminaries Performance : IEC 62722-1 / IEC 62722-2-1 FSD regulation PPA 104A (4th Rev). RoHS
Specification Code
POWER
-
12W2 pcs x 2feet 6W LED T5 @ 643 x 322 x 72mm
-
16W2 pcs x 2feet 8W LED T5 @ 643 x 322 x 72mm
-
18W2 pcs x 2feet 9W LED T5 @ 643 x 322 x 72mm
-
18W3 pcs x 2feet 6W LED T5 643 x 442 x 72mm
-
24W3 pcs x 2feet 8W LED T5 @ 643 x 442 x 72mm
-
27W3 pcs x 2feet 9W LED T5 @ 643 x 442 x 72mm
-
24W4 pcs x 2feet 6W LED T5 @ 643 x 562 x 72mm
-
32W4 pcs x 2feet 8W LED T5 @ 643 x 562 x 72mm
-
36W4 pcs x 2feet 9W LED T5 @ 643 x 562 x 72mm
-
12W1 pcs x 12W@ 4feet LED T5 1243 x 195 x 72mm
-
18W1 pcs x 18W@ 4feet LED T5 1243 x 195 x 72mm
-
24W2 x 12W 4feet LED T5 1243 x 322 x 72mm
-
36W2 x 18W 4feet LED T5 1243 x 322 x 72mm
-
36W3 x 12W 4feet LED T5 1243 x 442 x 72mm
-
20W1 x 20W 5feet LED T5 1543 x 195 x 72mm
-
24W1 x 24W 5feet LED T5 1543 x 195 x 72mm
-
40W2 x 20W 5feet LED T5 1543 x 322 x 72mm
-
48W2 x 24W 5feet LED T5 1543 x 322 x 72mm
-
60W2 x 30W 5feet LED T5 1543 x 322 x 72mm
-
18W2 x 9W 2feet LED T8 683 x 322 x 72mm
-
27W3x 9W 2feet LED T8 683 x 442 x 72mm
-
36W4x 9W 2feet LED T8 683 x 562 x 72
-
36W2 x18W 4feet LED T8 1293 x 322 x 72mm
-
54W3 x 18W 4feet LED T8 1293 x 442 x 72mm
