DRIWOD-EM

Emergency Light Max 20W IP65

RECESSED MOUNT SPOT LIGHT-IP65

LED RECESSED MOUNT SPOT LIGHT-IP65. Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare PC reflector and diffusor system made of tempered glass. LED module: high-power CREE LEDs Array, CRI>80, LM-80 performance approval >50,000 hours.

2 hours or 3hours emergency backup with either Ni-MH battery or Ni-Cd battery
Provided with a LED for indication when battery charge is in process.
Tested in accordance with latest local requirement PPA/104(A) (4th Revision)

Technical Data

Luminaire Type- 安裝方式-Tipo de luminaria

Recessed Mount Type嵌入式筒燈Empotrada Tipo Mount
Dimension-尺寸-Dimensión

DIA 127 x H:65 mm @ Stainless Steel Cover

DIA 127 x H:70 mm @ Aluminum cover
Cut off Dimension-開孔尺寸-Cortar Dimensión

DIA 110 mm
QTY of LEDs-燈珠數量-CANT de LEDs

1 pcs CREE LED Array
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max

7W 10W 12W 16W 18W 20W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0-10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)

6. RDM Driver  AC100-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 24 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features 驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.95 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議 Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

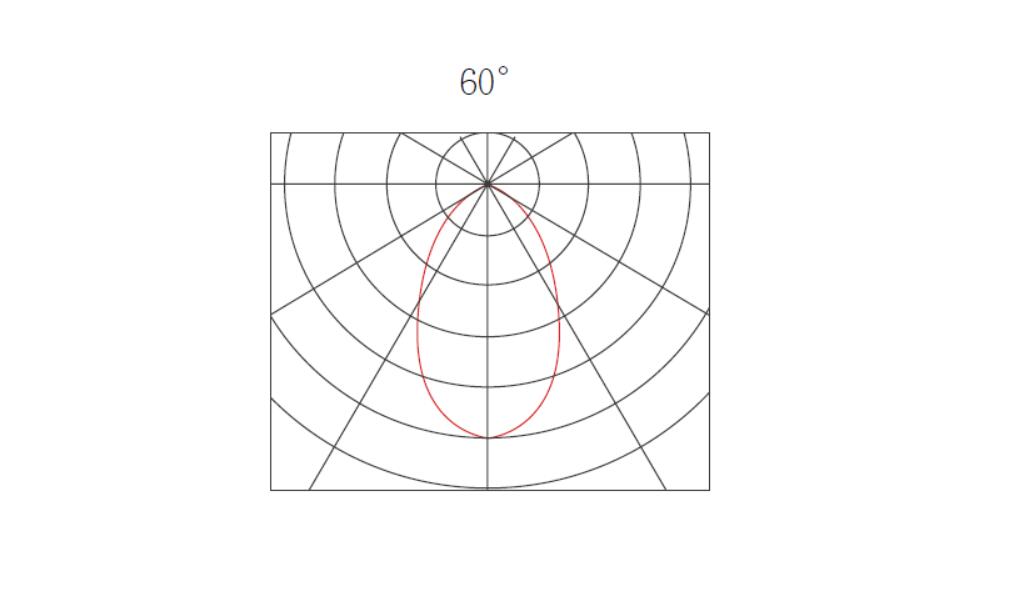

Beam Angle 光束角 ángulo de haz

60°
Light Source Brand-光源品牌-Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"@ 25°C

L80(10k) > 60,000 hrs L70(10k) > 65,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫 Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80

>90
Chromaticity Tolerance (initial Macadam)

色度容差（初始Macadam）

Tolerancia de cromaticidad (Macadam inicial)

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria

105 Lm/w(2700K), 105 Lm/w(3000K), 110 Lm/w(4000K),

115 Lm/w(5000K), 115 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

130 Lm/w(2700K), 130 Lm/w(3000K) 135 Lm/w(4000K),

140 Lm/w(5000K), 140 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum & Polycarbonate reflector & Tempered glass lampshade

壓鑄鋁和碳酸聚酯反光杯和鋼化玻璃燈罩

Reflector de policarbonato y aluminio fundido a presión y pantalla de vidrio templado
Trim Color

框邊顏色

color de corte

Powder Coating :Matte grey body /Stainless steel cover or White aluminum cover

粉末塗料：啞光灰色燈身 /不銹鋼面蓋或白色噴塗鋁面罩

Recubrimiento en polvo: cuerpo gris mate / cubierta de acero inoxidable o cubierta de aluminio blanco
Ingress Protection-防護等級

Protección de ingreso

IP65
Mech impact protection機械衝擊保護

Protección contra impactos mecánicos

IK07
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-2 ; IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 (RG1) ;ROHS

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547 /IEC 62384
