LAHAN-EM

Emergency Light Max 60W IP54

Linear Type

Housing: die-cast aluminium, powder-coated, designed as heat sink, with connection cable. Anti-glare reflector and diffusor system made of PC. LED module: Samsung 5630 CRI>80 LM-80 performance approve >50,000 hours. Integrated-Type ELV , 0-10V and DALI LED constant current control gear. Ingress Protection: IP54

2 hours or 3hours emergency backup with either Ni-MH battery or Ni-Cd battery
Provided with a LED for indication when battery charge is in process.
Tested in accordance with latest local requirement PPA/104(A) (4th Revision)

Technical Data

Luminaire Type-安裝方式 Tipo de luminaria

Pendent Type\ Recessed Type\ Surface mounted

吊裝燈具\嵌入式燈具\吸頂式燈具

Pendent tipo \ tipo de Recessed \ Surface mounted
Dimension-尺寸-Dimensión

L: 879 x W:60xH:80mm

L:1139 x W:60xH:80mm

L:1481 x W:60xH:80mm
Power Consumption Max-燈具功率

Consumo de energía Max

L:879mm: 6W 8W 10W 12W 14W 16W 18W

L:1139mm: 20W 22W 24W 26W 28W 30W 32W

L:1481mm: 34W 36W 40W 42W 45W 50W 60W
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC100-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC100-240V 50/60HZ

6. RDM Driver  AC100-240V 50/60HZ
LED Driver Features驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

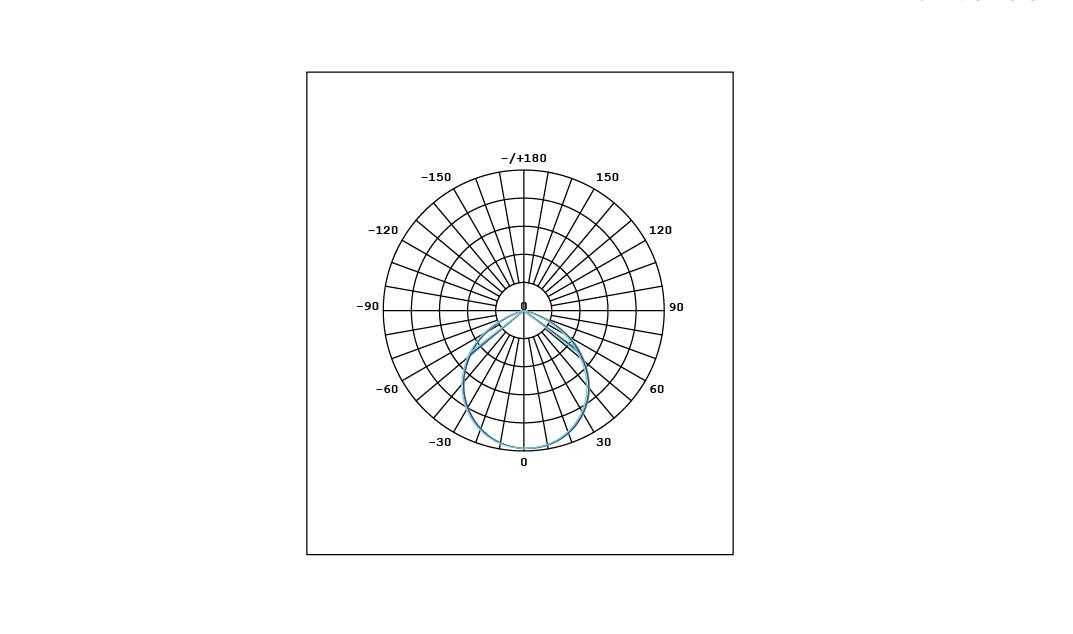

Beam Angle/光束角/ángulo de haz

120°
Light Source Brand-光源品牌-Fuente de luz de marca

Samsung - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria

85 lm/w(2700K), 85 lm/w(3000K), 90 lm/w(4000K),

90 lm/w(5000K), 95 lm/w(6500K)
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia

120 lm/w(2700K), 130 lm/w(3000K), 140 lm/w(4000K),

150 lm/w(5000K), 150 lm/w(6500K)
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum and Polycarbonate 壓鑄鋁和PC

Fundición de aluminio y PC
Housing Color

外殼顏色

color de la carcasa

Matte Silver 砂銀色

Matte White 砂白色

Matte Black 砂黑色
Ingress Protection-防護等級

Protección de ingreso

IP54 - (IEC 60529)
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Comply Testing Standard 符合測試標準

Cumplir el estándar de prueba

LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Risk Group 1)

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
